port: | Shanghai or Ningbo Port | Core Components Warranty: | 2 years |
brand: | Cinch | We have IS9001 certificate: | Speed (r/min): 18-200 |
After-sales service provided: | Engineers can repair machinery overseas | Certification: | EU standard |
Power (kW): | 5.5kW | application: | liquid |
type: | blender | Dimensions (L*W*H): | therefore |
Function: | liquid reaction | usage: | pharmacy |
Key words: | chemical reactor | Core components: | engine, pressure vessel |
payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram | Name: | Chemical Stainless Steel Chemical Crystallization Reactor Machinery |
Supply capacity: | 300 sets per quarter | Health status: | new |
process: | continuously | Heat source: | Steam or heat transfer oil |
Mechanical test report: | if | Packaging Details: | Export standard wooden box |
Showroom location: | America, Thailand | Applicable industries: | Food and Beverage Plants, Farms |
Warranty: | 4 years | Main selling point: | Remote monitoring |
Marketing Type: | New Products 2020 | Weight (kg): | 650kg |
Packaging Preview: | | place of origin; place of origin: | Zhejiang, China |
Video external inspection: | if | Material: SS 316L / SS304: | Capacity: 50L~30000L.ery white |
Product Description

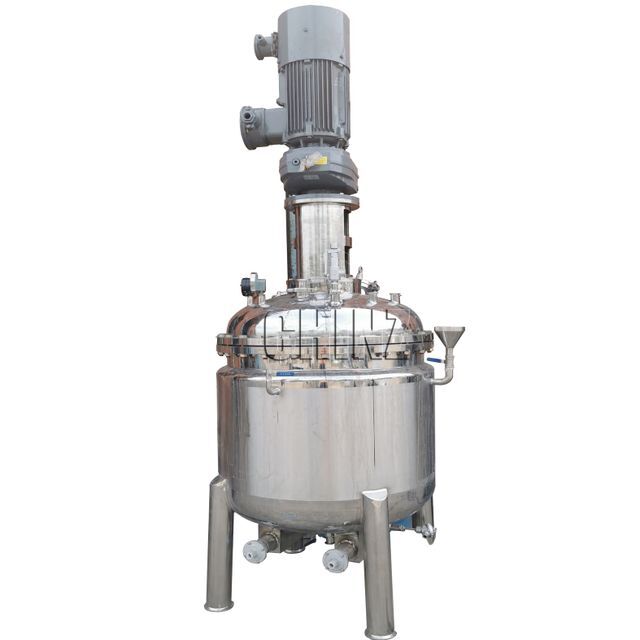

Pharmaceutical Chemical Stainless Steel Chemical Crystallization Reactor Machinery
The reactor is a closed vessel for chemical reaction, distillation, crystallization, mixing and material separation. This is specially designed equipment with agitator and gearbox with electric motor. Agitators are used for proper mixing, vortex formation, vortex formation as required. The type of agitator is determined according to the process requirements. Jacketed/limpet coils are used to maintain reaction conditions by providing facilities such as steam, chilled water, chilled water, chilled brine and hot water. Solids were added to the reactor manually through manholes/nozzles, and liquids were added to the reactor through liquid transfer lines connected to the reactor or manually through a metering bottle. The solution or slurry was drained from the reactor by nitrogen pressure or a pump through a bottom discharge valve. Structure: The reactor is a vertical shell structure, the top and bottom ends are dish-shaped/elliptical heads, the outer shell and bottom ends are jacketed and thermally insulated, and equipped with mechanical mixer/magnetic mixer/pneumatic mixer.
feature:
1. The jacket can use different media, such as steam, chiller, cooling water, heat transfer oil, etc., for different processes. 2. All parts of the contact material are mirror polished, in line with GMP. 3. The outer sheath can be made of different insulating materials, such as PUF, glass wool, mineral wool, AlSiO3 materials, etc. to coat the stainless steel plate. 4. According to the different processes, our company adopts different types of reactor mechanical seals. 5. Different inner baffle designs for different processes. 6. Different types of mixers for different processes.
Product parameters
Model | | FG-300 | FG-500 | FG-1000 | FG-2000 | FG-3000 | FG-5000 |
Volume L | | 300 | 500 | 1000 | 2000 | 3000 | 5000 |
Working pressure Mpa | in | ≤0.2 | | | | | |
Working pressure Mpa | jacket | ≤0.3 | | | | | |
Motor power Kw | | 0.55 | 1.1 | 1.5 | 3.0 | 5.5 | 7.5 |
stirring speed rmp | | 0-200 | | | | | |
Dimensions mm | diameter | 900 | 1150 | 1400 | 1580 | 1800 | 2050 |
| high | 2200 | 2400 | 2700 | 3300 | 3600 | 4200 |
Heat exchange area ㎡ | | 2 | 2.7 | 4.5 | 7.5 | 8.6 | 10.4 |

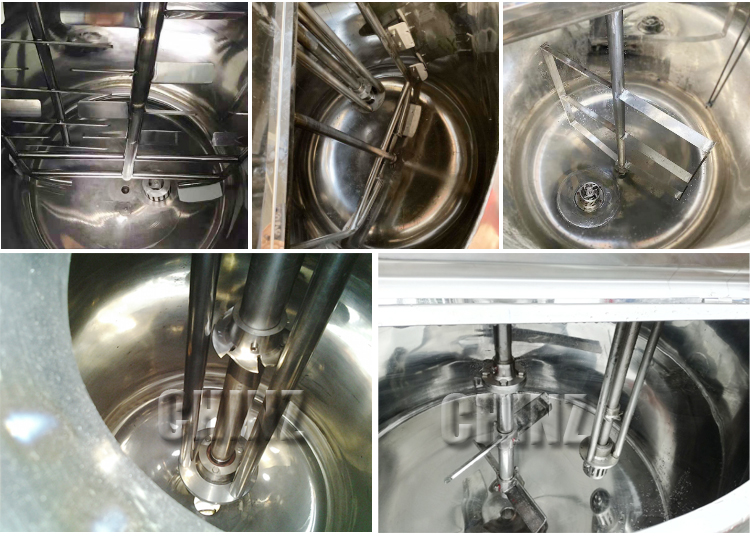

detailed picture
application:
This machine is ideal for the production of high-end skin care products, medicinal ointments and many other creams that require a very soft and smooth finish. It has the functions of heating, mixing, scraping, rotating at different speeds and vacuum supply. Very wide range of uses 1. Cosmetics: skin cream, hair spray, lotion, soap, shampoo, etc. 2. Food: jam, chocolate, sauce, etc. 3. Pharmacy: ointment, syrup, paste, etc. 4. Chemicals: paints, adhesives, detergents, etc.
