Dimensions (L*W*H): | 1500*1200*1500 | Marketing Type: | 2020 New Products |
Core components: | PLC, engine, gearbox, gear | After-sales service provided: | online support |
Video outbound inspection: | if | Warranty: | 1 year |
Crushed size: | 1-3 mm | Packaging Details: | wooden box |
Applicable industries: | Manufacturing Plants, Machinery Repair Shops, Food & Beverage Plants, Farms, Restaurants, Household, Food & Beverage Stores | Health status: | new |
brand: | XD | Origin: | Jiangsu, China |
Core component warranty: | 1 year | Weight (kg): | 150 kg |
payment terms: | L/C, Western Union, D/P, D/A, T/T | Showroom location: | not any |
After Warranty Service: | Video Technical Support | Main selling points: | high productivity |
Power (kW): | 5.5 | Name: | Herbs, Tea Powder, Sugar Salt Spice Chili Grinder Grinder |
Supply capacity: | 100 sets per month | Material: | 304/316L stainless steel |
port: | Shanghai | Mechanical test report: | if |
type: | crush | application: | powder |
capacity: | 20-100kg/hour |

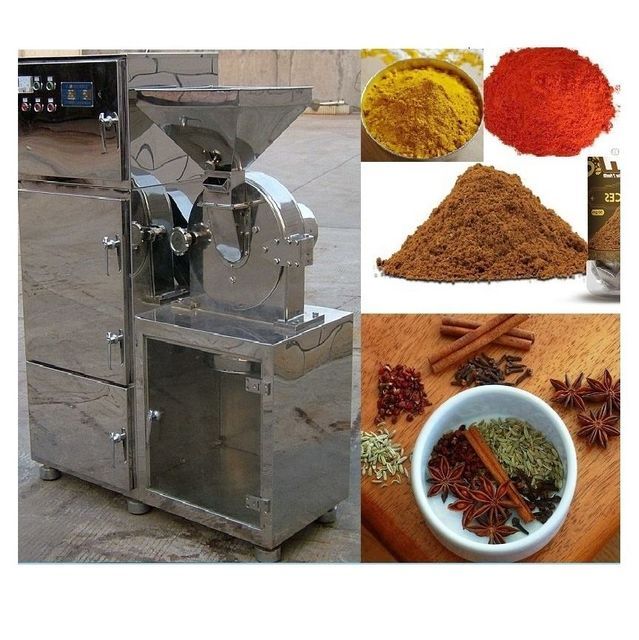

Herbs, Tea Bag Powder, Sugar Salt Spice Chili Grinder Grinder
The machine uses the relative movement of the active hammer to grind the target material. The size of the powder can be achieved by changing the screen. The machine has the characteristics of simple structure, firmness, stable operation and high efficiency. Stainless steel. "GPM" standard.
Model
|
Model 20B
|
Type 30B
|
Type 40B
|
Production capacitykg/h
|
20-150
|
30-300
|
40-800
|
Spindle speedr/min
|
4500
|
3800
|
3400
|
Feed particle size mm
|
<6
|
<10
|
<12
|
Product fineness
|
12-120
|
12-120
|
12-120
|
Grinding power kw
|
4
|
5.5
|
7.5
|
Vacuum power kw
|
1.5
|
1.5
|
1.5
|
Weightkg
|
350
|
Chapter 420
|
Chapter 580
|
Dimensions Length × Width × Height mm
|
1100×500
×1650
|
1200×600
×1650
|
1350×750
×1700
|
