Forestry Machinery Portable Sawmill Sawmill with Trailer

Product details
Health status:new, newDistance to Teeth:22 mm (0.86 in)
Mechanical test report:ifplace of origin; place of origin:China
Core components:Bearings, motors, gears, engines, gearboxesBlade size:3670 x 32x 1.2 mm (144"*1.25"*0.043")
Shift:301ccuse:carpentry
Warranty:1 yearShowroom location:not any
strength:9 HP gasoline engineweight:450kg
Dimensions (L*W*H):4064*1778*1800mmCertification:Chief Executive
Applicable industries:farm, home useTrack length:4064 mm (160 inches)
Video external inspection:ifMain selling point:easy to operate
Cutting Capability:559 x 165 x 2794 mm (22"*6.5"*110")weight:344/380 kg
Packaging Preview:payment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram
brand:RimaCore Components Warranty:1 year
Diameter of impeller:475 mm (18.7 in)Marketing Type:New Products 2020
Power Type:gasolineBlade speed:17 m/min
Packaging Details:The normal packing is wooden box (size: L*W*H). If exported to European countries, the wooden box will be fumigated. If the container is too tight, we will use pe film packaging or according to customer's special requirements.
Product Description

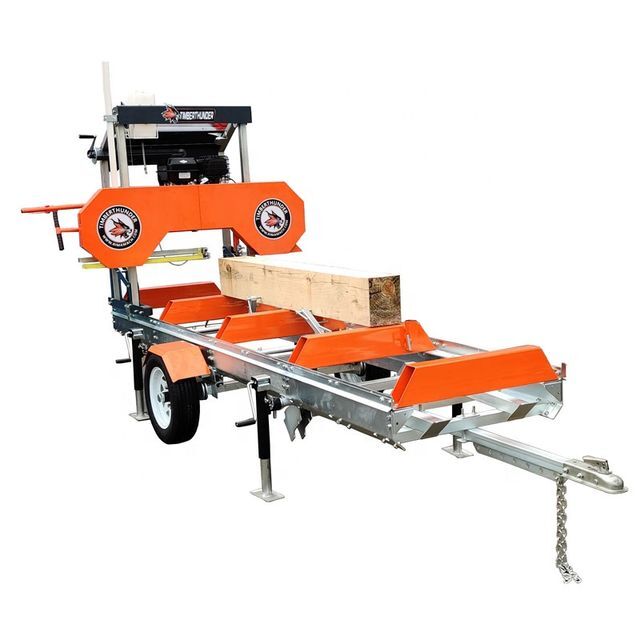

RIMA portable sawmills are designed for budget-conscious customers
Special price point. Based on our very popular RS26 model, the RS31 offers woodworking enthusiasts an easy-to-use, great
The engineered sawmill is capable of milling logs up to 31" in diameter and 110" (2.79m) in length. RS26/31 also supports a
The ability to infinitely expand your track to handle milled logs of any length.
Model
RS22G
RS26G
RS31G
RS22E
RS26E
RS31E
strength
Gasoline 7HP
(Lifan, manual start)
Gasoline 9HP
(Lifan, manual start)
Gasoline 15HP
(Lifan, manual start)
electric motor
5.5KW
electric motor
7.5KW
shift
212cc
301cc
420cc
400V 50HZ three-phase
Cutting ability
559*135*2794mm
(22"*5.3"*110")
660*165*2794mm
(26"*6.5"*110")
790*165*3279mm
(31"*6.5"*129")
559*135*2794mm
(22"*5.3"*110")
660*165*2794mm
(26"*6.5"*110")
790*165*3279mm
(31"*6.5"*129"
frame
2
4
2
4
Safe cutting speed
13-15 sec/m
Blade speed
17 m/min
distance tooth
22 mm (0.86 in)
Diameter of impeller
475 mm (18.7 in)
aspect
4064*1778*1800mm (160"*70"*71")
track length
4064 mm (160 inches)
Package
P1: 1800*550*810mm, P2: 2050*140*​​​95mm
weight
312/344 kg
352/380kg
20"/40"HC
39/78
39/71

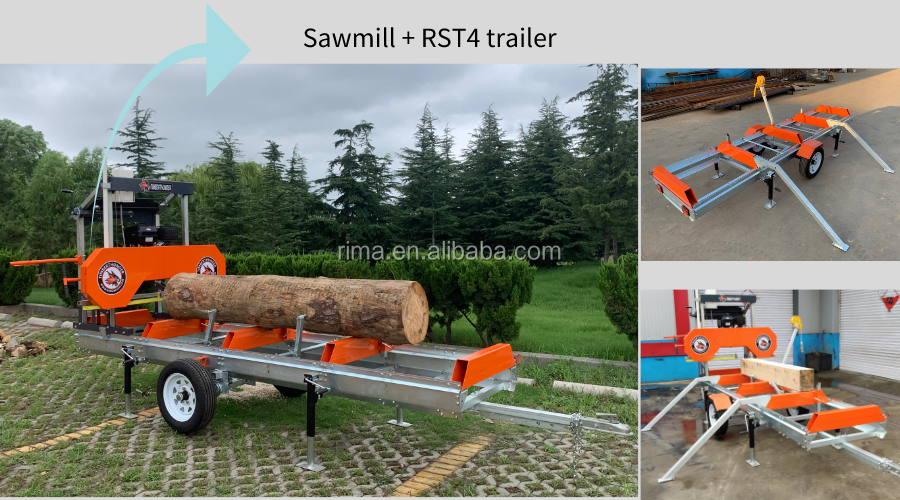

Model
RST4
RST6
trailer axle
50x50mm
Trailer size (L*W*H)
3970(+1000mm tie rod)x900x700mm
6000(+1000mm pull rod)x900x700mm
Trailer Wheels with Fenders
165/70R13
Trailer Loading Capacity
1500kg
trailer lights
LED Light Kit
Trailer Leveling Jack
4
6
tow ball coupler
2 inches (50 mm)
Finish
Galvanized
log loading ramp
maximum. 1350kg
log loading winch
3000 lbs
weight
600kg
650kg
detailed picture
