Wood Cutter Gas/Diesel/Electric Portable Wheel Trailer Sawmill, Horizontal Bandsaw Sawmill

Supplier: Yantai Rima Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Andy Gao
Price: $2000.00 / 1 - 19 pieces
$1450.00 / >=20 pieces
Min. Order: 1 piece

Click here to contact

Product details

application:	carpentry	Serve:	ensure
Track length:	4064mm	type:	band saw
Key words:	Portable Horizontal Band Saw	Dimensions (LWH):	406417781800
use:	carpentry	color:	Customer's actual requirements

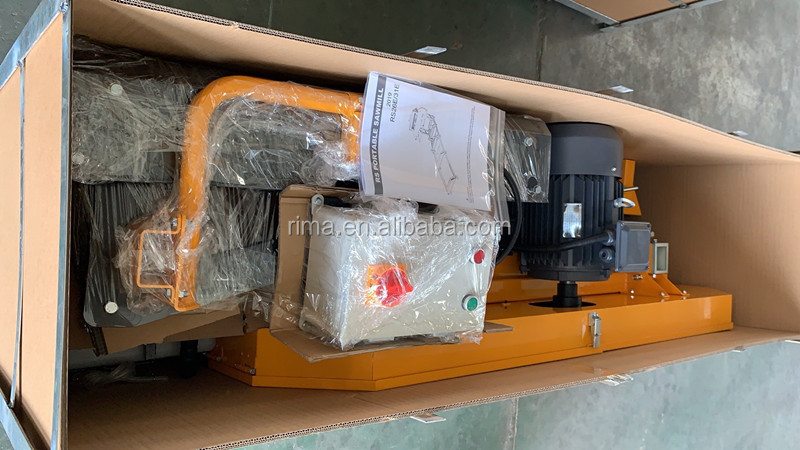

Packaging Details:	Iron frame and carton	frame:	4 poles
usage:	plank cutting	port:	Qingdao
Weight (kg):	380kg	Mechanical test report:	if
Voltage:	400v	engine:	petrol/electric
Applied Wood:	log	payment terms:	letter of credit, wire transfer
Video external inspection:	if	Blade size:	3670340.9mm (144"1-1/4"0.035")
Maximum working width (mm):	790mm	Band saw type:	Log Bandsaw
Supply capacity:	500 Bandsaws per month	Health status:	new
place of origin; place of origin:	Shandong China	Core Components Warranty:	1 year
Core components:	engine	Applicable industries:	Farm, Home Use, Retail, Woodworking
Main selling point:	easy to operate	Warranty:	1 year
Safe cutting speed:	13-15 sec/m	Marketing Type:	New Products 2020
Packaging Preview:		style:	horizontal

Product Description

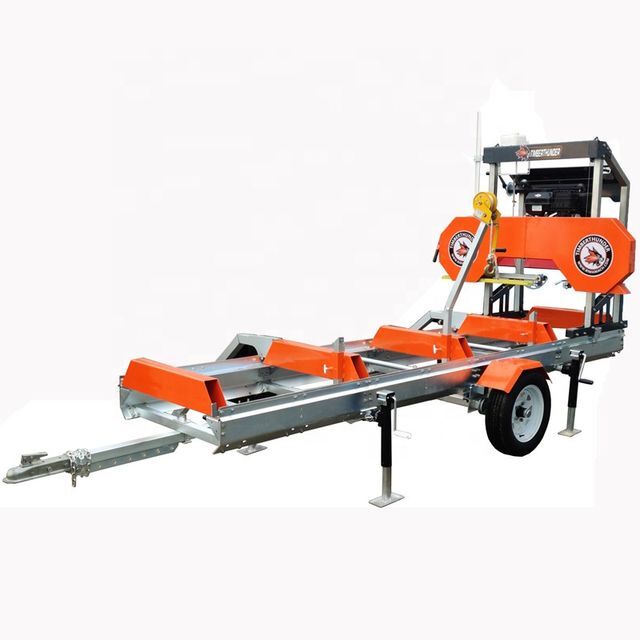

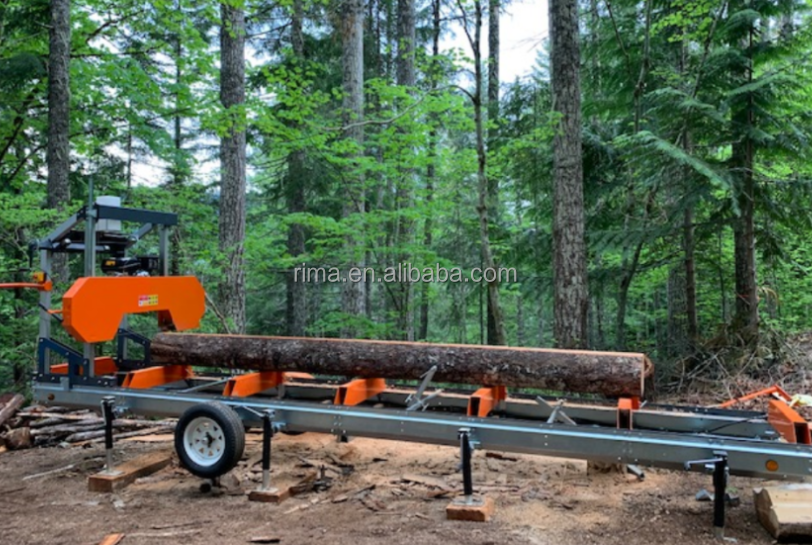

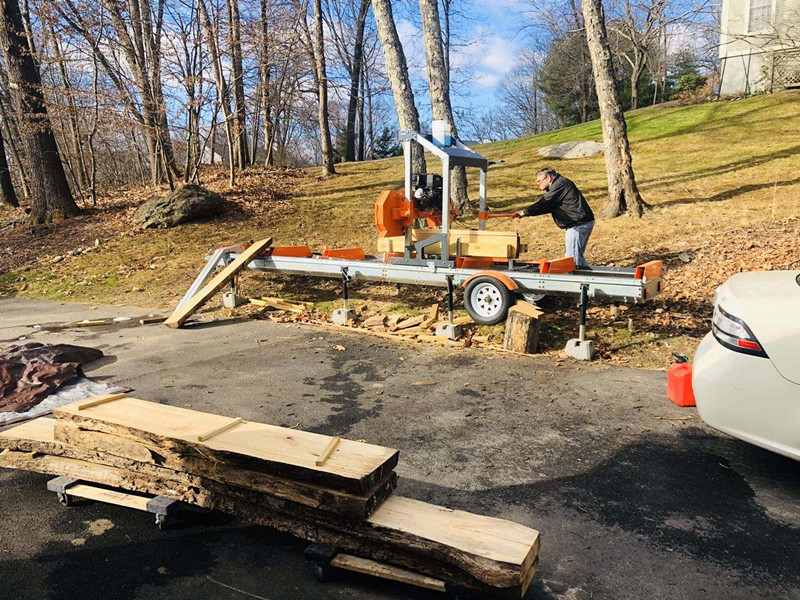

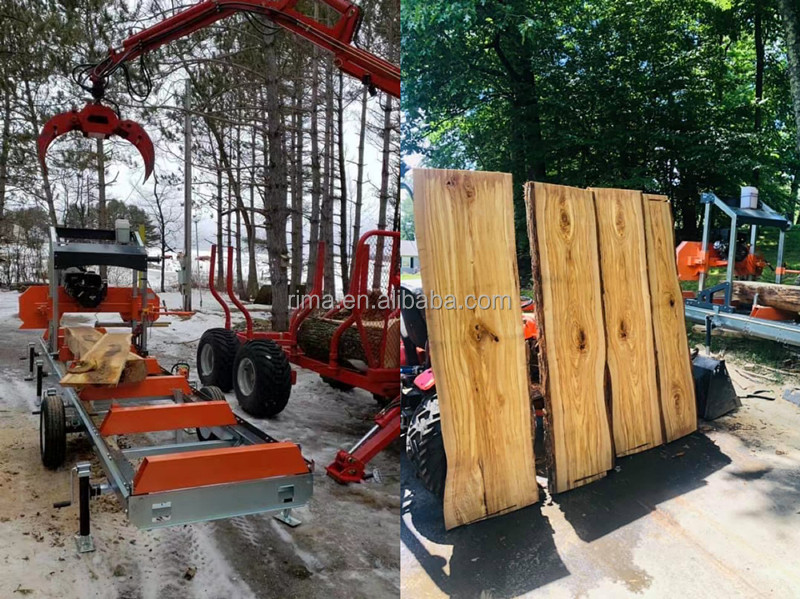

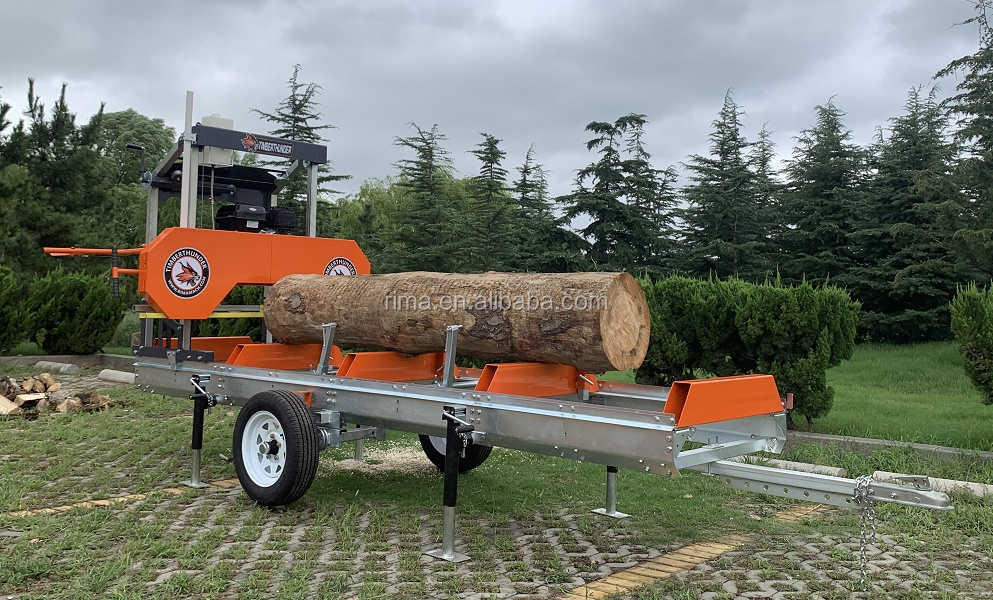

Trailer sawmills can be moved around easily and safely. With unique dowels, the sawmill and trailer are always held together.

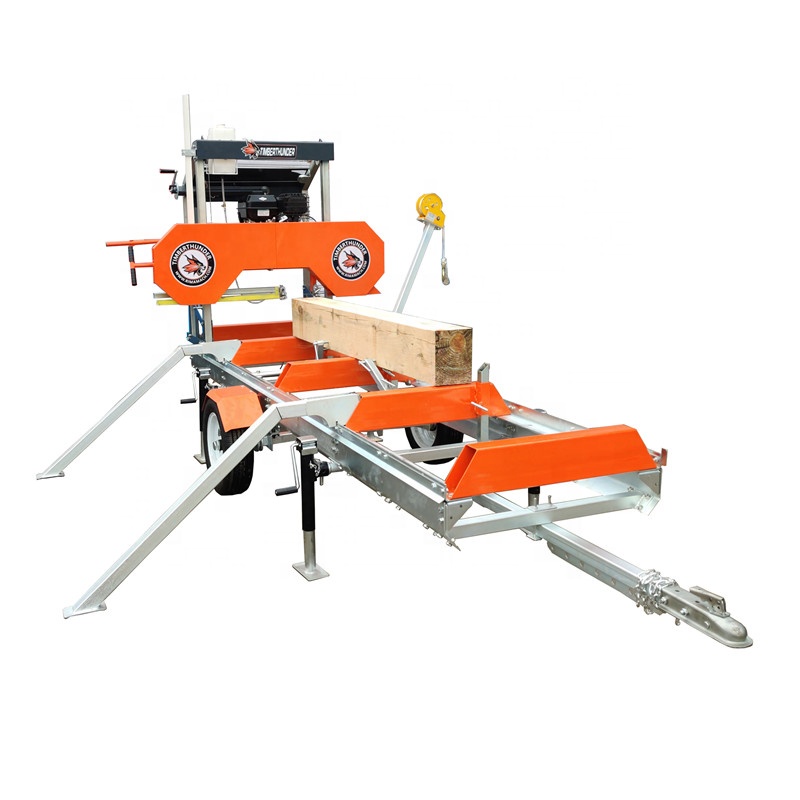

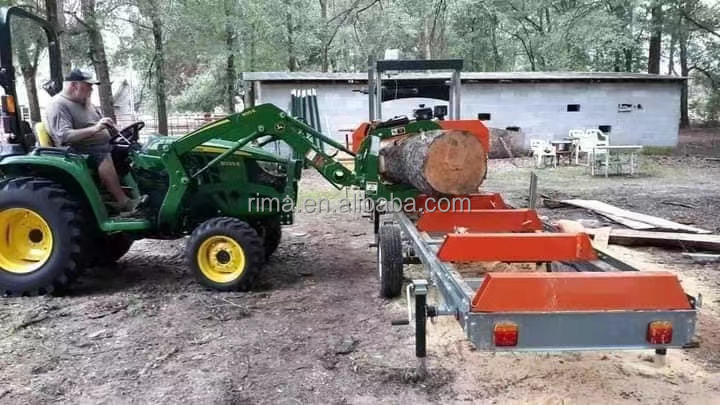

Using a hand winch, you can lift logs from the ground to the sawmill track. Sheet sawing thickness is adjustable. The minimum thickness we can saw is 1.5mm.

Trailer length optional: 4m and 6m. You can choose 2 engines accordingly: petrol and electric.

It's a great helper if you like to make your own furniture. Our sawmills bring you close to nature.

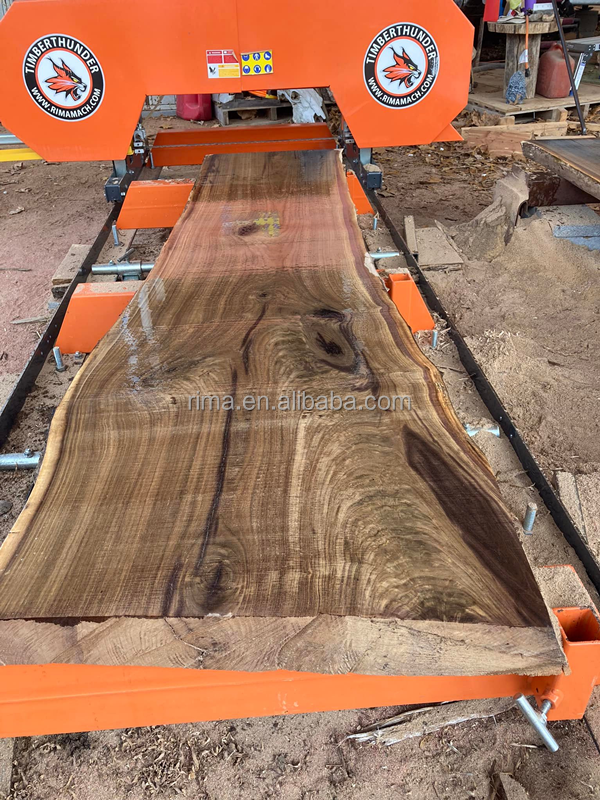

detailed picture

Specification

Model	RS26G	RS31G	RS26E	RS31E
strength	Gasoline 9HP (Lifan, manual start)	Gasoline 15HP (Lifan, manual start)	electric motor 5.5KW	electric motor 7.5KW
shift	301cc	420cc	400V 50HZ three-phase
Cutting ability	6601782794mm (26”7”110”)	7901782794mm (31”7”110”)	6601782794mm (26”7”110”)	7901782794mm (31”7”110”)
frame	4	4	4	4
Blade size	3690340.9mm (145”1-1/4”0.035”)	3960340.9mm (156”1-1/4”0.035”)	3690340.9mm(145”1.25”0.035”)	3960340.9mm (156”1-1/4”0.035”)
Standard track size	4000x900mm (157”x35.4”)	4000x1030mm (157”x40.5”)	4000x900mm (157”x35.4”)	4000x1030mm (157”x40.5”)
Package	2080x570x830mm	2150x570x830mm	2080x610x810mm	2150x610x810mm
Safe cutting speed	13-15 sec/m			13-15 sec/m
Blade speed	17 m/min			17 m/min
distance tooth	22 mm (0.86 in)			22 mm (0.86 in)
Diameter of impeller	480 mm (18.8 in)			480 mm (18.8 in)
aspect	406417781800mm (160”70”71”)			406417781800mm (160”70”71”)
weight	315/355 kg			352/380kg

Model	RST4	RST6
trailer axle	50x50mm	50x50mm
Trailer size (LWH)	3970(+1000mm tie rod)x900x700mm	6000(+1000mm pull rod)x900x700mm
Trailer Wheels with Fenders	165/70R13	165/70R13
Trailer Loading Capacity	1500kg	1500kg
trailer lights	LED Light Kit	LED Light Kit
Trailer Leveling Jack	4	6
tow ball coupler	2 inches (50 mm)	2 inches (50 mm)
Finish	Galvanized	Galvanized
log loading ramp	maximum. 1350kg	maximum. 1350kg
log loading winch	3000 lbs	3000 lbs
weight	600kg	650kg
