China Supply Steel Stamped Roller Pillow Block Pillow Blocks

Supplier: Zonfa Electric (Tongling) Heart Precision Industry Co., Ltd.
Region: Anhui, China
Contact: Ms Trinity China
Price: $0.20 / >=500 sets
Min. Order: 500 sets

Click here to contact

Product details

brand:	Trinity	Packaging Details:	Wooden case (or as your request) size: 105010501050mm / 110011001100mm / customized size High precision shaft/roller bearing labyrinth seal
product name:	Bearing housing	port:	Shanghai Port
place of origin; place of origin:	Anhui, China	model:	TKII6203-114
For pipe diameter:	114 mm	Serve:	Product and Logo Customization
Outer diameter:	109 mm	Bearing Type:	6203
depth:	28 mm	Material:	SPHC (Pickled Steel)
Aperture:	40 mm	Supply capacity:	15,000 sets of bearing frames per day
For shaft diameter:	17 mm	Aperture:	21 mm
payment terms:	wire transfer	Applicable industries:	Building Materials Stores, Manufacturing Plants, Mechanical Repair Shops, Construction Works, Energy & Mining
thickness:	2.0 or 2.5 mm

China Supply Steel Stamped Roller Pillow Block Pillow Blocks

Product Description

product information

Tongling Sany Jianxi Precision Industry Co., Ltd.

Product Category	China Supply Steel Stamped Roller Pillow Block Pillow Blocks
introduce	·100% Shanghai Baosteel high-quality raw materials
	·High precision and high gloss
	· Own mold development center, accept custom lettering
advantage	·History--Developed from a military factory, specializing in stamping and injection molding products since 1988.
	·Quality - the tolerance is accurate to 0.001mm.
	·Certificate--ISO9001, SGS, etc.
	·Capacity - 4 production lines, including 2 robotic production lines. Has an independent mold research and development center.
	·Global market--export to 36 countries and regions.

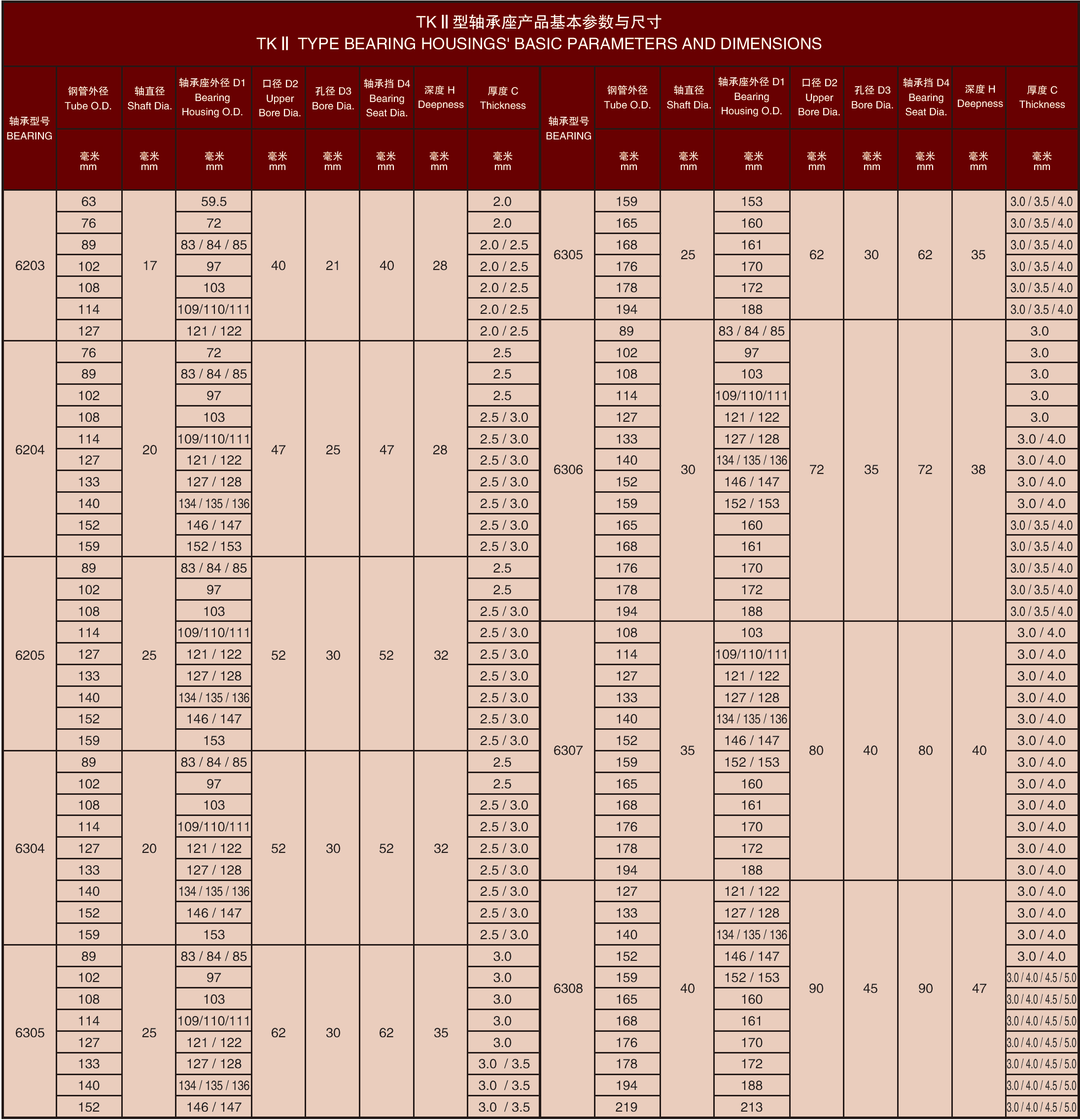

Available models

Bearing: 6203/6204/6205/6304/
6305/6306/6307/6308
For shaft: 17～40mm
Pipe diameter: up to 219 mm
Thickness: 2~5mm

Product advantages

1. Automated production and advanced inspection machines control low tolerances, making your assembly process easier.
2. The best raw materials will create a better operating environment and bring longer service life to the bearings.
3. The bearing is in the best running state, and the idler keeps running under low resistance, which minimizes the wear on the conveyor belt.
4. Working at low resistance can also save a lot of power.
5. The bearing material is not easy to overflow or fall, and the axial and radial runout is small.
