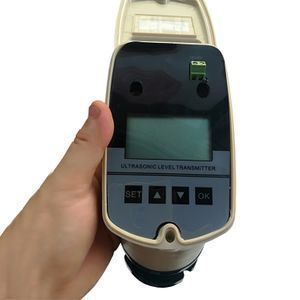

ULG1000 10 meter Integrated ultrasonic water tank level sensor/ transmitter

Supplier: Xi'an Hao Long Electronic Technology Co., Ltd.
Region: Shaanxi, China
Contact: Ms Alice Liu
Price: $80.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Place of Origin:	Shaanxi China (Mainland);	Product name:	ultrasonic level gauge;
Range:	Liquid: 0~15m,20m,30m,40m;Liquid: 0~15m/20m/30m/40m;	Single package size:	26X18X16 cm;
Application:	Various liquid level measurements;	Single gross weight:	1.5 KG;
Package Preview:	https://sc02.alicdn.com/kf/HTB1OPCRaizxK1Rjy1zkq6yHrVXaZ.jpg_640x640.jpg,https://sc01.alicdn.com/kf/HTB16teUajvuK1Rjy0Faq6x2aVXa0.jpg_640x640.jpg;	Temperature compensation:	Full range automatic;
Medium temperature:	-20℃~+60℃;	Model Number:	ULG1000;
Delivery Detail:	0 days after payment;	Display resolution:	1 cm;
Output resolution:	0.03% of actual range;	Protection level:	IP65;
Package Type:	standard package;	Selling Units:	Single item;
Current output:	4~20mA/RS485/Modus protocol or definition protocol;	Brand Name:	Haolong;
Accuracy (in the air):	0.3%;

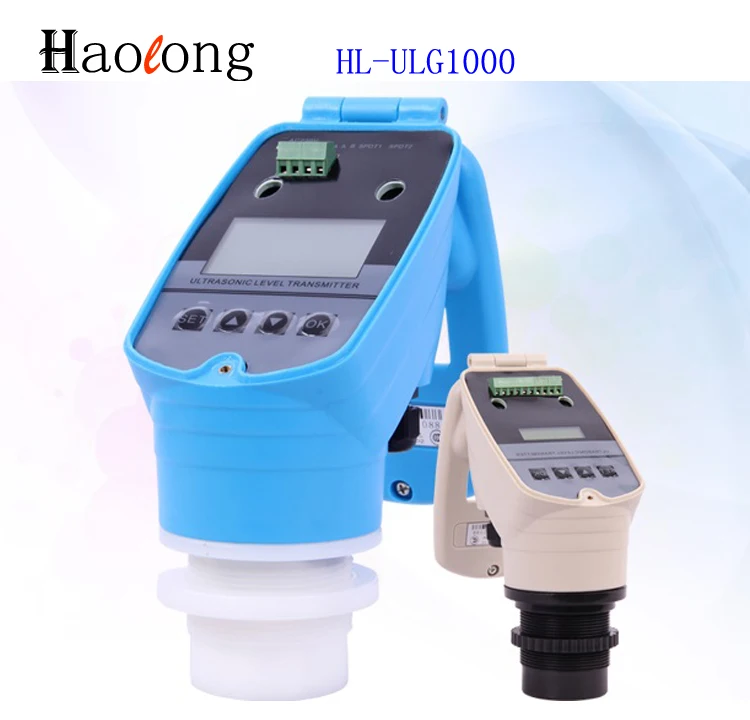

ULG1000 Integrated Ultrasonic Level Gauge Ultrasonic Level Gauge Ultrasonic Water Level Gauge

Product introduction

ULG1000 series ultrasonic level gauge can use two-wire, three-wire or four-wire technology, power supply circuit and signal output circuit independent, ultrasonic level gauge when using 24V DC power supply, you can use a 3-wire cable, negative supply A common core is shared with the negative terminal of the signal output. When using an AC 220V power supply, or when a 24V DC power supply is used to require the power supply circuit to be completely isolated from the signal output circuit, the ultrasonic level gauge should use a 4-core cable. DC or AC power supply, with 4 ~ 20mADC, high and low switching output.

Ultrasonic level gauge level meter Ultrasonic level gauge level meter Ultrasonic level gauge level meter Ultrasonic level gauge level meter

Features

1.measure flow, liquid level, low gauge pressure, vacuum and specific gravity

2.two-wire system up to 30m

3. four-wire system up to 40m

4. the minimum resolution of 1mm

5. LCD / LED display

6.intelligent signal processing technology

7. equipped with high and low position double relay (only four-wire system)

8.all plastic anti-corrosion casing (protection level lP65)

9. Patented transducer structure (When the flange of the small-scale instrument is installed, there is no requirement for the flange pipe length)

10. simple key setting parameters (no need to wait for the container to empty or full, no additional remote control)

11. flexible installation (thread / flange, fixed hole / bracket)

12. Optional AC or DC power supply (only four-wire system)

Ultrasonic level gauge level meter Ultrasonic level gauge level meter Ultrasonic level gauge level meter Ultrasonic level gauge level meter

Technical Parameters

Project	Parameter
Range	Liquid: 0~15m,20m,30m,40m
Range	Solid: 0~6m,10m,15m,25m
Blind area	Range 0~15m: 0.6m
	Range 0~20m:0.8m
	Range 0~30m:1.2m
	Range 0~40m:1.5m
Accuracy (in the air)	0.3% F· S (standard case)
Signal output	4~20mA/RS485/Modus protocol or definition protocol
Output resolution	0.03% of actual range
Output load	0~500Ω
Switch output	High, low relay normally open
Relay specifications	Solid: 0~6m,10m,15m,25mAC250V 5A/DC30V
Display resolution	1 cm
Display method	4-digit LCD (15cm high) or 6-digit LED
Input power	DC24V(±10%)80mA or AC220V 50mA
Temperature compensation	Full range automatic
Medium temperature	-20℃~+60℃
Pressure range	±0.1MPa
Acoustic beam angle	5°(3db)
Detection period	1 s
Parameter settings	3 sense buttons
Cable device	PGl3.5 sealing sleeve
Shell material	ABS
Sensor material	PVC
Protection level	IP65
Installation method	Thread (flange) or fixing hole (bracket)
Installation requirements	The probe emitting surface should extend out of the container mounting port

Ultrasonic level gauge level meter Ultrasonic level gauge level meter Ultrasonic level gauge level meter Ultrasonic level gauge level meter
