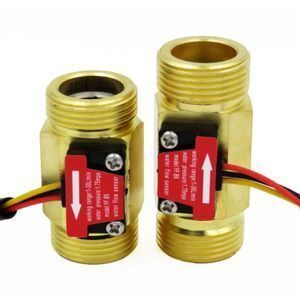

HL-YFB6 DN20 3/4 inch Hall water flow sensor Turbine flow meter with temperature detection

Supplier: Xi'an Hao Long Electronic Technology Co., Ltd.
Region: Shaanxi, China
Contact: Ms Alice Liu
Price: $2.90 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Operating voltage range:	DC5~15V, rated: DC5V;	Insulation performance:	Insulation resistance >100MΩ;
Wiring:	Red: positive, black: negative, yellow: pulse signal;	Package Preview:	;
Packaging Detail:	Standard packaging;	Port:	xi an;
Payment Terms:	D/P,T/T,Western Union,MoneyGram;	Type:	Variable Area Water Flowmeters;
Medium temperature:	0~+60℃ Micro turbine flowmeter;	Application:	Water, tap water standardd;
Place of Origin:	Shaanxi China;	Product Name:	Micro Hall flowmeter;
Model Number:	HL-YFB6 Micro flowmeter;	Supply Ability:	5000 Piece/Pieces per Month;
Maximum flow:	1~30L/min;	Brand Name:	Haolong Micro flowmeter;
Maximum working pressure:	≤ 1.75MPa;	Connection method:	Thread;

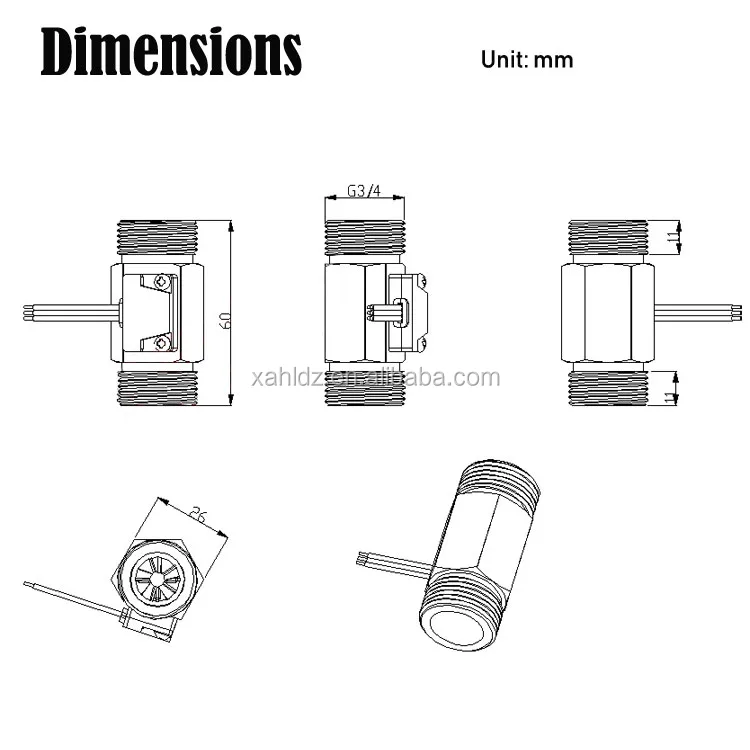

Nominal diameter:	DN20 3/4 inch;

Micro flow meter

HL-YFB6 DN20 3/4 inch Hall water flow sensor with temperature detection

Product description

Designed specifically for water control systems, this product is especially suitable for use in high-precision metrology locations because the key internal components are high temperature resistant US materials that can be used at high temperatures for extended periods of time and have very good wear resistance. The function will ensure the accuracy of the product for a long time. It has many advantages that the previous flowmeter does not have. We can set the starting flow rate and pulse equivalent number according to the different requirements of each customer.

Precautions

1. If the water quality is too bad, please add a filter at the inlet.

2. Do not use the flow range to exceed

3. Hall sensor, can be installed with temperature detection

Product parameters

Project	Parameter
Rated voltage	DC=5V
Working pressure	>1.75MPa
Operating Voltage	DC5~15V
Insulation resistance	>100MΩ
Precision	(1~30L/min)±10%
Flow pulse characteristic	(6.6*Q) Q=L/Min±3%
Output pulse high	>DC 4.7V (input voltage DC 5V)
Output pulse duty cycle	50%±10%
Flow range	1-30L/min
Remarks	With temperature detection
Wiring	Red: positive, black: negative, yellow: pulse signal

Flw Meter Gear Flow Meter

Company culture

Xi'an haolong Electronic Technology Co., Ltd. is headquartered in Xi'an National Hi-tech Industrial Development Zone, is a high-tech enterprise specializing in R&D, manufacturing, and sales of sensors, transmitters and related instruments. The current product category of the company involves the measurement of pressure, liquid level, ultrasonic wave, flow rate, temperature, and weighing. The core products have passed the European Union CE certification and other international authoritative organizations certification, some products have been explosion-proof flameproof certification, OIML certification.

Since its inception, the company has always been guided by the needs of users and based on product quality. Thank you for your trust and support to haolong. Your trust and support for haolong are the driving force for haolong's advancement!

FAQ

Q: Are you a trading company or a manufacturer?
A: We are factories.
Q: How long will you give me?
A: We will contact you within 8 hours as soon as possible.
Q: How long is your delivery time?
A: If the goods are in stock, delivery is usually within 5-10 days. Or about days if the goods are not in stock, calculated according to the order quantity.
Q: Is your product quality guaranteed?
A: Yes, our products can only be released after at least two quality inspections have been passed. After the company and the company’s factory have actually inspected the factory of Alibaba’s Northwest China headquarters, the products are allowed to be sold at the Alibaba International Station. To provide users with quality products and pre-sale service.
