Hot sale fish and shrimp frozen meat freezer freezer chiller storage room price

Product details
temperature:+15°C to -45°Cport:Shanghai Port Ningbo Port Cold Storage
Certification:ISO9001, CE.ROHS, SONCAPSupply capacity:500,000 square meters/month cold storage
Cooling capacity:4500 tonsMarketing Type:New Products 2020
Video external inspection:ifMechanical test report:if
strength:1000 to 150000WDanfoss expansion valve:Panel connection method: eccentric hook lock male and female
Compressor brand:BitzerAfter-sales service provided:Engineers can repair machinery overseas, free spare parts, video technical support, online support
Dimensions (L*W*H):custom sizepayment terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram
Compressor: Bitzer Copeland Frascold:Sandwich material: Polyurethane foam sandwich PU panel insulationPackaging Preview:
Warranty:12 months, 2 yearsApplicable industries:Hotels, Clothing Stores, Building Materials Stores, Mechanical Repair Stores, Manufacturing Plants, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Construction Works, Energy and Mining, Food and Beverage Stores, Advertising Agencies
After Sales Service: Available:Surface material: color steel, 304 SS Sheet.Aluminum SheetProduct Name: Cold Storage:PU panel thickness: 50mm 75mm 100mm 120mm 150mm 180mm 200mm
Showroom location:Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile , UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Malaysia, AustraliaDensity: 42 to 45 kg/m3:Shell material: galvanized steel
weight:500kg-20000kgSwing door hinge: Zinc Material:Swing door lock: Zinc and SS 304
Packaging Details:Wooden boxes for machines and plastic films for cold storage and carton boxes Polyurethane sheets for cold storagePanel thickness:200mm
Local service location:Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Malaysia, Australia, Morocco, Kenya, Argentina , South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, TajikistanHealth status:new
brand:Techco for cold storageColor steel plate thickness: 0.5mm:SS 304 sheet thickness: 0.5mm to 0.8mm
Core components:Pressure Vessels, Motors, Bearings, Gears, Gearboxes, PLCs, Pumps, EnginesWarranty: 12 months Air-cooled condenser:Temperature: +15°C to -45°C
Voltage:220V/380VMain selling point:long lasting
After Warranty Service:Video technical support, online support, spare partsCore Components Warranty:5 years
place of origin; place of origin:Jiangsu, China
Product Description

Applications

cold room Hot sale fish and shrimp frozen meat freezer freezer chiller storage room price
The freezer compartment is like the large size of the refrigerator and freezer to keep food fresh and stored for a long time​​. It is popular and widely used in hotels, restaurants, supermarkets, fruit and vegetable wholesale centers, meat and fish processing stations, slaughterhouses, maritime food markets, etc.
1. The refrigerator compartment.

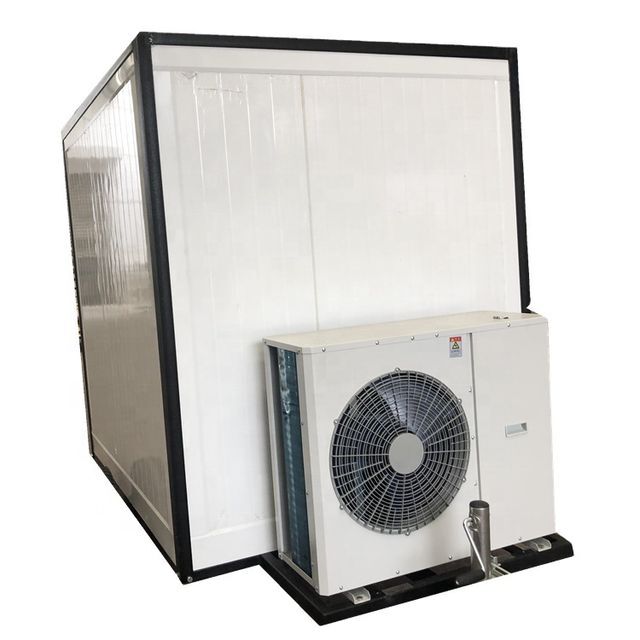

We call the small size cold room of 5CMB to 50CBM as the cold room, the integral refrigeration unit with the compressor power of 0.5HP to 5HP. This refrigeration unit has been installed before shipment. Customers simply cut a hole from the wall panel or ceiling. Fix the single unit in the hole, connect the power supply and turn on the switch to run the compressor. It has two temperature ranges. One is the module high temperature from 0C to -5C to store fruits and vegetables. Store frozen meat at -18C.
2. Cold storage chiller.
We also call it +5C to 0C medium and high temperature cold storage for storing fruits and vegetables. Customers just need to inform us about the outside dimensions of the refrigerator compartment. We will calculate the compressor power and evaporator cooling capacity and quote the best price.
3. Refrigerator and freezer.
We call it a 0C to -18C medium and low temperature freezer for storing frozen meat and fish. Customers only need to inform us about the dimensions of the cold storage. We will provide compressor models and evaporator models with technical parameters and the best price.
4. Cold room freezer.
We call it -18C to -25C low temperature cold storage for seafood and special meat and ice cream. Customers just need to tell us the outside dimensions of the cold storage or how many tons of food. We will provide all solutions at the best price.
5. Quick freezer.
It freezes fresh meat or fish to -35C in the cold storage, and the temperature in the center of the meat goes from -15C to -18C in a short period of time. In fact, the quick freezer is a kind of meat processing equipment.
We need more information before quoting:
1) What kind of meat or fish?
2) How many kilograms of meat are needed to freeze to -35C at a time?
3) How many hours does it take to freeze to -35C at a time?

room volume (CBM)
Dimensions (mm)
semi-sealed unit
fully sealed unit
Evaporator
Walk-in chiller (0°C to -5°C) uses 100mm thick PU panel to keep vegetables and fruits fresh
15
L3000xW2000mmxH2500
2HP
3HP
DL-15
30
L4000xW3000mmxH2500
3 hp
4HP
DL-25
50
L5000xW4000mmxH2500
4HP
5HP
DL-55
100
L6000xW5000mmxH3300
7HP
8HP
DL-105
200
L10000xW6000mmxH3300
12HP
13HP
DL-160
500
L20000xW70000mmxH3500
20HP
12Hpx2
ZxDL-125
Walk-in freezer (-18°C) to store frozen meat fish using 100mm to 120mm thick PU sheets
15
L3000xW2000mmxH2500
3HP
4HP
DD-22
30
L4000xW3000mmxH2500
5 hp
6HP
DD-40
50
L5000xW4000mmxH2500
7HP
8HP
DD-60
100
L6000xW5000mmxH3300
12HP
13HP
DD-120
200
L10000xW6000mmxH3300
25HP
13HPx2
2xDD-120
500
L20000xW70000mmxH3500
40HP
12Hpx4
4xDD-120
Walk-in freezer (-25°C) to store frozen fish with 120mm to 150mm thick PU sheets
15
L3000xW2000mmxH2500
5HP
5HP
DJ-20
27
L3000xW3000mmxH3000
7 hp
7HP
DJ-40
40
L4000xW4000mmxH2500
10HP
5HPx2
DJ-55
60
L5000xW4000mmxH3000
15HP
7HPx2
DJ-85
100
L6000xW5000mmxH3300
20HP
7HPx3
DJ-100

application:

Cold room PU board
Hotels, hospitals, blood banks, poultry slaughtering and processing, aquaculture processing, mushroom cultivation, agricultural product processing,

Dairy production, pharmaceutical processing and logistics, beverage production and processing, beer production and cooling, large-scale logistics

Warehousing, chemical product cooling, leather manufacturing, injection molding, machine cooling, steel cooling, communication equipment.

FAQ

1. Where is your factory?Jiangsu China Shanghai Seaport from our factory to Shanghai about 3 hours by car
2. What is lead time? 7 to 10 working days to complete the cold room evaporator
3. What is the minimum order? 1 set
4. What is payment?Pay 30% TT deposit and balance before shipment
5..What is your main product?cold room
