Long Life Black Iron Oxide Flash Dryer

Thisflash dryerIt is widely used in the dispersing and drying of granular, powder, paste and filter cake pseudo-agglomerates in chemical, pharmaceutical, building materials, food, feed and other industries. The flash dryer has the advantages of small footprint, low energy consumption, high thermal efficiency, and continuous mass production. The flash dryer body is equipped with a rotary cutting device, which cuts, rotates, collides, and rubs the dried materials, so that the materials are pulverized, refined, and highly dispersed, so as to achieve the effect of high-efficiency drying. And quickly evaporate the water. The dryer is equipped with an air filter to achieve the cleanliness of the hot air and provide production conditions for the hygienic requirements of the food industry. The machine is equipped with cyclone to separate and collect materials. In addition, the bag dust removal receipt is added to improve the material recovery rate. Can improve the economic efficiency of enterprises. The dryer can be customized according to user needs.

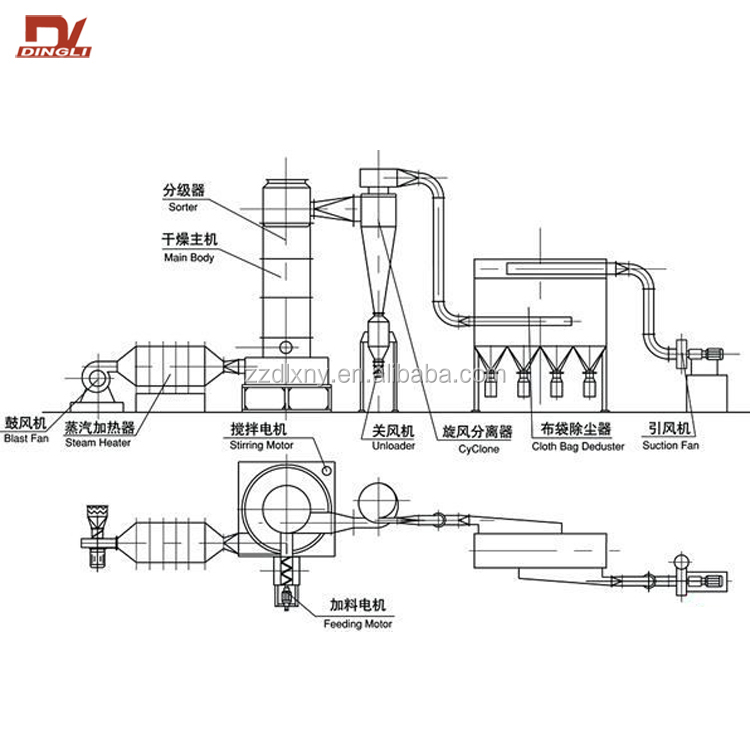

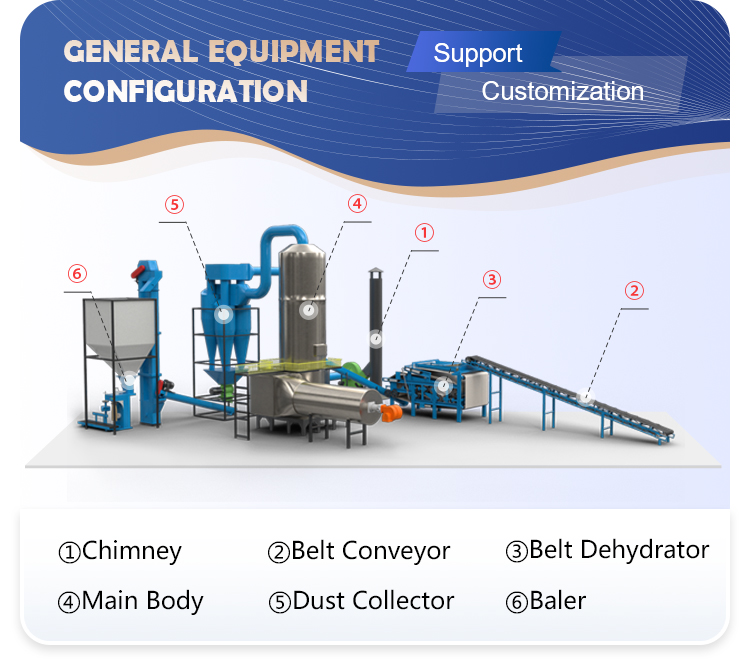

The flash dryer consists of a drying host, a feeder, a heat source device (hot blast stove or steam), an air filter, a blower, a cyclone, a bag filter, and an induced draft fan. The hot air enters the bottom of the dryer tangentially and forms a powerful rotating wind field driven by the agitator. The paste material enters the dryer from the screw feeder. Under the strong action of the high-speed rotating stirring paddle, the material is dispersed under the action of impact, friction and shearing force, and the block material is quickly pulverized, fully contacted with hot air, heated and dried. The dehydrated dry material rises with the hot air flow, and the grading ring intercepts the large particles. The fine particles are discharged from the center of the ring to the outside of the dryer, and are recovered by the cyclone separator and dust collector. The dry material is not dried or the block material is affected by centrifugal force and falls to the bottom to be crushed and dried.

2. In addition to the above models, special designs and customizations can also be made for users.

3. The above installed capacity is the standard, and the material power is different.
