Professional peanut butter peanut butter milling machine production line peanut butter machine

Product details
After Warranty Service:Video technical support, online support, on-site maintenance and repair servicesWarranty:1 year
Raw materials:Nuts, Peanuts, Peanuts, and AlmondsMechanical test report:if
Material:304 stainless steelAdvantage:high efficiency
Video external inspection:ifApplication areas:Snack food factory, dairy product factory, condiment factory
Supply capacity:100 peanut butter machines per monthApplicable industries:Manufacturing Plants, Food and Beverage Plants, Farms, Retail, Food Stores, Others, Advertising Agencies
After-sales service provided:On-site maintenance and repair servicesstrength:7.5kW
Certification:Chief ExecutivePackaging Details:Wooden packaging as the export standard of peanut butter machine for professional peanut butter peanut butter milling machine production line.
Rotor mold:130mmMarketing Type:New Products 2020
port:any port in Chinaplace of origin; place of origin:Henan, China
Local service location:VietnamMechanical function:grind
brand:longerCore components:motor
payment terms:L/C, Western Union, T/T, MoneyGram, Alibaba Trade Assurance.Core Components Warranty:1 year
Showroom location:not anyDimensions (L*W*H):750*450*1000mm
Voltage:220v/380v customizedfeature:Fully automatic
weight:280kgName:Professional peanut butter production line peanut butter machine
Output product name:Peanut Butter MachineHealth status:new

Professional peanut butter peanut butter milling machine production line peanut butter machine

Email: maggie@longerinc.com Tel/Whatsapp/WeChat: 0086 185 6993 3368

Product Description

Professional peanut butter peanut butter milling machine production line peanut butter machine

Professional peanut butter peanut butter milling machine production line peanut butter machine

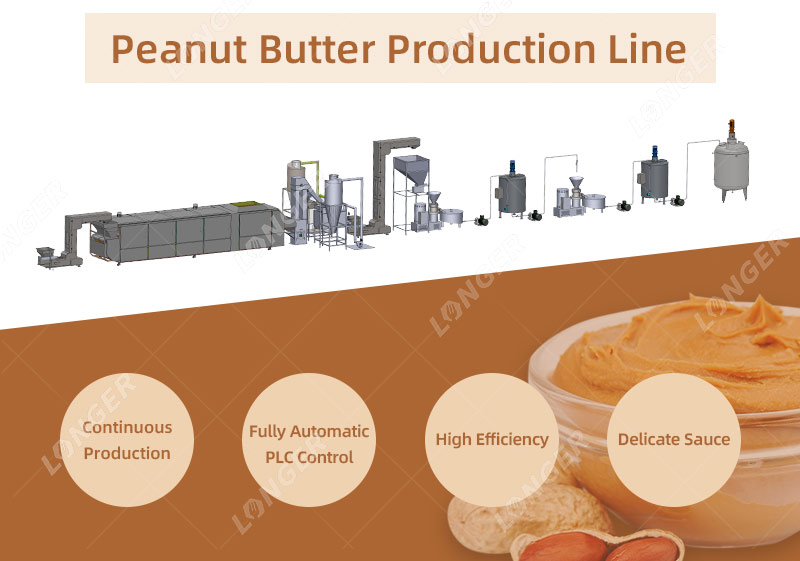

Introduction of peanut butter production line:

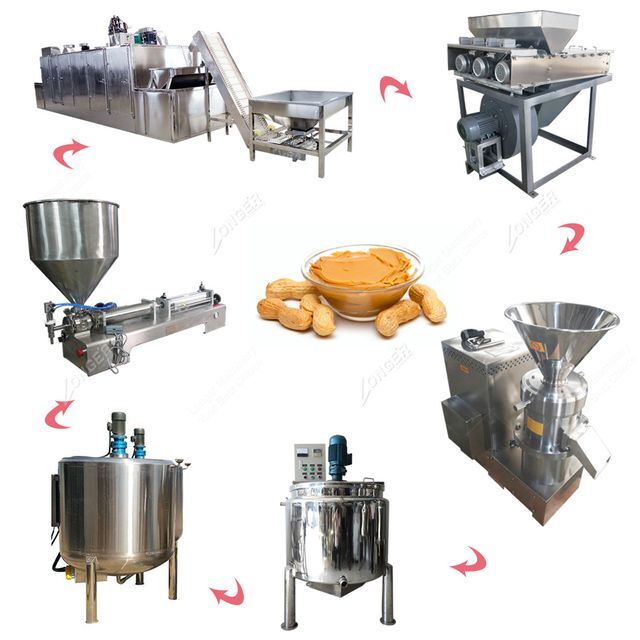

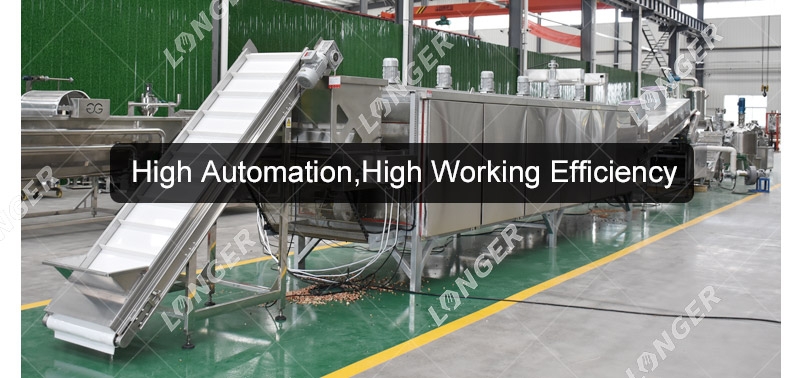

The production line includes peanut roaster, conveyor, cooler, peeler, grinder and mixer, etc. All production lines are automatic conveyors, which are easy to use and of good quality. The production capacity of the whole line is 500kg/h. It is an intermittent line, we also have a continuous line. There are also different capacity lines, such as 100kg/h, 200kg/h, 300kg/h, 1000kg/h, etc.

Peanut Butter Peanut Butter Milling Machine Production Line Peanut Butter Machine

Peanut Butter Peanut Butter Milling Machine Production Line Peanut Butter Machine

This peanut butter production line is designed in combination with domestic and foreign advanced technology and customer needs. It consists of a feed elevator, continuous
Spare parts for baking and peeling machines, coolers, stockers, grinders, mixers, vacuum degassing tanks, pumps, etc. It has the advantages of high automation, easy operation, integrated control, stable performance and high product quality.

Professional peanut butter peanut butter milling machine production line peanut butter machine

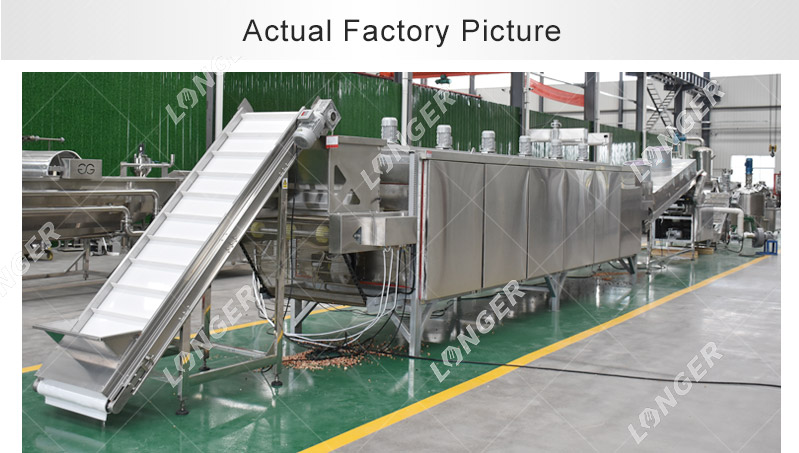

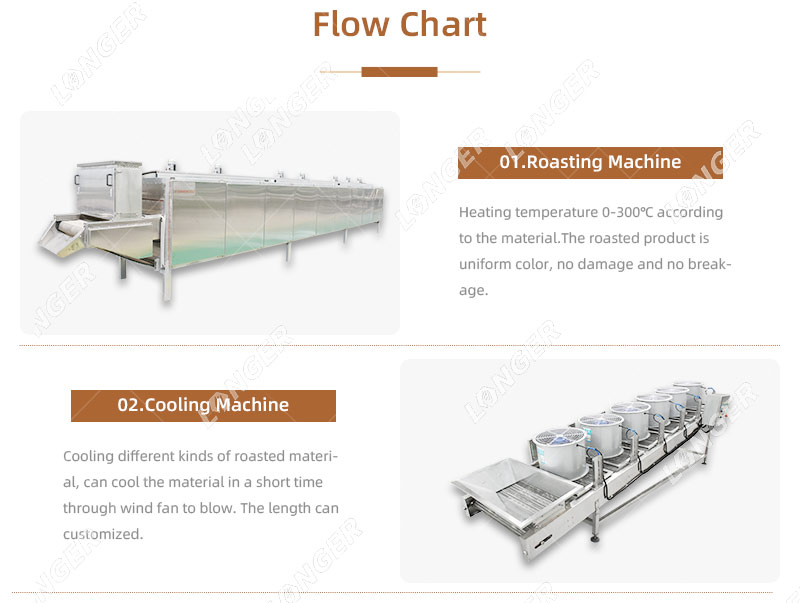

bake:
Batch roasters operate at 200-210 ºC for 20-30 minutes. Use the batch roaster to bake up some delicious smells. Best Price Peanut Grinder Manufacturer Peanut Butter Line. Peanut Butter Peanut Butter Grinder Production Line Peanut Butter Machine

cool down:
The peanuts will be sent to the cooling belt for cooling.

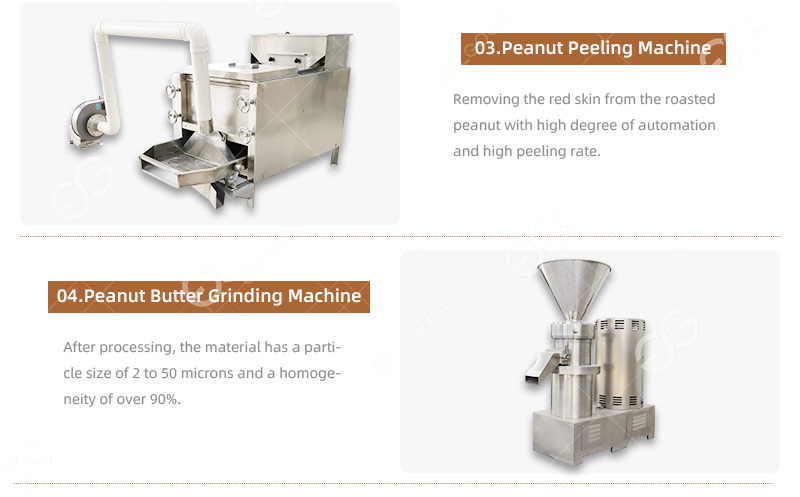

Peel:
Put the roasted peanuts into the peeling machine, peel off the red skin, double rollers rub the red skin, the simple cyclone system sucks the red skin, most of them are divided into half pieces, and then fall on the selection conveyor belt, the roasted unbaked Bleached peanut kernels are picked manually or mechanically.


Primary Grinding:
Use a steel mill for the first grind.


Secondary grinding:
A colloid mill is used for secondary grinding, the grinding fineness is controlled below 7 μm, and the grinding temperature is controlled below 68°C.

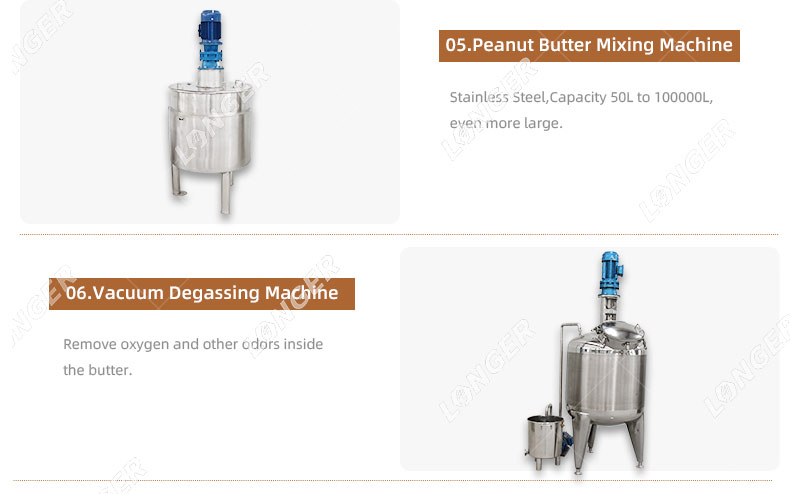

mix:
Make the butter more even.
cool down:
Butter that passes through the second grind should cool immediately. The temperature should drop by 45 degrees Celsius.
Degasser:
Get the air out of the peanut butter.
Storage tank:
Settling in storage tank until temperature drops to air temperature.

Peanut Butter Peanut Butter Milling Machine Production Line Peanut Butter Machine

Technical parameters of peanut butter machine

Do not. Name Power (kW) Dimensions (mm)
1 Feeder 0.55 700*700*800
2 hoist 0.75 1000*500*2800
3 Continuous roasting machine twenty four 3000*1200*2600
4 elevator 0.75 1000*500*2800
5 Continuous cooler 5 3200*800*2400
6 peeling machine 0.74 1100*350*1100
7 choose a belt 0.75 5000*800*1000
8 elevator 0.75 1000*500*2800
9 stocker 0.55 700*700*2200
10 grinder 5.5 900*350*900
11 Storage tank   150L
12 Paste pump 2.2 1200*300*350
13 Mixing tank 2.2 200L
14 vacuum tank 2.2 200L
15 Paste pump 2.2 1200*300*350
16 Control cabinet
17 pipeline





application

Peanut butter is a food paste or spread made from ground, dry-roasted peanuts. It often contains other ingredients that alter taste or texture, such as salt, sweeteners, or emulsifiers. Peanut butter is popular in many countries. The United States is a major exporter of peanut butter, consuming $800 million of peanut butter annually.
Peanut butter can be spread on bread, toast, or cookies and used to make sandwiches (especially peanut butter and jelly sandwiches). It's also used in many breakfast dishes and desserts, such as peanut-flavored granola, smoothies, crepes, cookies, brownies, or croissants. It is similar to other nut butters such as cashew butter and almond butter.

Advantages of Industrial Peanut Butter Production Line
The biggest advantage of our company's peanut butter production line is the high degree of mechanization of the operation process, good reliability, fully enclosed production, and no pollution. The high-quality peanut butter production machines produced by our company can reach international standards. We have our own factory, technical team, production team and sales team to provide you with quality products and services.

Contact information

Please feel free to contact us

If you have any questions, you can contract with us. Here is my contract info:
Whatsapp/WeChat: 008618569933368
Email: maggie@longerinc.com
QQ: 1724358532

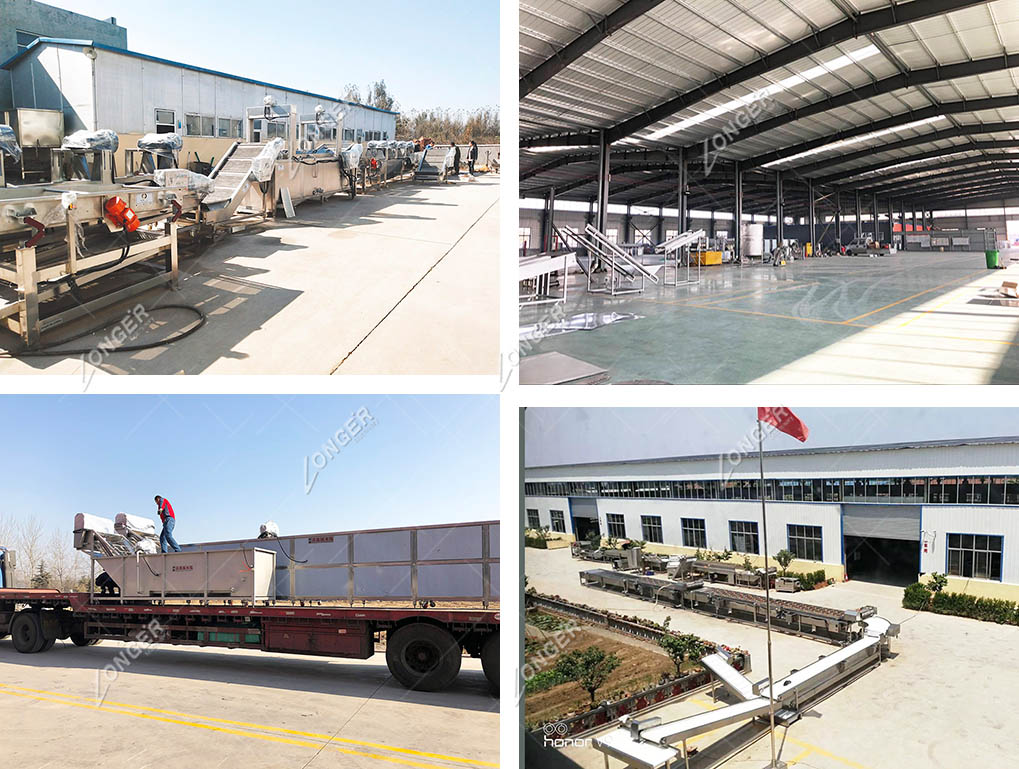

factory image

Zhengzhou Longer Machinery Co., Ltd. was established in 2010 and is located in Zhengzhou City, Henan Province, China. It mainly produces all kinds of food processing machinery such as frying machines and potato chip production lines.
Our company has many years of experience in machinery export. We have excellent quality control personnel and well-trained skilled workers, and have established a strong quality assurance system. Our products are very popular and have been introduced to Southeast Asia, Eastern Europe and Africa.
