Capacity (tons/hour): | Max.3t/h | Supply capacity: | 50 sets per month |
place of origin; place of origin: | Henan, China | Applicable industries: | Building Material Stores, Manufacturing Plants, Construction Works, Energy & Mining, Portable Crusher |
Packaging Preview: | | Material: | carton steel |
Maximum feed size: | 120mm | Motor Type: | AC motor |
Showroom location: | not any | After-sale service: | lifetime operating time |
Marketing Type: | New Products 2020 | payment terms: | Western Union, T/T, MoneyGram |
Core Components Warranty: | 1 year | Packaging Details: | 1. Standard parts are packed in wooden boxes. 2. Large pieces are packed with plastic film. 2020 Hot Selling High Quality Mini Small Gold Ore Limestone Jaw Crusher Price |
Spare parts supply: | Any time | Mechanical test report: | if |

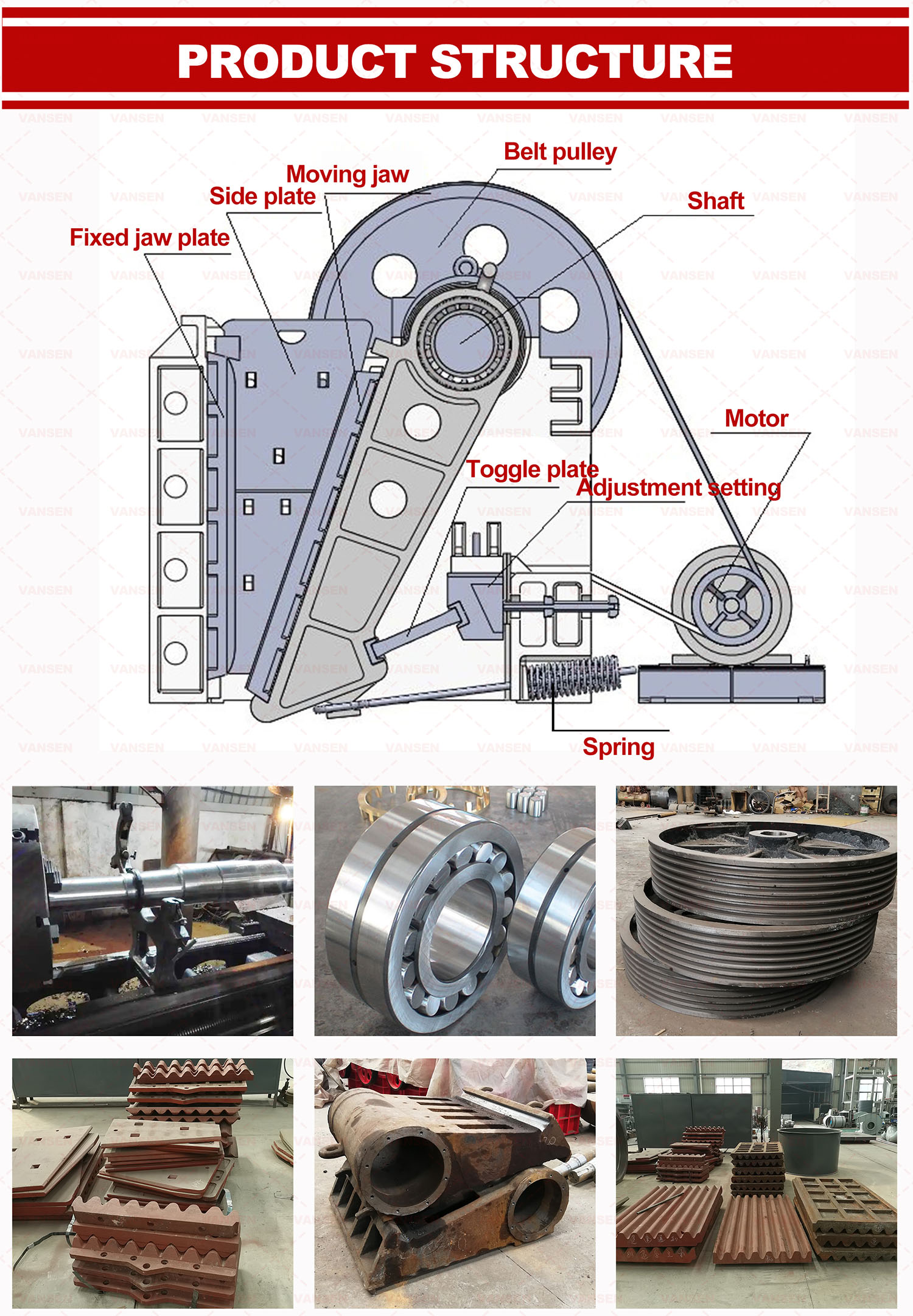

type: | Jaw Crusher | Core components: | Motor, bearing, jaw plate |
Install: | According to the engineer's guide | port: | Qingdao Guangzhou |
color: | client needs | Output size: | 10-40mm |
application: | gravel | Health status: | new |
Factory tour: | welcome | Video external inspection: | if |
Warranty: | 1 year | weight: | 650kg |
product name: | Jaw Crusher | Main selling point: | easy to operate |
brand: | Fanson | Key words: | Stone Jaw Crusher |
Dimensions (L*W*H): | 1200*670*1200mm | | |

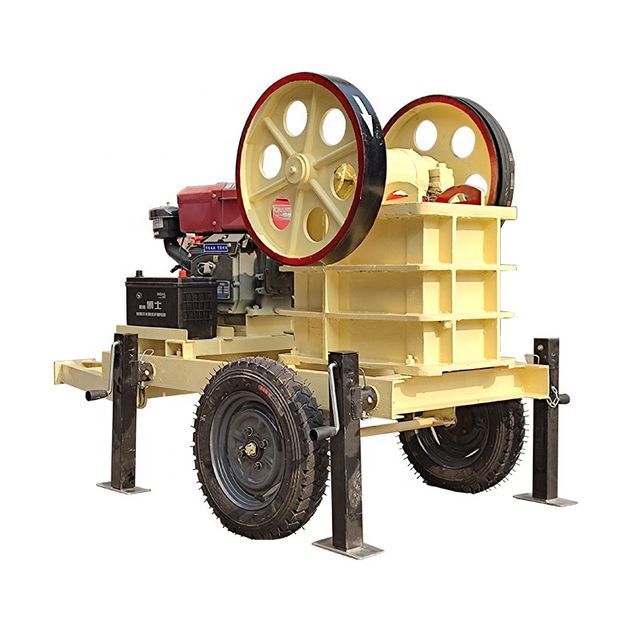

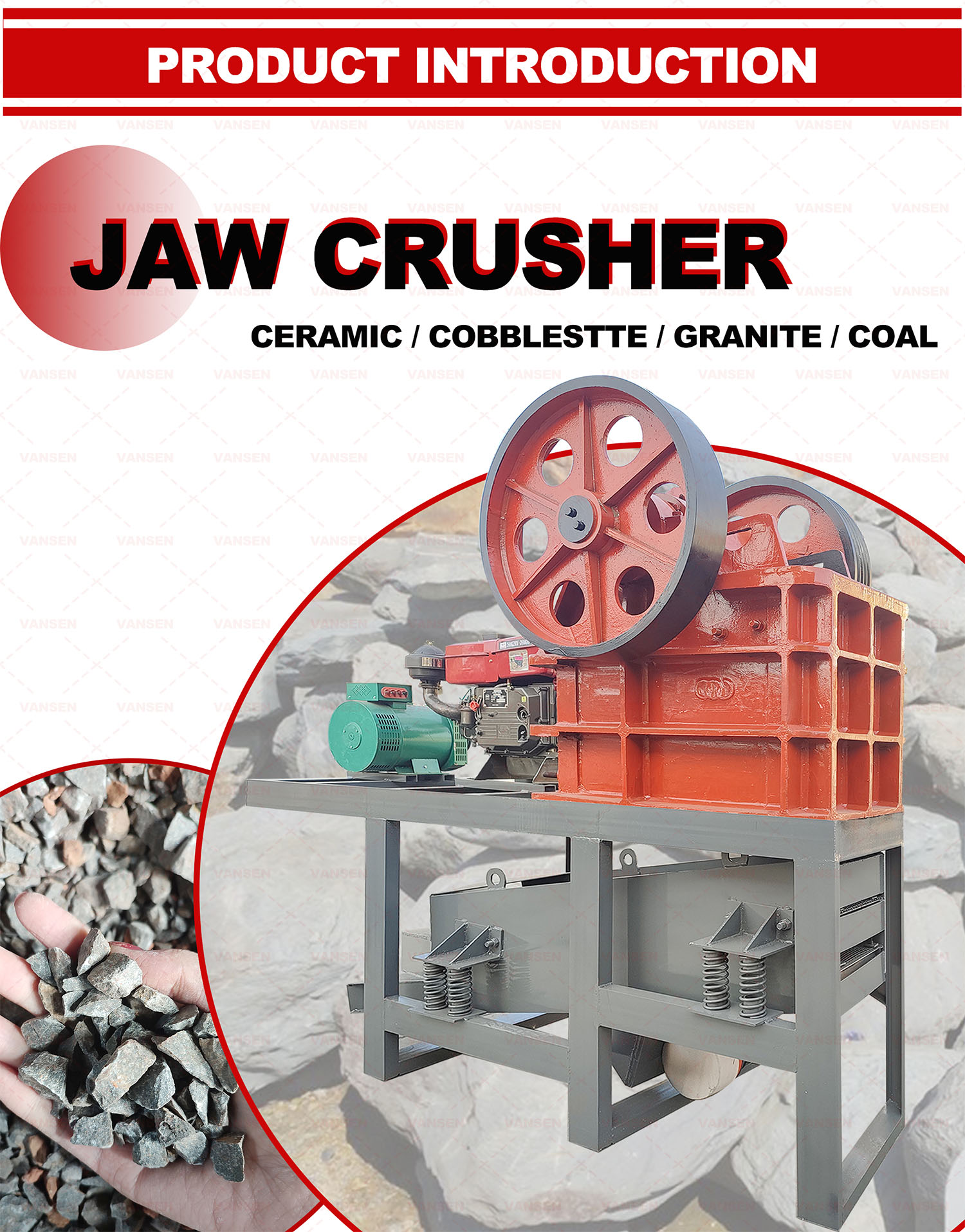

2020 Hot Selling High Quality Mini Small Gold Ore Limestone Jaw Crusher Price |
Jaw CrusherMainly used as primary and secondary crushers in mining, building materials, infrastructure and other sectors. According to the width of the feeding port, it is divided into large, medium and small machines. Large machines with a feed opening width greater than 600mm, medium-sized machines with a feed opening width of 300-600mm, and small machines with a feed opening width less than 300mm.
Machine maintenance:(1) The grease used in the jaw crusher should be determined according to the use site and temperature conditions. Calcium-based, sodium-based and calcium-sodium-based greases are generally used. (2) Generally, 50-70% lubricating oil is added to the bearing and replaced every 3-6 months. Clean the bearing races with clean gasoline or kerosene when replacing. (3) Before starting the jaw crusher, a small amount of lubricating oil should be injected between the bracket and the elbow pad.
