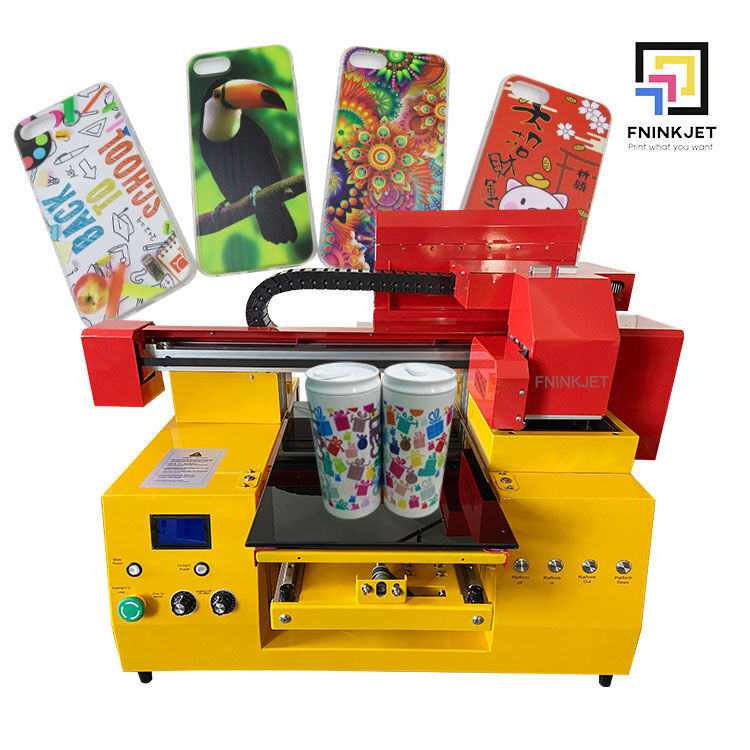

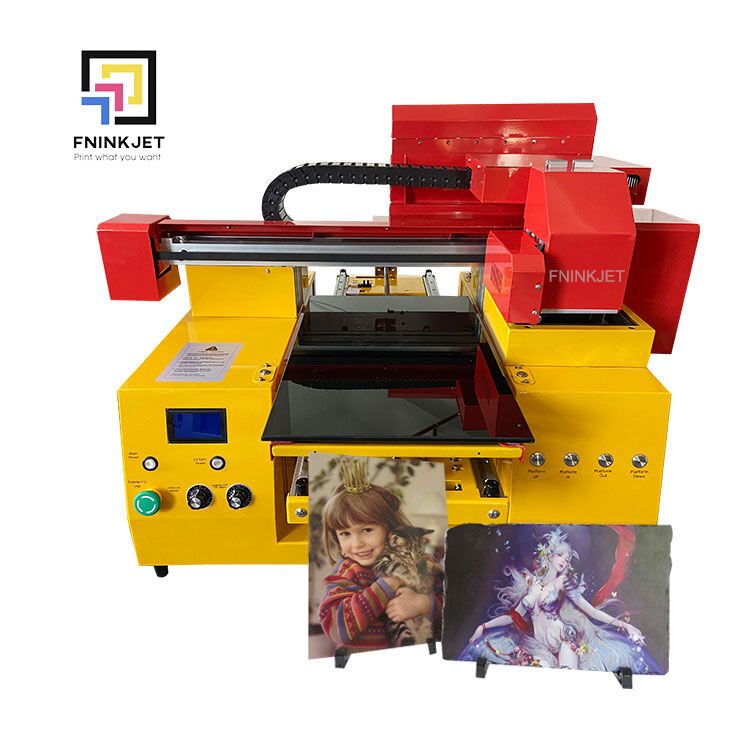

This is our newest A3 UV printer pro, which is the most popular. With max print size 33*50cm(13*20 inch), verticle height is 20cm(7.9 inch). It is a perfect size for small businesses, you can use it at home or at your shop. As the machine uses our independent board, the speed won't slow down after a long time. In addition, double light flashing won't appear, there won't appear ink error or paper Jam, no need to do zero cleaning anymore. Especially, this machine's printing speed is 2 times faster than the old Epson 1390, with no printing line, it is better performance for cylinder application.
The UV with 3 versions. Version 1, with the single print head, color is CMYKWW; version 2, with the double print head, color is CMYK+4W; version 3, with double head, vanish function, color is CMYKWW+6Vanish (glossy oil). For UV DTF, it is the same printer, but we recommend you the double head with vanish version and use UV soft ink, then can do UV dtf.
The best A3 UV printer ever! Good for customization, phone cases, lighters, iPads, pens, CDs, wood, glass, and leather with different materials. Print white and color by one pass, support embossed effect, vanish effect(double head version) which is water-proof, sun-proof, and scratch-proof.
Video link:
https://www.youtube.com/channel/UCuVWXiqJOQE1jXBHOn1HXmA
Contact us:
Model | FN-A3UVY A3UV Printer |
Printing Technology | Advanced Micro Piezo 6 color uv inkjet technology |
Ink colors (6 colors + Vanish) | Cyan, magenta, yellow, black, white, white; CMYK+4W; CMYK+2W+6Vanish |
Printing speed | 8pass, 70s/A4 full size |
Print head | Epson original XP600 (single head or double head) |
Max resolution | 2880*720 DPI, 16 pass |
transmit data | Gigabit net |
Max Printing Size | A3+ (330mm×500mm) |
Max thickness | 200 mm |
Printer head Protection | Intelligent Self Protect System |
Ink system | Continue ink supply system with damper cartridge |
Ink bottle | 6 set Ink Tanks with 500ml or 250ml per bottle |
Height adjustment | Semi-automation |
Ink consumption | 10 ML/SQM |
Voltage/ Power | VAC220/110 ± 10 ,50HZ~60HZ,Power ≤ 35W |
UV lamp power | 50 W |
UV lamp Temperature | 60 degree(UV lamp surface) UV lamp surface |
40 degree (1cm far from lamp surface) | |
Working environment | 10-35 degrees (50°-95°F), humidity 20~80% |
Head Cleaning method | Automatic / Manual |
Printer/packing size | 106*66*58cm / 120*80*75cm |
Net /Packing weight | 65kg / 125kg |
Printing Software | Ruicai RIPrint, print white and color by one pass |
Computer system | Windows system, Gigabit net, network adapter contain below character: Gigabit,GBE,10/100/1000M,RTL8169 |
Ink Type | UV ink/ Textile Ink/ Edible ink |
Language | English, Chinese |
Special Remarks | Customized service is available |
Standard Enclosure | Software 1 set, power line 1 set, Network line 1set, guidebook 1 set |
Application | Phone case / ABS plastic / acylic / metal / glass / ceramic |
*Fast speed, 2 times faster than R1390 UV printer.
*Printing speed won't slow down after a long time.
*No ink error and paper jam, no need zero clean.
*No need for coating, print directly, dry soon.
*Print white and color by one pass.
*White ink circulation system, protect the printhead.
*Embossed effect can be printed.
*Resolution 2880*720dpi, no printing line.
Samples display
1. Online training one-to-one (by WhatsApp, WeChat, email, video, etc).
2. English operation manual, operation video.
3. Printer with one year warranty and lifetime maintenance.
4. Seller will replace the spare parts for free in one year except for the print head, CISS, and mainboard.
Shipping details | |
Packing type | Fumigation free wooden case/PLY wood case |
Printer size | 106*66*58cm |
Packing size | 120*80*75cm |
Gross weight | 65kg |
Volume weight | 125kg |
Package included | USB cable/power cable/CD driver/manual/ink adding tools |
Shipping Type | Express(DHL,EMS,UPS,TNT,FedEx)/Air shipping/Sea shipping |
Certificate | CE, SGS, MSDS, CO, SASO etc |
FninkJet is a flatbed inkjet printer manufacturer with a history of excellence, customer service, and quality craftsmanship. We specialize in UV printers, DTG printers, dtf printers, food printers as well as UV ink, textile ink, dtf ink, and edible ink for both residential and commercial customers around the world.
Think different! Print what you want!
We are a flatbed inkjet printer manufacturer which is located in Shenzhen, China. With 10+ years of printing experience, FninkJet aims to "create, connect, communicate".
Create something unique! Connect everyone with printing! Communicate with clients all over the world!
With the creative developing team, we provide create-oriented unique UV printers, DTG printers, DTF printers, and food printers to all clients. We are committed to providing high-quality, environmental-friendly UV, DTG, DTF, and food printers, and devoted ourselves to technological innovation.
So far more than 1000 clients come from all over the world have chosen FninkJet to be their printing partner, and clients share all their unique work with us, FninkJet printing links everyone as a big family! We are ready to print! Ready for help, ready for sharing!
1. Q: What can your machine print?
A: For the UV printer can directly print on various materials, such as PVC, Abs, acrylic, wood blocks, glass, leather, TPU, ceramics, mobile phone cases, bottles, lighters, etc. Support embossed effect. For DTG printer, can print on various fabrics with full colors by one pass such as T-shirts, pants, hoodies, hats, socks and with different compositions, like cotton, linen, oxford, flannel, canvas, rayon, synthetic etc. For food printer, can print directly on cake, biscuits, pastries, bread, candy, and edible paper all different food with vivid color. and so on.
2. Q: How long does it usually take for me to receive the equipment?
A: Depends on whether you want to do customization your printer or not, and also depends on the speed of customs clearance and logistics. Normally, if a ship by air only takes about a week, is ship by sea, it will be around one month at least. But we can guarantee to ship the regular machine in less than 5 business days.
3. Q: When can I get an online engineer from you?
A: Contact our sales staff when you have received the printer. We will let our most experienced engineer help you to install your machine and train your staff to use it. Usually, when you are ready, you can contact our sales staff and we will arrange the training immediately.
4. Q: How will my machine be installed once it arrives?
A: The machine has been installed before delivery, you only need to install the printing software, and ink, and do the printing test. Contact the sales, we will arrange an experienced English technician to guide you.
5. Q: How do I test the machine before shipment?
A: Machine test run over 24 hours and we will send test video, and shipping pictures.
