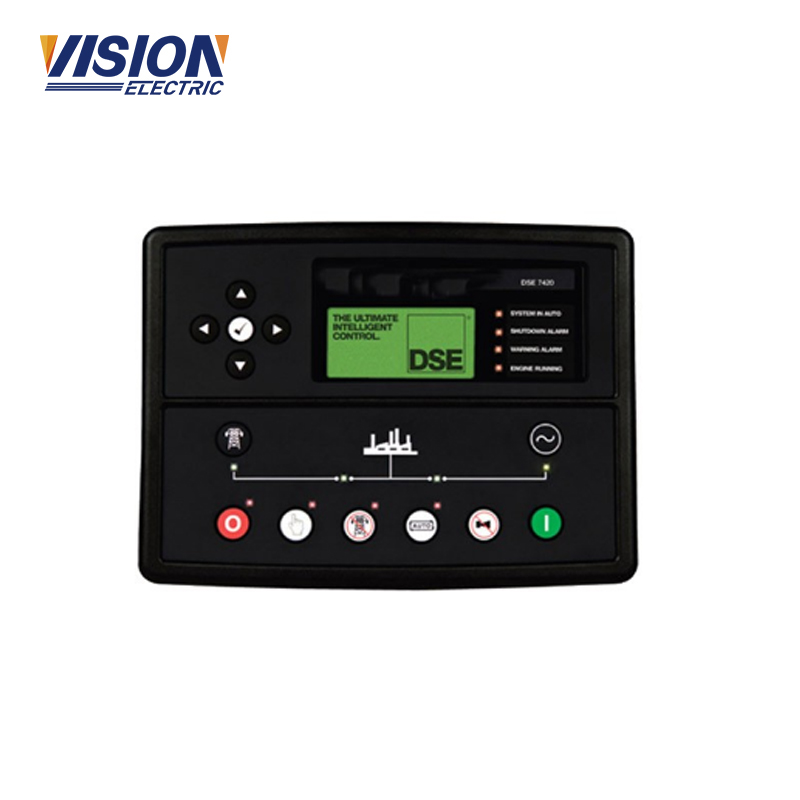

Deep sea control module DSE7420

Control Module The DSE7420 is an automatic start control module and the DSE7420 is an automatic power (utility) failure control module for a variety of single, diesel or gas generator set applications. The DSE74xx is a sophisticated module that monitors a wide range of engine parameters and will issue warnings, shutdowns and engine status information on a backlit LCD screen, illuminated LEDs, remote PC and audible alarms. The module includes RS232, RS485 and Ethernet ports as well as dedicated terminals for system expansion.
The DSE7400 series modules are compatible with both electronic (CAN) and non-electronic (magnetic sensor/alternator induction) engines and offer comprehensive flexible inputs, outputs and extensive engine protection, so
The system can be easily adapted to industry requirements. These modules can be easily configured using the DSE Configuration Suite software. Selected front panel edits are also available

Main features

* 4-line backlit LCD text display • Five-key menu navigation
• Front panel editing with PIN protection • Customizable status screen
• Power saving mode • 11 configurable inputs
• 8 configurable outputs • Flexible sensor inputs
• Configurable timers and alarms • 3 configurable maintenance alarms
• Multiple date and time schedulers • Configurable event log (250)
• Layer 4 CAN engine support • Integrated PLC editor
• Easy Access Diagnostics Page • CAN and Magnetic Pickup/Alt. sensing
• Fuel usage monitoring and low fuel alerts • Charge alternator failure alert
• Manual speed control (on compatible CAN engines) • Manual fuel pump control
• Engine exerciser • "Disable protection" feature
• kW protection • Reverse power (kW) protection
* LED and LCD alarm indication • Power monitoring (kW h, kV Ar, kV A h, kV Ar h) • Load switching (shedding and dummy load)
output) • Automatic load transfer (DSE7420)
• Unbalanced load protection • Independent ground fault tripping
• USB connection • Backup real time clock
• Fully configurable via DSE Configuration Suite PC software • Configurable display language
• Remote SCADA monitoring via DSE Configuration Suite PC software
• User selectable for simultaneous RS232, RS485 and Ethernet communications
• Configurable MODBUS page • MODBUS RTU and TCP support
• Advanced SMS messaging (requires additional external modem)
• Additional display screen to aid modem diagnostics • Idle control for startup
• DSENet® expansion compatible • 20 parameter data records
