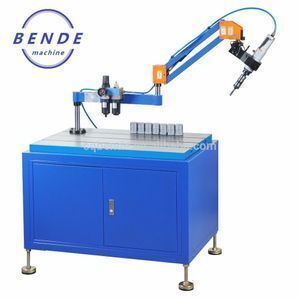

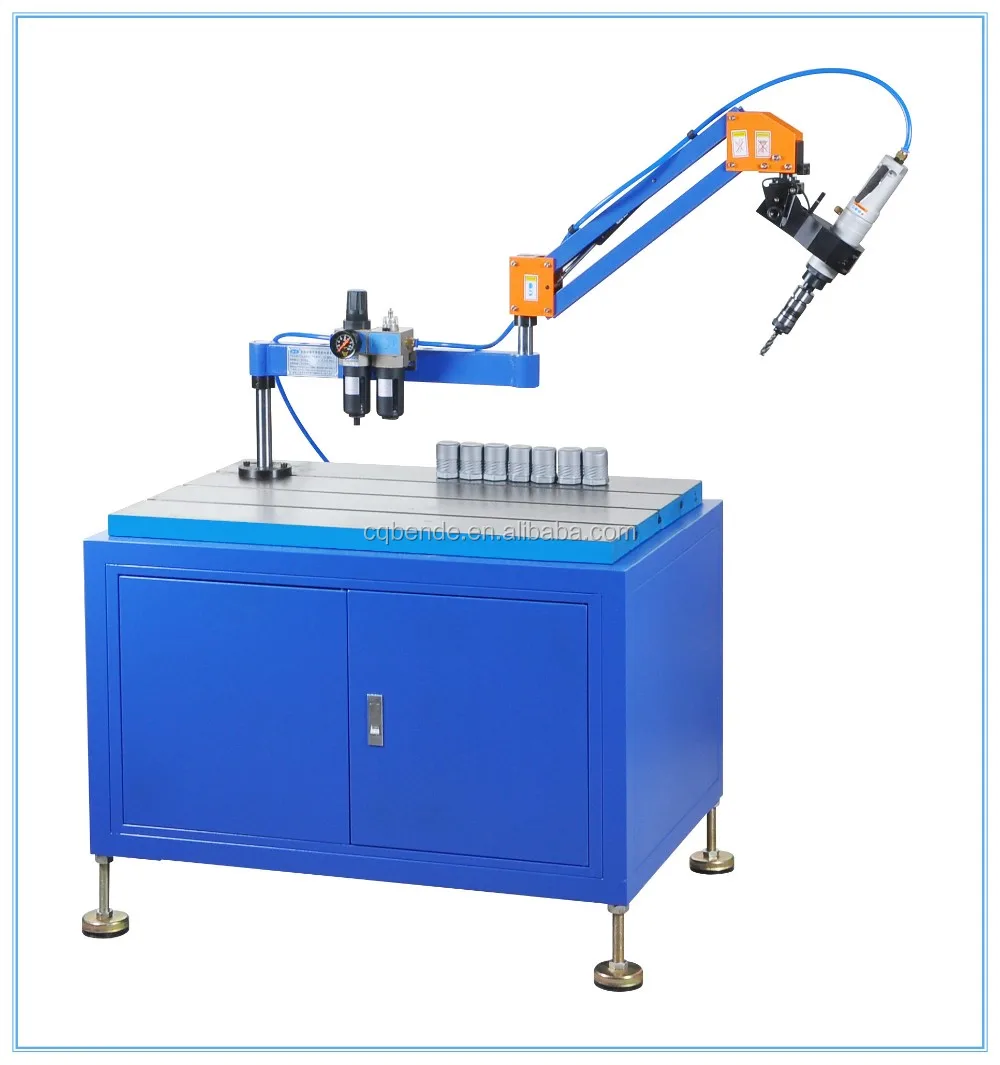

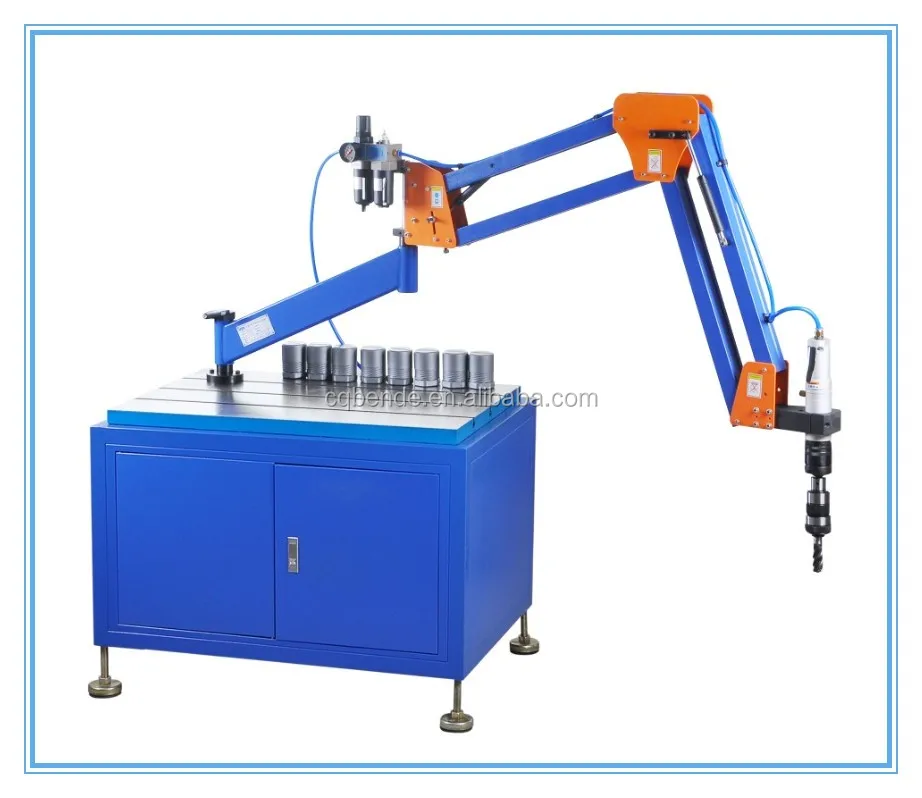

Horizontal vertical automatic pneumatic tapping machine air

Supplier: Chongqing Bende Machinery Co., Ltd.
Region: Chongqing, China
Contact: Ms Anna Lin
Price: $500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Voltage:	220V/380V;	Supply Ability:	1200 Set/Sets per Month;
After-sales Service Provided:	Overseas service center available;	Drilling Speed:	400rpm/min;
Guarantee:	18months;	Weight:	20kgs;
Brand Name:	BENDE;	Payment Terms:	L/C,T/T,Western Union,MoneyGram,PayPal;
Color:	blue and white;	Place of Origin:	Taiwan;
Packaging Detail:	Wooden case or carton box as per required.;	Condition:	New;
Delivery Detail:	Shipped in 3 days after payment;	Power(W):	800;
CNC or Not:	Normal;	Tapping Direction:	90degree;
Weight:	20kgs;	Worktable:	No;
torque chuck/collet:	6pcs;	Dimension(LWH):	605958cm;
Model Number:	BD-K12;	Certification:	CE;
Port:	Shenzhen/Guangzhou/HK/ChongQing;	Working Radius:	1100mm;
Quick change adapter:	Yes;	Tapping Capacity:	M3-M12;
Spindle speed:	500rpm/min;

Product Description

Horizontal vertical automatic pneumatic tapping machine air drilling machine , machine tools, molds machinery, plastic machinery, printing machinery, packaging machinery manufacturing , engineering machinery , automobile and motorcycle parts , aircraft engines, locomotives, tobacco machinery and general machinery industries .

Item	Collet	Arm	Capacity	Speed	Pressure	Direction
BD-K12	6pcs	1100mm	M3-M12	500RPM/Min	1-3BAR	90°
BD-K12-W	6pcs	1100mm	M3-M12	500RPM/Min	1-3BAR	360°
BD-K12-L	6pcs	2000mm	M3-M12	500RPM/Min	1-3BAR	90°
BD-K12-L-W	6pcs	2000mm	M3-M12	500RPM/Min	1-3BAR	360°

Main Features

1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Detailed Images

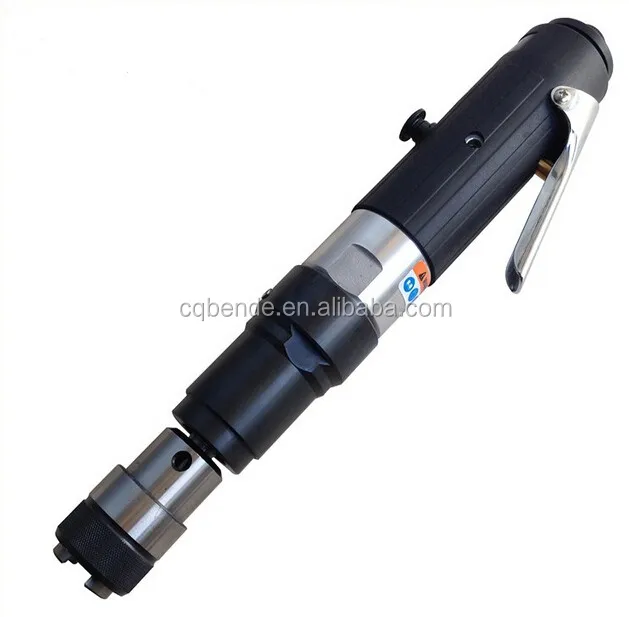

Machine Motor

Motor made in Taiwan,it has high precision,and very good quality.

Rotary head

Rotary head can working 360° tapping direction,can tapping vertical and horizon.

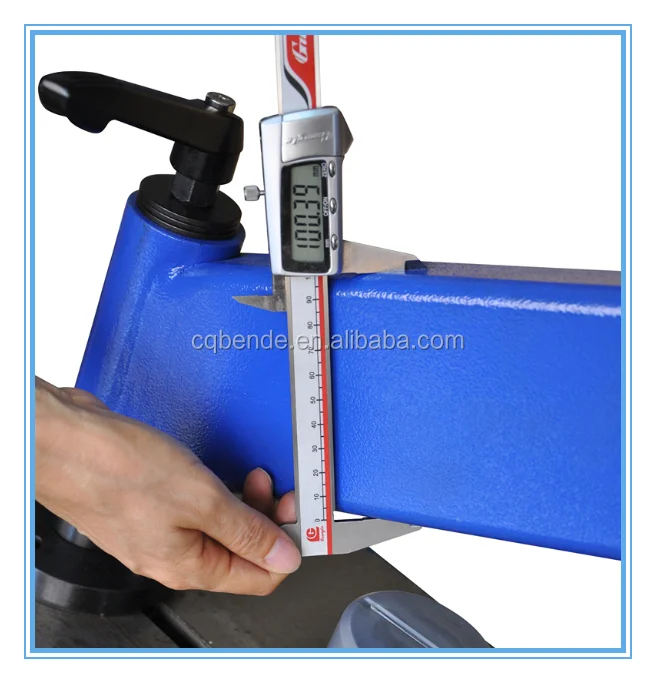

Machine arm

Machine have strong ，flexible arm

Machine arm

Machine working radius size have 1.1M and 2.0M.

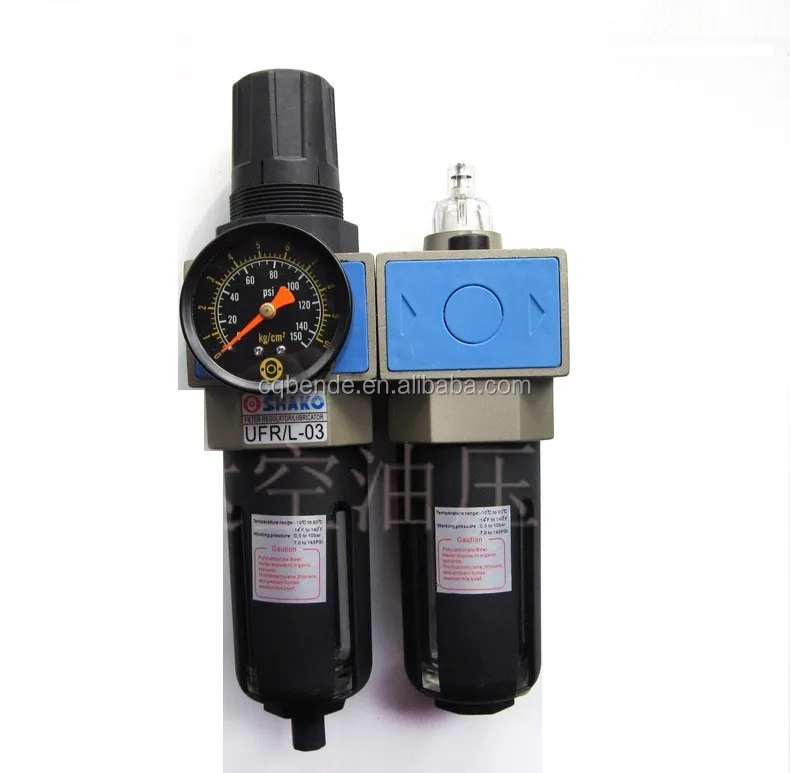

Air pressure valve

Taiwan air pressure valve.

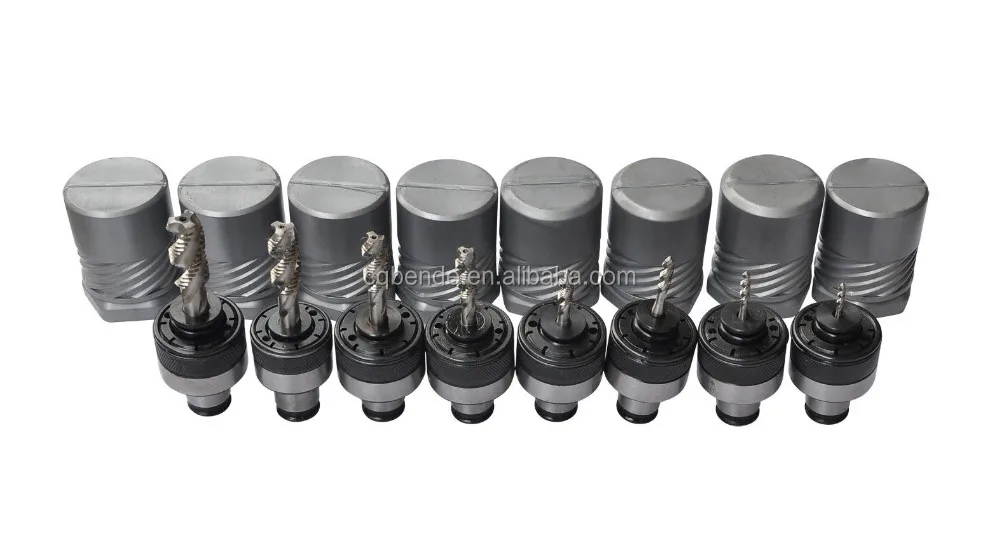

Machine torque collet

Standard: ISO/JIS/DIN

Original: TaiWan
Torque tapping collet is an new style tap screw holder with function of quick change and torque control. It is like the clutch for car,when the tap screw goes to the bottom of hole, it will prevent the tap screw spinning down,to protect the tap screw. Even it is a blind hole, the tap screw will not be broken.

Magnetic base

Magnetic base can stable machine,it can move machine everywhere.very convenience.

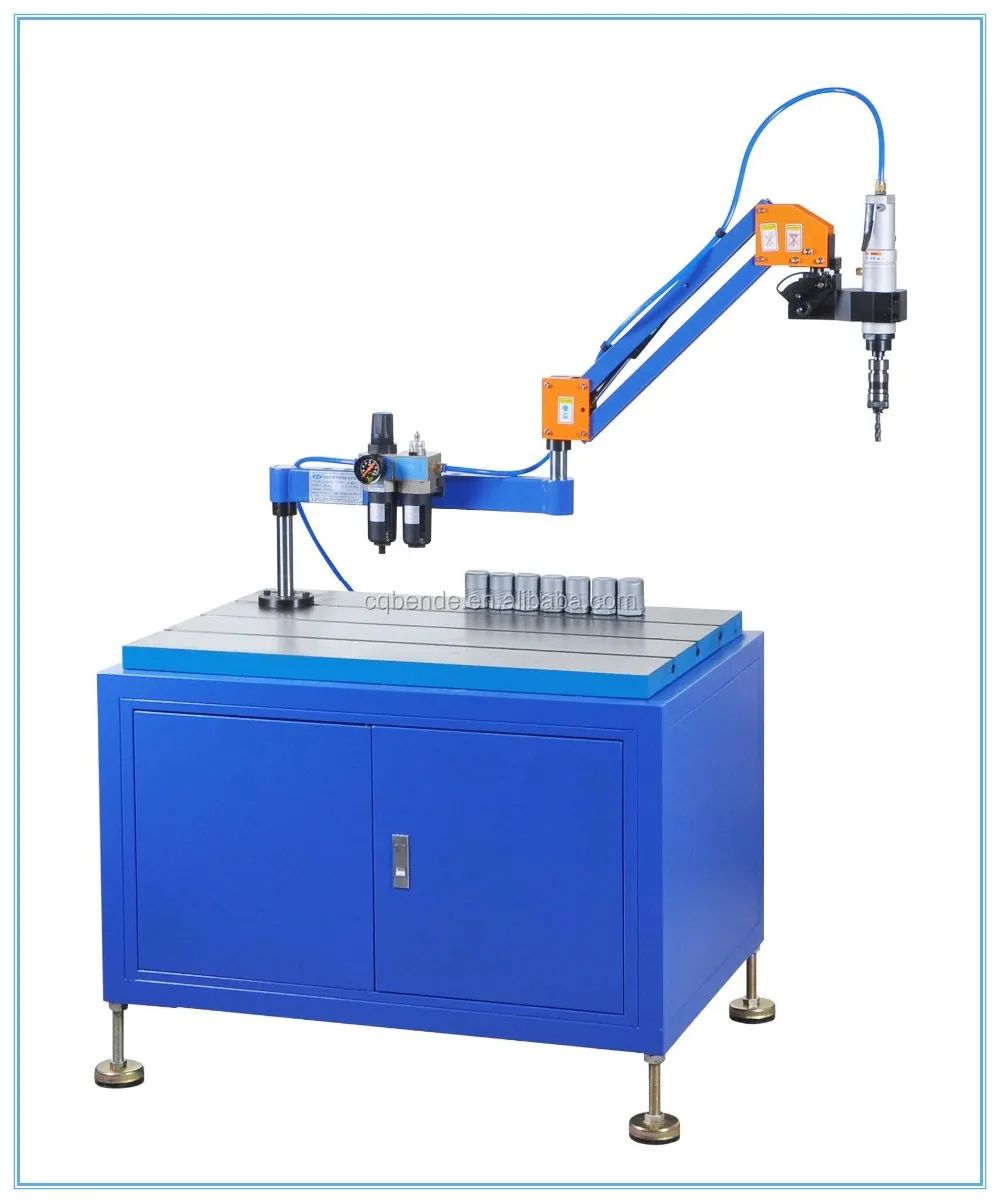

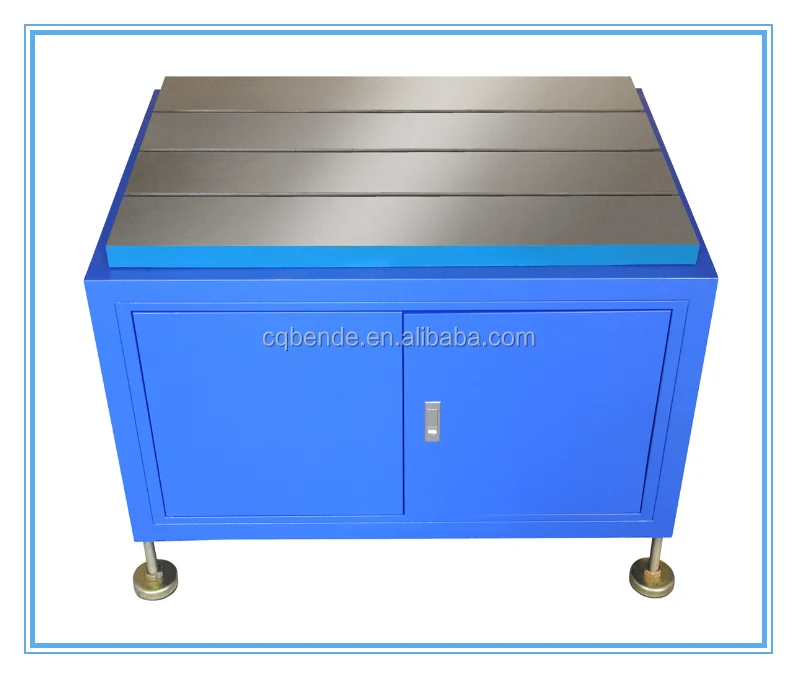

Machine worktable 1

Table size ：90*60*70cm

Gross weight：135kgs

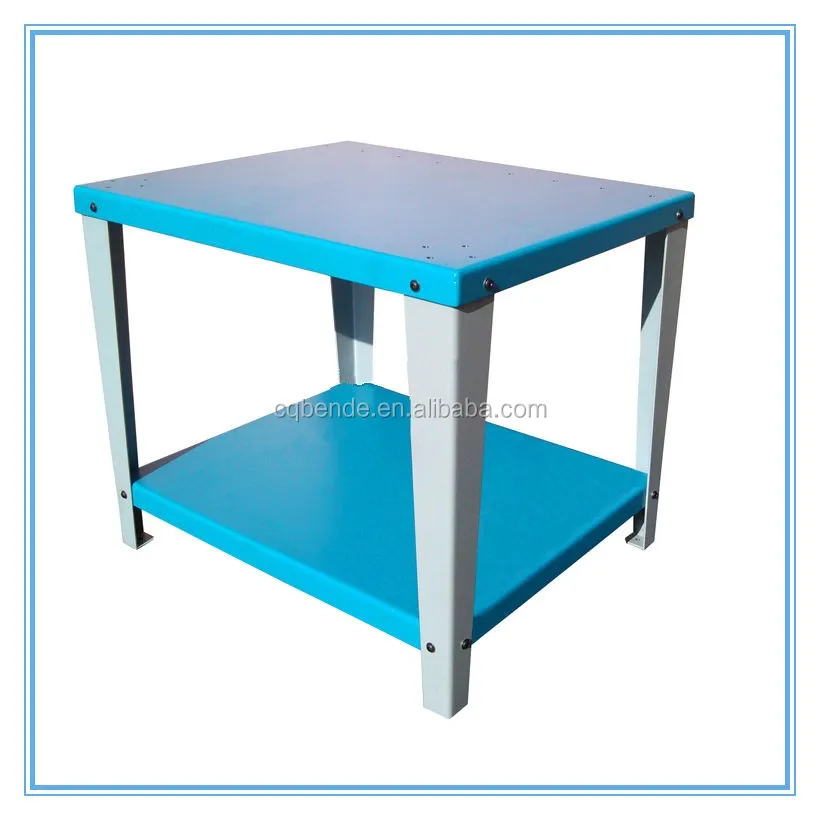

Machine worktable 2

Table size ：80*65*65cm

Gross Weight：90kgs

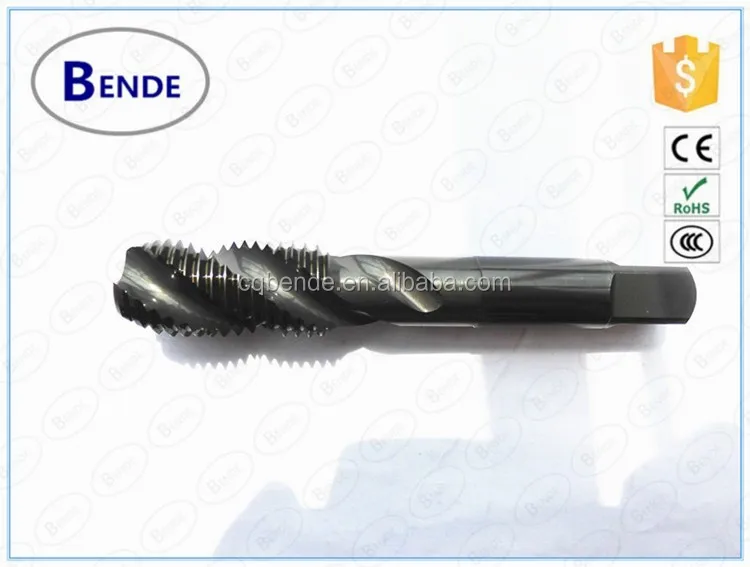

Machine taps

Normally ur taps can match our collet,if not match,we could custom-made,also u could choose buy taps from us,we have Japan YAMAWA taps,Korea YG taps,China LINKS taps.

Tapping machine can lead, copper , A3 steel, cast iron , pig iron , Q235, 45 # steel , S136 mold steel , mold steel 718 , ace material , NAK80 mold steel and other metal materials for easy tapping operations .

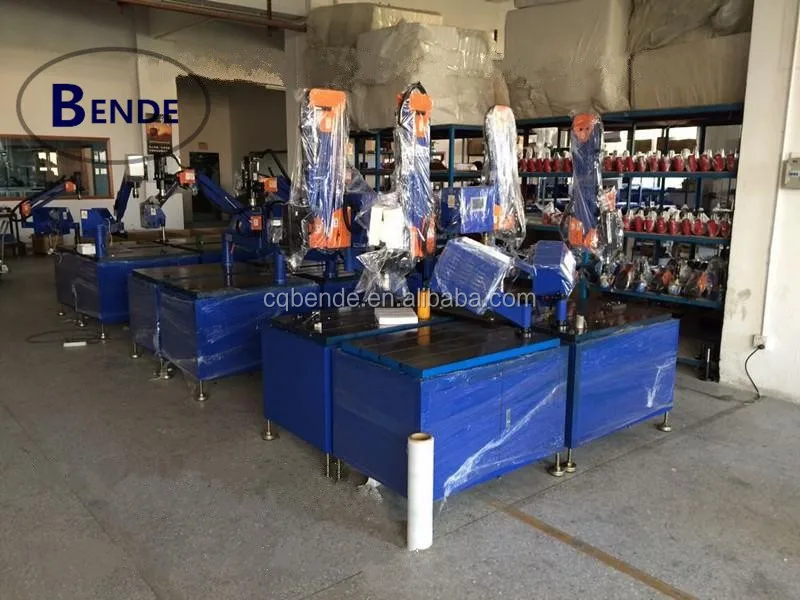

Packing & Delivery

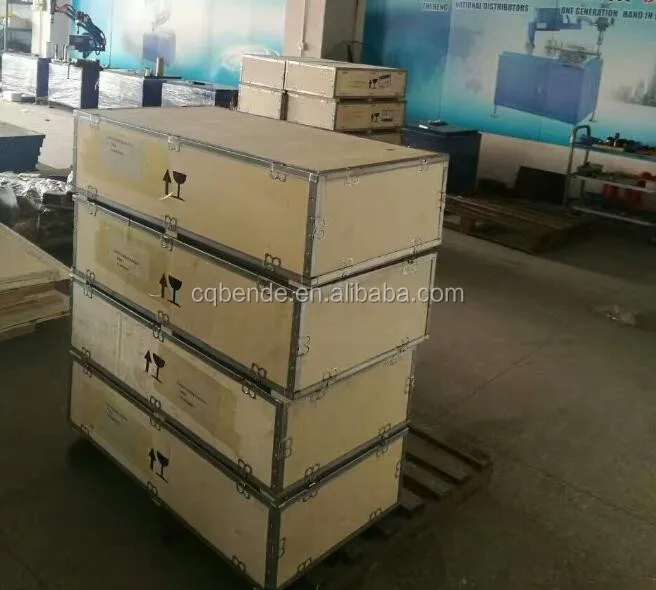

Packaging
Size	80 (L) * 55 (W) * 30 (D)
Weight	25kgs
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

FAQ

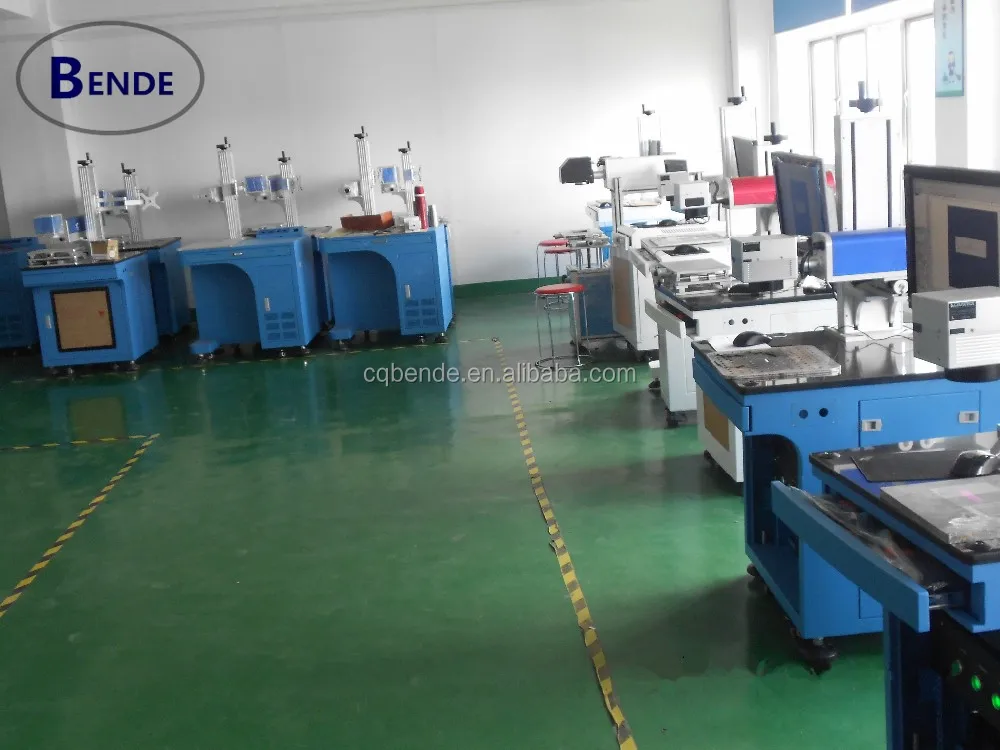

Our Company

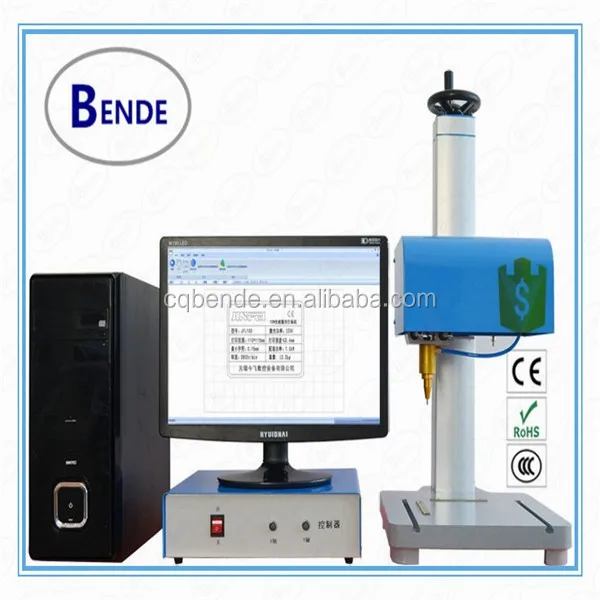

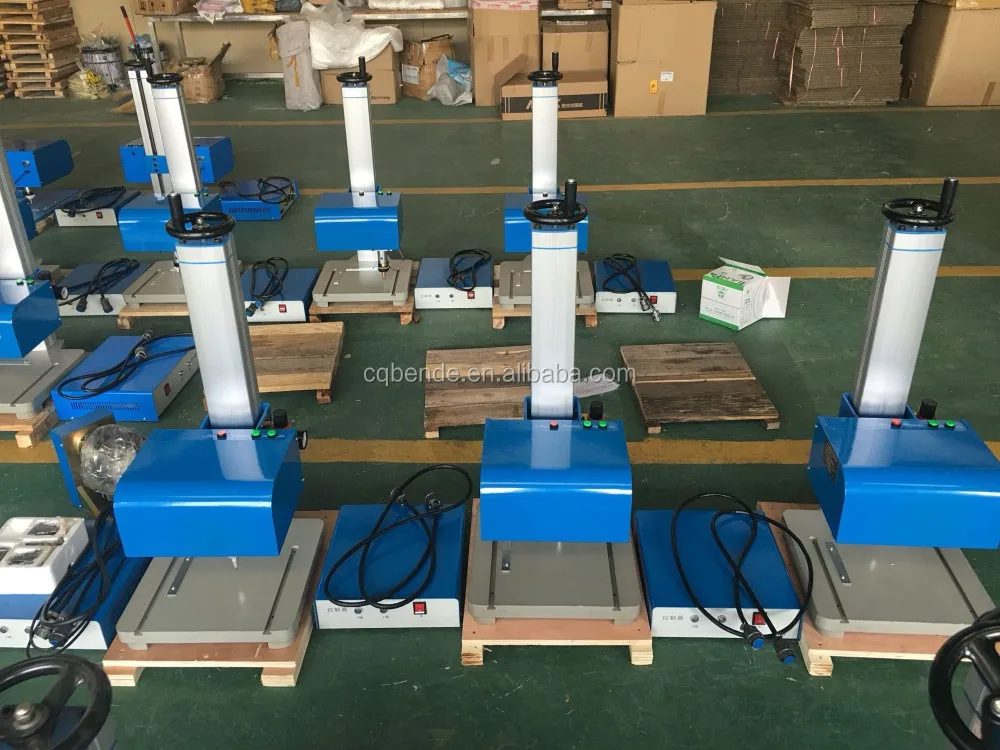

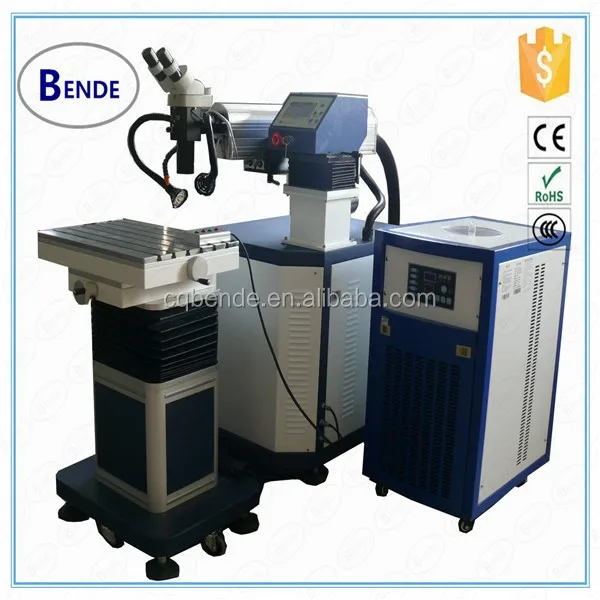

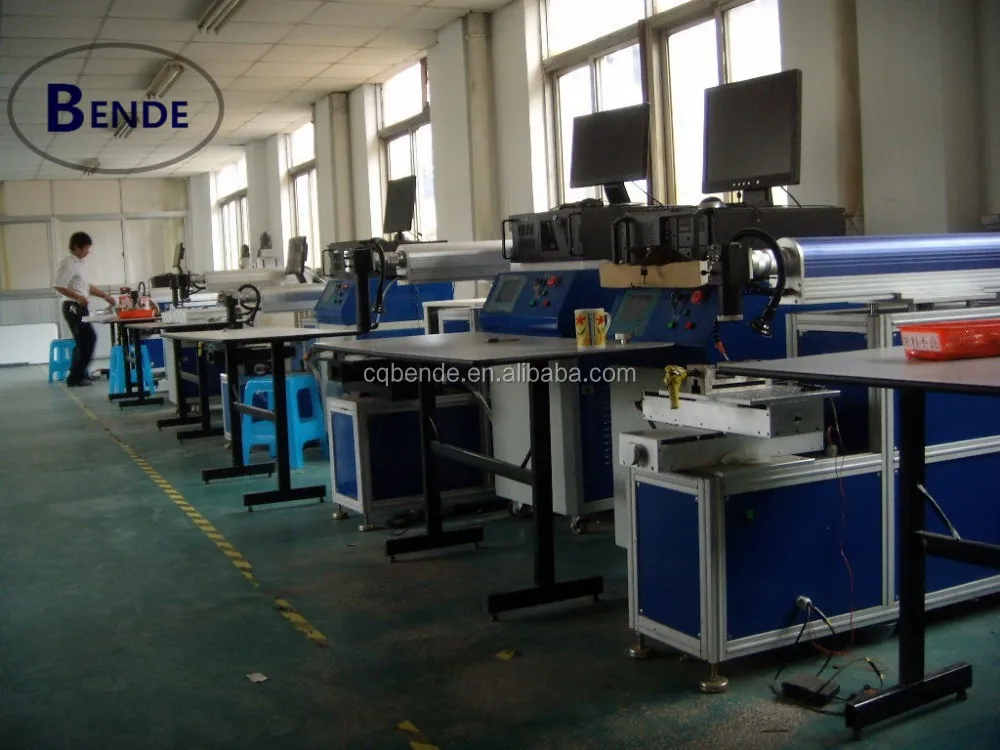

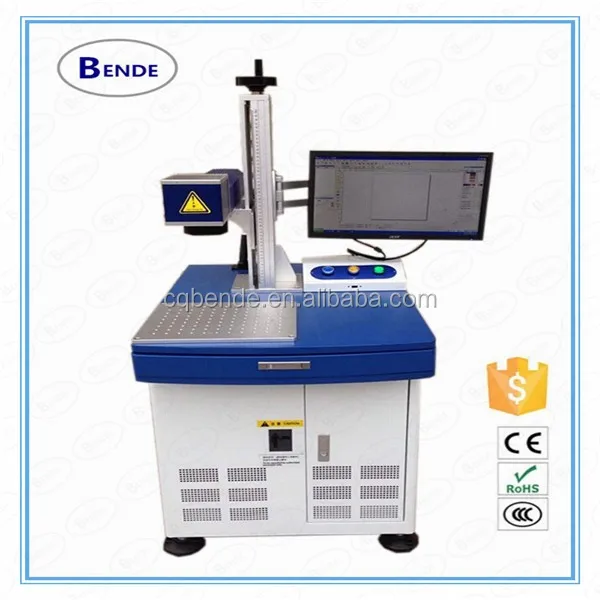

We are specializing in producing,developing and selling laser marking machine,laser welding machine,air tapping machine,servo electric servo tapping machine,dot pin marking machine etc.It is Chinese industrial laser processing equipment ,domestic well-known marking equipment manufacturer.And,with rich experience ,we also have obtained huge success in international market ,the mainly foreign markets are United States, Germany, Spain, Russia, Singapore, Indonesia...more than 30 countries and regions .Till now, a lot of customers all over the world have visited us.
