Shipping method: | UPS.FEDEX.DHL | Key words: | Open Frame Touch Monitor |
Response time: | 5ms | Interface Type: | D-SUB,DVI,Serial,usb |
enter: | VGA/HDM/DVI/RS232/USB | Warranty Period (Years): | 3 years |
Supply capacity: | 5000 pieces per week | application: | automated industry |
After-sale service: | Call center and online technical support, on-site training and inspection, free spare parts, returns, repairs, others | port: | Shenzhen |
Packaging Details: | carton | product name: | Industrial Metal Enclosure Displays |
type: | Resistive | product status: | new |
color: | Black | brand: | OEM |
size: | 19-inch touchscreen monitor | place of origin; place of origin: | Guangdong, China |
payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram | series: | business use |
Touch controller: | EETI Touch Controller | Touch interface: | USB/RS232C |
brightness: | 500cd/m | Private model: | Yes |

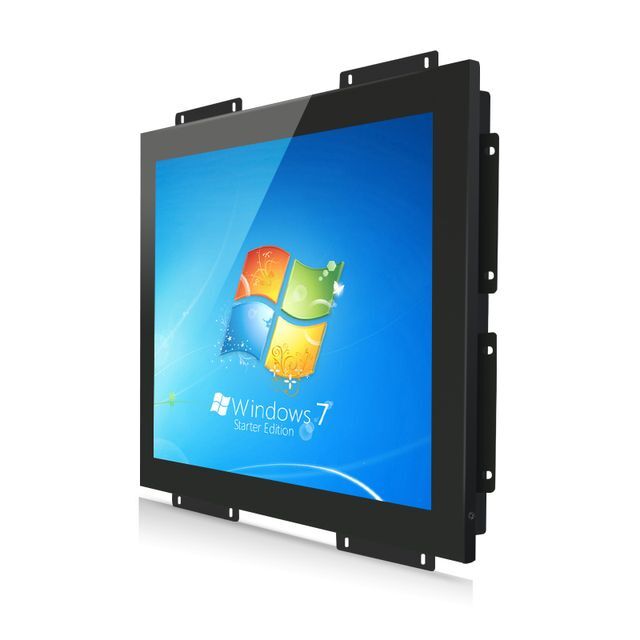

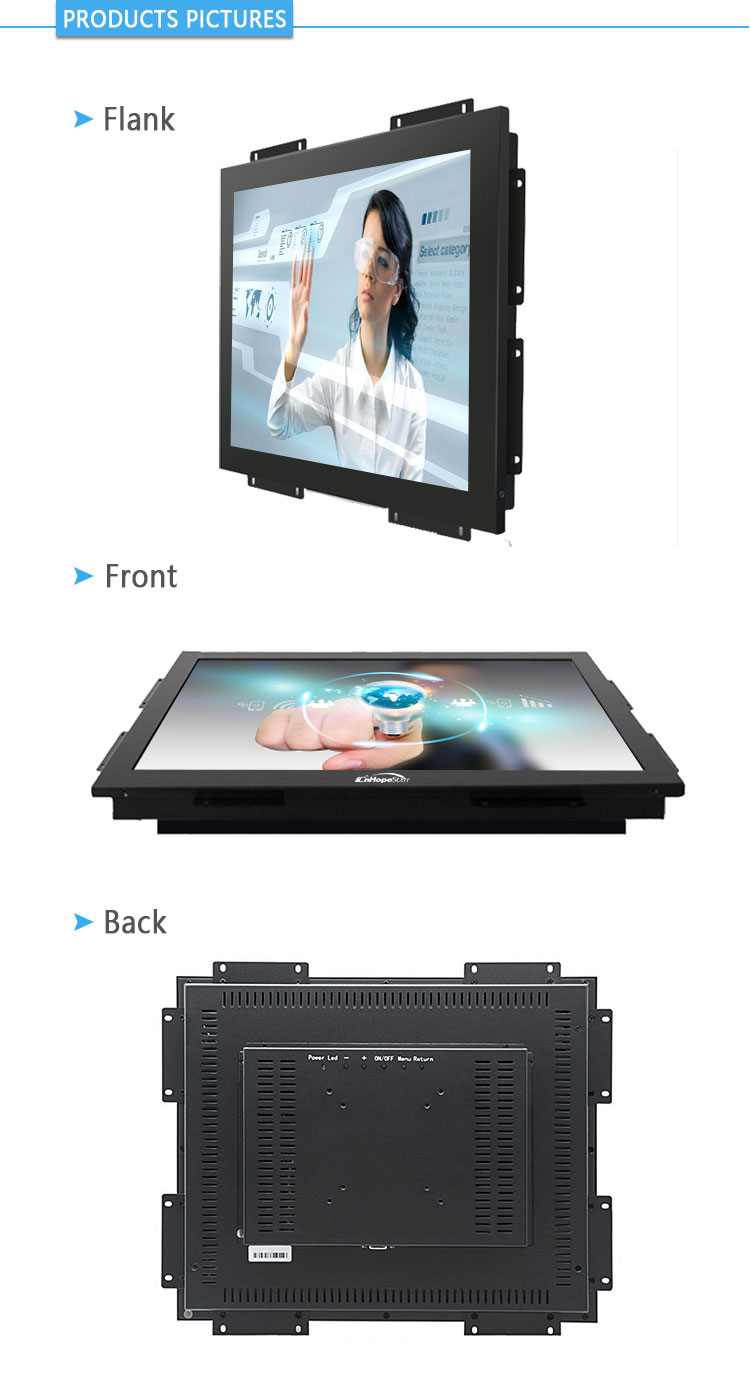

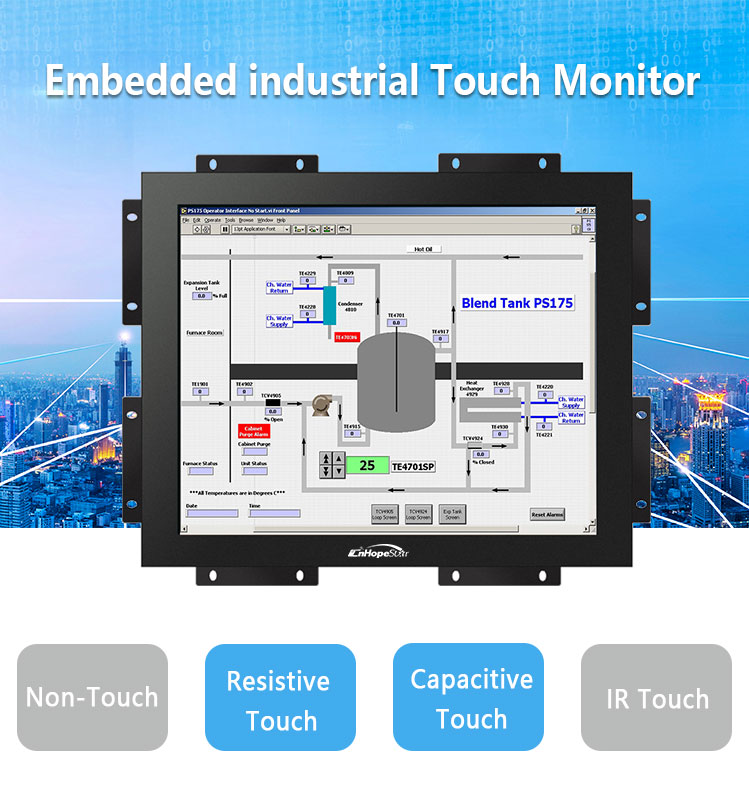

19 inch industrial touch monitor open frame screen for kiosk
Specification | |
series | Anti-horizontal screen |
Liquid crystal type | 19” TFT-LCD |

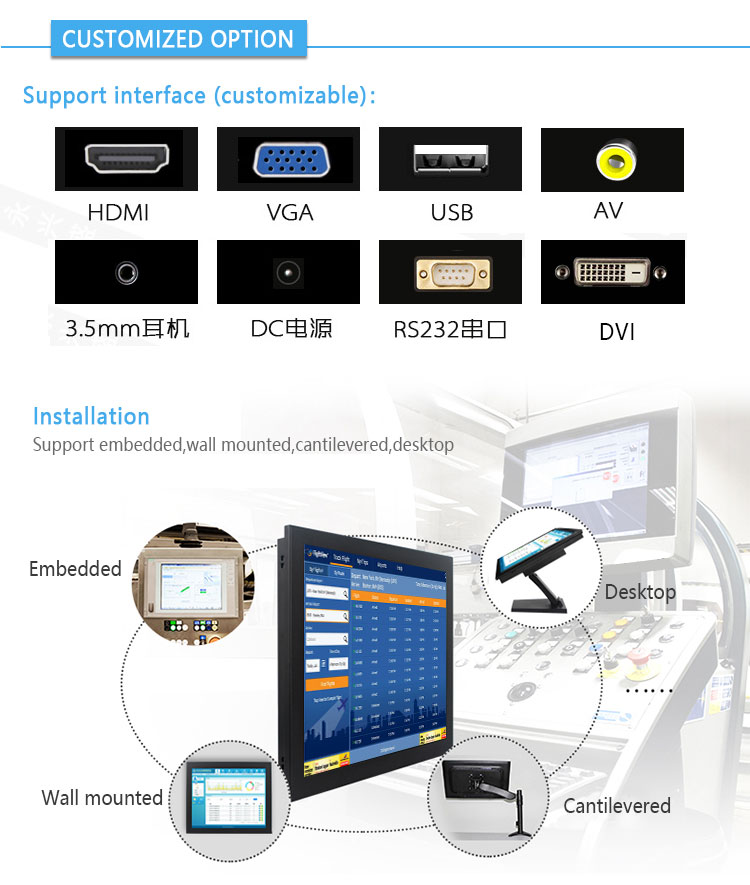

video input | VGA and DVI |
OSD controls | Allows to adjust brightness, contrast, auto adjust, phase, clock, H/V position, language, function, reset on screen |

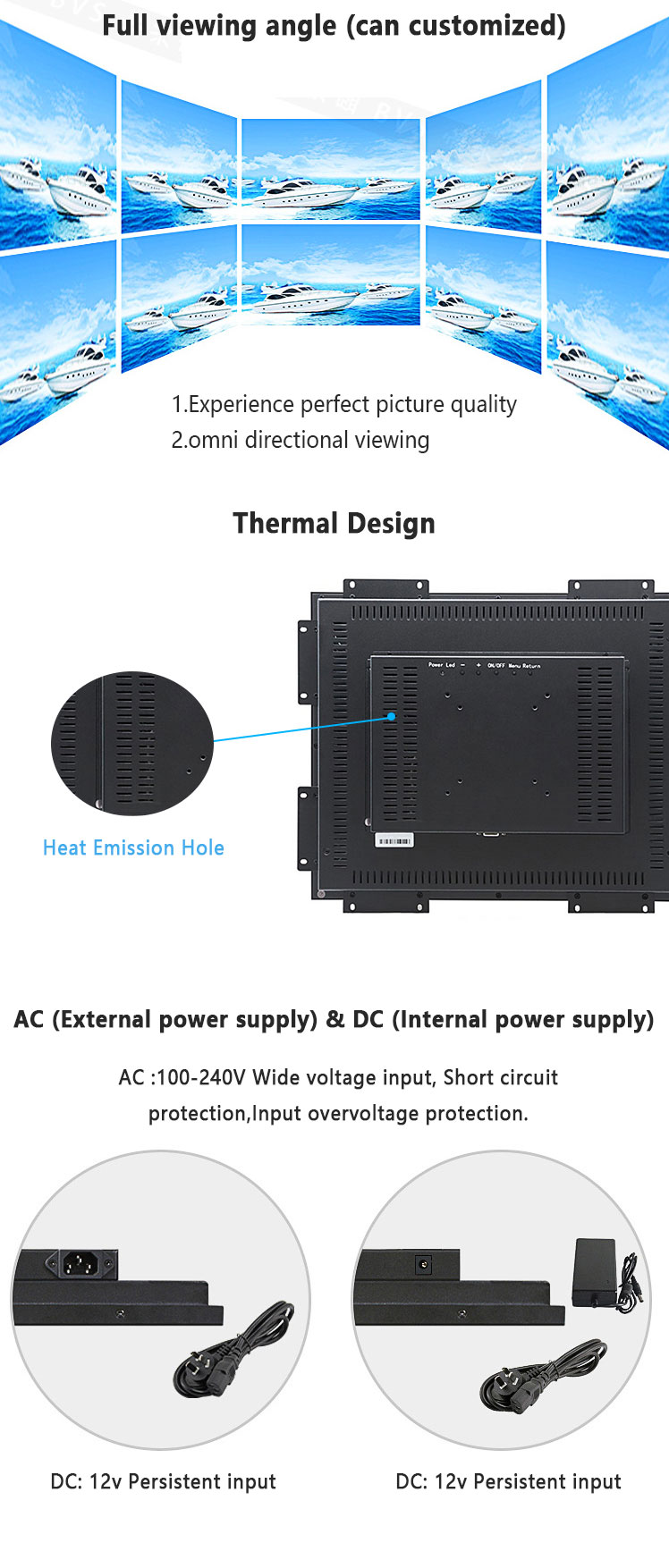

power supply | Type: Exterior Brick |
Input (Line) Voltage: 100-240 VAC, 50-60 Hz | |
Output Voltage/Current: 12 Volts, 4 Amps max | |

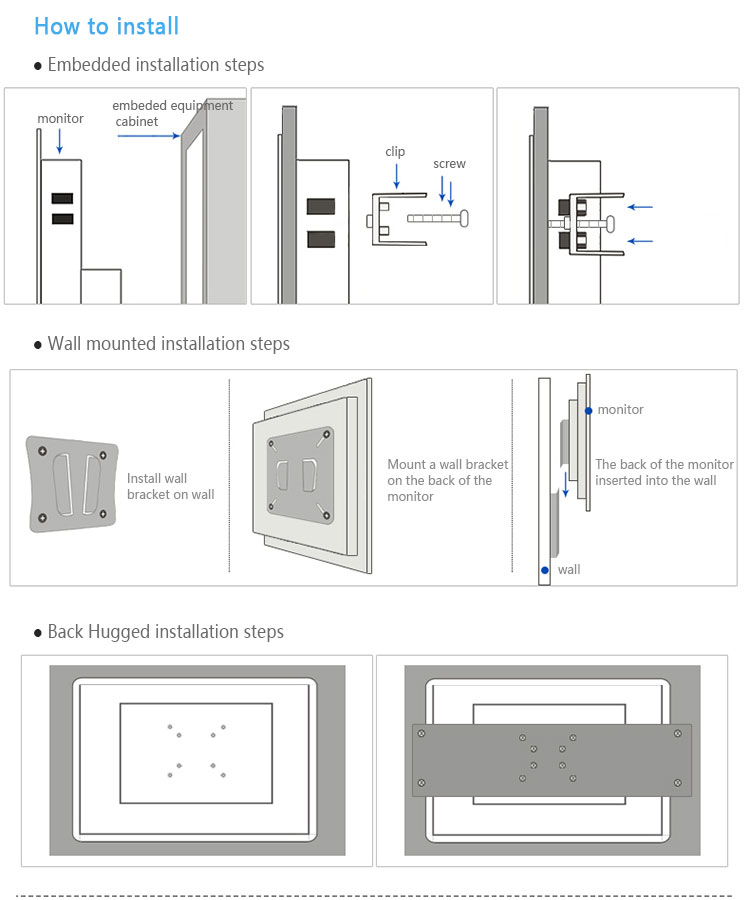

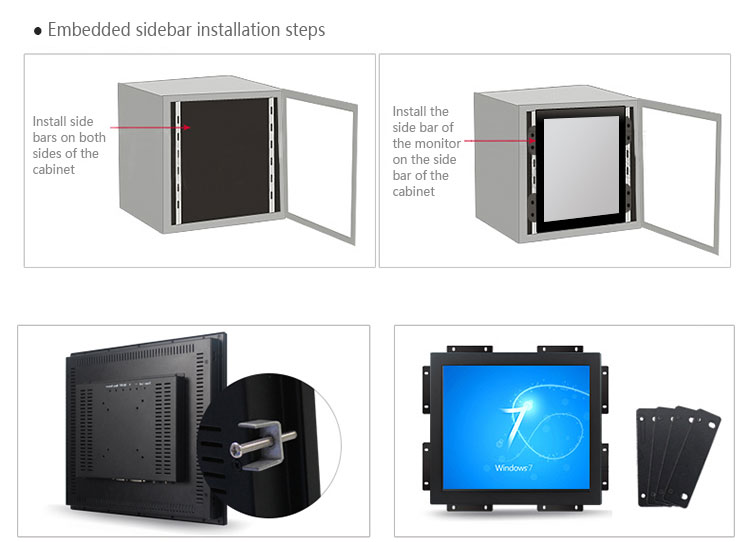

installation interface | 1)VESA 75mm and 100mm |
2) Mounting bracket, horizontal or vertical | |
Effective area (mm) | 378.3(H)×303.0(V) |
Resolution | 1280×1024@75Hz |
Dot pitch (mm) | 0.294×0.294 |
Nominal input voltage VDD | +5.0V (typ.) |
Viewing angle (v/h) | 80°/85° |
Compared | 1000:1 |
Brightness (cd/m2) | 350, 1000cd/m2 - optional |
Response time (rise) | 5ms/5ms |
color support | 16.7 million colors |
Backlight MTBF (hours) | 30000 |

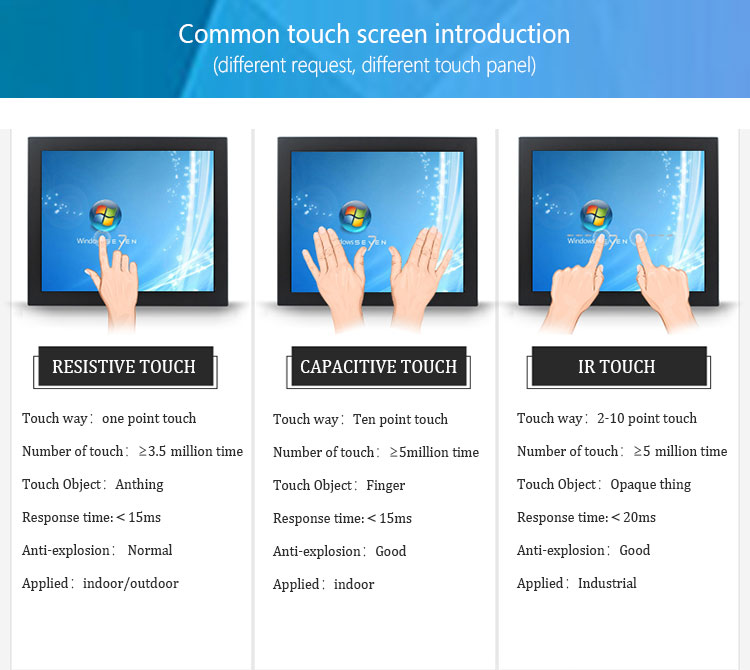

Touchscreen Specifications | |
type | Projected capacitive touch screen |
Resolution | 10 point touch |
Touch Lifecycle | 10 million |
