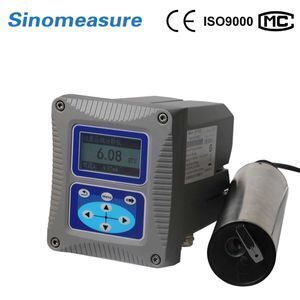

High quality china high water analyzer turbidimeter turbidity meter for waste treatment

Product details
Name:Turbidity;Measurement range:0.01-100 NTU ,0.01-4000 NTU;
Port:Shanghai;Product name:Turbidity Meter;
Usage:Water Content;Model Number:SIN-PTU200-e517;
Brand Name:Sinomeasure;Weight:3kg;
Pressure Range:≤0.4Mpa;Power supply:AC:AC220V, 50HZ, 5W DC:DC24V;
Delivery Detail:10 working days after the payment received;Application:Water Treatment Industry;
Packaging Detail:Standard Package;Place of Origin:Zhejiang China (Mainland);
Payment Terms:L/C,T/T,Western Union,MoneyGram;Flow velocity:≤2.5m/s,8.2ft/s;
Supply Ability:1000 Piece/Pieces per Month;Resolution:Less than ± 2% of the measured value, or ± 0.1 NTU Maximax criterion;
Product Description

 Turbidity Sensor:

Specification
Details
Size
Diameter 60mm* Length 256mm
Weight
1.65 KG
Main Materials
Main Body:SUS316L (Ordinary Version),Titanium Alloy (Seawater Version)  Upper and Lower Cover:PVC;Cable: PVC
Waterproof Rate
IP68/NEMA6P
Measurement Range
0.01-100 NTU ,0.01-4000 NTU
Indication Resolution
Less than ± 2% of the measured value, or ± 0.1 NTU Maximax criterion
Pressure Range
≤0.4Mpa
Flow velocity
≤2.5m/s,8.2ft/s
Storage Temperature
-15~65℃
Environment Temperature
0~45℃
Calibration
Sample Calibration, Slope Calibration
Cable Length
Standard 10-Meter Cable, Max Length: 100 Meters
Warranty Period
1 Year
High Voltage Baffle
Aviation Connector, Cable Connector

Turbidity transmitter:

Specification
Details
Size
145*125*162mm  L*W*H
Weight
1.3KG
Material of outside shell
lower casing: Aluminum with powder covering
cover:PA66+GF25+FR
Waterproof Rate
IP65/NEMA4X
Storage Temperature
-20 to 70℃
Operation Temperature
-15 to 60℃
Power Supply
AC:AC220V,50HZ, 5W          DC:DC24V
Output
three-way analog output 4-20mA, response parameters and corresponding scope can be programmed  Note: the maximum load is 500 ohms
Relay
three-way relay can be set up, and response parameters and response values can be programmed
Display Output
128*64 dot matrix LCD with LED backlight, which can be operated under the direct sunlight
Digital Communication
MODBUS RS485 communication function, which can transmit real-time measurements
Warranty Period
1 year
