Type of engine: | water cooling | brand: | video gateway |
Options: | ATS/Container/Trailer | model: | GFS-60 |
frequency: | 50/60HZ | control panel: | LCD digital display |
Certification: | CE/ISO/COC/CIQ/SONCAP | Supply capacity: | 100 sets per month |
Certificate: | CE,ISO9001,SONCAP,CIQ | place of origin; place of origin: | Fujian China |
Generator Type: | Open, silent, trailer, container | speed: | 1500/1800 rpm |
Warranty: | 2 years quality warranty, 1 year to 2 years | payment terms: | L/C,Western Union,T/T,MoneyGram,Credit Card |
Engine Cylinder: | 2L, 3L, 4L, 6L, 12V, 16V cylinder | port: | Fuzhou, any port in China |
Rated voltage: | 110v/120v/220v/230v/240/380V/400V/415V | Alternator: | Brushless, China Stamford, Original Stamford, Marathon, Leroy Somer |
Packaging Details: | Plywood boxes and bubble wrap | Packaging Preview: | |
pack: | Plywood, PE film packaging | Rated current: | Single-phase: 200A-436A Three-phase: 83A-151A |
tank: | 8-10 hours, 12 hours, 24 hours |
We have 10kw-2000kw power, if you are interested, please contact us to quote you the best price Yuki: 008613295076920 | ||||||

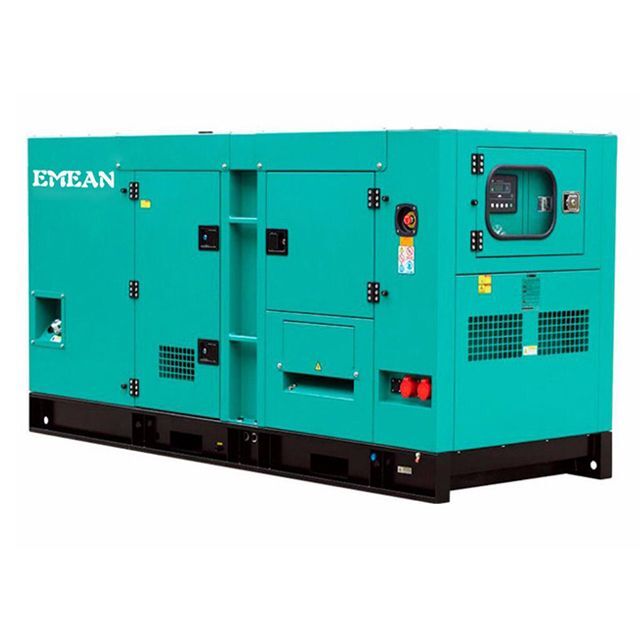

Generator Set Model | GFS-60 | Rated power (KW) | 48 | |||
engine model | R4105AZLD | Rated power (KVA) | 60 | |||
Alternator Model | EM-224E | Standby power (KW) | 53 | |||
Frequency (Hz) | 50 | Standby power (KVA) | 66 | |||
stage | three phase | Net weight (kg) | 1250 | |||
Rated current (A) | 57.6 | Dimensions (L*W*H) mm | 2360×1000×1200 | |||
Quantity/20FCL | 4 | Quantity/40HQ | twenty four | |||
engine details | ||||||
Brand/Original | Weifang Ricardo | type | Four-stroke, V-inline, water-cooled, electric start | |||
engine model | R4105AZLD | cylinder number | 4 | |||
Displacement (L) | 4.33 | Bore size and stroke (mm) | 105*125 | |||
Rated power (KW) | 66 | Oil volume (L) | 15 | |||
Rated power (KVA) | 82.5 | combustion | direct injection | |||
Fuel consumption(g/kw.h) | 235 | Inhalation type | turbo | |||
Governor | Mechanical governor | Radiator water tank | 40℃ | |||
Alternator Details | ||||||
type | Oriental Lion | Efficient | 92% | |||
Alternator Model | EM-224E | AVR | SX460 | |||
type | Brushless self-excitation | Protect | IP23 | |||
Main power (KW) | 48 | insulation | Class H | |||
winding lead | 12 | factor | 0.8 | |||
control panel | ||||||
Brand/Original | Smartgen | Model | HGM6120/HGM6110 |
open | Quiet type | Phone style |
