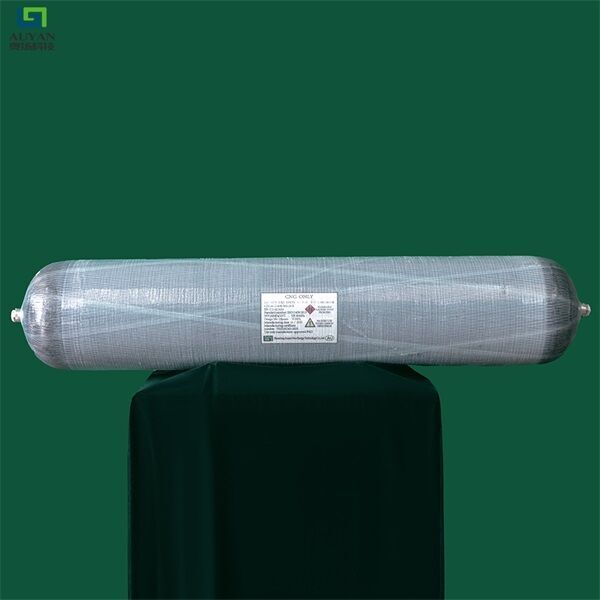

Auyan New Energy Welded Insulated Liquid Cylinder Vehicle CNG Cylinder

Product details
INTRODUCTION

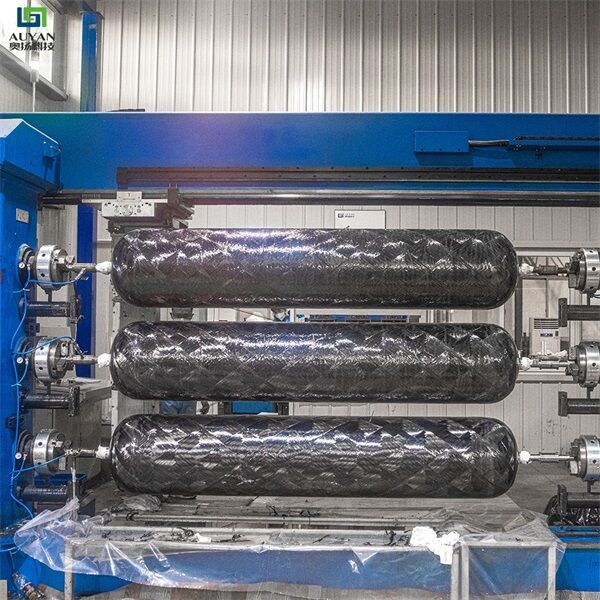

Auyan CNG vehicle-mounted gas cylinder uses finite element stress analysis technology to optimize the winding internal pressure design and cooperates with its own patented winding tooling to realize continuous, controllable, and variable pressure fiber winding.

Core competitiveness: 42% weight reduction, substantial cost reduction, and long service life.

TECHNICAL DATA

No. Name Model High Pressure/Mpa Cylinder outer   diameter/mm Length/mm Water volume/L
IV Type Cylinder 235L Gas Cylinder CNG4-C-450-235-20S 20 450 1880 235
265L Gas Cylinder CNG4-C-450-265-20S 20 450 2070 265
305L Gas Cylinder CNG4-C-450-305-20S 20 450 2400 305
115L Gas Cylinder CHG4-C-410-115-35S 35 410 915 115
55L Gas Cylinder CNG4-C-327-55-20T 20 327 990 55
66L Gas Cylinder CNG4-C-356-66-20T 20 356 965 66
66L Gas Cylinder CNG4-C-356-66-70T 70 410 965 66




APPLICATION
