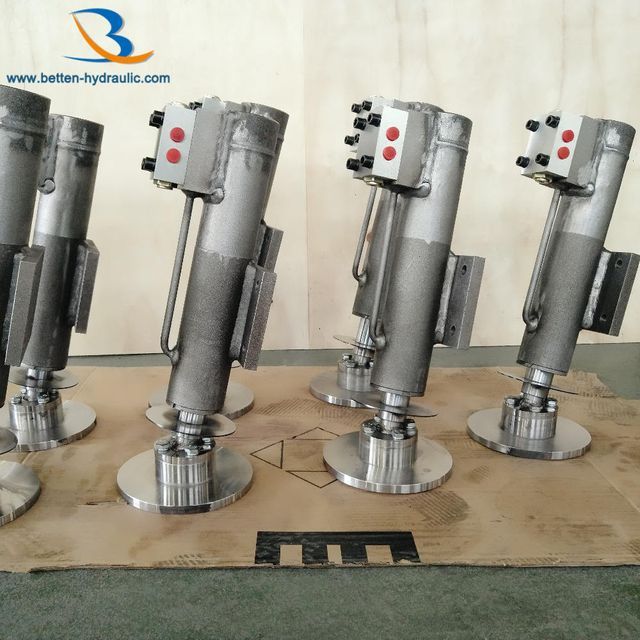

outer pillar cylinder

Supplier: Wuxi Boli Hydraulic & Pneumatic Technology Co., Ltd.
Region: Jiangsu, China
Contact: Ms kinking wang
Price: $50.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

proper temperature:	-40°C to +120°C	Cylinder shell/pipe:	carbon steel, alloy steel, stainless steel
Mechanical test report:	if	Polished tube:	60-500mm, heat treatment, honing, rolling
strength:	hydraulic	Supply capacity:	1000 pieces per month
structure:	Piston cylinder	Key words:	Outrigger Cylinder Crane
Local service location:	not any	Warranty:	1 year
Seals:	Parker, Merkel, Herrett	Core component warranty:	1 year
payment terms:	L/C, T/T, Western Union	Video shipment inspection:	if
Marketing Type:	2019 Hot Products	Body material:	steel
After warranty service:	Video technical support, online support	Work pressure:	5-300Mpa
Origin:	Jiangsu, China	Working medium:	Hydraulic oil
Package preview:		Core components:	cylinder
Packaging Details:	Packing details: arton of hydraulic cylinder, wooden box, steel tower (or according to customer's requirements) Delivery details: Ship within 7 days after payment	Showroom location:	not any
Health status:	new	brand:	Burleigh
Surface coating:	Sandblasting, primer, mid-coat, top coat	Piston rod:	50-200mm, tempered, nickel plated, chrome or ceramic
Applicable industries:	Building materials stores, manufacturing plants, machinery repair shops, food and beverage plants, farms, construction, energy and mining	Standard or non-standard:	Non-standard
port:	Shanghai or as required

Product Details

custom information

Building for customers is the first principle of Biten Hydraulics.

If you can provide the following technical parameters, we can design piston hydraulic cylinders for you:

1. Aperture
2. Rod diameter
3. stroke
4. Working pressure
5. Installation type
6. Thrust or pull back capability

As an experienced hydraulic cylinder supplier, Biten Hydraulics manufactures hydraulic products including customized small hydraulic cylinders, Rexroth hydraulic cylinders, spare parts (hydraulic cylinder tubes/piston rods/bearings), cylinders, hydraulic systems, which are widely used in various fields:

Construction machinery (excavator/forklift/loader/crane)

Industrial machinery (hydraulic heat press/industrial equipment)

Marine port machinery (stacker reclaimer/drilling platform/ship crane)

Some normal installation types for your reference are as follows:

Technical data

product	Welded cross tube double acting hydraulic cylinder for agriculture
Cylinder stroke	50mm-16000mm
Cylinder inner diameter	40 - 1000 mm (1.5 - 40 inches)
Liner material	Copper (extends cylinder life)
Hydraulic cylinder pipe	carbon steel, alloy steel, stainless steel
Piston rod diameter	12 - 500 mm (1/2 - 20 in) Hydraulic cylinder piston rods shall be hard chrome plated to a minimum thickness of 35-55 microns and polished to 0.15 microns Ra
chrome	Chrome, Nickel or Ceramic
design pressure	700 bar max (10150 PSI)
weight	up to 60 tons
valve	SUN (USA), or a well-known Chinese brand with the same quality as PARKER
Seal type	PARKER (USA), MERKEL (Germany) or NOK (Japan)
Liner material	Copper (extends cylinder life)
bearing	Longxi (China) or SKF
painting	Follow customer requirements or 3 coats of marine paint
Certificate	DNV, ABS, Lloyd's, BV, GL, KR, NK, RINA, RS and CCS
application	Construction machinery (excavators/forklifts/cranes/dump trucks, etc.), mining, metallurgy, ships, water conservancy, etc.
