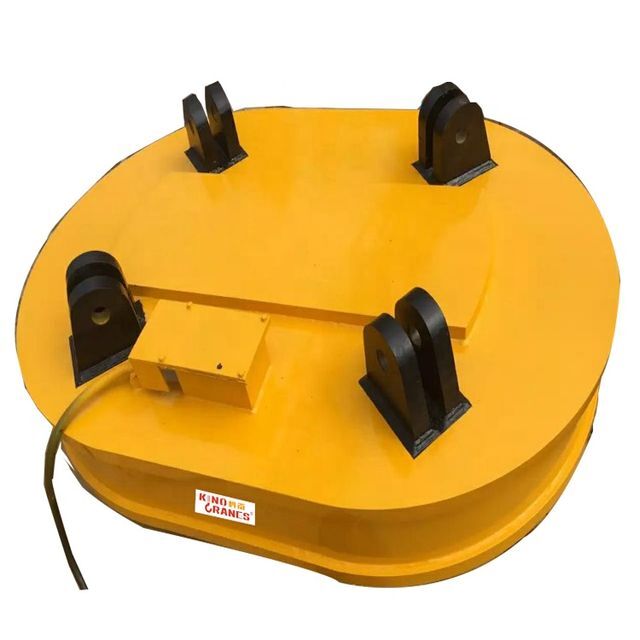

1T 3T 5T Oval Scrap Lifting Electromagnet

Supplier: Henan Kino Cranes Co., Ltd.
Region: Henan, China
Contact: Mr Simon Xing
Price: $1020.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

size:	custom size	Certification:	ROHS
Packaging Details:	Packing: iron drum, steel tray, outer plastic film. Or packaged as required.	place of origin; place of origin:	Henan, China
shape:	circle	Core components:	PLC, motor
Core Components Warranty:	1 year	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,Trade Assurance
brand:	Knocklands	coating:	epoxy resin
Package:	wooden box	Magnetic direction:	Axial
port:	Qingdao, Tianjin	Supply capacity:	2000 sets per month
Material:	Permanent Neodymium Magnets	Video external inspection:	if
color:	custom color	Health status:	new
Showroom location:	not any	Warranty:	1.5 years
Marketing Type:	New Products 2021	Weight (kg):	1800 kg
tolerant:	0.5mm	Mechanical test report:	if
product name:	Oval Lifting Electromagnet

Product Description

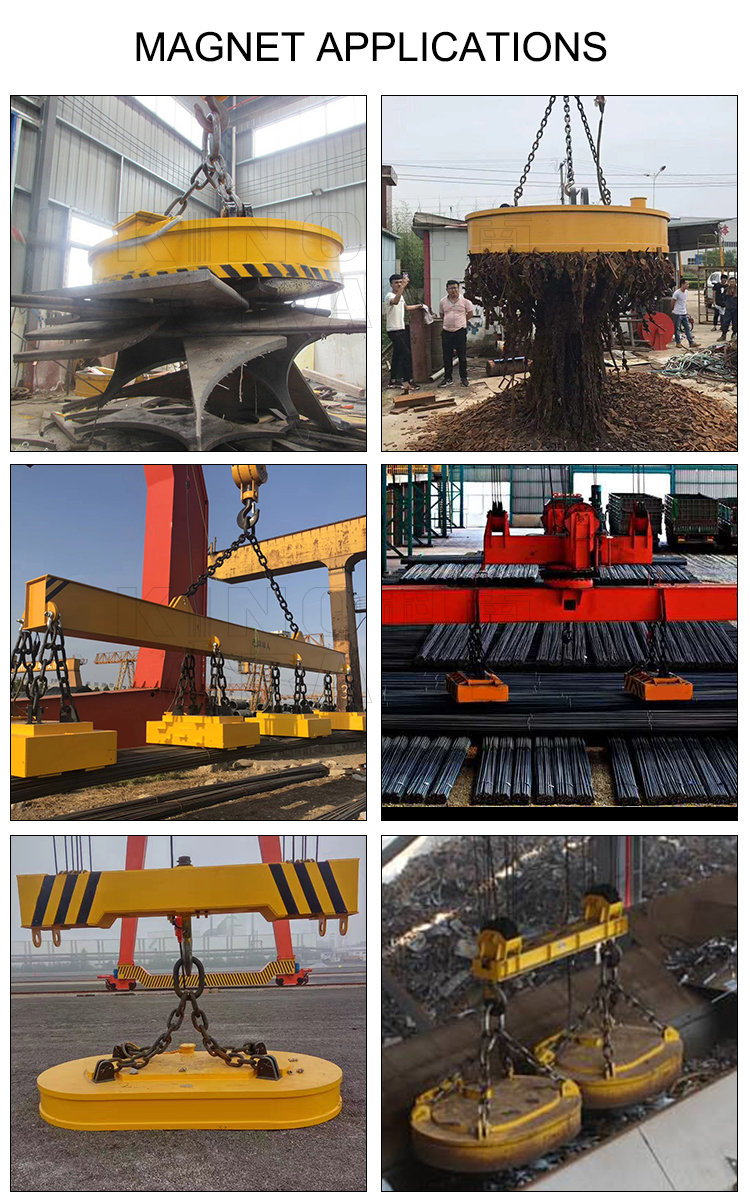

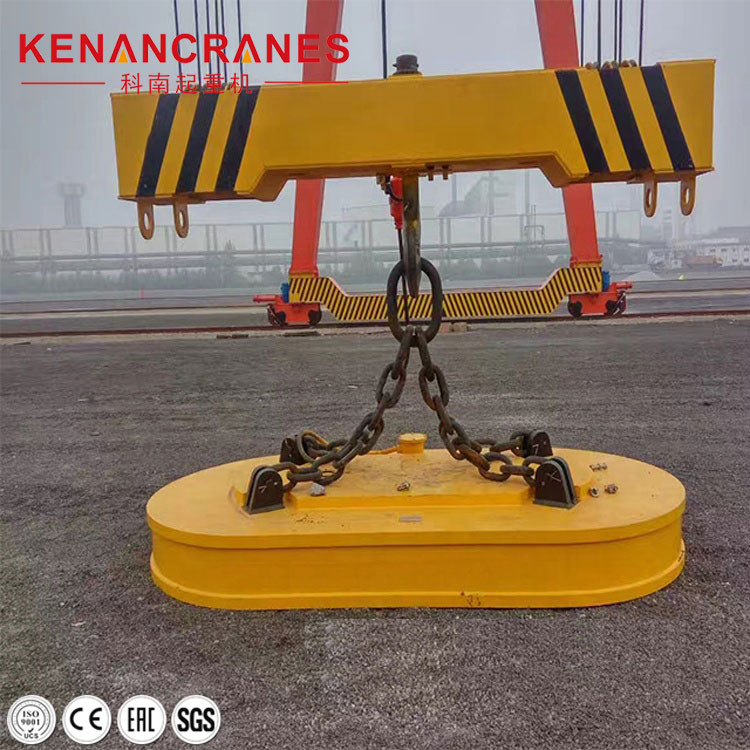

This series of products is used for efficient loading and unloading of steel in narrow containers. According to the shape of the car, it is used for hoisting and transporting scrap steel. The two ends of the electromagnet are generally designed into a semi-circular structure, so it is also called an oval electromagnet. Due to the different head size of each steel company, the specifications are constantly increasing

Specification

Model	Diameter(mm)	Current (A)	Power (KW)	Lifting capacity (cold/hot state) (kg)
Model	Diameter(mm)	Current (A)	Power (KW)				steel ball	steel ingot	scrap
MW61-70L/1	700	15	3.3	2500	380/200	120/100
MW61-80L/1	800	18	3.96	3000	480/250	150/130
MW61-90L/1	900	26.5	5.85	4500	600/400	250/200
MW61-110L/1	1100	35	7.7	6500	1000/800	450/400
MW61-120L/1	1200	45.5	10	7500	1300/1000	600/500
MW61-130L/1	1300	54	11.9	8500	1400/1100	700/600
MW61-150L/1	1500	71.2	15.6	11000	1900/1500	1100/900

Product advantages

1. It adopts fully sealed structure and has good moisture-proof performance. The non-magnetic fender is made of rolled manganese plate, which has good moisture-proof, magnetic isolation, wear-resistant, shock-proof and other properties.

2. Introduce, improve and innovate foreign technology, and optimize the design by computer to make the product structure reasonable, light weight, strong attractiveness and low energy consumption.

3. The excitation coil has been treated with special technology to improve the electrical and mechanical properties, and the heat-resistant grade of the insulating material has reached the C level, and the service life is long.

4. The rated duty cycle of the common electromagnet is increased from 50% to 60%, which improves the work efficiency.

5. The ultra-high temperature electromagnet adopts unique thermal and radiation isolation, and the temperature of the attached material is increased from 600℃ in the past to 700℃, which expands the application range of the electromagnet.

6. A full set of auxiliary units can be provided, such as control cabinets, cable reels, etc.

7. Easy to install, operate and maintain.
