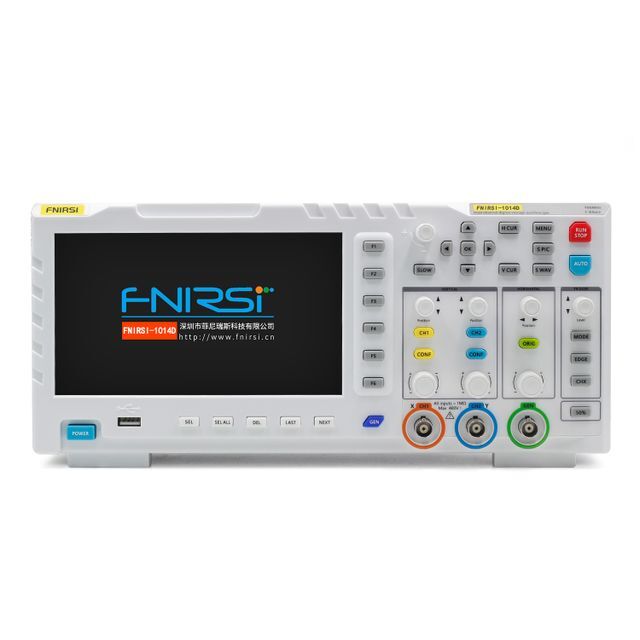

FNIRSI-1014D 2-in-1 Digital Oscilloscope 100MHz Dual Channel Input Signal Generator* 2 Analog Bandwidth 1GSa/s Sampling Rate

FNIRSI-1014D Product Manual:

https://www.mediafire.com/file/ppeajlhbdm1szo4/FNIRSI-1014D+Product+Manual.pdf/file

introduce:

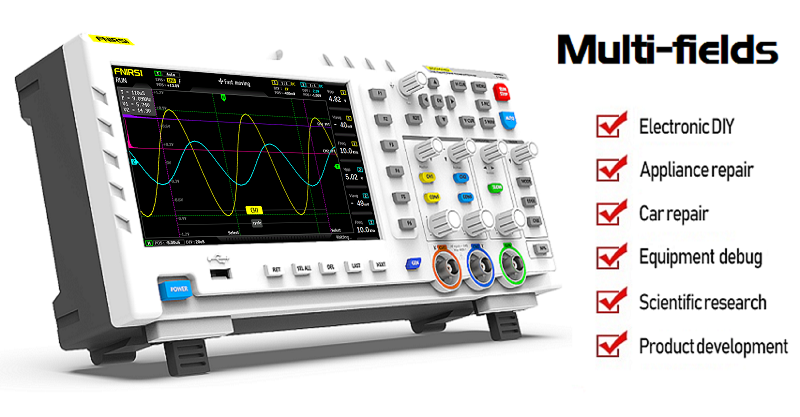

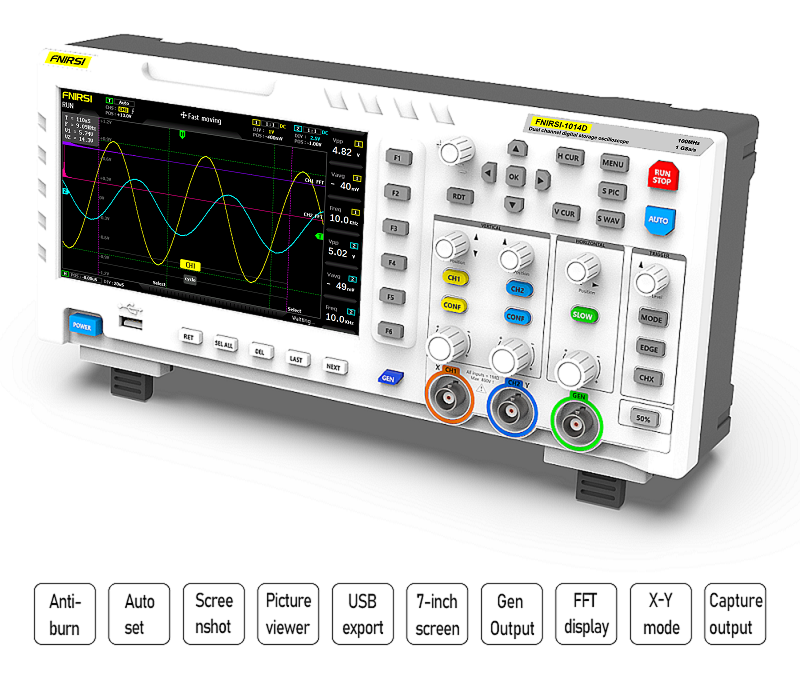

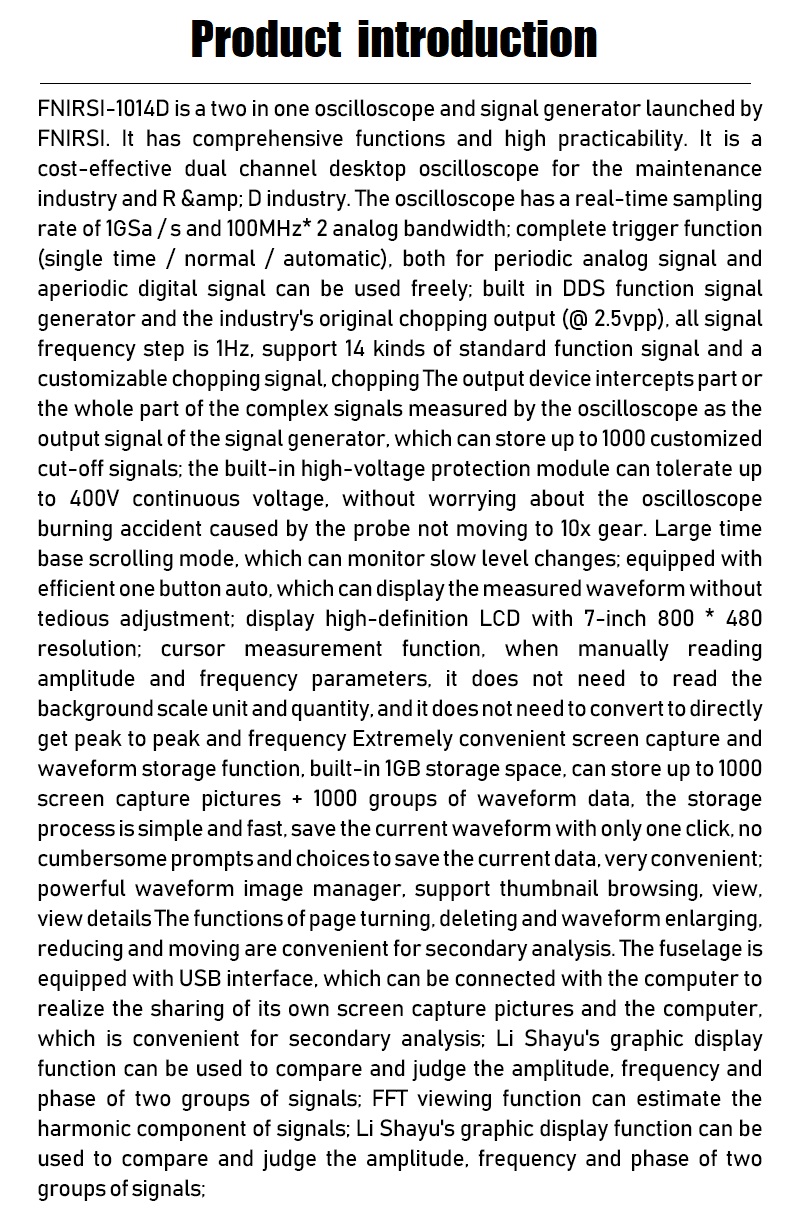

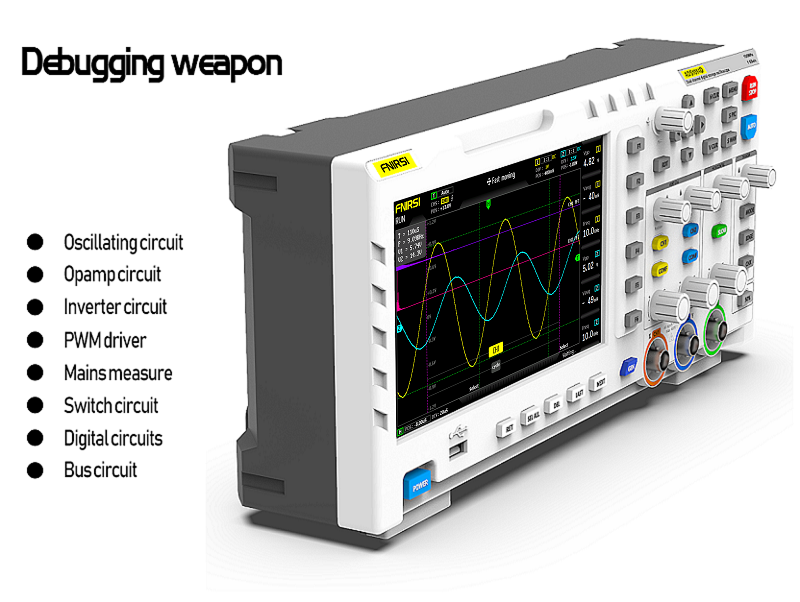

FNIRSI-1014D is a two-in-one oscilloscope and signal generator launched by FNIRSI. Comprehensive functions and strong practicability. It is a cost-effective dual-channel desktop oscilloscope for the maintenance industry and R&D industry. The oscilloscope has a real-time sampling rate of 1GSa/s and an analog bandwidth of 100MHz*2; complete trigger function (single/normal/automatic), both periodic analog signals and aperiodic digital signals can be used freely; built-in DDS function signal generator and The industry's original chopper output (@2.5vpp), the frequency step of all signals is 1Hz, and supports 14 standard function signals and customizable chopper signals. The chopper output device intercepts some or all of the complex signals measured by the oscilloscope as signals The output signal of the generator can store up to 1000 custom cut-off signals; the built-in high-voltage protection module can withstand continuous voltages up to 400V, so there is no need to worry about the oscilloscope burning accident if the probe does not move to 10 times. Large time base scrolling mode, which can monitor slow level changes; Equipped with efficient one-button automatic display of measurement waveforms without tedious adjustments; Displays a 7-inch high-definition LCD display with a resolution of 800*480; Cursor measurement function, manual reading When the amplitude and frequency parameters are used, there is no need to read the background scale unit and quantity, and the peak-to-peak value and frequency can be directly obtained without conversion. Very convenient screenshot and waveform storage function, built-in - 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data , the storage process is simple and quick, save the current waveform with one key, no need for cumbersome prompts and selection to save the current data, very convenient; Powerful waveform image manager, support thumbnail browsing, viewing, viewing details page, delete, waveform zoom, Functions such as zooming out and moving are convenient for secondary analysis. The fuselage is equipped with a USB interface, which can be connected to a computer to share your own screenshots with the computer, which is convenient for secondary analysis; Li Shayu's graphic display function can compare and judge the amplitude, frequency and phase of two sets of signals; FFT view The function can estimate the harmonic components of the signal; Li Shayu's graphic display function can compare and judge the amplitude, frequency and phase of the two sets of signals;

feature:

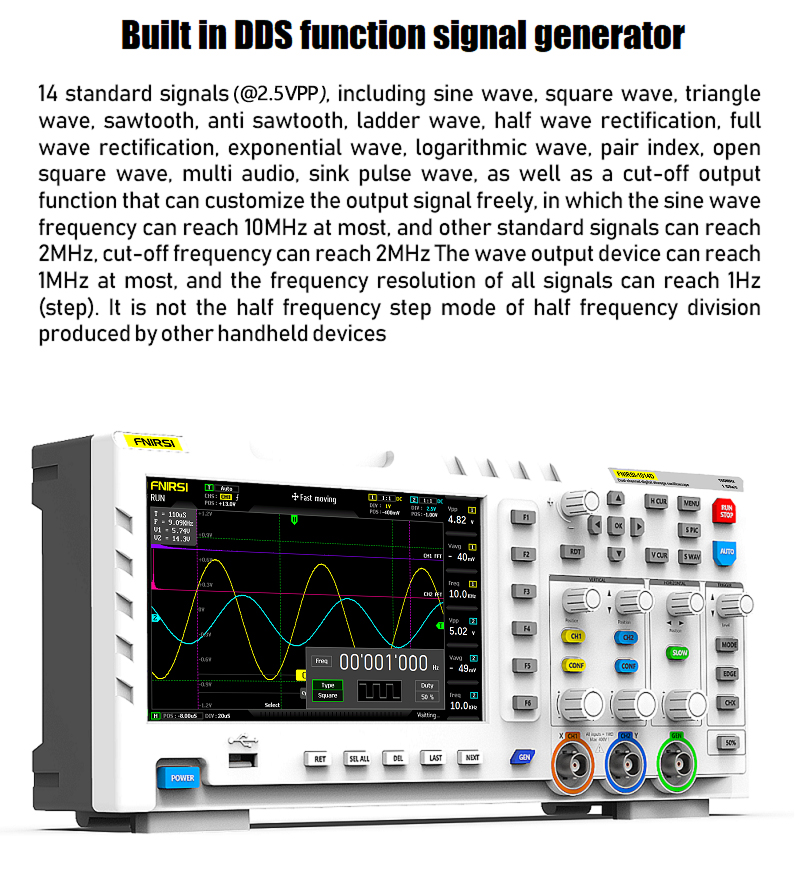

Built-in DDS signal generator, supports 12 kinds of functional signals.

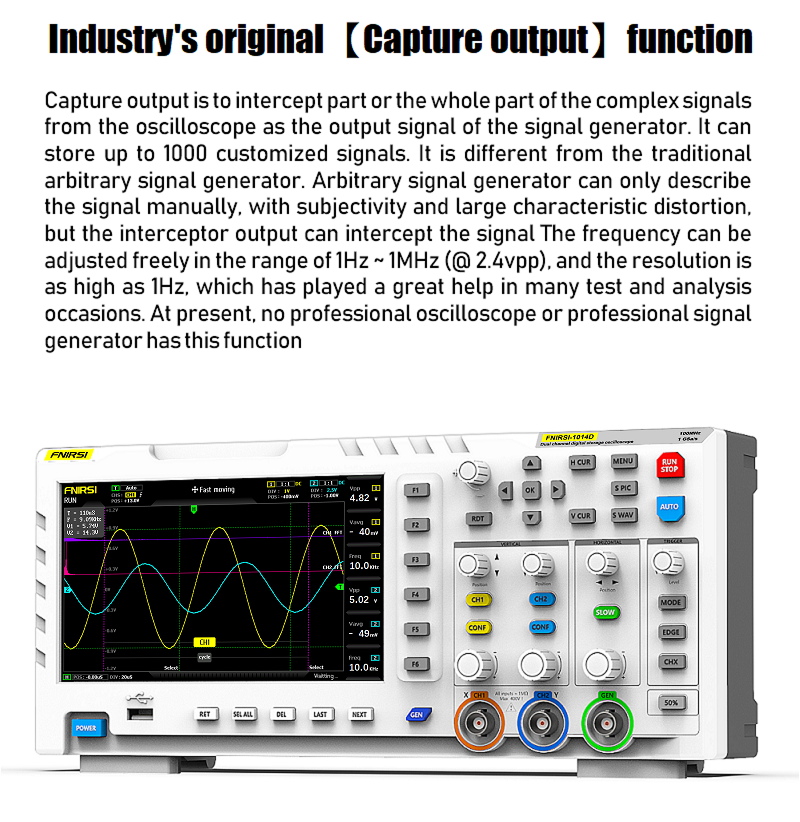

Capture output signal function, can store up to 1000 capture signals.

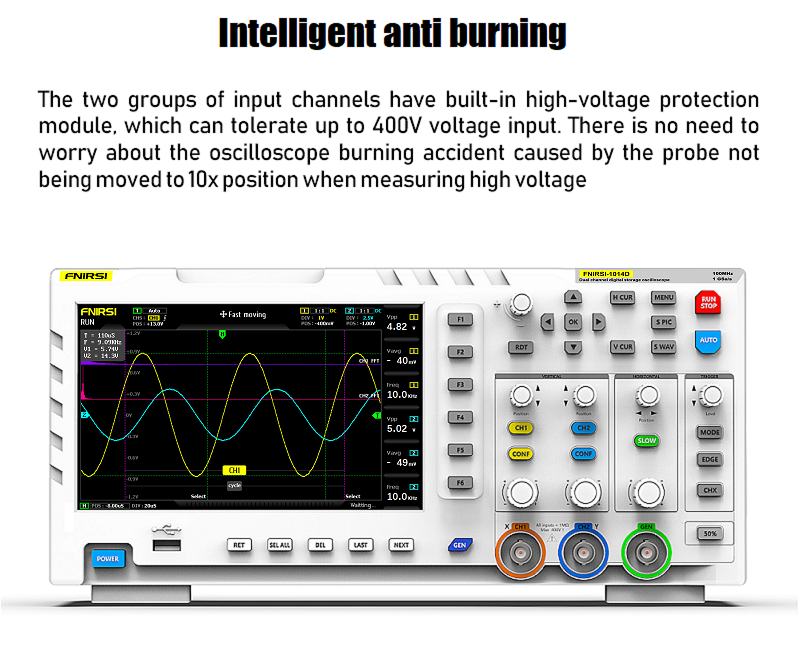

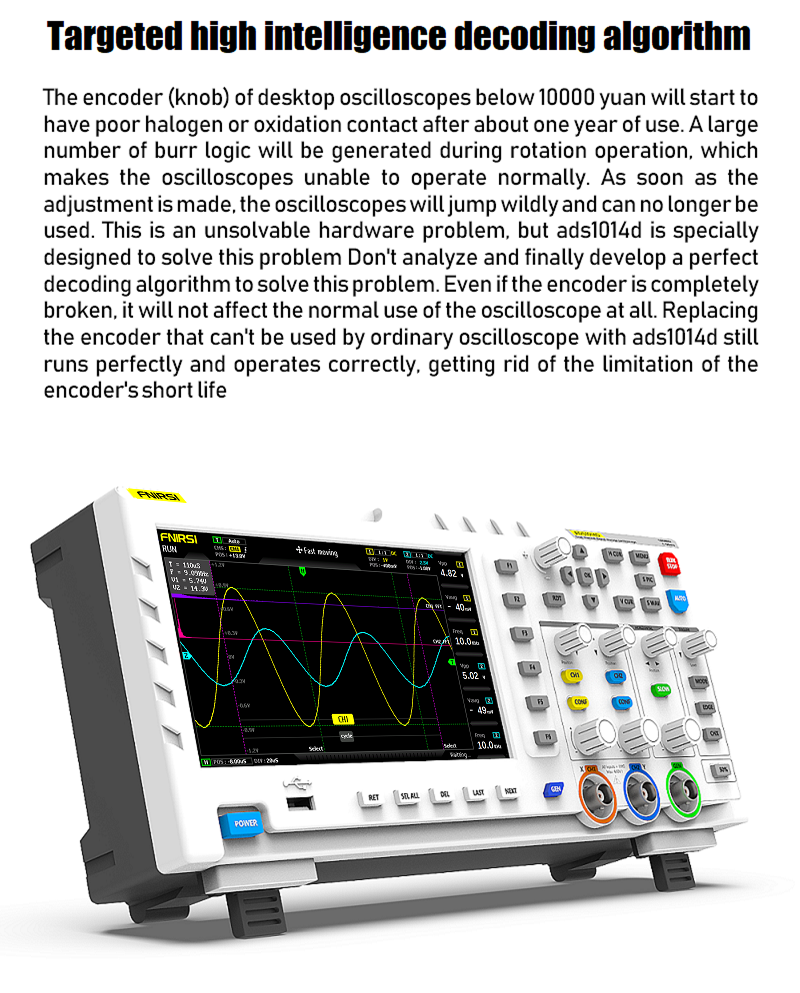

Targeted high intelligent decoding algorithm, unlimited encoder life, intelligent anti-burn function, 1X can withstand voltages up to 400V.

With 100MHz * 2 analog bandwidth and @1GSa/s sampling rate 1X = 5MHz, 10X = 100MHz).

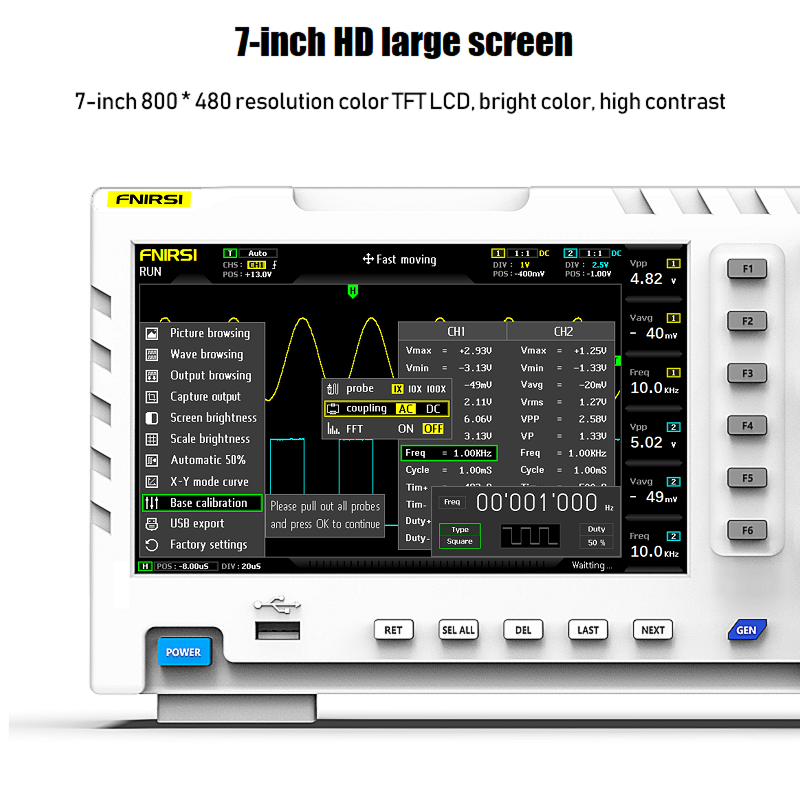

Fully fit the 7 inch 800*480 resolution color TFT LCD display with vivid colors and high contrast.

High measuring voltage range: 1X can measure 0~40V, 10X can measure 0~400V.

Up to 12 parameter measurements: VPP VP Vmax Vmin Vavg Vrms Frequent Duty Cycle + Duty Cycle - Time + Time - Period.

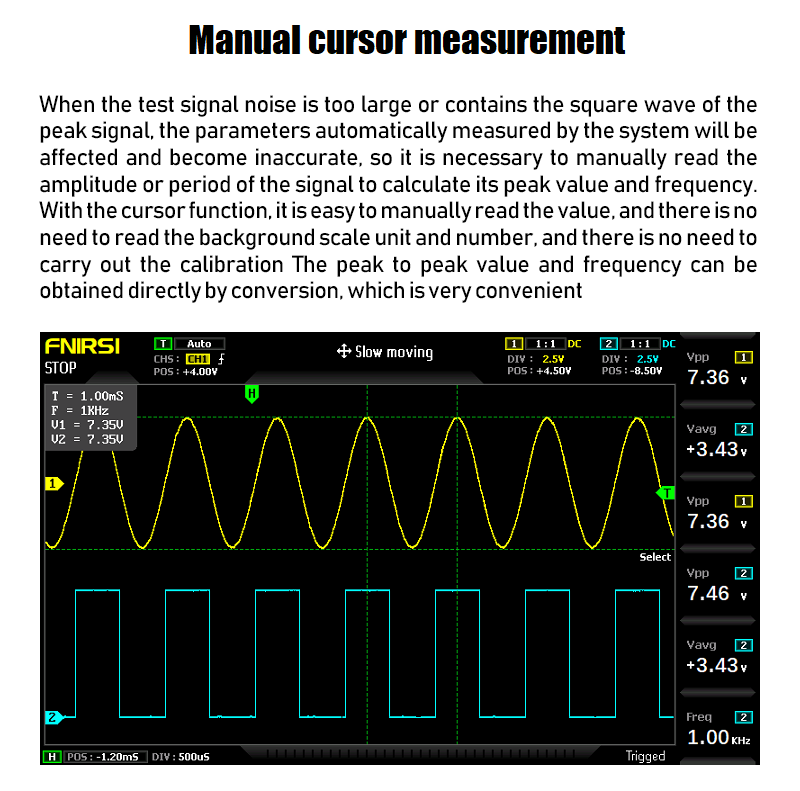

Cursor measurement function: convenient for manual measurement of period, frequency and voltage.

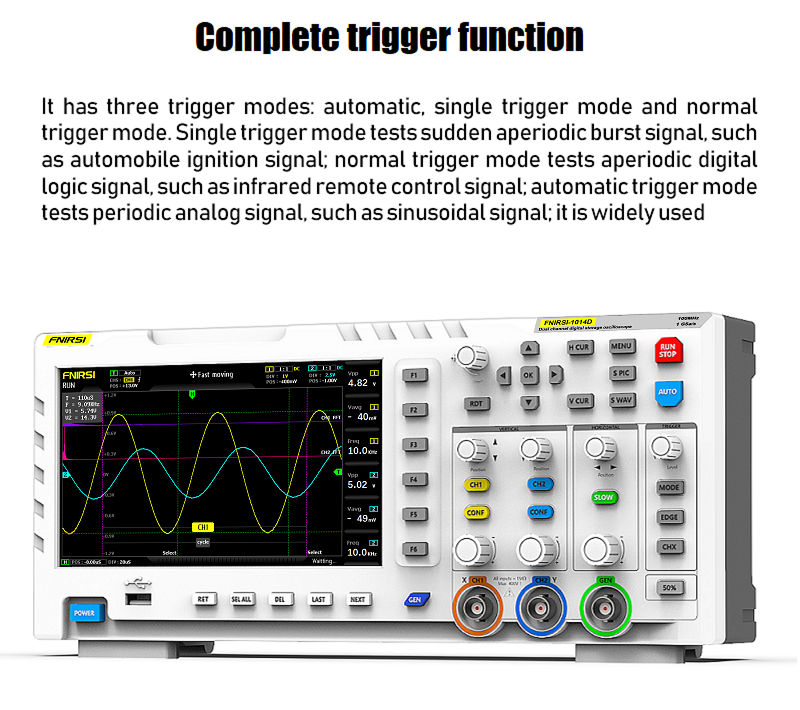

Full trigger function (single, normal, auto), freeze waveform display at any time (pause function).

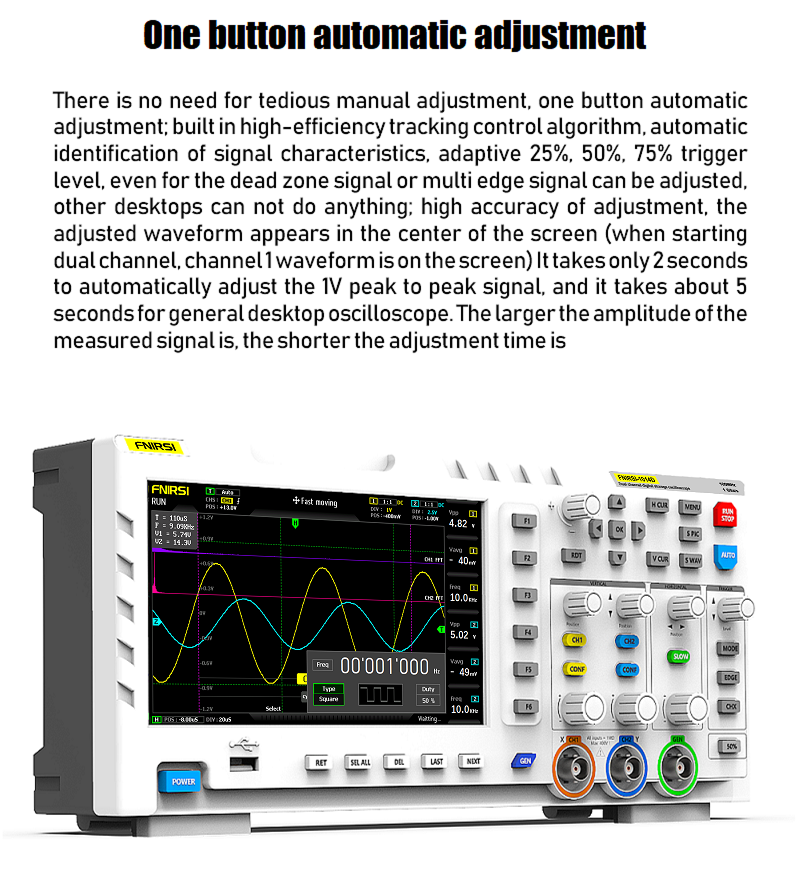

Equipped with efficient one-key AUTO, as well as one-key waveform storage and screenshot functions.

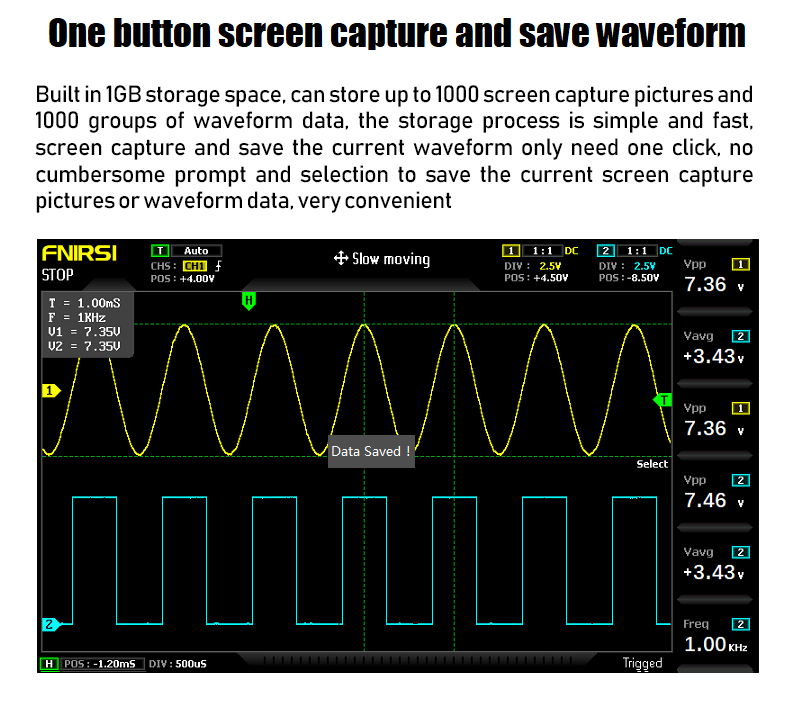

Built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data.

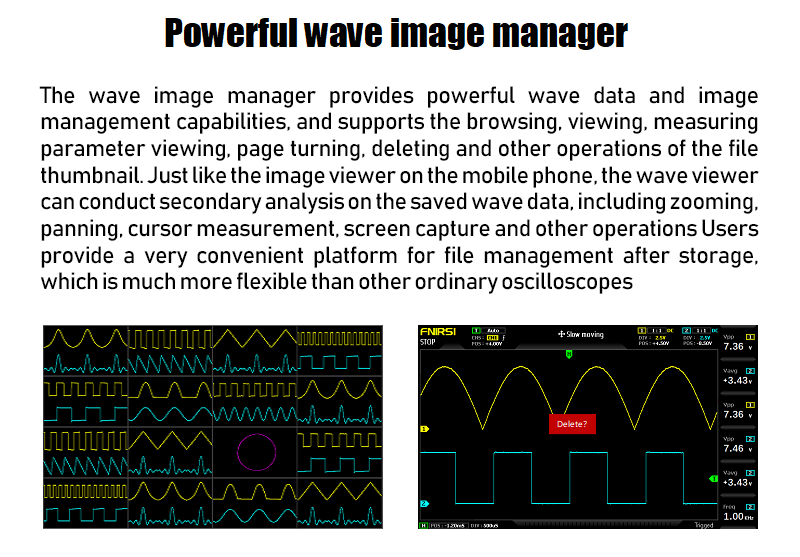

Powerful waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page turning, deletion, and waveform zoom in, zoom out, move, etc.

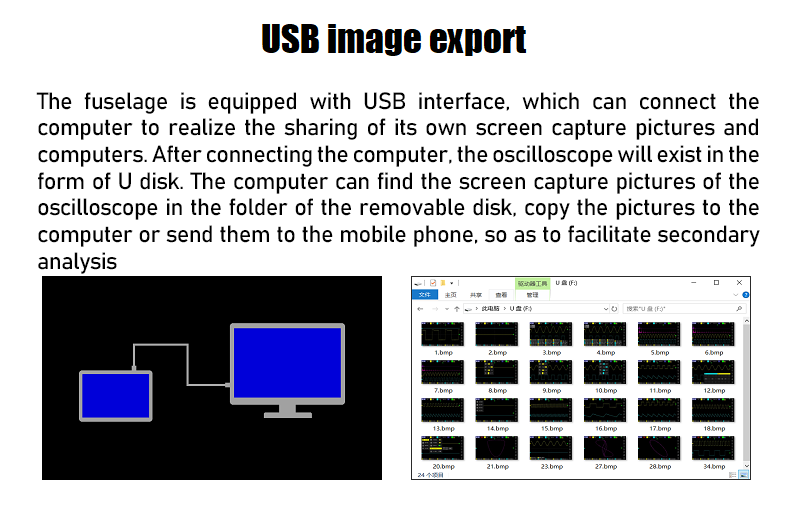

Equipped with a USB interface, it can be connected to a computer to share screenshots with the computer, which is convenient for secondary analysis.

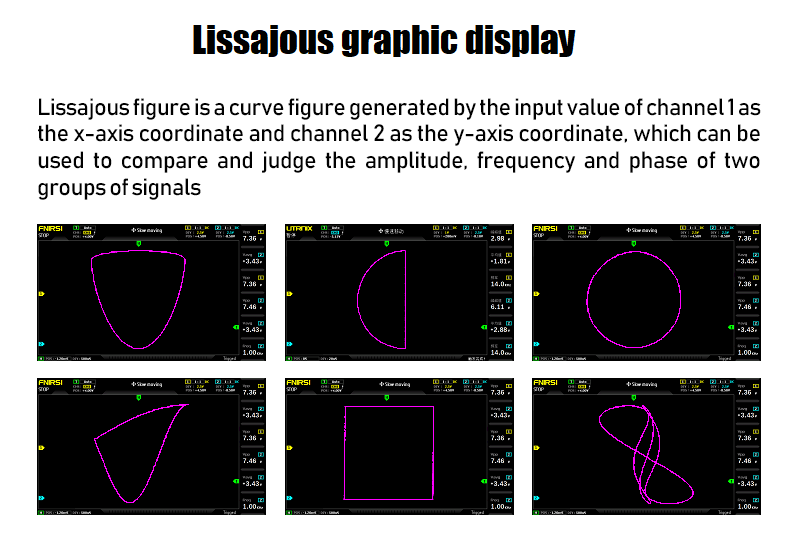

The Lissajous graphic display function can be used to determine the amplitude, frequency and phase contrast of two sets of signals.
FFT display function, which can analyze the spectral characteristics of the signal, memory compression technology, and the waveform refresh screen does not flicker.
With screen brightness adjustment function and background grid brightness adjustment function, it is easy to carry.

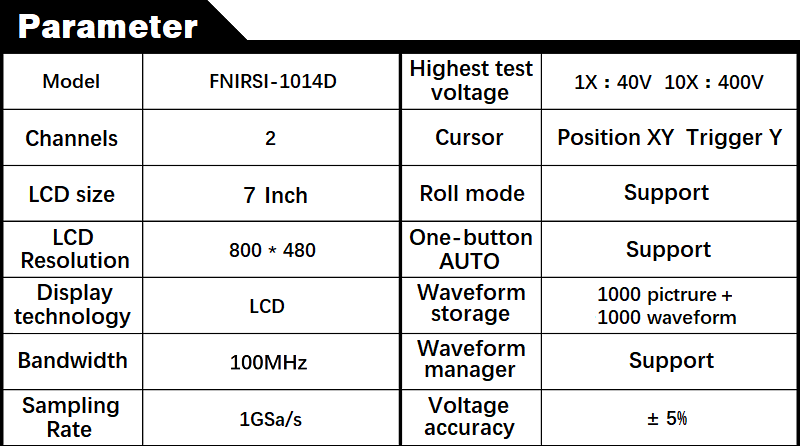

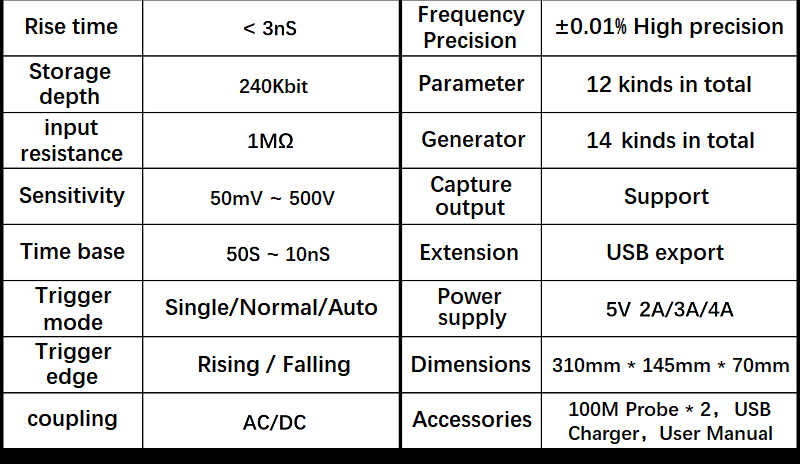

Specification:

Material: ABS

Analog Bandwidth: 100MHz*2

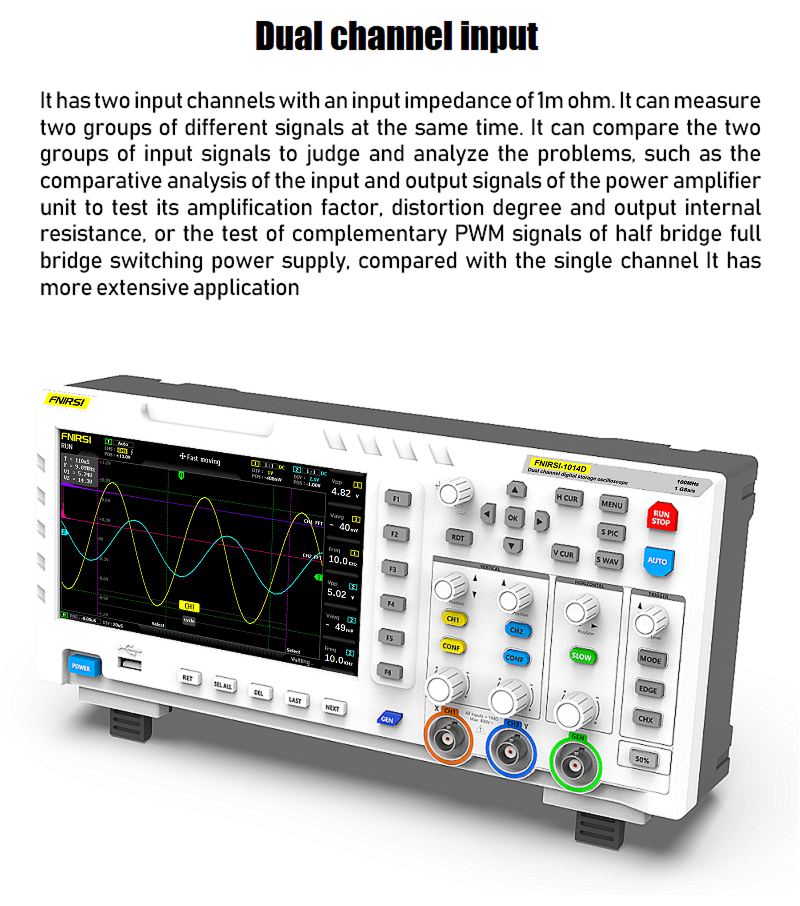

Number of channels: 2 channels

Maximum real-time sampling rate: 1GSa/s

Vertical Sensitivity: 50 mV/div ~ 500 V/div

Horizontal time base range: 50S/div ~ 10nS/div

Maximum test voltage: 40 V (1X probe), 400 V (10X probe)

Storage depth: 240Kbit

Input resistance: 1M

ADC accuracy: 8bits

Coupling method: AC/DC

Trigger Mode: Single, Normal, Auto

Trigger edge: rising edge/falling edge

External trigger voltage 0~40 V

Expansion port: USB image export

Package size: 340*140*70mm/13.4*5.5*2.8in

Package Weight: 1500g / 3.3lb

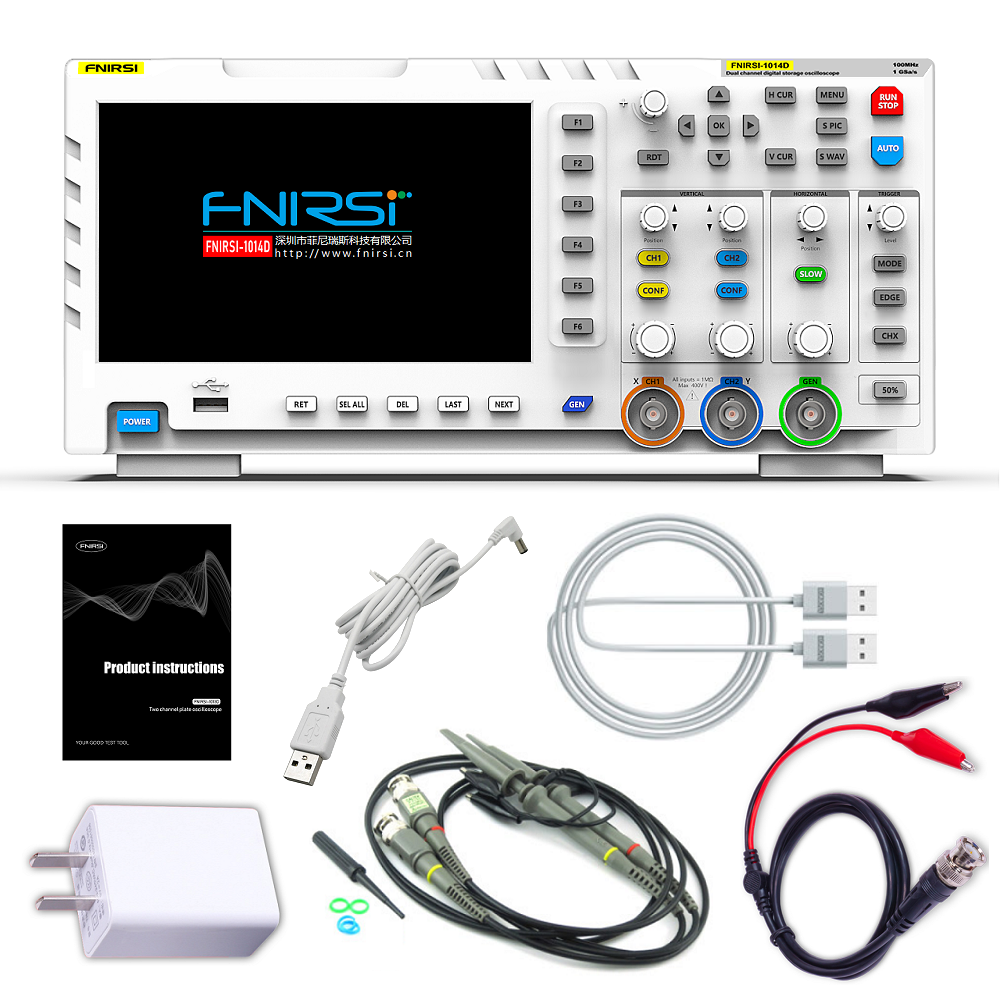

Packing list:

1 * FNIRSI-1014D oscilloscope host

2 * Match 100MHz probes (1X and 10X

1 * clip

1 * 5V2A Power Adapter

1 * USB cable

1 * English user manual
