After-sales service provided: | Video technical support, no overseas services | HS: | 8414804090 |
Warranty: | 2 years | brand: | top dragon |
Lubrication method: | oil free | Dimensions (L*W*H): | 200*110*150 |
Supply capacity: | 500 pieces per month | port: | Shanghai or Ningbo |
Energy source: | alternating current | Packaging Details: | Standard export plywood box |
Packaging Preview: | type: | diaphragm | |
Applicable industries: | Manufacturing Plants, Mechanical Repair Shops, Food and Beverage Plants, Energy and Mining | Certification: | Chief Executive |
place of origin; place of origin: | China | Health status: | new |
Voltage: | 220/380/440V/50/60hz | silent: | Yes |
payment terms: | Letter of Credit, T/T, Western Union, MoneyGram | weight: | 5500KGS |
Configuration: | stationary |

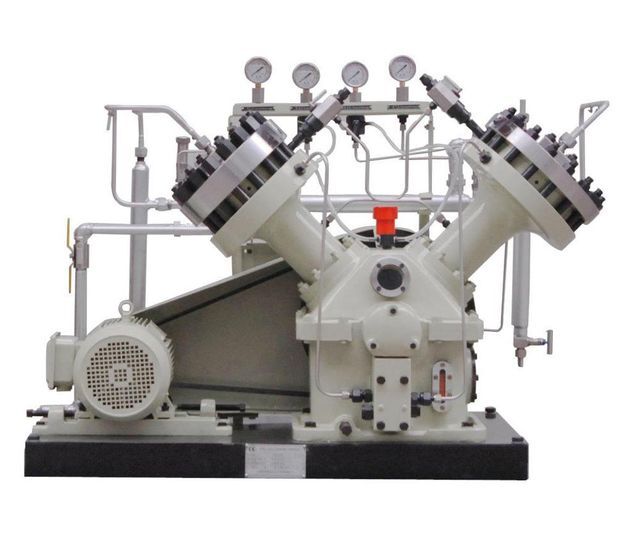

Main data of oil-free diaphragm compressor:
type: | GV-180/10-30 |
Model: | V type, twin cylinder, one stage, water cooled |
news media | Hydrogen, nitrogen, R-410A, helium, argon |
suction pressure | 1.0MPa(G) |
Exhaust pressure | 3.0MPa(G) |
Rated discharge capacity | 180Nm3/h |
drive model | belt drive |
shaft speed | 400 rpm |
inlet temperature | <30 |
Discharge temperature: | <35 (after cooling) |
lubricating oil | L-HM46 |
lubricating oil temperature | <70 |
Lubrication method | splash lubrication |
water consumption | 3.6m3/h (inlet pressure 0.3~0.5MPa) |
Motor type | Y2-180L-4 |
strength | 22Kw |
speed | 1470 rpm |
Voltage | 380/50 |
Protection class | IP55/F |
transfer method | belt drive |
Dimensions (LX W XH) | 2000×1100×1500 mm |
weight | 1800kg |
