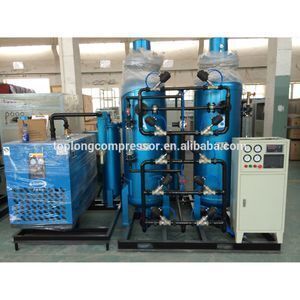

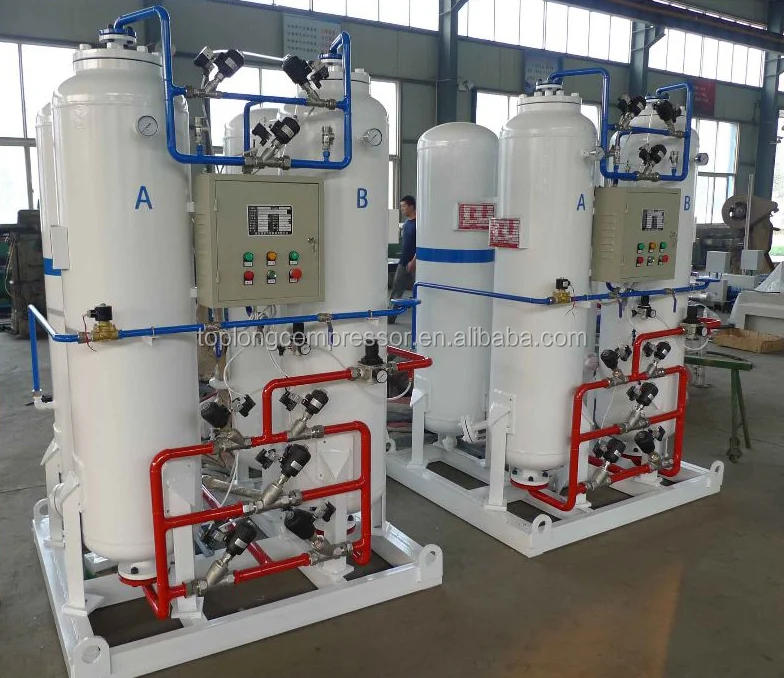

Reliable quality low price PSA Nitrogen Generator

Supplier: Taizhou Toplong Electrical&Mechanical Co., Ltd.
Region: Zhejiang, China
Contact: Mr Peter zhang
Price: $10000.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Dimension(LWH):	16508502100MM;	Color:	Yellow,white,blue etc;
Capacity:	3~3000m3/h (20℃, 101.325Kpa);	Outlet pressure:	0.05-0.8Mpa;
Weight:	1000KGS;	intake pressure:	>0.6Mpa;
Production Rate:	50 PCS PER MONTHS;	After-sales Service Provided:	Video technical support;
Type:	Skid mounted;	Applicable Industries:	Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Construction works ,Energy & Mining;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal;	Usage:	Nitrogen;
Packaging Detail:	Plywood, wooden case, Reliable quality low price PSA Nitrogen Generator;	Dew point:	-45℃ - -60℃;
Brand Name:	TOPLONG;	Voltage:	220V/380V/440V,50/60HZ 3 PHASE;
Port:	Shanghai and ningbo port;	After-sales Service Provided:	Engineers available to service machinery overseas;
Purity:	95%-99.9995%;	Material:	Iron steel;
Certification:	CE GAS;	Place of Origin:	China;
Condition:	New;	Warranty:	12 months;
Supply Ability:	100 Set/Sets per Month Reliable quality low price PSA Nitrogen Generator;

Reliable quality low price PSA Nitrogen Generator

service without end ,responable always

you may like more as follows hot sale....

Oil free portable silent air compressor ,special design for your dental or labortory

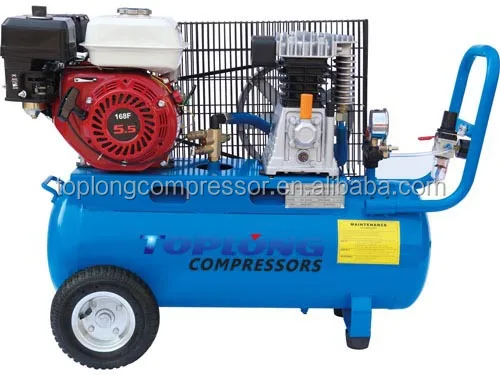

Gasoline /diesel engine reciprocating air compressor,special design for wild ,no power enviroment

Heavy duty industrial air compressor, special for industry zone use ,long time working ,reliable quality

http://toplongcompressor.en.alibaba.com/product/60055934216-800441099/industrial_air_compressor_heavy_duty_air_compressor_belt_air_compressor_W_0_9_8_.html

compressor for home CNG car filling 3Nm3

http://www.alibaba.com/product-detail/cng-compressor-for-sale-home-cng_60064590451.html

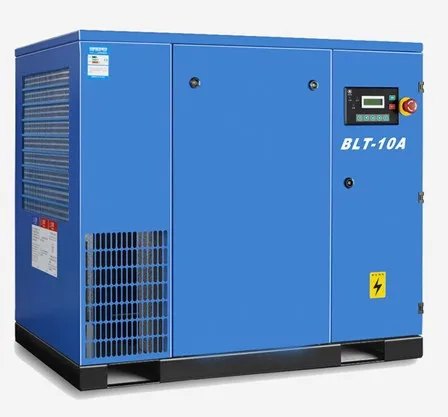

Atlas copco bolaite screw air compressor ,offer top quality and high quality pressed air for your

Air seperation system

http://toplongcompressor.en.alibaba.com/product/60112623024-800734876/atlas_copco_bolaite_rotary_screw_air_compressor_BLT_30A_.html

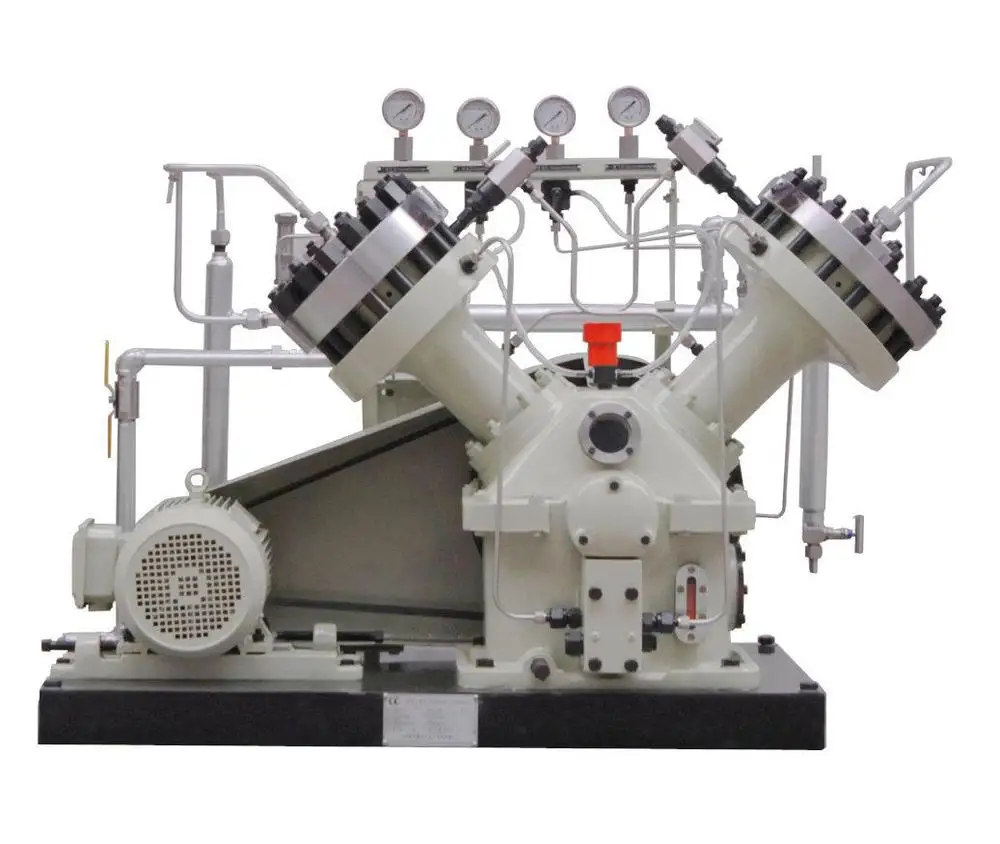

compressor for oxygen nitrogen gas ,oil free

series,10pcs/20pcs/30pcs/50pcs/100pcs200pc/ bottles per day,

http://www.alibaba.com/product-detail/Oil-Free-High-Pressure-Diaphragm-Compressor_60039134637.html

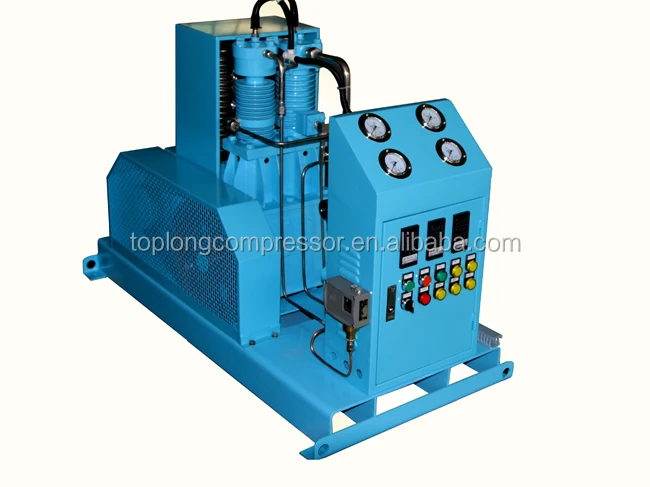

compressor for nitrogen /oxygen gas ,100% totally oil free ,

filling 10pcs/20pcs/30pcs/50pcs/100pcs200pc/ bottles per day,

http://www.alibaba.com/product-detail/oil-free-Oxygen-Compressor-oxygen-booster_60041199230.html

Application fields.

PSA nitrogen & oxygen generators are the basic models and core components of PSA nitrogen generation systems. With standardized design, PSA nitrogen generators are divided into five series by different purities and different capacities as specific models.

Food and beverage industries

Aircraft& motor vehicle tires

Chemical and petrochemical industries

Electronics industry

Metallurgy / heat treatment

Pharmaceutical industry

Glass and lighting industry

Oil & Gas

------------------------------------------------------------------------------------------------------------------------------------------------------------------

Principle

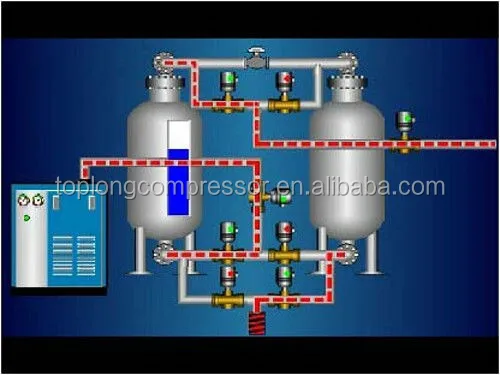

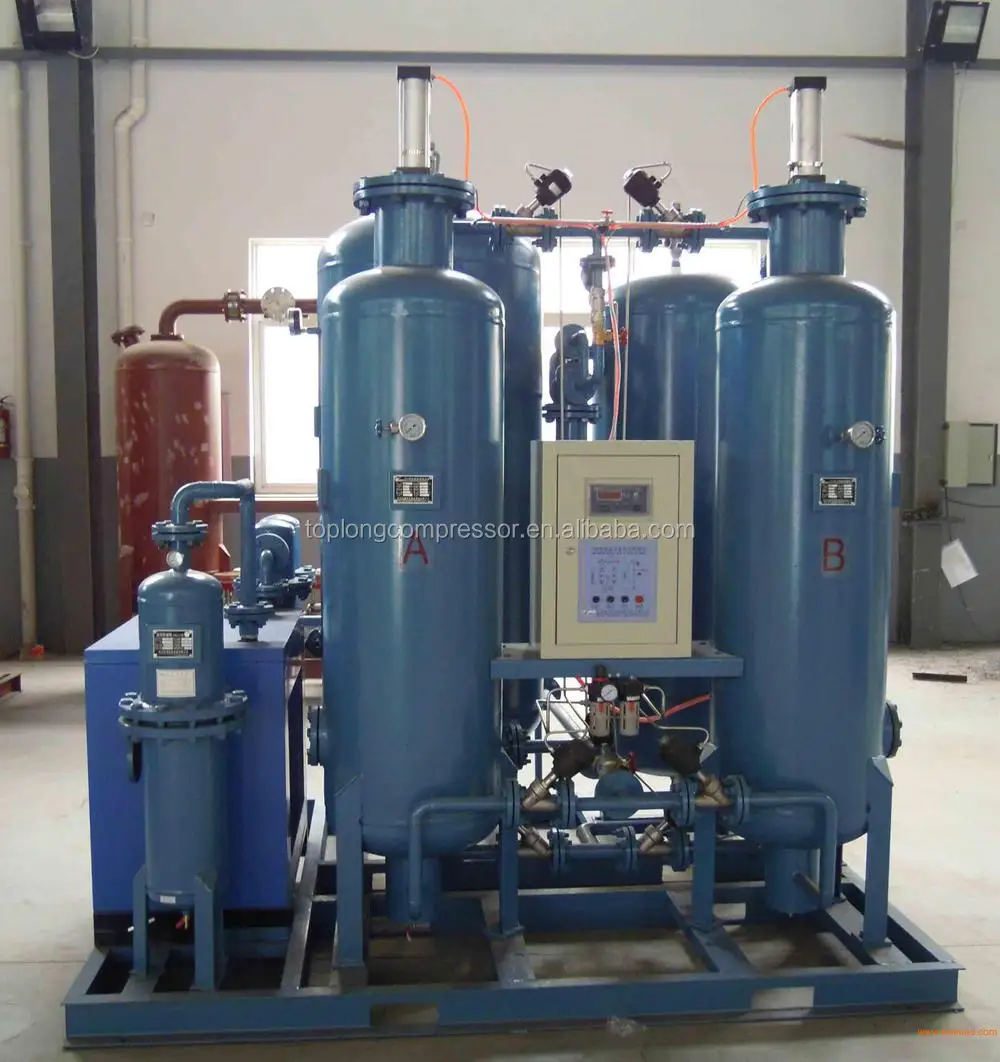

PSA nitrogen technology utilizes two towers which are filled with carbon molecular sieve (CMS). Compressed air enters the bottom of one tower. While the smaller oxygen molecules are adsorbed by the CMS, the larger nitrogen molecules pass through the sieve and are stored. Once the CMS of the working tower is saturated with oxygen, the regeneration of the CMS in the tower starts to work by depressurizing, and while another tower is switched to start the process over again.

Customized capacity, purity and delivery pressure are also available.

------------------------------------------------------------------------------------------------------------------------------------------------------

Features
More reliable:
* standardized air separation systems based on proven state of the art technologies in history of many years application in fields.
* Simplified engineering design idea with much less moving parts, guarantees maximum reliability and minimal maintenance
More economical:
* More advanced and more economical air separation modules.
* REFLUX composition control system reduces air consumption capacity, saves energy cost.
* Patented Energy Efficiency System (EES) enables our systems to produce product gases based on actual demand.
More convenient:
* multi monitoring and control system enables parameters of capacity, purity, and pressure of product gases online display on panel screen, gives running problem alarm, and reminds of maintenance.
* Turn-key solution and pre-commissioned.
* Skid mounted design, easy installation.

Model	N2 Purity %	N2 Capacity Nm³/h	Air Consumption m³/min	Dimensions mm (L×W×H)
BPN97/40	99	40	1.8	1900×1400×1800
	99.5		2	2000×1450×1900
	99.9		2.8	2100×1500×2050
	99.99		3.7	2200×1500×2350
	99.999		6	2600×1800×2550
BPN97/50	99	50	2.1	2000×1500×1900
	99.5		2.5	2050×1450×1850
	99.9		3.3	2100×1500×2250
	99.99		4.7	2500×1700×2500
	99.999		7.5	2700×1800×2600
BPN97/80	99	80	3.7	2100×1500×2000
	99.5		4	2100×1500×2150
	99.9		5.5	2500×1700×2550
	99.99		7.5	2700×1800×2600
	99.999		12	3200×2200×2800
BPN97/100	99	100	4.6	2100×1500×2150
	99.5		5	2200×1500×2350
	99.9		7	2650×1800×2700
	99.99		9.3	2750×1850×2750
	99.999		15	3350×2500×2800
BPN97/150	99	150	7	2450×1470×2400
	99.5		7.5	2550×1800×2600
	99.9		10.5	2750×1850×2750
	99.99		14	3300×2500×2750
	99.999		22.5	3500×3000×2900
BPN97/200	99	200	9.3	2600×1800×2550
	99.5		10	2700×1800×2600
	99.9		14	3300×2500×2800
	99.99		18.7	3500×2700×2900
	99.999		30	3600×2900×2900
BPN97/300	99	300	14	2700×1850×2700
	99.5		15	3150×2150×2750
	99.9		21	3500×2700×2900
BPN97/500	99	500	23.3	3350×2500×2800
	99.5		25	3500×2700×2900
	99.9		35	3800×3000×3000
BPN97/800	99	800	37.5	3600×2900×2900
	99.5		40	3600×3000×2900
	99.9		56	4000×3500×3000
BPN97/1000	99	1000	47	3600×2900×2900
	99.5		50	4000×3000×2900
	99.9		70	4200×3550×3000
BPN97/1500	99	1500	70	4000×3500×2900
	99.5		75	4200×3500×2950
	99.9		105	4500×3800×3000
BPN97/2000	99	2000	94	4200×3500×3000
	99.5		100	4300×3800×2950
	99.9		140	5000×5000×3000
BPN97/3000	99	3000	140	4500×3800×2950
	99.5		150	4800×4800×3000
	99.9		210	6000×6000×3000
