Oxygen cylinder filling equipment PSA oxygen concentrator 93%--95% factory sales

Supplier: CAN GAS SYSTEMS COMPANY LIMITED
Region: Beijing, China
Contact: Mr Michael H.
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Marketing type:	Popular products	Supply capacity:	100 sets per month
Place of origin:	Beijing China	Health status:	new
Dew point:	≤-40℃	After-sales service provided:	Engineers can repair machinery overseas
brand:	canned gas	Name:	CANGAS CFS oxygen cylinder filling equipment
purity:	93%~99%	capacity:	4-400 bottles/day (1-100Nm3/h)
Dimensions (lengthwidthheight):	According to device model	Core components:	PLC, pressure vessels, others, motors
Applicable industries:	Hotels, clothing stores, building materials stores, manufacturing plants, machinery repair shops, food and beverage factories, farms, restaurants, household, retail, food stores, print shops, construction projects, energy and mining, food and beverage stores, advertising agencies, hospitals , medical	standard:	GB/ASME/PED/AS
Main selling points:	High quality, low maintenance and reliable service	Delivery pressure:	150/200 bar
usage:	Oxygen production	Mechanical test report:	if
port:	Port of Tianjin, China	Certificate:	CE, ISO9001, ISO13485, ISO14001, ISO45001, etc.
weight:	1500kg	Package preview:
payment terms:	Letter of credit, wire transfer	Packaging details:	wooden box
Warranty:	1 year	technology:	PSA (pressure swing adsorption)
Core component warranty:	1 year	Voltage:	220V/380V/440V,50/60HZ
Showroom location:	Philippines, Peru, Indonesia, Pakistan, Russia, Thailand, Kenya, Chile, United Arab Emirates, Algeria, Bangladesh, Kazakhstan, Nigeria	Design service life:	15 years
Video outbound inspection:	if

Product Description

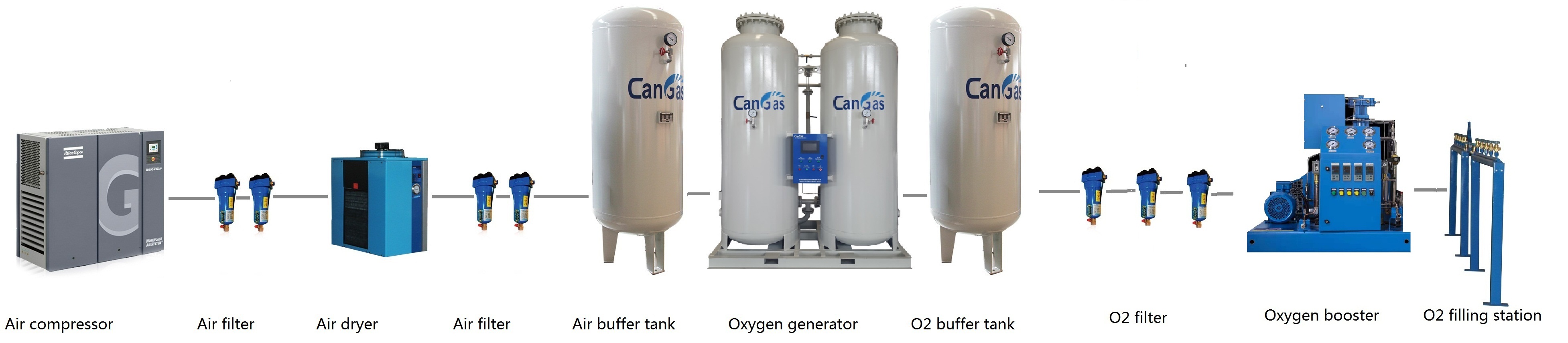

Working principle of PSA cylinder filling oxygen generator

The principle of pressure swing adsorption (PSA) oxygen generator is adsorption and desorption.
Each gas has its characteristic adsorption rate when adsorbed by zeolite molecular sieves (ZMS). ZMS has a large surface area and contains a large number of micropores and channels. Nitrogen has a higher adsorption rate than oxygen. When compressed air enters the ZMS, oxygen molecules are able to pass through this large surface, while nitrogen molecules are adsorbed to the surface area. Adsorption and diffusion are general principles of PSA systems, as each gas has a characteristic adsorption rate that is a function of its ability to be adsorbed by the molecular sieve. The adsorption process can produce a series of gases with a purity of more than 90% oxygen. Oxygen is then charged into the cylinder through a booster.

Model	Oxygen flow	Oxygenation speed	PSA oxygen generator outlet pressure	Cylinder filling pressure	oxygen purity
Model		(standard cubic meters/hour)	PSA oxygen generator outlet pressure	Cylinder filling pressure	oxygen purity	(cylinder/day)
CFS-3	3	12	Standard 5 bar 5~10bar can be customized Bypass for direct oxygen supply to hospital	100-300 bar can be customized	Standard 93% Option A: 95% Option B: 99.5%
CFS-5	5	20
CFS-10	10	40
CFS-15	15	60
CFS-20	20	80
CFS-25	25	100
CFS-30	30	120
CFS-50	50	200
CFS-80	80	320
Note: It is assumed that the oxygen cylinder has a volume of 40 liters, a filling pressure of 150 bar, and works 24 hours a day.
Custom models and specifications available.
Certified to international medical standards for installation and operation in hospitals and medical facilities.
