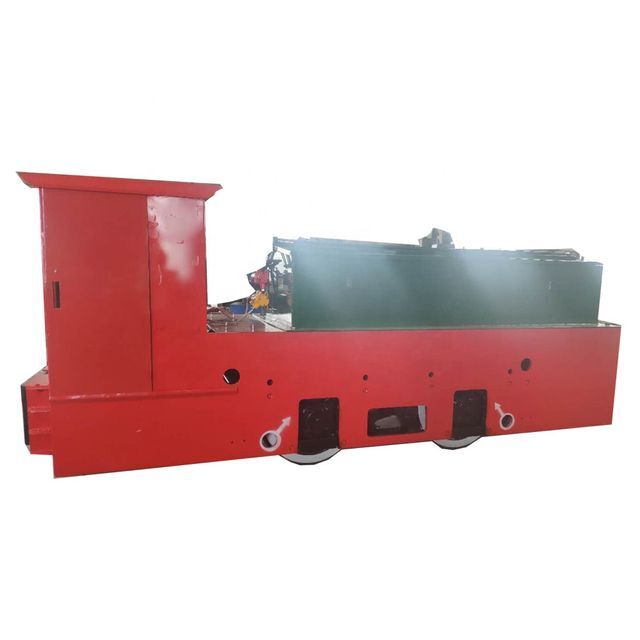

CJY1.5T bogie narrow gauge mining locomotive

Supplier: Shandong China Coal Group Co., Ltd. Import & Export Branch
Region: Shandong, China
Contact: Ms Azure He
Price: $5100.00 / 1 - 9 sets
$5000.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

Acceptable working height:	1600~2000mm	Voltage:	100V
minute. Turning radius:	5m	horsepower:	3.5kW*1
brand:	China Coal Group	place of origin; place of origin:	Shandong China
Speed (km/h):	4.54 km/h	Model:	CJY1.5/6,7,9G(B)
port:	Qingdao, Shanghai, Ningbo, Shenzhen	maximum. Traction:	3.68kN
gauge:	600	Supply capacity:	1000 units/month electric trolley underground mining locomotive price
Traction:	2.55kN	speed:	4.54 km/h
Type of gasoline:	electrical	Adhesive Weight:	1.5 tons
Packaging Details:	Wooden box or according to your requirements for electric trolley underground mining locomotive	strength:	3.5kW*1
payment terms:	L/C,Western Union,D/A,T/T,Paypal,Alibaba Trade Assurance	Dimensions (L x W x H) (mm):	23409(950/1112/1250)550mm

product description

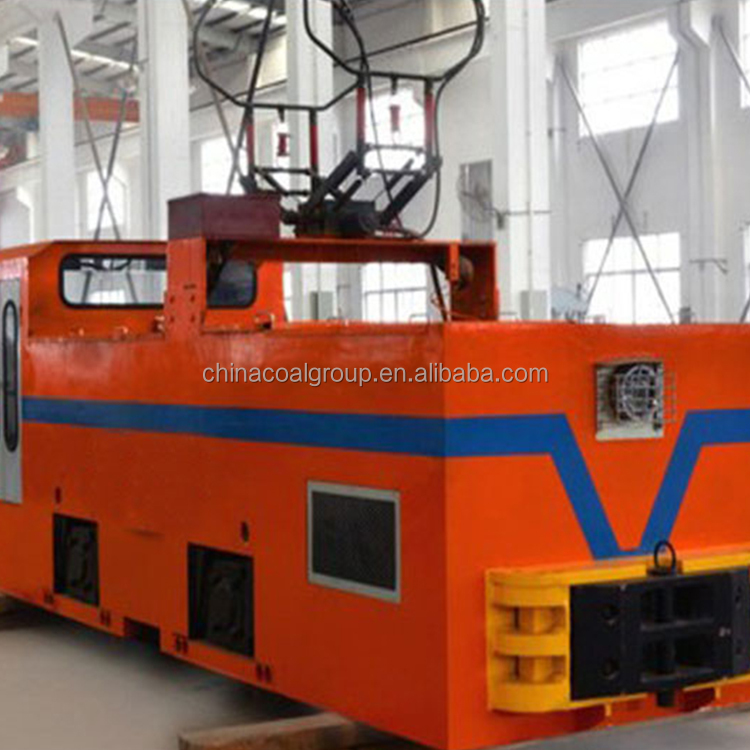

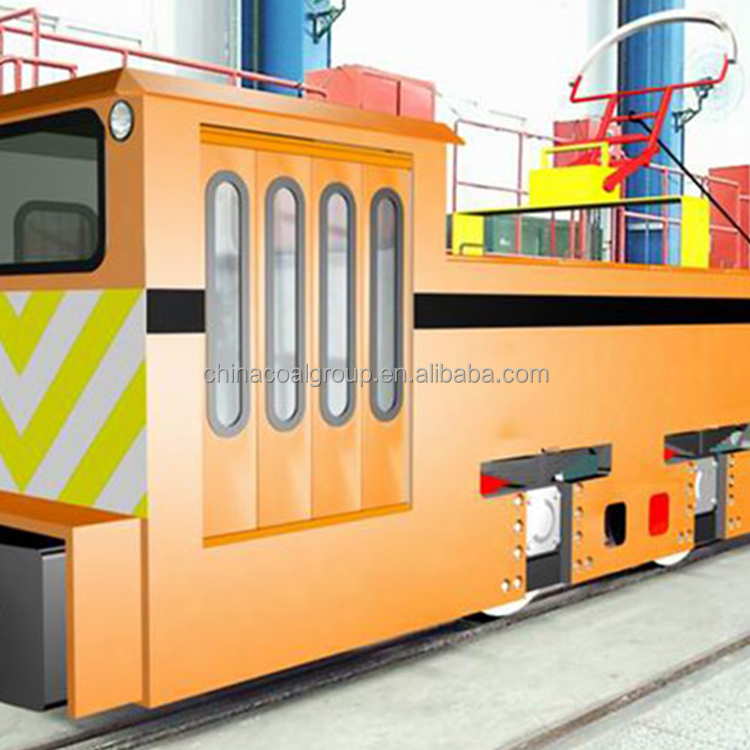

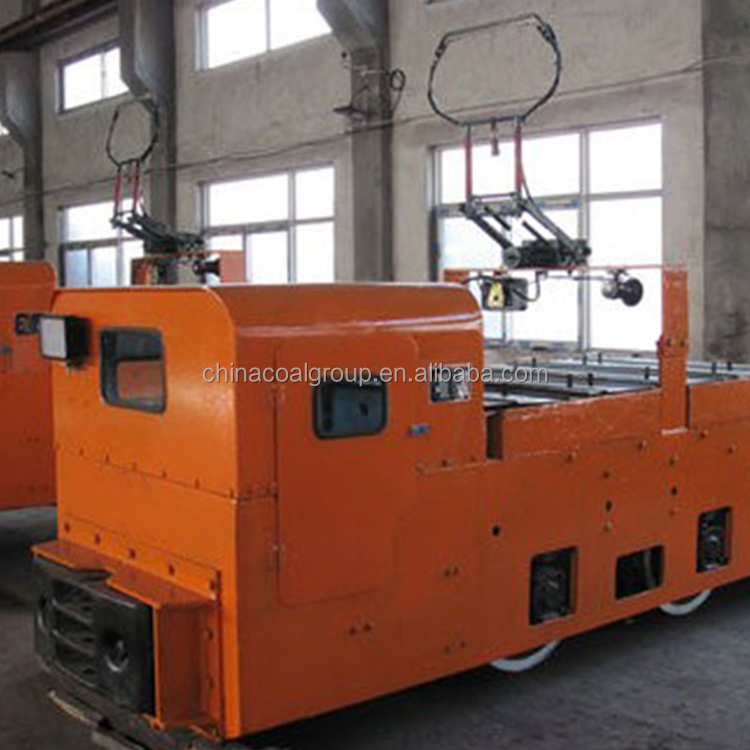

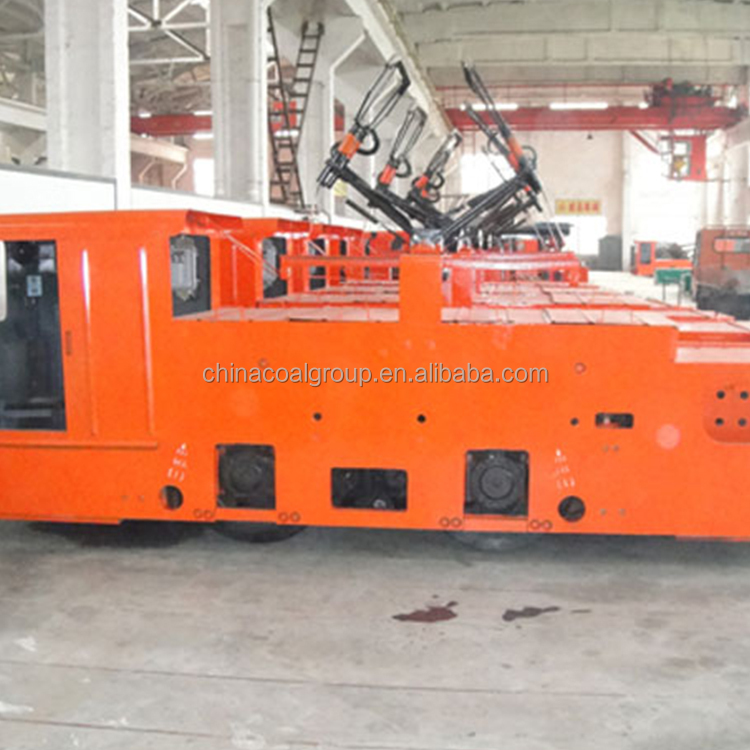

introduceCJY1.5T trolley narrow gauge mining locomotive

The traction voltage of the 1.5-ton linear motor vehicle is divided into 100V and 250V, which adopts resistance speed regulation or IGBT speed regulation. Its structure has two kinds of inner frame and outer frame. Mining locomotive features: stable and flexible operation, simple operation, low maintenance cost and convenient maintenance. With brakes or electric brakes, the braking effect is good.

1.5T narrow gauge linear mining locomotive operating environment

1. The ambient air temperature is 40°C and the minimum is -25°C.

2. The relative humidity of the air should not exceed 90%, and the monthly average temperature should not be higher than 25℃.

Note: The locomotive traction is determined according to the wheel-rail adhesion coefficient μ=0.25, and the traction can only be used when it is started for a short time.

scope

parameterCJY1.5T trolley narrow gauge mining locomotive

Model		CJY1.5/6,7,9G(B)
adhesive weight		1.5 tons
track gauge		600,762 or 900 mm
traction		2.55kN	3.24kN
maximum. traction		3.68kN
speed		4.54 km/h	6.6 km/h
Voltage		100V	250V
strength		3.5kW×1	6.5kW×1
size	length	2340mm	2370mm
	width	950, 1112 or 1250mm
	high	550mm
	wheelbase	650mm
	Wheel diameter	Φ460mm
	Accept working height	1600~2000mm	1800~2000mm
minute. Turning radius		5m
Electromechanical controller		Frequency conversion or chopper speed regulation
brake mode		Mechanical
