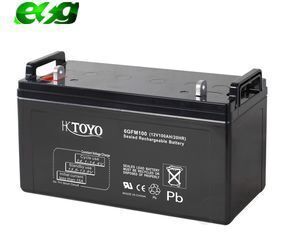

Deep cycle solar battery 12V 100Ah Deep cycle battery

Supplier: Foshan Esg New Energy Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Sany Chen
Price: $50.00 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Warranty:	1~5years warranty service;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Size:	331175238mm;	Usage:	UPS;
Important Certificate:	CE.UL.ISO. TUB.PV SGS;	Maintenance Type:	Free;
Sealed Type:	Sealed;	Supply Ability:	50000 Piece/Pieces per Week;
Model Number:	6GFM100;	Lower self discharge:	0.2%/month;
Voltage:	12v;	Certification:	UL,ce;
Place of Origin:	Guangdong China (Mainland);	Storage batteries type:	12V 100AH deep cycle battery;
Failure rate:	0.2%/During warranty;	Weight:	30~32kg;
Port:	GZ , SZ;	Application:	Solar/wind/ups system/telecommunications;
Material:	Fire proof case;	Working termprature:	-15℃ 45℃;
Packaging Detail:	Packaging in carton and pallet for High quality lead acid Deep cycle battery 12V 100Ah for solar and ups battery;	Brand Name:	ESG;

Product Description

Deep cycle solar battery 12V 100Ah Deep cycle battery

Hot sale sealed lead acid 12v battery 12V 110Ah

Applicable operating temperature range:-10°C~+50°C

Ideal operating temperature range: +20°C~ +30°C

Storage time from a fully charged condition: 24 months at 25°C, for each 10°C rise, reduce the storage time by half.

Deep cycle solar battery 12V 100Ah Deep cycle battery

Battery structure

Deep cycle solar battery 12V 100Ah Deep cycle battery

Parts	Material of construction	Function
Positive plates	Positive plates are plate electrodes of which a grid frame of lead-tin-calcium alloy holds lead dioxides as the active material.	Retain sufficient capacity. Maintain capacity performance for long period of time (long life performance). Minimize self-discharge.
Negative plates	Negative plates are plate electrodes of which a grid frame of lead-tin-calcium alloy holds spongy lead as the active material.	Retain sufficient capacity. Maintain capacity performance for long period of time (long life performance). Minimize self-discharge.
Separator	The advanced micro porous Absorbed Glass Mat (AGM) or PVC separators retain electrolyte and prevent shorting between positive and negative plates. Separators adopt a non-woven fabric of fine glass fibers, which is chemically stable in the diluted sulfuric acid electrolyte. Being highly porous, separators retain electrolyte for the reaction of active materials in the plates.	Prevents short circuit between positive and negative plates. Retains electrolyte. Prevents active material fall by pressing plate surfaces.
Electrolyte	The GEL Electrolyte is used as the medium for conducting ions in the electro-chemical reaction in the battery.	The GEL Electrolyte is used as the medium for conducting ions in the electro-chemical reaction in the battery.
Container & Cover	Materials of the body and cover of the battery case are ABS resins, unless otherwise specified	Accommodates plate group consisting of positive and negative plates and separators. Retains sufficient mechanical strength to withstand battery internal pressure.
Safety valve	Synthetic rubber with excellent acid resistance and little deterioration by aging. In cap shape. The valve is comprised of a one-way valve made of material such as neoprene.	Releases gas if cell internal pressure rises abnormally high and normalizes internal pressure. Prevents ingress of oxygen.

Solar batteries are an intricate component for off-grid electrical systems such as solar, wind, and mini hydroelectric systems.

All these systems produce DC electrical which must be stored so that it may be used at a later time. In order to do this at the present time we use deep cycle batteries.

Deep cycle batteries are used because they have the ability to be recycled many times. This means that they can go from being charged to being discharged to 50% numerous times without damaging the batteries unlike that of other batteries such as cranking batteries which are used to start vehicles.

The innovative Gel Technology does not only combines the advantages of lower internal resistance of deep cycle battery , but also do have much much better thermal stability and longer cyclic life .

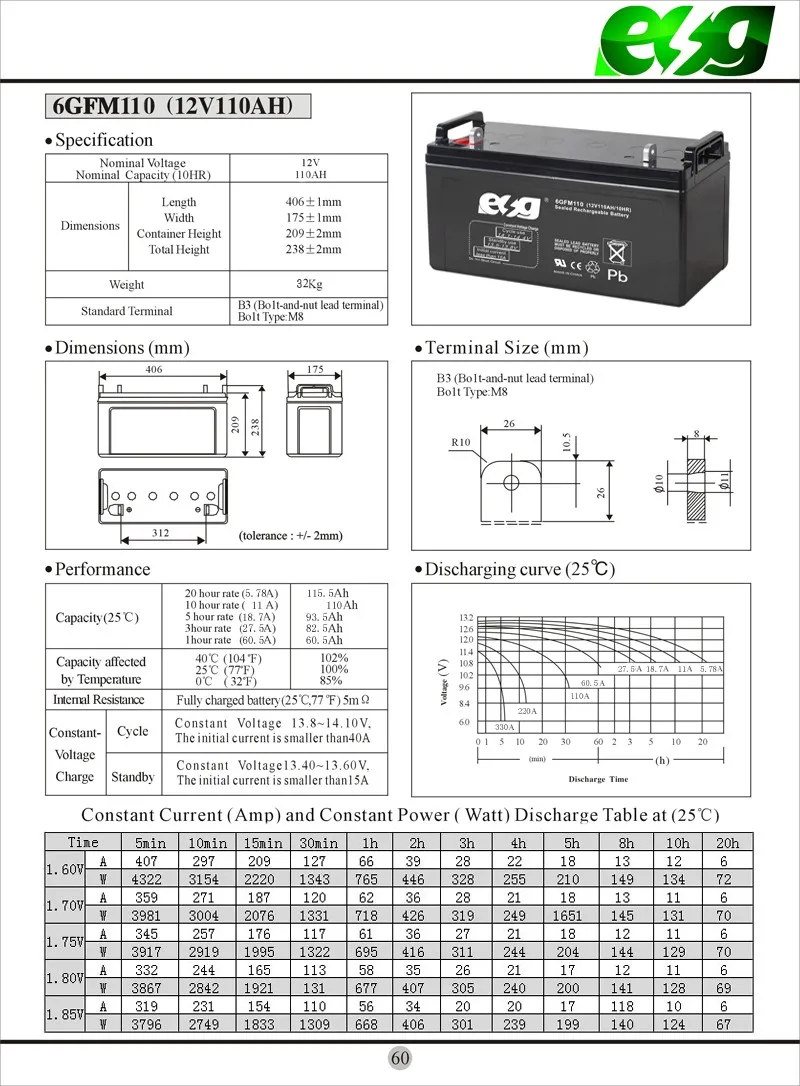

Technical specification

Parts	Material of construction	Function
Positive plates	Positive plates are plate electrodes of which a grid frame of lead-tin-calcium alloy holds lead dioxides as the active material.	Retain sufficient capacity. Maintain capacity performance for long period of time (long life performance). Minimize self-discharge.
Negative plates	Negative plates are plate electrodes of which a grid frame of lead-tin-calcium alloy holds spongy lead as the active material.	Retain sufficient capacity. Maintain capacity performance for long period of time (long life performance). Minimize self-discharge.
Separator	The advanced micro porous Absorbed Glass Mat (AGM) or PVC separators retain electrolyte and prevent shorting between positive and negative plates. Separators adopt a non-woven fabric of fine glass fibers, which is chemically stable in the diluted sulfuric acid electrolyte. Being highly porous, separators retain electrolyte for the reaction of active materials in the plates.	Prevents short circuit between positive and negative plates. Retains electrolyte. Prevents active material fall by pressing plate surfaces.
Electrolyte	The GEL Electrolyte is used as the medium for conducting ions in the electro-chemical reaction in the inverter battery .	The GEL Electrolyte is used as the medium for conducting ions in the electro-chemical reaction in the inverter battery .
Container & Cover	Materials of the body and cover of the inverter battery case are ABS resins, unless otherwise specified	Accommodates plate group consisting of positive and negative plates and separators. Retains sufficient mechanical strength to withstand inverter battery internal pressure.
Safety valve	Synthetic rubber with excellent acid resistance and little deterioration by aging. In cap shape. The valve is comprised of a one-way valve made of material such as neoprene.	Releases gas if cell internal pressure rises abnormally high and normalizes internal pressure. Prevents ingress of oxygen.

Technology

• The battery electrolyte contains fumed silica, and there is no flow, no leakage or no gradation of acid liquor. The battery slot and cover is made of ABS materials through hot seal. There is no risk of leakage during the utilization and transportation, and it is safe and reliable.

• The gel electrolyte is in dilute sol state when being injected. Excessive electrolyte can fill in all the space inside battery. Under circumstance of high-temperature and overcharge, the battery will not dry out. The gel battery has large heat capacity and good radiation performance. It is not easy to appear thermal runaway. The battery can work under severe environment.

• The grid of electrode plate is in radial structure, which is favorable for improving the utilization rate of active materials. Pb-Ca-Sn-Al alloy makes the positive plate have a good performance of corrosion proof and makes the negative plate have a high over-voltage of hydrogen evolution. Unique lead paste formula enables perfect recovery performance of battery recharging after deep discharging. The battery has strong cycle and duration performance, sufficient capacity and long life.

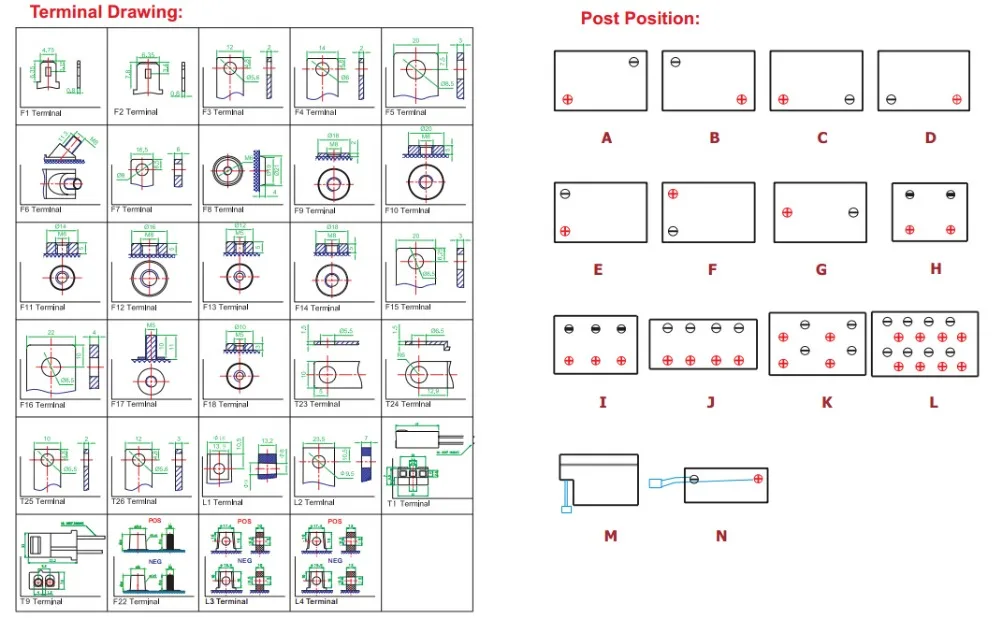

The terminal is in the structure of tin electrodeposited copper terminal, which is favorable for discharging battery with large current and is favorable for the reliability of connection between batteries. The terminal is sealed through fusion welding and second seal of resin sealant, and the seal reliability is high.

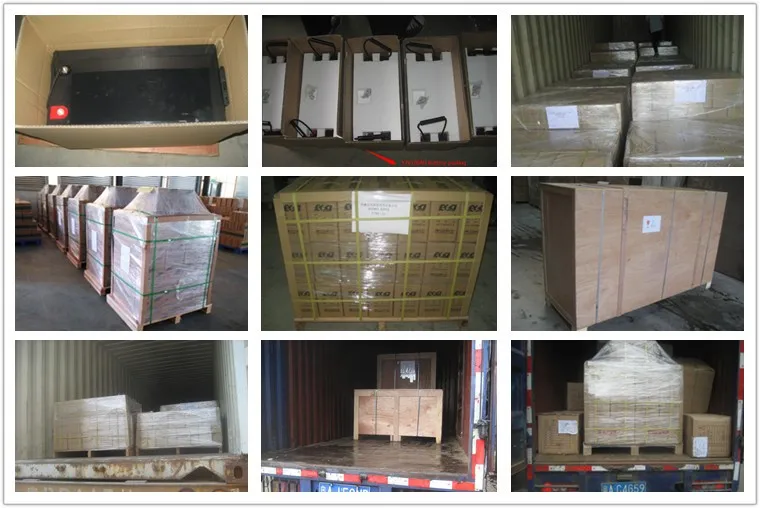

Packaging & Shipping

Precautions

• Always handle batteries with care.

• Always store upright.

• Never over-fill with acid.

• Always charge in a well ventilated place.

• Always wear eye protection when handling batteries.

• Wear protective clothing if there is any rick of acid splashing.

Danger

• Do not use at the places near fire. Hydrogen gas generated from battery may cause fire and explosion.

• This 12v battery is only for starting engine. Do not apply for other uses.

• Keep out of the reach of children or the personnel who do not understand the manual. It may cause blindness or severe burn.

• When using the battery, wear safety glasses and rubber gloves.Sulfuric acid may cause blindness or severe burn.

Warning

• Replacement of battery shall be performed as per following order. If failed, it may cause fire and explosion. Remove cable from negative terminal first.Connect cable to negative terminal last.

• When connect cable to battery, make sure not to get changed post of +and -. It may cause the damage of electronic components or fire.

• When ueing the battery ,handle with care,sulfuric acid may cause blindness or severe burn.

Caution

• When moving battery, be careful not to drop the battery , which is heavy, Do not shake the battery with handle, if there is the handle, It may cause the injury.

• Do not shore the battery at the following places. High temperature and humidity. Being exposed to rain,snow, direct sunshine.
