Bit depth: | 16, 24 (WAV) | title: | Zoom H6 digital voice recorder |
Certification: | FCC, CE, RECH | brand: | Zoom H6 |
Gross weight per piece: | 5.000 kg | Packaging Details: | Box packaging, on the basis of reasonable placement, appropriate use of bubble pads, cartons, etc. as fillers for edges and gaps to protect the product well |
Single package size: | 30X32X40 cm | place of origin; place of origin: | China |
color: | Black | Material: | ABS |
Sales unit: | single product | exhibit: | 2.0-inch full-color LCD (320 x 240 pixels) |
model: | Microphone Zoom H6 | Equivalent input noise: | -120 dBu or less |
Model: | Zoom H6 | Function: | recorder |
type: | Portable Handheld Voice Recorder | Name: | H6 |

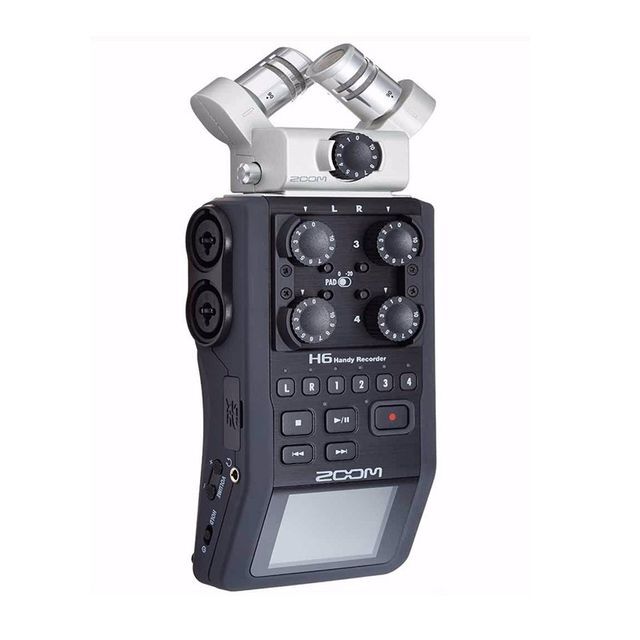

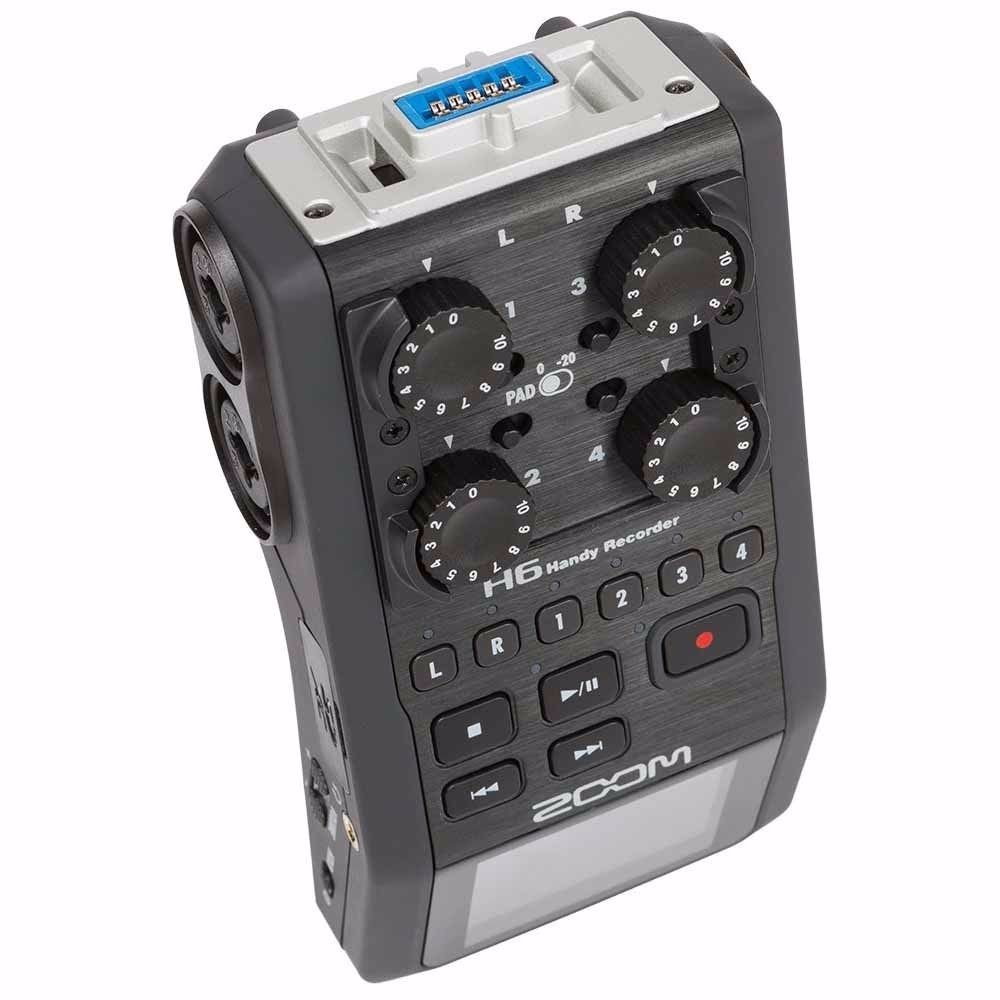

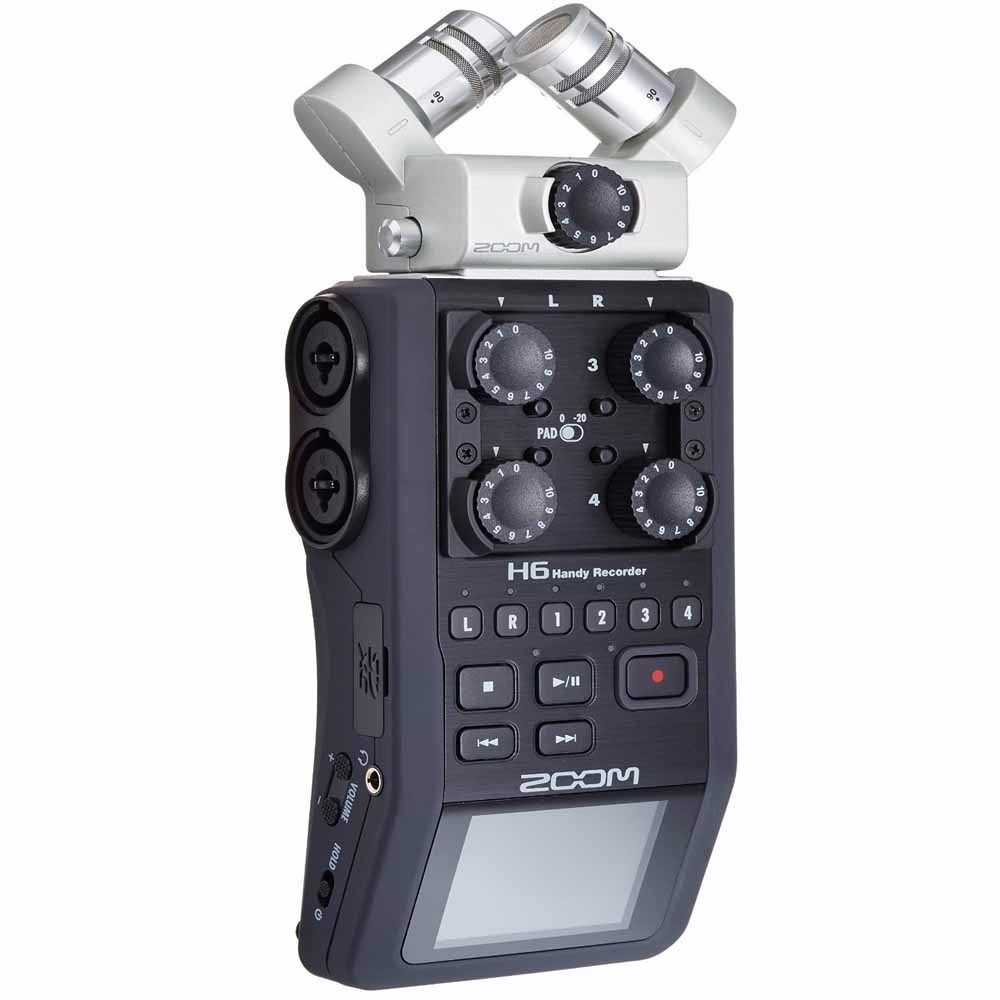

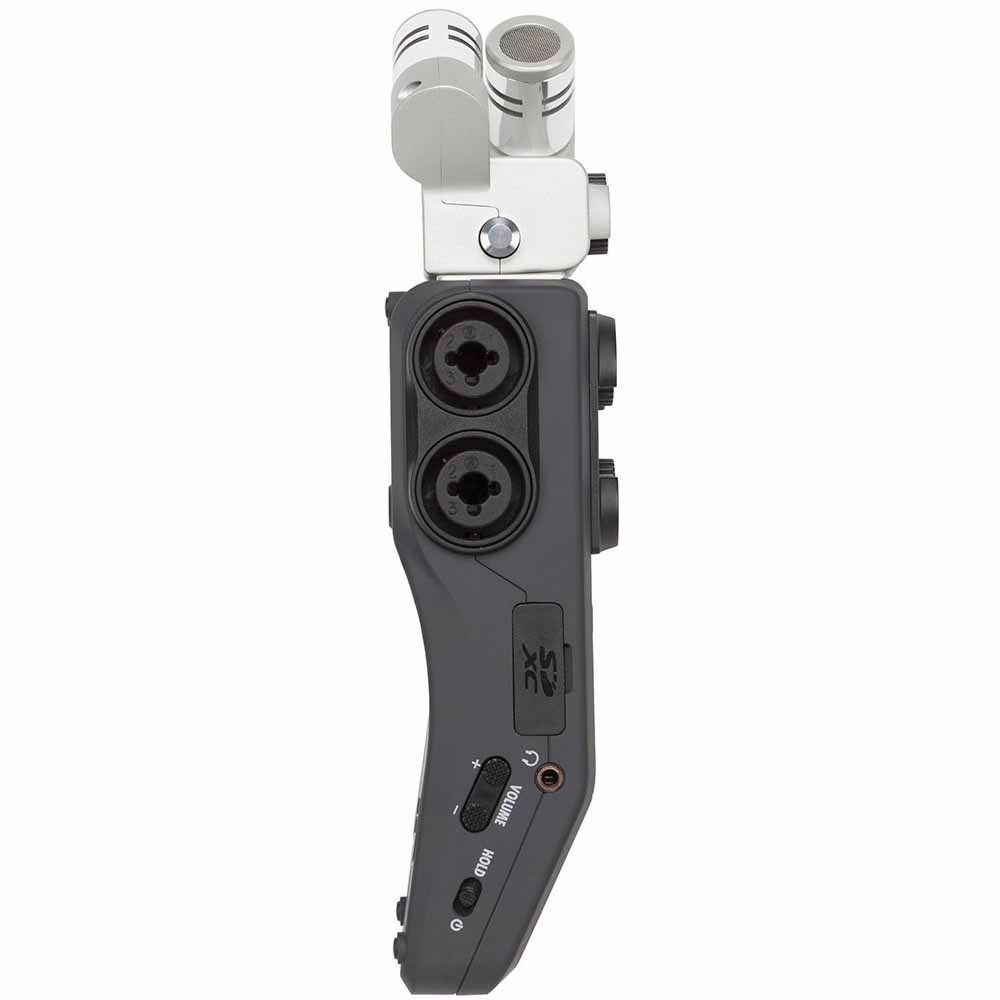

Interchangeable Microphone Portable Handheld Zoom H6 Digital Voice Recorder
recording medium | SD card: 16 MB to 2 GB SDHC card: 4 GB to 32 GB SDXC card: 64GB to 128GB |
---|---|
input connection | 4 XLR/TRS combo jacks; XLR: pin 2 hot; TRS: cue hot 1x 1/8" Stereo Mini Jack (XYH-6 MIC/LINE IN) |
input gain | -∞ to 55.5 dB (PAD off) -∞ to 35.5 dB (PAD on) |
input level | -∞ to 46.5 dB (XYH-6 mic/line input) |
input resistance | 6.8 kΩ (inputs 1 to 4) 2 kΩ (XYH-6 mic/line input) |
maximum input level | +22 dBu, PAD ON (inputs 1 to 4) |
Phantom power | +12V /+24V /+48V, independent (inputs 1 to 4) 2.5V plug-in power, (XYH-6 MIC/LINE IN) |
Equivalent input noise | -120 dBu or less |
output connection | 1x 1/8" Stereo Mini Jack (LINE OUT) 1x 1/8" Stereo Mini Jack (PHONE OUT) |
output level | -10 dBu when the output load impedance is 10 kΩ or higher (LINE OUT) 20 W +20 W into 32 Ω load (PHONE OUT) |
Built-in speaker | 400mw 8 Ω mono speaker |
Recording format | Audio, MP3 |
Sampling Rate | 44.1/48/96 kHz (WAV) 44.1 kHz (MP3) |
bit depth | 16, 24 (WAV) |
bit rate | 48/56/64/80/96/112/128/160/192/224/256/320 kbps (MP3) |
Maximum simultaneous recording | 8 (L/R + INPUT 1 to 4 + L/R backup), backup recording: -12dB below the set L/R input gain (WAV) -or- 2 (MP3) |
Record to SD card | Using a 2 GB card: 03:08:00 (44.1 kHz / 16-bit WAV) 34:43:00 (128 kbps MP3) |
exhibit | 2.0-inch full-color LCD (320 x 240 pixels) |
USB port | Mass storage class operations: USB 2.0 High Speed -or- Audio interface operation, multitrack mode: USB 2.0 Hi-Speed, Multitrack or Stereo mode |
Power requirements | AA size (LR6) batteries x 4 AC adapter: AD-17 (DC5V/1A/USB-type) (optional) USB bus power |
Battery Life | Over 20 hours (with alkaline batteries, continuous recording) |
aspect | 3 x 6 x 1.9 inches (77.8 x 152.8 x 47.8 mm) |
weight | 9.9 oz (280 g) |
