SMPS original Mingwei MDR-60-24 60W 24V 2.5A AC-DC single output industrial DIN rail switching power supply

Product details
Operating temperature:-30~ +70°Cefficiency:88%
Packaging Details:MEAN WELL MDR-60-24 60W 24V 2.5A Rail AC-DC Power Supply Dimensions: 100*90*40mm (D*H*W) Packing: 0.33Kg ; 42pcs/14.8Kg/0.82CUFTproduct name:Meanwell MDR-60-24 60W 24V 2.5A DIN Rail AC-DC Power Supply
payment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram,PayPalWarranty:3 years
Protect:Short circuit/overvoltage/overtemperatureport:Shanghai/Ningbo
Input voltage:85~264VAC 120~370VDCWorking humidity:20 ~ 90% RH non-condensing
Output frequency:Not applicableThe output voltage:24V
Certification:Certificationbrand:Minwell
output type:singleHS code:8504401400
Overvoltage:31.2~36Vplace of origin; place of origin:Zhejiang, China
Output current:2.5ASupply capacity:MEAN WELL MDR-60-24 20000 pieces per month

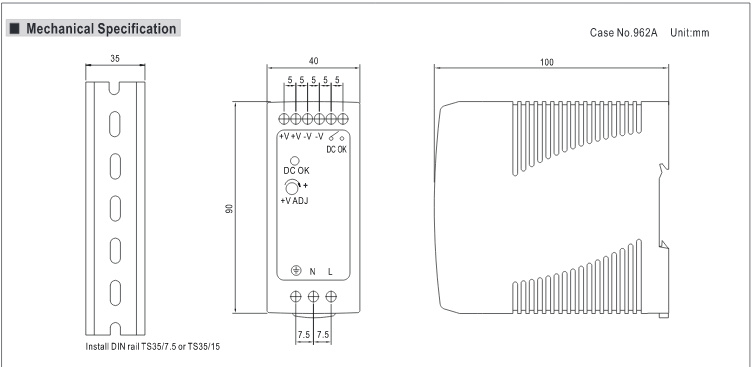

aspect:100*90*40mm (D*H*W)model:MDR-60-24
Output Power:60W

product description

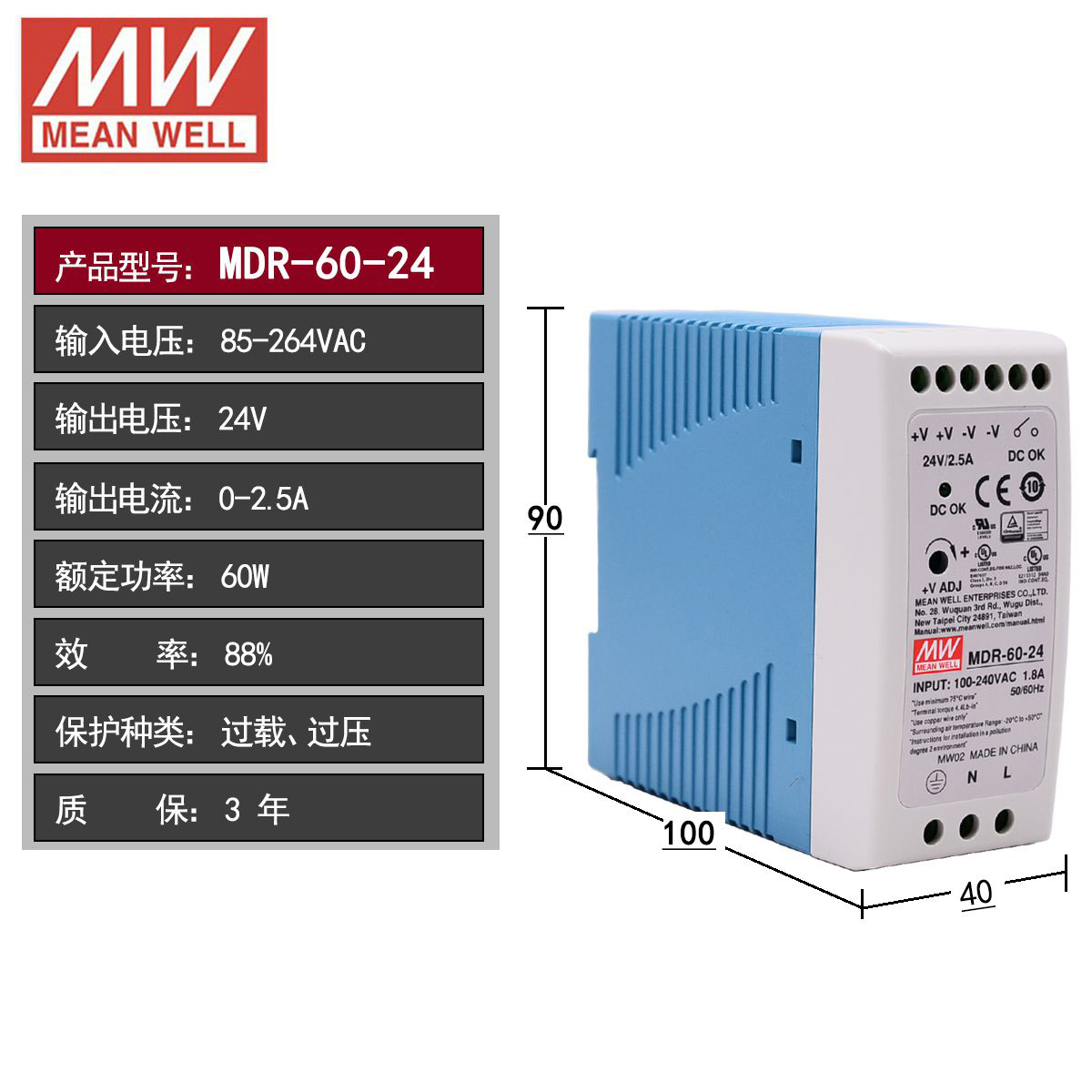

Model: Meanwell MDR-60-24 60W 24V 2.5A Din Rail AC-DC Power Supply

Product Description

feature:

  • Universal AC Input/Full Range

  • Protection: Short Circuit/Overload/Overvoltage
  • Cooled by free air convection
  • Can be mounted on DIN rail TS-35/7.5 or 15
  • Built-in DC OK active signal
  • Power On LED Indicator
  • No-load power consumption <0.75W
  • 100% full load aging test



  •  3 years warranty
  •

product description

Model: Meanwell MDR-60-24 60W 24V 2.5A Din Rail AC-DC Power Supply

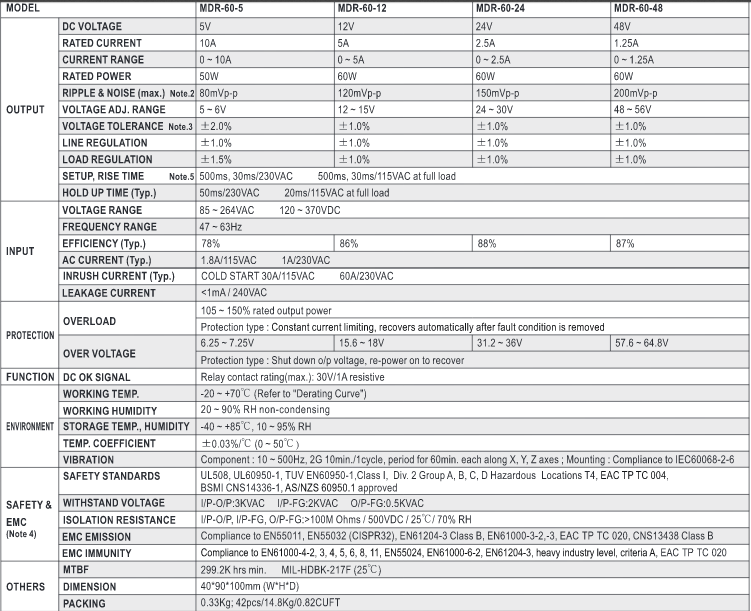

Specification
