Horizontal cylindrical pressure steam sterilizer autoclave stainless steel disinfection equipment

Product details
Core Components Warranty:1 yearCertificate:ISO9001, CE
Average Calories:≤±2℃Model:WS-300YV
Working pressure:0.22MpaOperating temperature:134℃
volume:300Lstrength:AC380V.50Hz/9KW,13kw
Dimensions (L*W*H):1520*850*1850mmGross/Net Weight:580/470kg
Video external inspection:ifMarketing Type:Hot Products of 2019
Mechanical test report:Not availableShowroom location:not any
Shipping Dimensions:1680*1080*2100mmPackaging Preview:
place of origin; place of origin:ChinaCore components:pressure vessel
Applicable industries:Catering shops, catering factories, hospitals, chemical and pharmaceutical unitsweight:470
port:Shanghaibrand:Jibei
Warranty:1 yearpayment terms:letter of credit, wire transfer
Weight (kg):470 kgMaterial:Stainless steel
Product Description

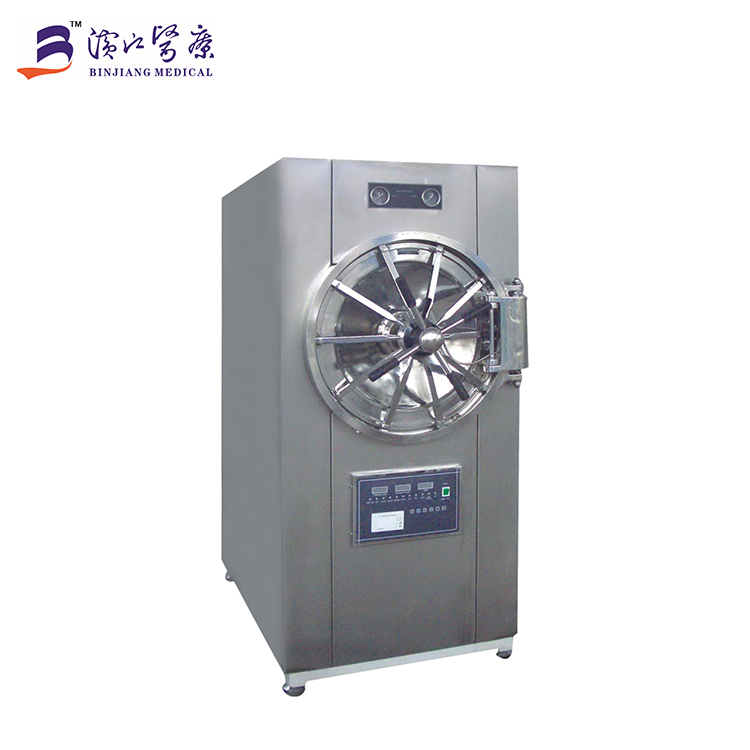

Horizontal pressure steam sterilizer
feature
• The sterilization process is automatically controlled, and the operation is simple.
• With drying function, suitable for drying medical dressings.
• With overheating, overvoltage automatic protection function.
• The door can be opened only after the pressure in the cavity drops to 0.027MPa. If the door does not close properly, the unit will not start.
• When the internal pressure exceeds 0.24MPa, the safety valve opens automatically and the steam is discharged from the water tank.
• Automatically cut off the power supply in case of water shortage, and alarm at the same time.
• All stainless steel construction.
• With printer.

Technical data
Model
WS-150YDD
WS-200YDD
WS-280YDD
Technical data
Sterilization chamber volume (mm)
150L
φ440×1000
200L
φ515×1000
280L
φ600×1000
work pressure
0.22Mpa
Operating temperature
134℃
Temperature adjustment range
40℃-134℃
Sterilization time
0-99 minutes
drying time
0-99 minutes
average calorie
≤±2℃
strength
9kw/380V 50Hz
9kw/380V 50Hz
12kw/380V 50Hz
Dimensions (mm)
1400×650×1600
1400×750×1700
1520×910×1900
Outer packing size (mm)
1560×820×1820
1560×910×1880
1680×1080×2100
GW/net weight
430/340kg
436/350kg
570/462Kg
