4-product dispenser Spray bottle, Proportional Chemical, for supermarket, restaurant, 8134-4B-1G

Click here to contact

Product details

Single pack size:	37X27X27 cm	Origin:	Jiangsu, China
MOQ:	1 set	Marketing Type:	Hot Products of 2020
Showroom location:	not any	Key words:	Clean the dilution dispenser
product name:	Mop Station - 4 Bottles	Core component warranty:	not available
After Warranty Service:	Video technical support, online support, spare parts	Video outbound inspection:	not available
Material:	Durable stainless steel cabinet	Function:	precision dilution
Packaging Details:	1 set/box	Dimensions (LWH):	370x270x270mm
weight:	5.7 kg	Mechanical test report:	not available

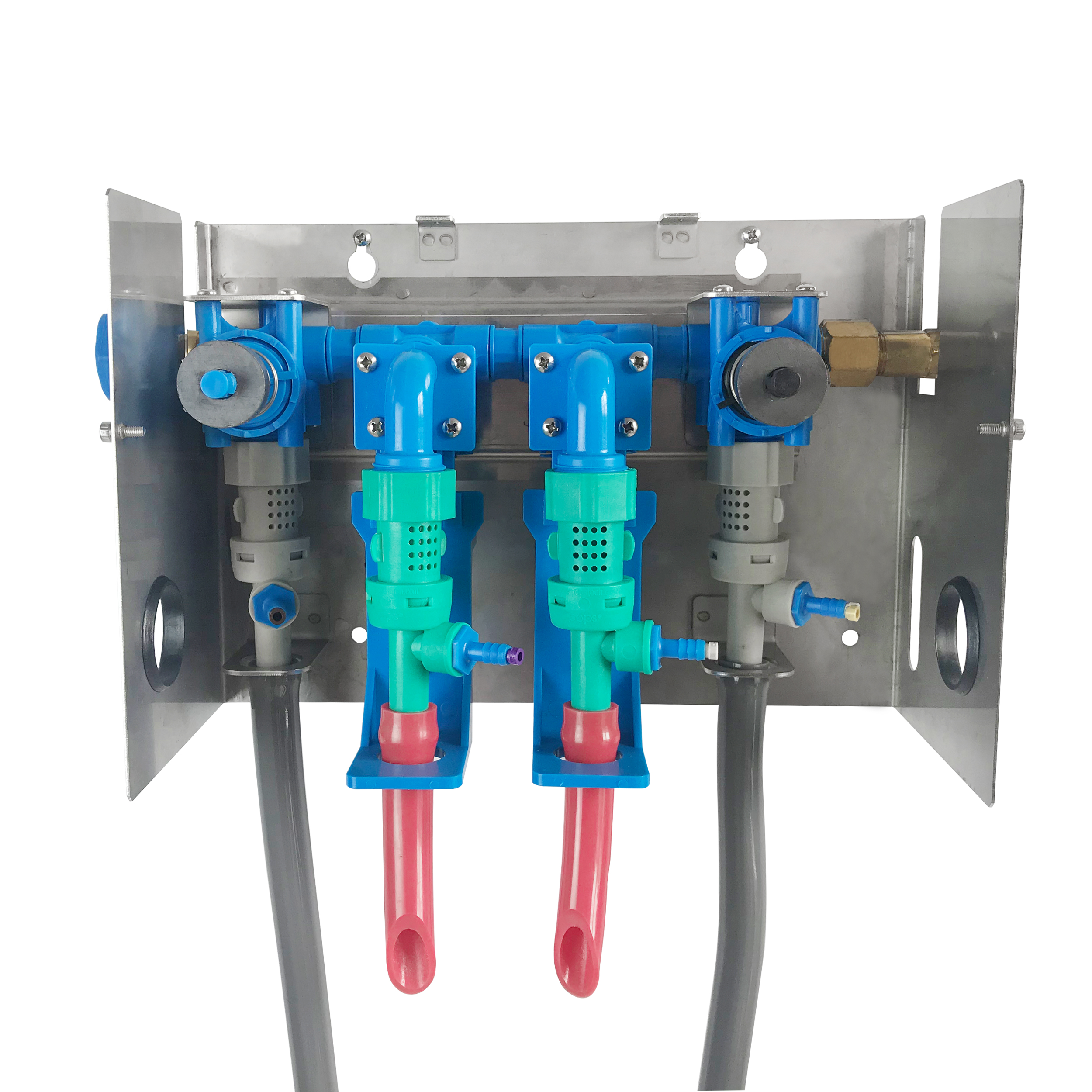

Core components:	venturi injector	Sterilization area:	Public places
liquid:	disinfectant	Product Category:	washing machine
Warranty:	unavailable	Applicable industries:	Food and beverage stores, food and beverage factories, machinery repair shops, manufacturing plants, hotels, food stores, building materials stores, restaurants
color:	blue	Local service locations:	not any
Sales unit:	single product	Gross weight per piece:	5.700 kg
After-sales service provided:	Online support, video technical support

Product Description

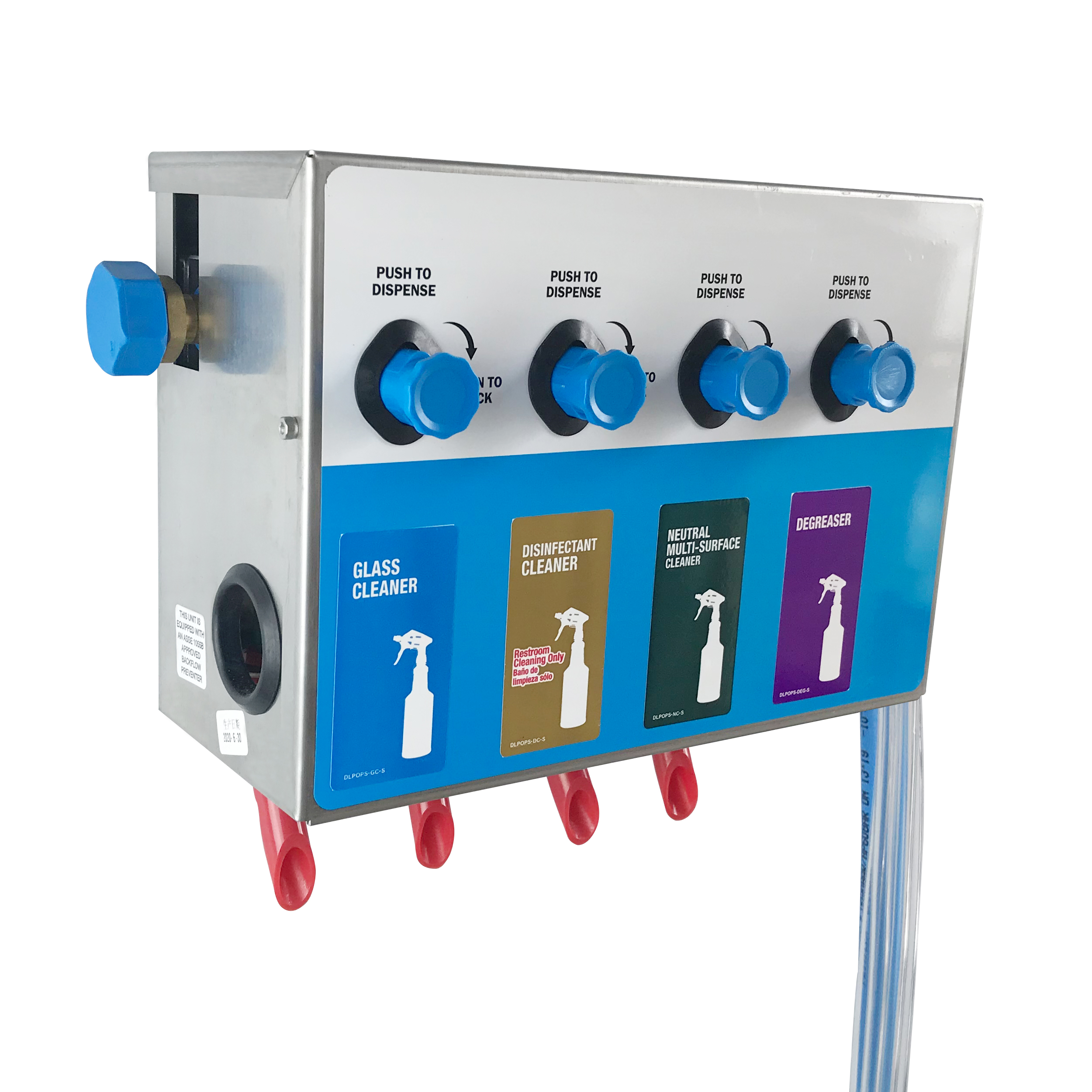

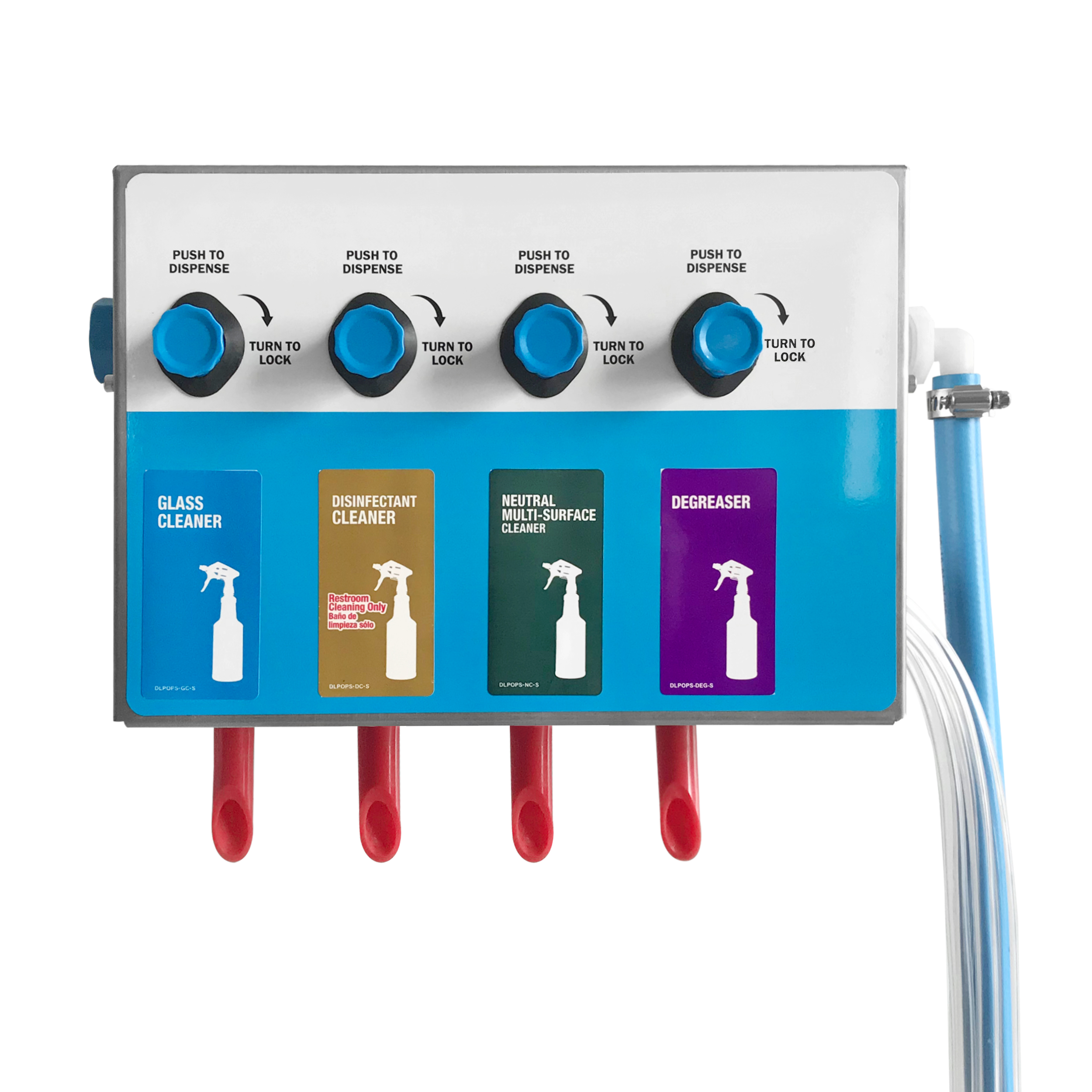

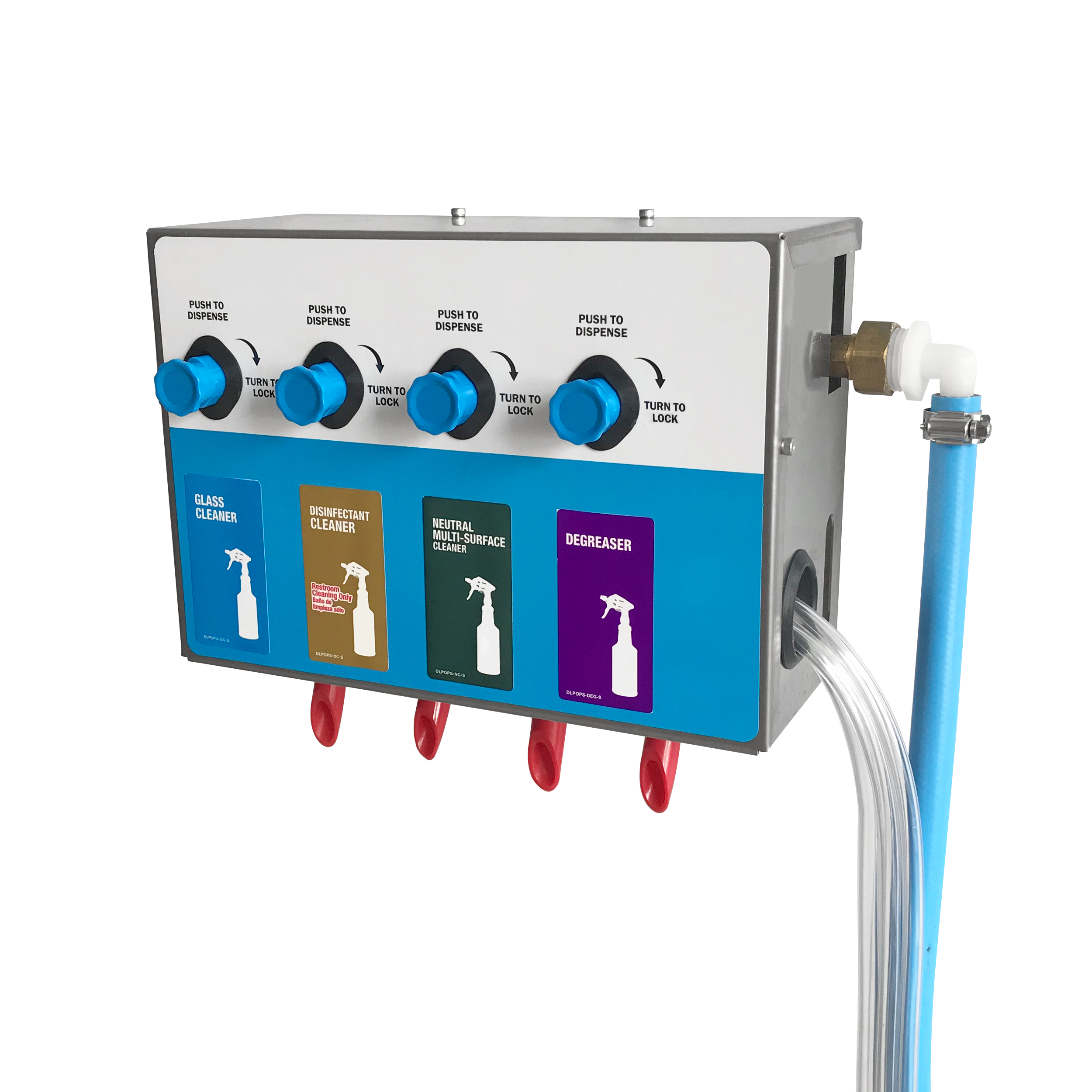

8134-4B-1G Mop Stand - 4 Bottles

Product number:8134-4B-1G
Accessories include:

(4) 8085 dip tube

(4) 8083 Dip Tube

(4)8011drilling cap

(4)8185check valve

(4) 0042Y tubing reinforcement
(2) 8090 Hose Clamps

(1) 8023 Screw/Anchor Kit
(1) 8117-20 Metering Head Package
(1) H0008 City water connection hose

(1) 8013 Hose Coupling Elbow

(1)Product Manual,Measuring tip use table

Optional Accessories: - Product Bottle Holders for various bottle shapes - Premier Maintenance Kit: Part Numbers: PM8167 and PM8168

Specification

Material:	Durable stainless steel cabinet
flow:	(4) Spray Bottle Dispensing Unit, 1GPM
Mixing ratio:	1:10 to 1:512
Packing Specifications:	1 set/box
Package Size:	370x270x270 mm
Package weight:	5.7 kg

Our advantage

Product advantages

Dispenses up to 4 cleaning and sanitizing products in one unit(4) Control Buttons(4) Spray Bottle Dispensing Unit, 1GPM - Mixing Ratio: 1:10 to 1:512

-Adjustment with 21 metering heads included -Durable stainless steel cabinet -Built-in ASSE5001B backflow preventer
