Proportioner Injector, 4GPM Air Gap, 8102

Product details
color:greyKeyword 1:Air gap backflow prevention
Showroom location:not anySingle package size:32X32X32 cm
Sales unit:single productMarketing Type:Hot Products of 2021
Product Category:accessoriesMaterial:polypropylene
Local service location:not anyproduct name:Proportioner Injector, 4GPM Air Gap
After-sales service provided:Online support, video technical supportAfter Warranty Service:Video technical support, online support
Video external inspection:Not availablePackaging Details:150/box
Keyword 2:good chemical resistanceplace of origin; place of origin:Jiangsu, China
Mechanical test report:Not availableCore Components Warranty:Not available
Core components:Venturi ejectorWarranty:unavailable
Applicable industries:Food and Beverage Stores, Food and Beverage Plants, Machinery Repair Stores, Manufacturing Plants, Hotels, Food Stores, Building Materials Stores, RestaurantsGross weight per piece:4.900 kg
Dimensions (L*W*H):32x32x32cmweight:4.9kg
Disinfection area:Public places
Product Description

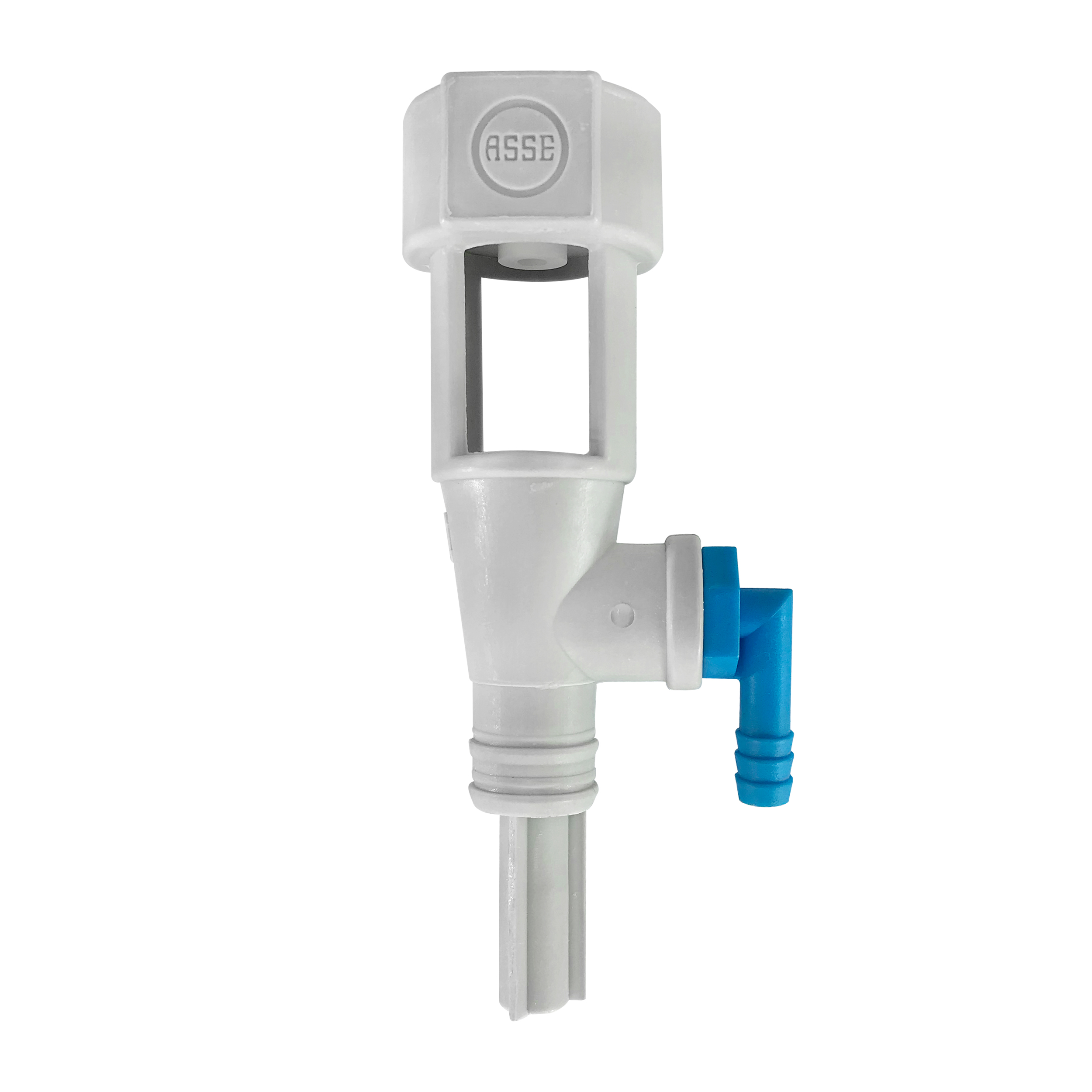

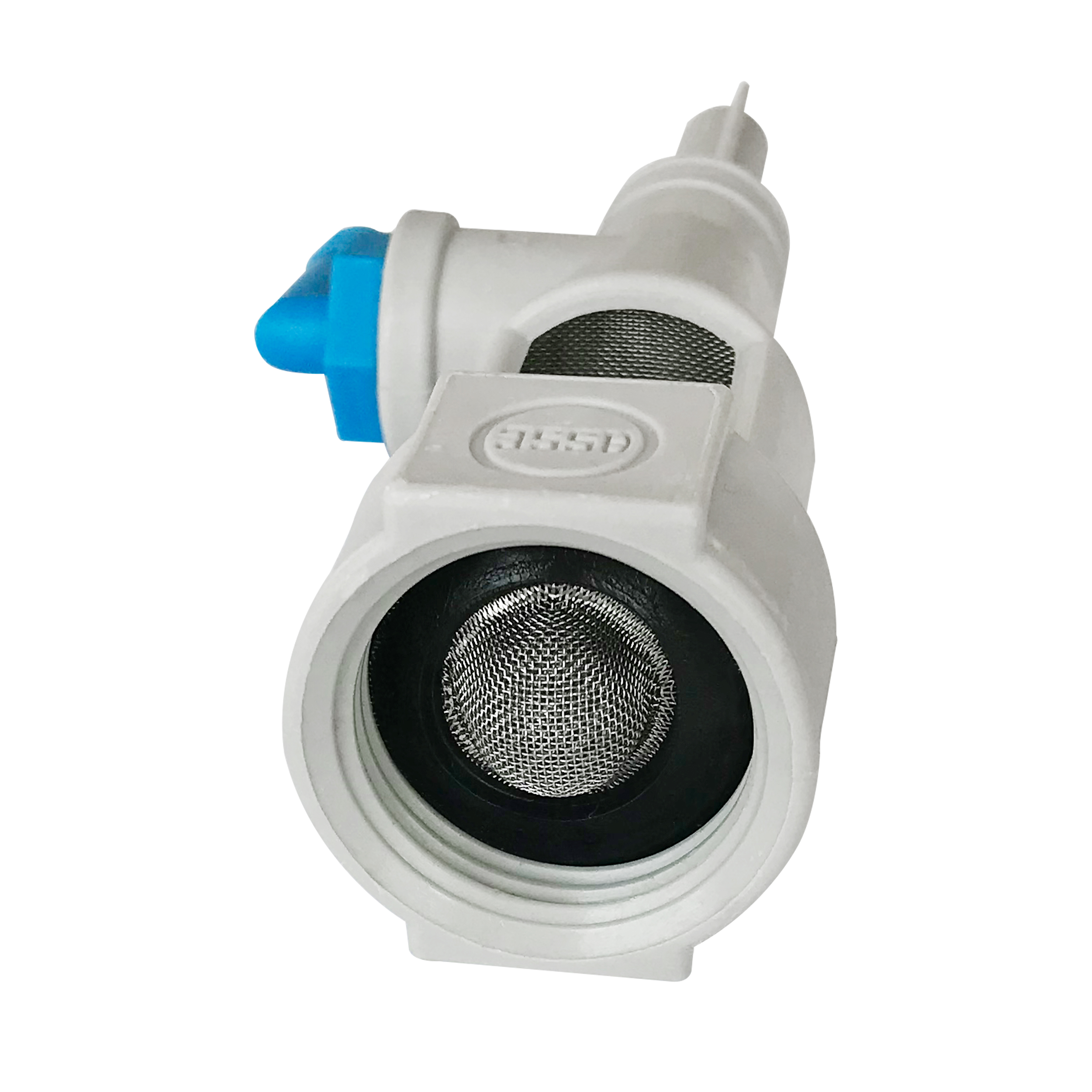

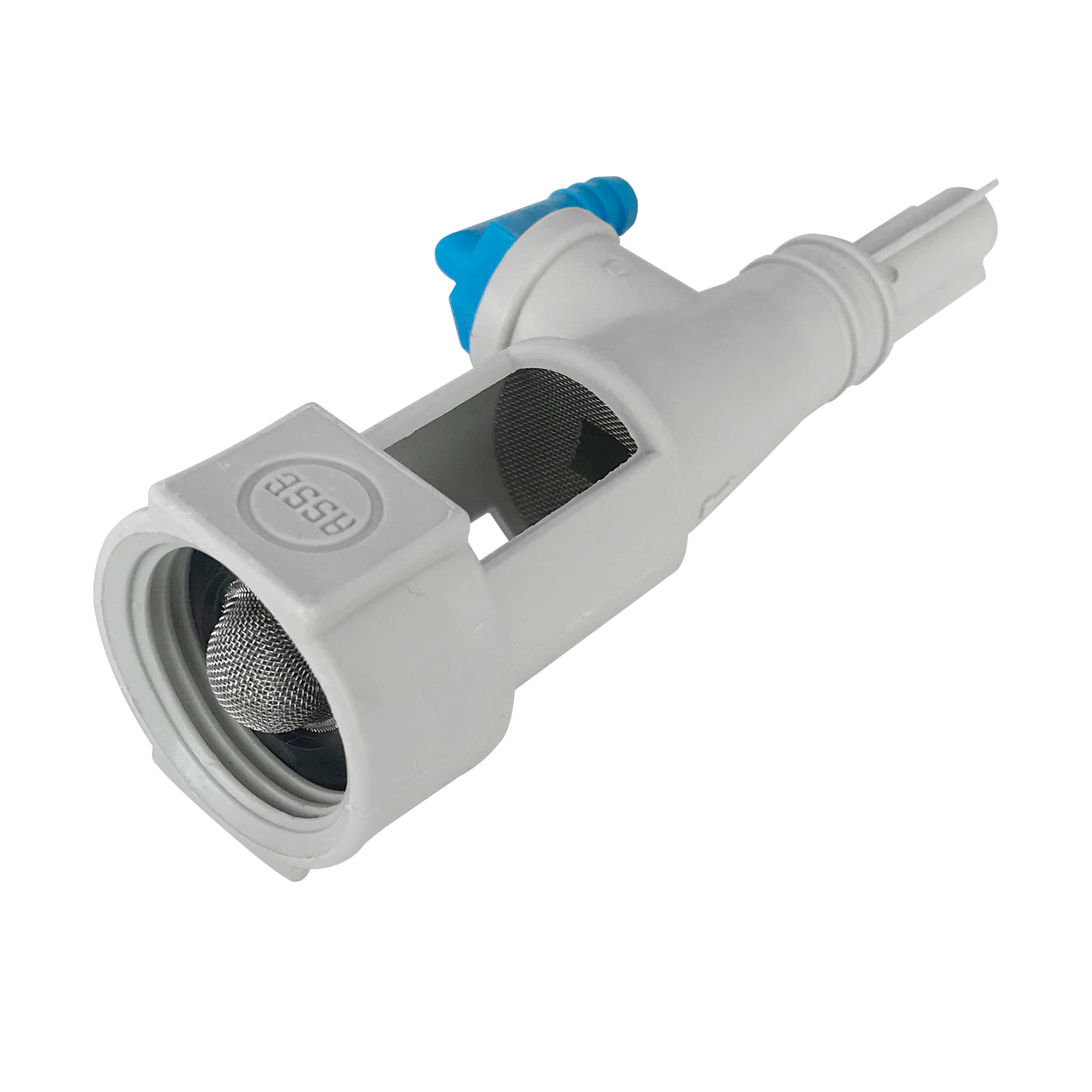

8102 Proportioner Injector, 4GPM Air Gap
Product number:8102
- Flow Rate: 4GPM@45PSI - Air Gap Backflow Prevention, ASSE 50005B Certified. - Made of PP with good chemical resistance to conventional cleaning chemicals and disinfectants. - Comes with connector, metering head adapter. - 3/4 GHT female water connection - 3/8 pipe female chemical connection - 1/2 drain hose barb

Specification
Material:
PP and silicon materials
Flow rate:
4GPM
Working pressure range:
45PSI
Packaging Specifications:
150/box
Package dimensions:
320x320x320mm
Package Weight:
4.9kg
Our advantage
Product advantages
- Air gap backflow prevention, certified to ASSE 50005B.
- Made of PP with good chemical resistance to conventional cleaning chemicals and disinfectants.
