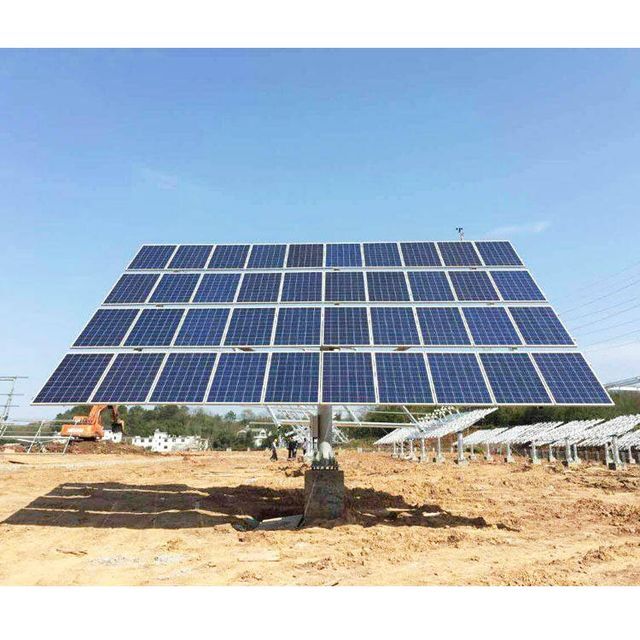

Manufacturer Solar Tracking System 12KW Dual Axis Solar Tracker Solar Tracker

Supplier: Xiamen Solar First Energy Technology Co., Ltd.
Region: Fujian, China
Contact: Ms Judy Zhou
Price: $0.20 / 1000 - 9999 pieces
$0.16 / >=10000 pieces
Min. Order: 1000 pieces

Click here to contact

Product details

Tracking range:	X-axis ±120°, Y-axis 0-60°	payment terms:	L/C,Western Union,T/T
Snow load:	1.4kn/m2,1.4kn/m2	Supply capacity:	3000000 sets/month
base type:	concrete base	Warranty:	10-year warranty and 25-year service life, 10 years
product name:	12KW Dual Axis Solar Tracker Solar Tracker	port:	Xiamen, China
brand:	Solar first	type:	Photovoltaic system tracking structure
Packaging Details:	Wooden box. Wooden pallet, carton or customer request.	place of origin; place of origin:	Fujian China
Drive System:	Slewing drive	model:	SF-ST005
Material:	anodized aluminum	Wind load:	up to 60m/s, up to 60m/s
Operating temperature:	-30°C~65°C

Product Description

Solar Tracking System

Solar tracking system is one of the most promising product technology trends of solar energy today, it can help users get more power generation. It can continuously optimize the tracking algorithm for each row based on site characteristics and changing weather conditions, thereby increasing the yield of the solar power system.

feature:

1. The weight-lifting structure with 5 supporting points, the shape table design combined with the four-link age structure, is driven by the slewing drive.
2. Eliminate the effect of water waves, prevent the impact of wind on the structure, eliminate vibration, and ensure the output efficiency of solar modules.
3. The distribution is more reasonable and stable, the cost of steel structure is lower, and structural deformation is avoided.
4. Independent design, adaptability to various terrains, zero land leveling cost, suitable for solar agriculture, solar fishery projects and other applications, easy installation and maintenance, saving maintenance costs.

technical details

trace structure
tracking technology	Dual single-axis trackers	system voltage	1000v/1500v
tracking range	X-axis ±120°, Y-axis 0-60°	Working wind speed	18m/s (customizable)
Maximum wind speed (stowed position)	35m/s (ASCE 7-10)	Modules per tracker/table	≤40 vertical (can be customized)
Main material	Hot dip galvanized Q235B/ Q355B/ ZAM	Average coating thickness	≥65 microns
Drive System	Slewing drive	base type	concrete base
Control System
tracking control	MCU	tracking mode	Closed loop time control + GPS
tracking accuracy	<1°	Communication Interface	Wire/Zigbee
Powder Collection Mode	External power supply/self-powered	Protocol	Modbus RTU
Automatically close at night	Yes	Automatically folds in high winds	Yes (response after 10 seconds)
Optimize backtracking	Yes	Protection class	IP65
Operating temperature	-30°C~65°C	Anemometer	Yes
energy consumption			0.3KW/H/day
