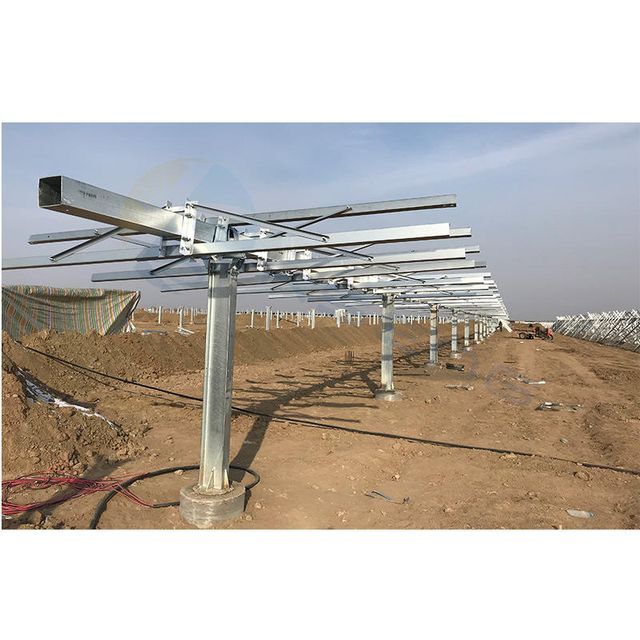

Single Axis Smart Solar Tracking System Single Axis Solar Tracker Ground Mount Solar Panel Tracking System

Supplier: Xiamen Kseng Metal Tech. Co., Ltd.
Region: Fujian, China
Price: $95.00 / 500 - 999 pieces
$90.00 / 1000 - 4999 pieces
$85.00 / >=5000 pieces
Min. Order: 500 pieces

Click here to contact

Product details

power supply:	24DCV	Control algorithm:	Astronomical algorithm + closed loop (AI control)
Data feed:	RS485/Wireless Zigbee	Supply capacity:	10000 kW per month
Tracking range:	60 - +60	product name:	Single Axis Solar Tracking System
Driving force:	150w	brand:	Kesen
port:	Xiamen	Packaging Preview:
Wind load:	>=18m/s	Snow load:	1.4kn/m2
place of origin; place of origin:	Fujian China	Warranty:	10-year structural warranty, 5-year electrical warranty, and 10-year structural warranty
model:	KST-2PM	Drive System:	Solar track bausatz slewing drive
Tracking Accuracy:	<1°	Control System:	MCU
payment terms:	Letter of Credit, Wire Transfer, Paypal	Packaging Details:	According to customer needs or company standard packaging.

Single Axis Smart Solar Tracking System Single Axis Solar Tracker

describe

Kseng's KST-2PM tracking system adopts a distributed drive architecture and uses the "astronomical algorithm + closed-loop control" tracking method, so that each line is independently controlled by its own motor. Make the system accurate and reliable, real-time closed-loop feedback tracking angle, automatic tracking, without manual intervention.

Specification

Tracking structural parameters
tracking technology	Dual-Portrait horizontal plane single axis tracking system	Maximum capacity per line		72KWp (3 or 4 strings of 210 type modules)
Number of PV modules per row	45PCS (2Px45) or 60PCS (2PX60)	tracking range		±45° to ±60°
tracking accuracy	±1°	Terrain adaptability		10° north-south, east-west infinite
Wind speed protection	18m/s	basic form		Concrete (customized all-steel foundation)
Track controller parameters
Control System	MCU	Communication type	RS485 or wireless Zigbee
night collection mode	Have	backtracking algorithm		Have
Overload Prevention	Have	self-fault check Function		Have
system voltage	DC24	Drive System		Linear Motor
Power Harvesting Mode	External power supply/self-powered	control algorithm		Astronomical multi-point algorithm + closed loop (AI control)

advantage

Advantages of Kseng Solar Tracking System

1. The damping ratio of the system is larger, which can reduce the component amplitude by 50%. 2. The main shaft force can be reduced by 40%. 3. Reduce the force on the drive column by 50%. 4. The torsion angle of the spindle is reduced by 60%. 5. Better system wind resistance.

Terrain adaptability

1. Flexible arrangements, make full use of irregular land, and improve land utilization.

2. The north and south can adapt to 20% slope.
3. The east-west slope is infinite.

CPP wind tunnel test

Kseng has partnered with CPP WIND ENGINEERING, the first company in the US to provide wind energy engineering services to architects and engineers. Combined with the frequency and characteristics of the damping ratio of the KS-tracker tracking system, the results of the KS-tracker system under the action of aerodynamics are studied, and the influence and instability of the system during operation are analyzed.

main structural parts

Component arrangement scheme

We have different programs to meet the requirements of different customers.

Certificate

Ksheng tracking series products have passed SGS, CPP, TUV, UL, IEC and other international standard certification.
