5kg 10kg 50kg automatic rice bag packing machine/corn corn wheat flour packing machine/fish meal granule weight packing machine

Product details
model:JY-25Packaging machine frame:SUS304
Supply capacity:100 sets per yearyear:2021
Mechanical Capability:100-150 packs/minweight:1500kg
Health status:newWeighing capacity:2~3 bags/min
product name:Automatic Powder Quantitative Filling Machine with Screw ConveyorMain function:Weigh-Form-Fill-Seal
Power Type:pneumaticstrength:6KW
place of origin; place of origin:Liaoning, Chinapayment terms:letter of credit, wire transfer
air pressure:0.4-0.6MPaport:Shanghai
Voltage:380V/50HZbrand:auspicious dragon
Packaging Details:Export wooden packagingWeighing range:25~50Kg
Type of machine:Powder weighing packaging machineApplication areas:Food, daily necessities, medicine, chemical industry
Dimensions (L*W*H):3474*2450*3054mmusage:Filling and packaging machine
Auto grade:automaticKey machines:Sealing machine, packaging forming machine, filling machine, screw feeder
Materials used for packaging:Plastic, paper, paper-plastic packaging
Product Description
Powder quantitative filling machine with screw conveyor
This machine is designed according to the national standard GMP, and can complete a series of work; weighing, filling, sealing, sewing, conveying and other processes. And it is widely used in the packaging of powdery materials in food, medicine, building materials, plastics, chemicals and other industries. Such as milk powder, rice flour, cereals, coffee, sugar, coffee, glutamic acid, solid beverages, glucose, solids, medicines, pesticides, granular additives. The main parts of the machine are made of 304 stainless steel. Has well-known brands of fuselage, motors, cylinders, electrical accessories, pneumatic components, pneumatic sealing machines, sewing machines. Customers can choose their own brands.
application:
JY-25 screw conveying automatic powder quantitative filling machine is used in chemical, food and pharmaceutical industries. It is suitable for quantitative measurement and filling of powder materials into bags (woven bags or plastic bags). It is mainly used for quantitative packaging of various non-fluid powder or powder granular materials such as flour, starch, protein powder, lime powder, mineral powder, glucose powder, zinc oxide, calcium chloride, cellulose powder, etc.
detailed picture

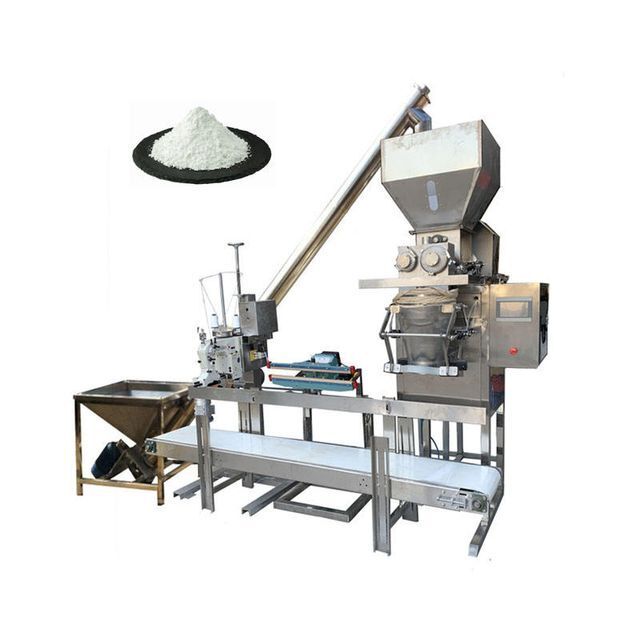

JY-25 Automatic Powder Quantitative Filling Machine
Automatic open bag packing machine 25-50kg is specially designed for powder packing bag machine, such as flour,
Corn flour, starch, milk powder, etc. Plastic woven bags, kraft paper bags, sacks, paper-plastic composite bags and other open pockets
, ETC.
It adopts a new packaging weighing system, equipped with high-speed and high-precision measuring instruments, with powerful functions.
screw feeder
Powder screw feeding conveyor (also known as screw conveyor) automatically transports the powder of granular materials to the hopper; it can be completed with mixers and special packaging equipment. It is made of stainless steel; conveying materials without any contamination. The production process is fully closed automation. Product Description of Stainless Steel Granule and Powder Screw Screw Conveyor 1. Screw conveyor is used to convey powder or small free-flowing products from low level to high level. Such as milk powder, salt, seeds, flour, etc. 2. Feed all kinds of powdered products together with the packaging machine....
Sealing machine + conveyor belt
The sealing machine consists of a sewing machine and an adjustable sewing machine column. The maximum sewing thickness is 8mm, the sewing speed is 1700rpm-1800rpm, the sewing bag needle distance is 6.5mm-11mm, the needle type is 80800x250#, the cutter device is mechanical, and the driving motor power 380V, 50Hz; The adjustable sewing machine column is provided with a sewing machine lock switch and a reserved belt conveyor control switch installation position, and the adjustable height is suitable for the height range of the designed packaging specifications.
Specification
product name
project
Specification
project
Specification







Powder packaging machine
Packaging machine frame
SUS304
Weighing capacity
2~3 bags/min
material warehouse
SUS304
Weighing range
25~50Kg
clip with equipment
SUS201
Weighing deviation
±0.2
sensor
standard
control panel
touch screen
screw feeder
SUS304
power supply
AC380V
control device
2.2kW, 1.1kW
main motor power
0.9Kw
Electrical inverter
1.5kW
Gas source
Oil-free and dust-free
electrical appliances
Chint
air pressure
0.4-0.6MPa
Pneumatic parts
standard
motor
Explosion-proof motors






Sealing machine + conveyor belt
Bag conveying material
SUS304
Sealing machine motor power
0.37kw
length
2500mm
Conveyor motor
strength
0.55kW
width
400mm
sewing machine column
standard
Ability to work
10 bags/min
Sealer
GK35-6A
speed
5-20m/min
heat sealing
900 mm
Motor Power
0.37kw 380v
Machine size
3.4*2.4*3m


screw conveyor
screw conveyor
SUS304 1 set with dust cover
lift bin
SUS304 1 set with dust cover
Diameter of screw conveyor
159mm
motor
1.6kW
