LoRa Car Parking Systems Intelligent Wireless Parking Sensor for Parking Space Guidance Management

Product details
port:Shenzhen/Guangzhoumodel:WPSD-340S
Load Resistance:20 tons statictype:parking lot sensor
power supply:Built-in batteryplace of origin; place of origin:Guangdong, China
Supply capacity:10000 sets per monthpayment terms:T/T, Western Union
Detection Technology:Magnetic and Opticalfrequency:ISM 433/915/868Mhz
Packaging Details:Standard package delivery time: 7 daysInstall:on the ground
Warranty:15 monthsProtect:IP68
Loading capacity:Dynamic 5 tons, static 20 tonsbrand:Luoxin
accuracy:99%custom made:Yes
application:Parking space occupancy detectionconnect:wireless

LoRa Car Parking Systems Wireless Smart Parking Lot Sensor for Parking Space Guidance Management

Smart parking lot



introduce:

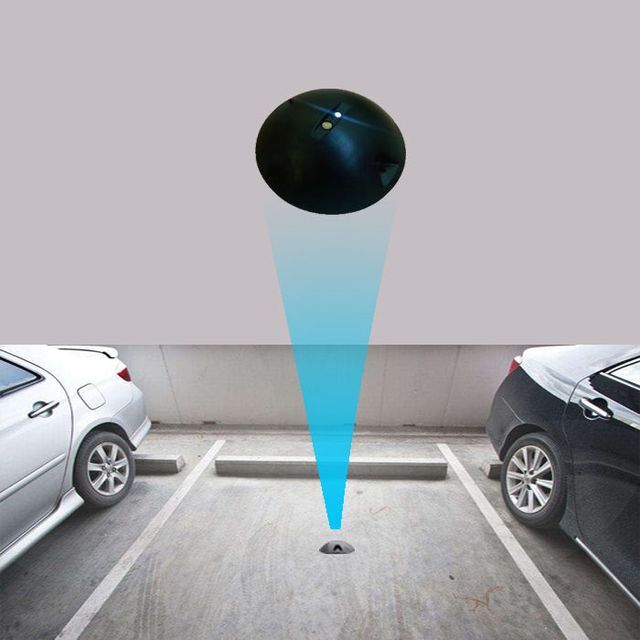

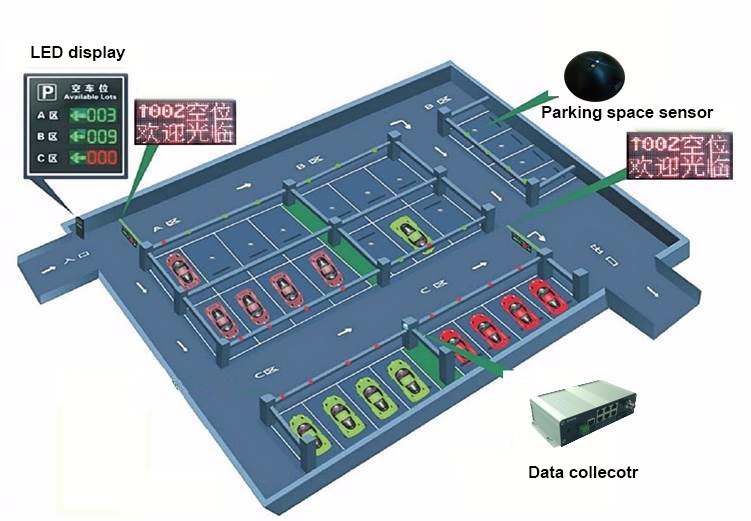

The intelligent parking lot sensor detection system includes two parts: sensor and data collector. The parking lot sensor is installed in each parking space, monitoringparking spaceReal-time data.

  • When the vehicle is parked on it, it immediately detects it and wirelessly sends the parking data to the data collector.
  • The data collector receives the data and relays it to the host systemTCP/IP, Rs232 or GPRS/3G/LTE.

These parking space occupancy data can be used forParking Guidance System, which guides the driver to the nearest parking space, which helps to spend less time searching for an available parking space, resulting in a better parking experience.

It can also be used forElectric vehicle detection, which sends parking data to the EV charger app to alert the car if the car is parked or occupied on the charger.

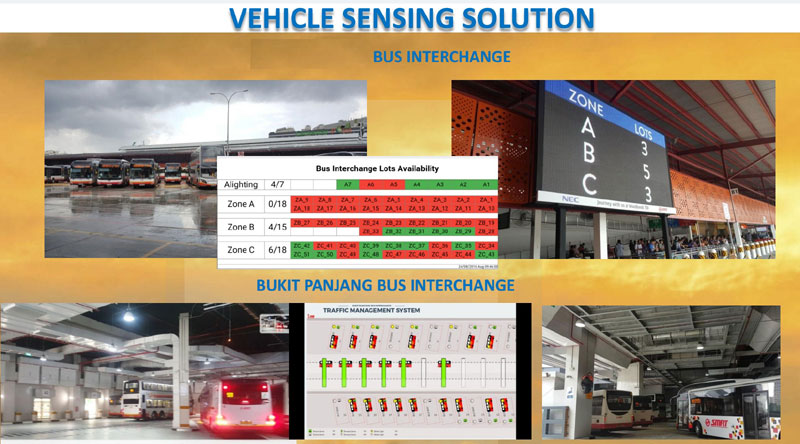

It can also be used forbus terminal management, it can give a hint
For each bus driver how long they have been parked there, and when it started.
In addition, the sensor can also be used for parking timeout detection, it can send parking data to the policy
center and integrate with their systems. It will reduce labor work.

Specification



Sensor Specifications:

Data Collector Specifications:

Demonstration software Parkview:



Main features:



♦ Configuration and monitoring functions

♦ Easy to integrate

♦ Parking is visible

♦ Provide SDK/API





park landscapeProvide software for customers to quickly start the wireless parking detection system. It provides configuration functions for a range of WPSD sensors, as well as various forms of data monitoring output. ParkView software makes it easy to set up an experiment for demonstration systems or testing purposes.



Function

configure

Monitoring data

test

demo



Our customers develop their own software and platforms, applications, etc., and we provide SDK/API and communication protocols for integration.

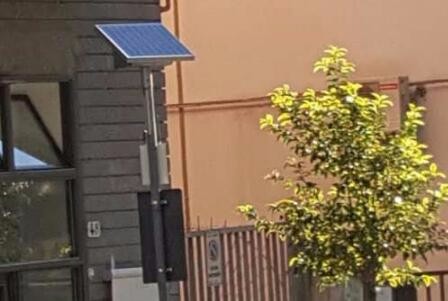

Data collector installation picture:







Parking lot sensor installation:







advantage





ROSIM is leadingdeveloperandmanufacturerThe parking space detection system has been practiced and tested for more than 8 years. Our completed projects are distributed in Italy, Malta, Turkey, Poland, Germany, France, Australia, Japan, USA and Malaysia. We focus on detection technology and wireless network, and the products will provide all customers with stable performance and high quality products.

Certifications and Patents





Sensor advantages:



our service:



All ordered products will be packed and delivered within 7 dYes:
1. All inquiries will be replied within 24 hours.
2. We provide professional staff to follow you by mail, phone or live chat in English.
3. In order to ensure product quality, all products need to be re-tested before leaving the factory.
4. Unique problems can be solved by our professional engineers.
5. One year product quality assurance.
6. After-sales service and technical support.
7. Provide relevant certificates according to your requirements.
