LoRa wireless technology vehicle detection sensor for intelligent parking lot guidance system

Supplier: Zhongshan Rosim ITS Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Daniel YAN
Price: $5.00 / >=5 pieces
Min. Order: 5 pieces

Click here to contact

Product details

Operating temperature:	-40~80℃	communicate:	wireless
port:	Guangzhou/Shenzhen	Pay:	wire transfer
Warranty:	12 months	Packaging Preview:
color:	grey	Supply capacity:	10000 pieces per month
model:	WPSD-340SE	payment terms:	T/T, Western Union
Certification:	Chief Executive	type:	parking elevator
place of origin; place of origin:	China	application:	Parking lot management
power supply:	Battery	Battery Life:	2-3 years
brand:	Rossim	scope of test:	200M
product name:	Intelligent parking system	Packaging Details:	Standard Packing Box/Carton Quantity: 1 set/box Parking Sensor System

LoRa wireless technology vehicle detection sensor for intelligent parking lot guidance system

About Luoxin

ROSIM specializes in the innovation, production and sales of wireless vehicle inspection products. As a leading manufacturer of wireless vehicle detection systems, ROSIM provides high-quality, cost-effective, and easy-to-operate wireless traffic and parking space detection solutions for ITS and parking lot management systems.

System overview

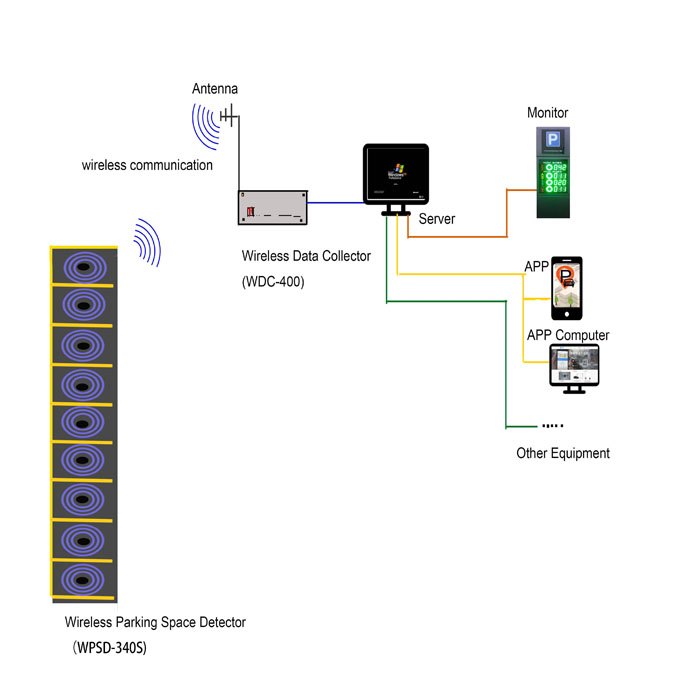

Rosim parking lot sensor system includes wireless parking lot sensor WSPS-340S and wireless data collector WDC-400.

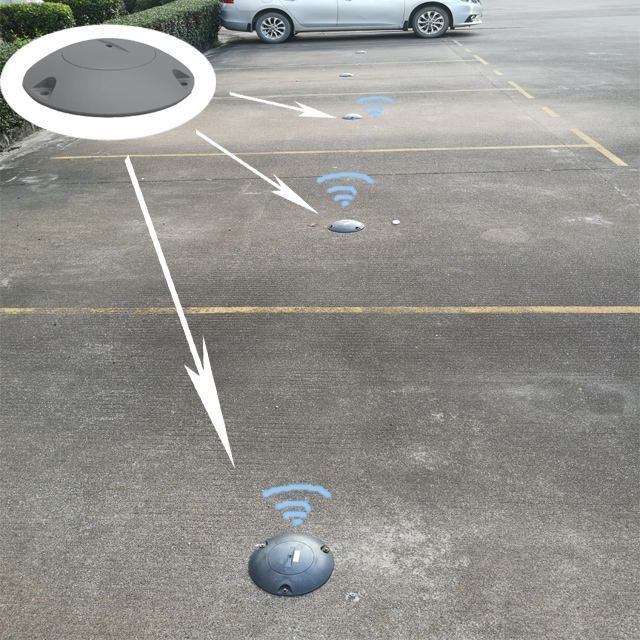

wirelessPARKING LOTsensor isInstalled in the middle of each individual parking space to measure the occupancy rate of these parking spaces and the time the car stays, these real-time data will be transmitted to the user platform system by a data collector that supports RS232 and Ethernet ports through a Tcp/IP network. The parking lot sensor system can be used for on-street and off-street parking guidance, management monitoring, etc.

Key Features

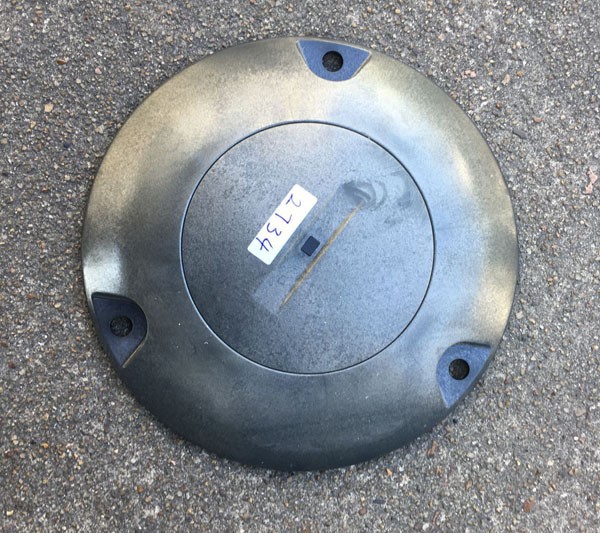

WPSD-340SE

200+ meters transmission range

-40~85℃ working temperature

3 years battery life

Magnetic and Optical Inspection

Working 24/7

0-150cm detection range

IP68 protection class

99% accuracy

surface mount installation

WDC-400X

200+ meters transmission range

Self-healing mesh network

Connect up to 50-100+ sensors

-40~85℃ working temperature

Ethernet/RS-232/USB data port

DC5V/PoE (optional) power supply

C version L15.3/W8.9/H5.6cm

W version L18/W12/H6cm

Easy installation

Advantage

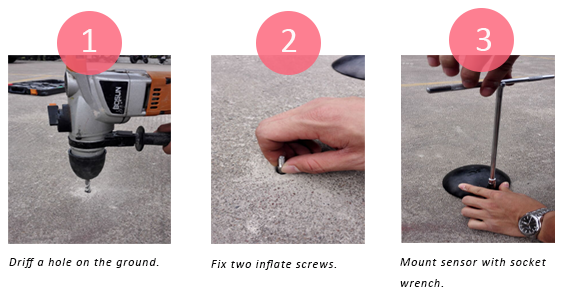

1.Quick and easy installation. Due to the pad installation, the installation of each WPSD only takes about 3 minutes;

2.Extremely accurate detection.The parking lot sensor adopts magneto-optical double detection technology. The combination of the two vehicle detection technologies, as well as sophisticated algorithms, greatly improves the accuracy and efficiency of detection, with an accuracy rate of 99%.

3.Easy to maintain.The device supports over-the-air firmware updates.

4.low cost.No need to place cables or wires as loops or installation of ultrasonic sensors, fully wireless communication, saving labor cost and complicated maintenance.

5.Working 24/7Due to the ultra-low power design and battery powered solution, the wireless parking space sensor consumes far less power than any other detector on the market.

Packaging and Shipping

Sample kits are available for purchase, including complete equipment and accessories for customers to begin testing the sensor. We will provide customers with technical support in a timely manner. Usually ordered products will be packaged and shipped within 7 business days of receipt of funds.

Express agency: DHL/UPS/Fedex

our support

Rosim ITS provides our customers with high-quality wireless vehicle inspection products and solutions, all products support over-the-air updates, easy maintenance, and a 12-month warranty.
