Polishing Diamond Dust Synthetic Diamond Abrasive Powder

Supplier: Henan Banner New Material Co., Ltd.
Region: Henan, China
Price: $0.021 / >=50 pieces
Min. Order: 50 pieces

Click here to contact

Product details

Material:	Synthetic Diamond;	Packaging Detail:	Standard packing, generally transparent plastic bottle; or as per customers' request;
Color:	Green,yellow;	Place of Origin:	Henan China (Mainland);
Sample Qty.:	25 cts;	Type:	Diamond abrasive powder;
Abrasive Grain Sizes:	All size, or customized;	Payment Terms:	T/T,Western Union,MoneyGram,Paypal;
Port:	Qingdao,Shanghai etc.;	Usage:	Polishing/grinding/drilling;
Supply Ability:	1000000 Carat/Carats per Day;	Sample:	For free;
Characters:	Wear resistant, high purity etc.;	Item:	Polishing Diamond Dust Synthetic Diamond Abrasive Powder;
Brand Name:	Banner, or customized;

Product Description

Polishing Diamond Dust Synthetic Diamond Abrasive Powder

* Monocrystalline and polycrystalline diamond powder in supply
* Various sizes of nano diamond powder, micron diamond powder and mesh size grit powder in supply
* Resin bond and metal bond synthetic diamond abrasives in supply

Micron diamond abrasive powder is kind of diamond particles within size of 36/54 micron, with high hardness and good wear resistance. As one of the new super hard superfine abrasives, it was widely used in cutting, grinding, drilling and polishing etc..

About Our Diamond Powder
1. Selected domestic high-grade single crystal diamond raw materials, static pressure strength, wear resistance and thermal stability are better than industry standards.
2. The crystal is round, and the adsorption force on the surface of the particles is small. There are no needle-rod or sheet-like particles.
3. Very narrow particle size distribution range, excellent particle size control.
4. After special treatment, the impurity content is reduced to the order of one hundred thousand.
5. Suitable for precision instruments and other industries with high requirements for grinding and polishing, as well as for the production of electroplating, diamond composite sheets, and other areas with strict requirements for impurity content.

Characters
1. Good wear resistance, moderate hardness, high purity;
2. Good even better effect while applied to cearmics, resin mould and gem industry etc.;
3. Competitive price: make use of advanced technology to improve quality, meantime try to reduce cost price.

SPECIFICATIONS FOR DIAMOND ABRASIVE POWDER
ITEM	Polishing Diamond Dust Synthetic Diamond Abrasive Powder
MATERIAL	Synthetic Diamond
COLOR	Green, Yellow
PARTICLE SIZE ( MICRON )	0-0.5, 0-1, 0.5-1, 0.5-1.5, 1-2,0-3, 1-3, 2-3, 2-4, 3- 6, 4-8, 5-10, 6-12, 7-14, 8-16, 10-20, 12-22, 15-25, 20-30, 22-36, 30-40, 35-45, 40-60 etc.
Remarks: particle size of all types can be customized

Main Application

1. Diamond abrasive powder is ideal raw material for grinding & polishing of hard alloy, ceramics, gem, optical glass and other high hardness materials ;
2. Diamond abrasive powder and its products are widely used in automobile, machinery, electronics, airlines, aerospace, optical instruments, glass, ceramic, petroleum, geology industries etc..

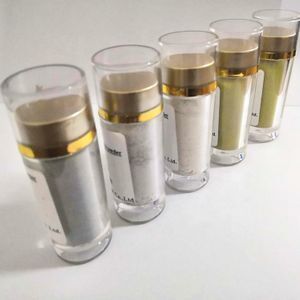

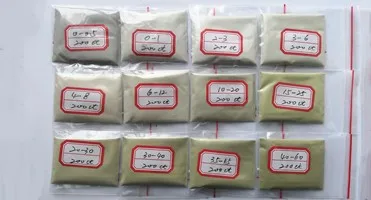

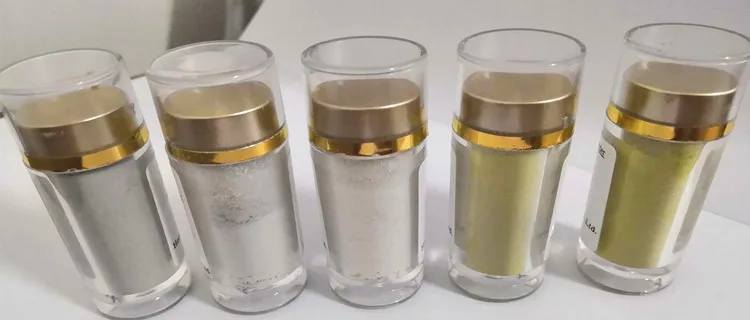

Photo Show

of Polishing Diamond Dust Synthetic Diamond Abrasive Powder

Contrast Chart Of Particle Size
Chinese Standard ( μm )	American Standard / International Standard (μm)	Japanese Standard (Mesh)	Median ( D50μm )
w0.2	0-0.2	80000	0.1
w0.25	0-0.25	60000	0.11~0.20
w0.5	0-0.5	30000	0.20~0.30
w1	0-1	15000	0.6~0.8
w1.5-	0-2	13000	1
w1.5	1-2	12000	1.1~1.3
w2.5	1-3	10000	1.6~1.8
w3	2-3	7000	1.9~2.1
w3.5	2-4	6500	2.2~2.6
w3.5	2-4	6000	2.6~3.0
w4	2-5	5000	3.1~3.4
w5	3-6	4000	3.5~4.2
w6	4-6	3500	4.4~5.0
w7	4-8	3000	5.0~6.0
w10	4-9	2500	6.1~6.5
w10	5-10	2000	6.5~7.3
w10	6-12	1800	7.3~8.3
w12	8-12	1600	8.3~9.0
w14	7-14	1500	9.1~10.5
w14	8-16	1300	10.0~12.0
w20-	12-22	1200	12.5~15.0
w20	15-25	1000	15.0~17.0
w20+	15-25	800	18.0~20.0
w28	20-30	700	20~23
w28+	22-36	600	23~26
w40-	20-40	500	26~29
w40	30-40	450	29~32
w40+	35-45	400	32~36
w50	36-54		37~43

Our Company

Henan Banner New Material Co., Ltd. is mainly engaged in production & marketing of diamond powder, monocrystalline diamond and coated diamond. Initially the company main in ordinary abrasives in 1998, then transformed to super hard abrasives in 2008.
With more than 20-year professional experience, the company also owned advanced production process, supporting production facilities, strict quality management and perfect quality assurance system. Total output is about 370 million carats per year. Meanwhile, the company has advanced plating technology, can carry on chemical nickel-plating, copper plating and titanium plating to series of products; and the plating can be also customized by different weight increase ratio. We dedicated to provide high quality products to customers, and all kinds of products were sold very well at home and abroad.

Main Products

Synthetic micron diamond powder, nano diamond powder, diamond grit, diamond paste, diamond suspension, diamond grinding wheels etc..

Our Detection Equipment as Follows

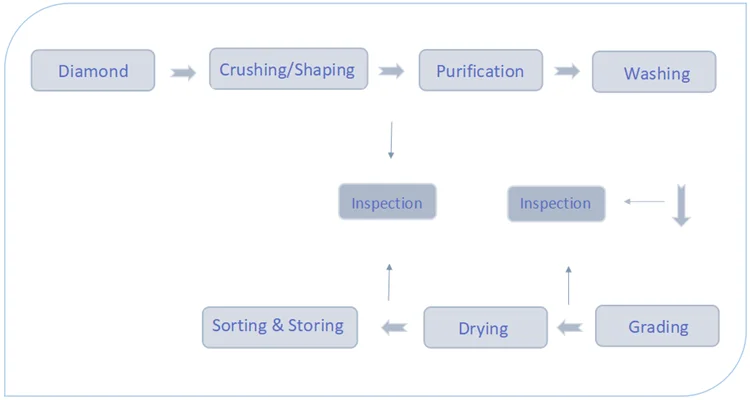

Production Process

Packing & Shipping

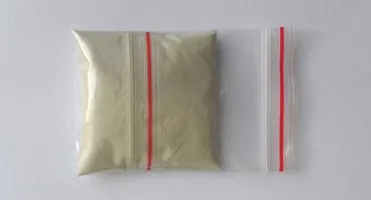

Package for Samples Less than 30cts

Package for Single Model Less than 5000cts

Package for Single Model More than 5000cts

Packing: Package as the above ; Or customized as per customer's request ;
Shipping: Generally by express, such as FedEx, DHL, UPS, TNT, EMS etc.. Or by train, by sea etc..

FAQ

1. About price
Price is negotiable. Largely depends on order quantity, particle size, package etc..
2. About sample
Generally 25 cts of Sample can be provided for free for quality testing, while freight will be borne by you.
3. About quality
Excellent quality control system, inspection report will be provided for your reference.
4. About OEM
We can produce all as per your request, and OEM is acceptable.
5. Terms of payment
Generally 100% T/T in advance, or 30% T/T in advance, balance 70% against cope of B/L; Money gram, Western Union, Paypal are ok. Negotiable.
