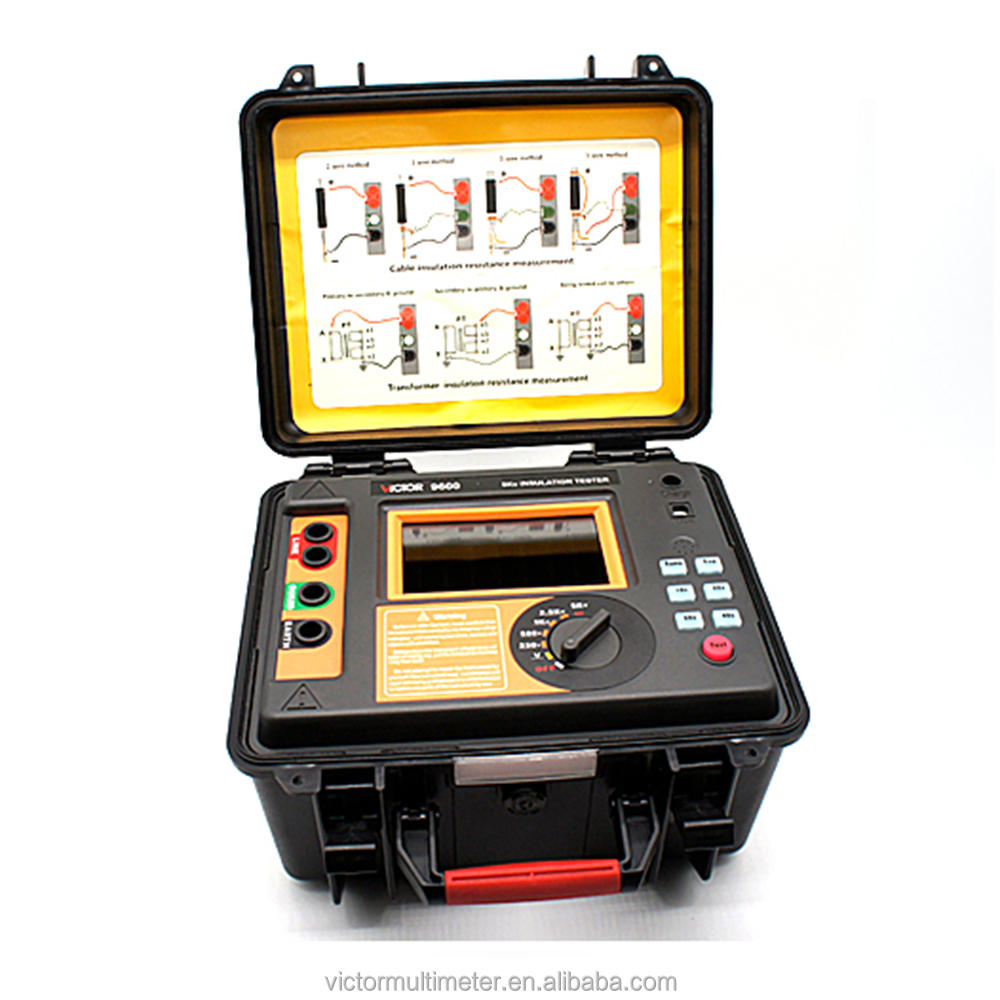

product name: | Insulation Resistance Tester | model: | 9600 |
Test voltage: | AC/DC 30V~1000V | weight: | 4400 grams |
Output short circuit current: | >5mA | Operating temperature: | -20℃~50℃; 80%rh |
Measuring range: | 50GΩ | Packaging Details: | 8/carton, 22.80KG/carton |
Filter test mode: | 10S, 20S, 30S, 40S four options | payment terms: | wire transfer |
Standard quantity per carton: | 8 | Accuracy class: | ±20% |
port: | Shenzhen | place of origin; place of origin: | Shanxi, China |
Supply capacity: | 200,000 pieces per month | aspect: | 280mm*260mm*160mm |
brand: | winner | Battery: | 1.5V LR6*8 |
Display type: | numbers only | Anti-interference: | 3mA AC 50Hz |
Rated voltage | Insulation resistance measuring range | measurement accuracy |
250V | 0.5MΩ~10GΩ | ±5% |
10GΩ~50GΩ | ±10% | |
50GΩ~100GΩ | ±20% | |
500V | 1MΩ~20GΩ | ±5% |
20GΩ~100GΩ | ±10% | |
100GΩ~200GΩ | ±20% | |
1KV | 1MΩ~50GΩ | ±5% |
50GΩ~200GΩ | ±10% | |
200GΩ~500Ω | ±20% | |
2.5KV | 1MΩ~100GΩ | ±5% |
100GΩ~500GΩ | ±10% | |
500GΩ~1TΩ | ±20% | |
5KV | 1MΩ~200GΩ | ±5% |
200GΩ~1TΩ | ±10% | |
1TΩ~2TΩ | ±20% |
feature | Insulation Resistance Test (IR); Polarization Index Test (PI); Absorption Ratio Test (DAR); Filter Function (4 selections) 10 seconds, 20 seconds, 30 seconds, 40 seconds). Voltage test (V); Capacitance test (uF); Current test (nA). |
power supply | Rechargeable lithium battery 5.2Ah |
Output Voltage Accuracy | (5%~10%)±10V |
Insulation resistance test range | Victor 9600: 0.5MΩ~2TΩ |
output short circuit current | >5mA |
Polarization Index Test | Yes |
Absorption ratio test | Yes |
Ramp test mode | Test in steps of 10% of the preset voltage until the preset voltage |
filter test mode | 10S, 20S, 30S, 40S four options |
Voltage test | Range: AC/DC: 0V~1000V; Accuracy ±10%rdg±5dgt |
Capacitance test | Range: 10nF~50uF; Accuracy ±10%rdg±5dgt |
Leakage current test | Range: 0.01nA~8mA; Accuracy ±5%rdg±5dgt |
Voltage monitor | Monitor the voltage of the object under test, monitor the discharge state after the test, and prohibit the test if the voltage is too high Greater than 36V, protect instrument and operator |
test timer | Automatically record test time, timing range: 0s~9999s |
Storage function | Automatically store test data with date and time, a total of 1000 groups |
Upload function | Upload the stored test data to the computer through the USB communication cable. |
Power display | There is a battery power display, reminding to charge in time when the battery voltage is low |
Automatic shutdown function | Automatic shutdown after 15 minutes of startup |
Instrument size | 280mm×260mm×160mm |
Instrument quality | 4400g (including battery) |
test lead | 1 red high voltage test lead (1 alligator clip, 1 hook), 1 green test lead, 1 black test lead |
Protection class | Cover IP65, open cover IP40 |
Anti-interference ability | 3mA AC 50Hz |
working environment | -20℃~50℃; 80%rh |
storage environment | -25℃~65℃; 80%rh |
Insulation resistance | 50MΩ (1000v) (between test circuit and case) |
Compression | AC 3Kv 50Hz 1min (between test circuit and case) |
Applies to safety regulations | IEC61010-1, IEC61326-1 |
