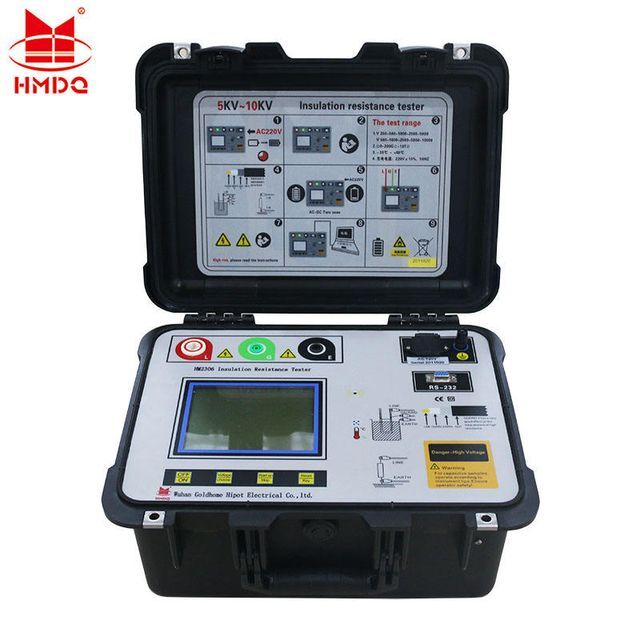

Portable Megohmmeter Digital High Voltage Megohmmeter 5kV 10kV Ohmmeter High Precision IR Insulation Resistance Tester with PI and DAR

Product details
Packaging Details:10kV digital megohmmeter voltage tester ohmmeter insulation resistance tester / wooden box with foam insidepayment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram
Packaging Preview:aspect:33X27.5X90(CM)
Screen:5.7-inch screenport:Wuhan
product name:Insulation Resistance Testermodel:HM2306
Supply capacity:500 insulation resistance testers per monthDisplay type:numbers only
Test voltage:0~10kVAccuracy class:5% RDG sound
Function:PI and DARRated voltage (kV):500V, 1000V, 2500V, 5000V, 10kV
Charger:220V±10%, 50/60 Hzusage:10kv megohmmeter
Battery powered:16V Li-ion rechargeable battery 2600mAHOperating temperature:-30℃ ~ +60℃
place of origin; place of origin:Hubei, ChinaMeasuring range:0.01GΩ~100GΩ
brand:HMDQ

Portable Megohmmeter Digital High Voltage Megohmmeter 5kV 10kV Ohmmeter High Precision IR Insulation Resistance Tester with PI and DAR

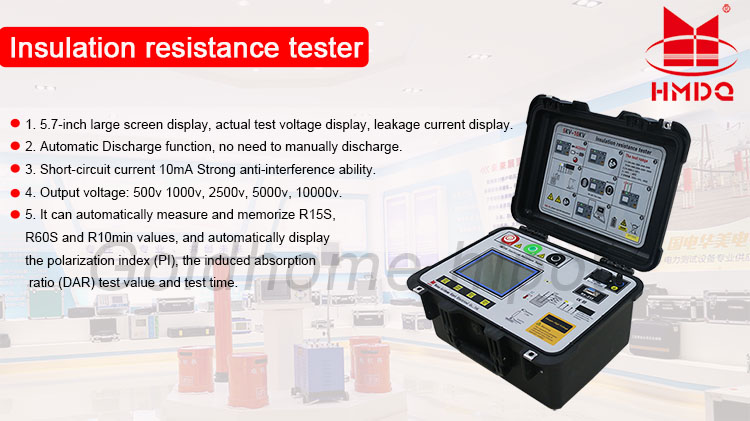

Product Description

Optical digital insulation resistance tester is an optical digital insulation resistance tester developed by using the Faraday effect of magneto-optical crystals, IE660044.7 and IEC61850:



1. The photoelectric digital display insulation resistance tester will not generate radiation and electromagnetic pulses, with strong anti-interference ability and accurate measurement data.



2. Since the lamp is an insulator, it can effectively isolate the high voltage (to ensure the personal safety of the operator), and ensure the accuracy and reliability of the sampling data while suppressing the noise.



3. Can deal with its harsh test environment.



4.5.7 inch large screen display, actual test voltage display, leakage current display.



5. Real automatic discharge function, no need to manually discharge.



6. The short-circuit current is 10mA, and the anti-interference ability is strong.



7. The output power of the instrument is large, real-time voltage measurement (the actual charging voltage of the sample), leakage current measurement, automatic discharge (discharge voltage measurement)



8. Intelligent voice prompt function

Designed in strict accordance with safety standards, output voltage: 500v, 1000v, 2500v, 5000v, 10000v.



technical parameter

Safety Specifications

IEC 61010-1 CAT.IV 600V Pollution degree 2

IEC 61326 EMC Specification: Testing, Control and Inspection of Electrical Equipment

IEC60529 IP64 (outer box closed)



Operating temperature and humidity:

* -30℃ ~ +60℃ 85%RH

*5.7 inch screen resolution 320X240

*Charging power supply: 220V±10%, 50/60 HZ

* Battery power supply: 2 sets of battery power supply, 16V lithium-ion rechargeable battery 2600mAH

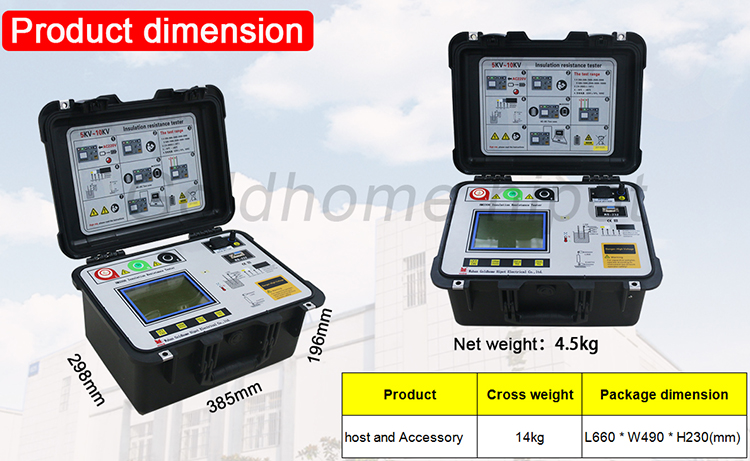

*Size: 33X27.5X90

*Weight: 4.5kg

*Display: digital display

*Battery management system, automatically disconnect when fully charged



Model

10kfive

Rated voltage (kV)

500v, 1000v, 2500v, 5000v, 10kV

Measuring voltage (kV)

Rated voltage × (1±10%) load resistance is less than 1% of the range

Maximum error 5%

RDG rang

(0.001~50)GW/10kV

(0.001~20)GW/5kV

(0.001~10)GW/2.5kV

(0.001~5)GW/1kV

(0.001~2)GW/0.5kV

maximum error

10% RDG sound

(50~200)GW/10kV

(20~100)GW/5kV

(10~50)GW/2.5kV

(5~10)GW/1kV

(2~5)GW/0.5kV

maximum error

20% RDG sound

(200~3000)GW/10kV

(100~1000)GW/5kV

(50~500)GW/2.5kV

(10~200)GW/1kV

(5~100)GW/0.5kV

No need for precision

>4T,>5T,>6T,>7T,>8T,>9T,>10T

output short circuit current

≥10mA

Absorption ratio, polarization index measurement range

Measuring range: 0.01~99.99

Maximum error: ±(1%RDG+1d)

output voltage display error

±(3%RDG + 1d)

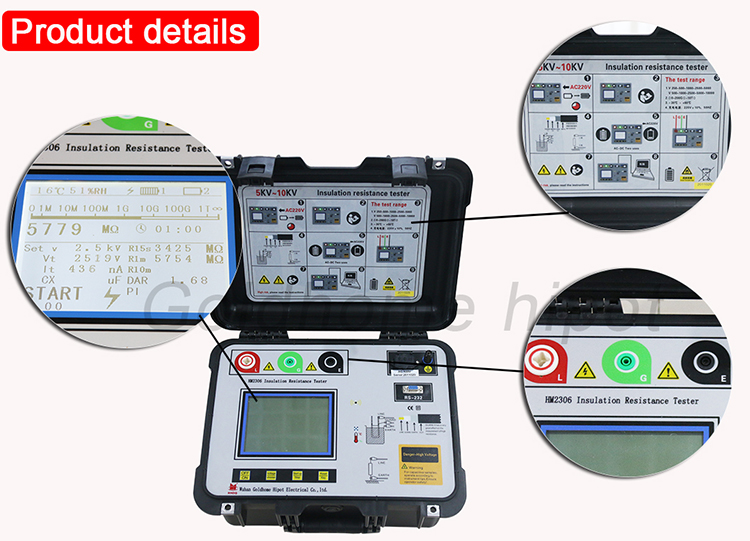

detailed image
