DSD 3d letter bending machine aluminum word bending cnc channel letter bending machine

Supplier: WEIFANG NEW HH EBIZ TECH CORP
Region: Shandong, China
Contact: Mr Mark Wang
Price: $2400.00 /set
Min. Order: 1 set

Click here to contact

Product details

Mechanical test report:	if	Material width:	30-160mm
Showroom location:	Canada, Turkey, United Kingdom, United States, Brazil, Peru, Saudi Arabia, Indonesia, India, Mexico, Russia, Morocco, South Korea, Kazakhstan	port:	Qingdao
Function:	Automatic feeding + bending + grooving	Motor Power:	servo motor
Core Components Warranty:	1 year	Voltage:	220v
automation:	automatic	Applicable industries:	Retail, print shop, advertising agency
Health status:	new	Weight (kg):	300
Certification:	ce	document:	dxf, ai, plt
year:	new	Marketing Type:	normal product
Main selling point:	high accuracy	Packaging Preview:
Packaging Details:	1. Carton 2. Tray 3. Box	payment terms:	L/C,Western Union,T/T
Minimum bend radius:	>3mm	Video external inspection:	if
brand:	Slotted bending machine	Material/Metal Finishing:	aluminum
Supply capacity:	25 slot bending machines per week	Peak power:	2000W
Material thickness:	0.3-1.2mm	Warranty:	1 year
Material:	aluminum	place of origin; place of origin:	Shandong China
Core components:	Channel letter bender, encoder

technical parameter

Model	HH-NL130/HH-NL180 Letter Bending Machine
working principle	High-precision automatic feeding and automatic bending Automatic straightening, automatic cutting
Application materials	Aluminum, such as flat aluminum, edge aluminum, Rectangular/Triangular Aluminium, Aluminium Profile, Channel Shape
Peak bending torque	>100Nm
Grooving torque peak	>100Nm
length accuracy	0.1mm
feed torque	>45Nm
Minimum bending radius	≥3mm
Material width	≤160mm
Material thickness	0.3-1.2mm
total power	2000W
file format	DXF,AI,PLT
Machine size	19009001600mm
weight	500KG
Voltage	220V
air pressure	0.3-0.6Mpa

main feature

1. Independent double-knife and double-grooving system.
2. The planer is made of hard synthetic gold, which has lower cost and better cutting stability.
3. The double-knife alternating arcing mechanism can bend a much smaller radius, and can also make more complex fonts.
4. The double elbows can be replaced freely; the switching is simple, and there is no need to further test the material replacement.
5. The precision milling cutter can swing in all directions, automatically recognize the angle, and process aluminum profiles of various sizes.
6. Double copper elbow, specially designed for various aluminum profiles, with smaller punching radius, larger extrusion radius and faster speed.

7. Automatic cutting depth adjustment

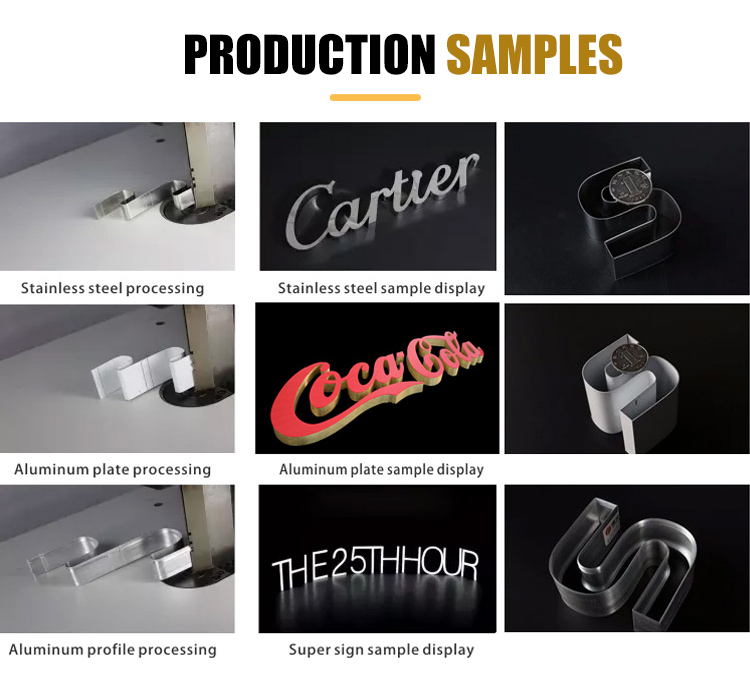

application

Frameless characters, aluminum edge characters, resin luminous characters, oversized characters (liquid acrylic characters), aluminum profile characters, aluminum characters with sponge, polymer luminous characters, side luminous characters, LED characters and various aluminum luminous characters, SS characters
