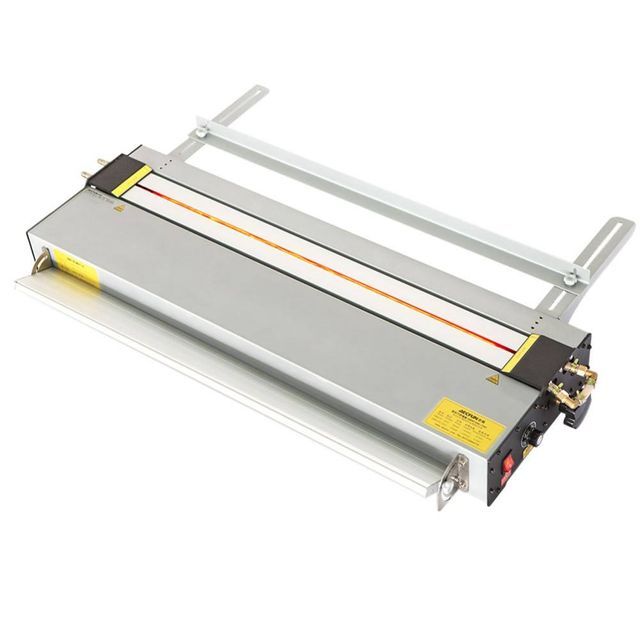

27'' 700mm acrylic manual bending machine acrylic channel letter hot bending tool hot bending plastic hot bender heater

Supplier: Irtop Advertising&Signage Co., Ltd
Region: Guangdong, China
Contact: Ms Iris Hu
Price: $410.00 / 1 - 9 sets
$369.00 / 10 - 39 sets
$350.00 / >=40 sets
Min. Order: 1 set

Click here to contact

Product details

theory:	Thermoforming	Weight (kg):	twenty four
Maximum bending width:	650mm	Package preview:
Materials/Metal Processing:	Plastic, PVC	Warranty:	1 year
Showroom location:	not any	net weight:	21kg
Video outbound inspection:	if	strength:	1000W
Mechanical test report:	if	Applicable thickness:	1-10mm
automation:	manual	Marketing type:	Popular products
Voltage:	AC 220V	Product Size:	38.9 in x 28.7 in x 3.9 in (990 x 750 x 100 mm)
Packaging details:	Sales unit: single piece Single piece packaging size: 50" x 17.2" x 8.4" (1250 x 430 x 210mm) Single piece gross weight: 25kg Packing type: carton packaging, one set per carton	product name:	Acrylic bending machine heater
brand:	iltop	Gross weight of single piece:	25.000kg
Applicable industries:	Retail, Energy and Mining, Food and Beverage Stores, Others, Print Shops, Hotels, Household, Machinery Repair Shops, Manufacturing Plants, Food and Beverage Plants, Farms, Food Stores, Advertising Agencies, Restaurants, Construction Engineering, Clothing Stores, Buildings Materials store	After-sales service provided:	Online support
Core component warranty:	1 year	Health status:	new
Single piece packaging size:	125X43X21cm	Core components:	Engine, motor
Sales unit:	Single product	Place of origin:	China
Main selling points:	Easy to operate

Video description:

27" (700mm) Upgraded Acrylic Plastic PVC Press Brake Light Box Heater (With Infrared Calibration, Angle and Length Adjuster, 1-10mm Thickness, 220V and 110V)
Used for bending acrylic, plexiglass, PVC, PC, ABS, PP, etc. Applicable thickness is 1-10mm.

describe:

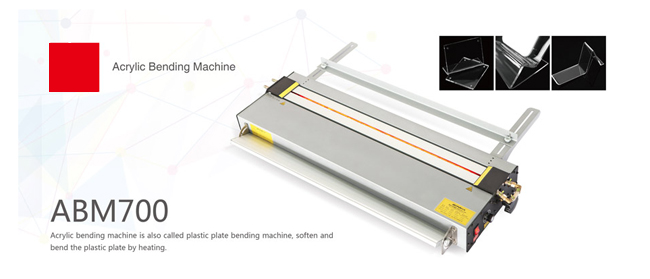

Acrylic bending machine is a device that can soften and bend acrylic, organic panels, PVC and other materials and various other thermoplastic materials through heating. It is widely used.

special edition:

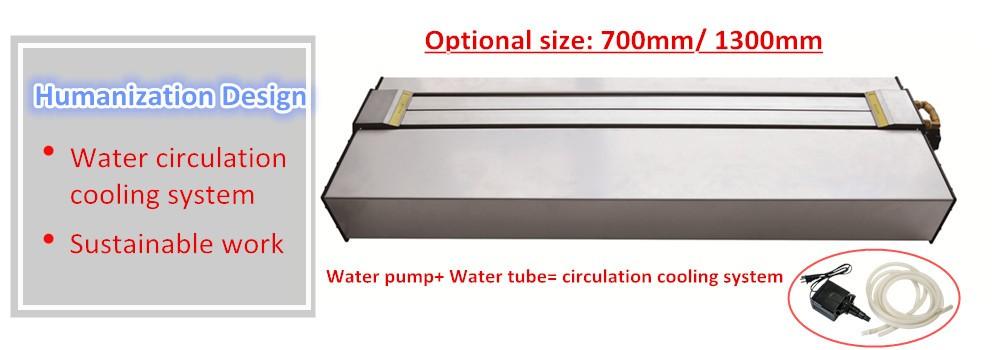

1. Equipped with a circulating cooling water system, the water needs to be replaced after heavy load and long-term operation, and the temperature can reach 50°C.
2. Make sure the machine is completely cooled down and close the heating tube gap after work.

Q: Where is the spare heat lamp in the package?

A: Spare heating lamps are packaged in silver or black aluminum alloy tubes. Because it is fragile, it requires special protection.
Be careful when pushing out the heat lamp.

Specification:

style	IR-HY-ABM700-220V
theory	Thermoforming
Applicable thickness	1-10mm
Maximum bending width	650mm
Voltage	AC 220V
strength	1000W
temperature range	Adjustable temperature up to 600°C
Product Size	38.9 in x 28.7 in x 3.9 in (990 x 750 x 100 mm)
net weight	21kg
gross weight	25kg
Package Size	50 in x 17.2 in x 8.4 in (1250 x 430 x 210 mm)

feature:

1. Using far-infrared heating technology, it only takes one minute to warm up. The thickness of the sheet is 1-10mm.

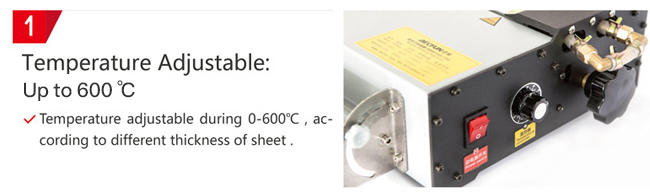

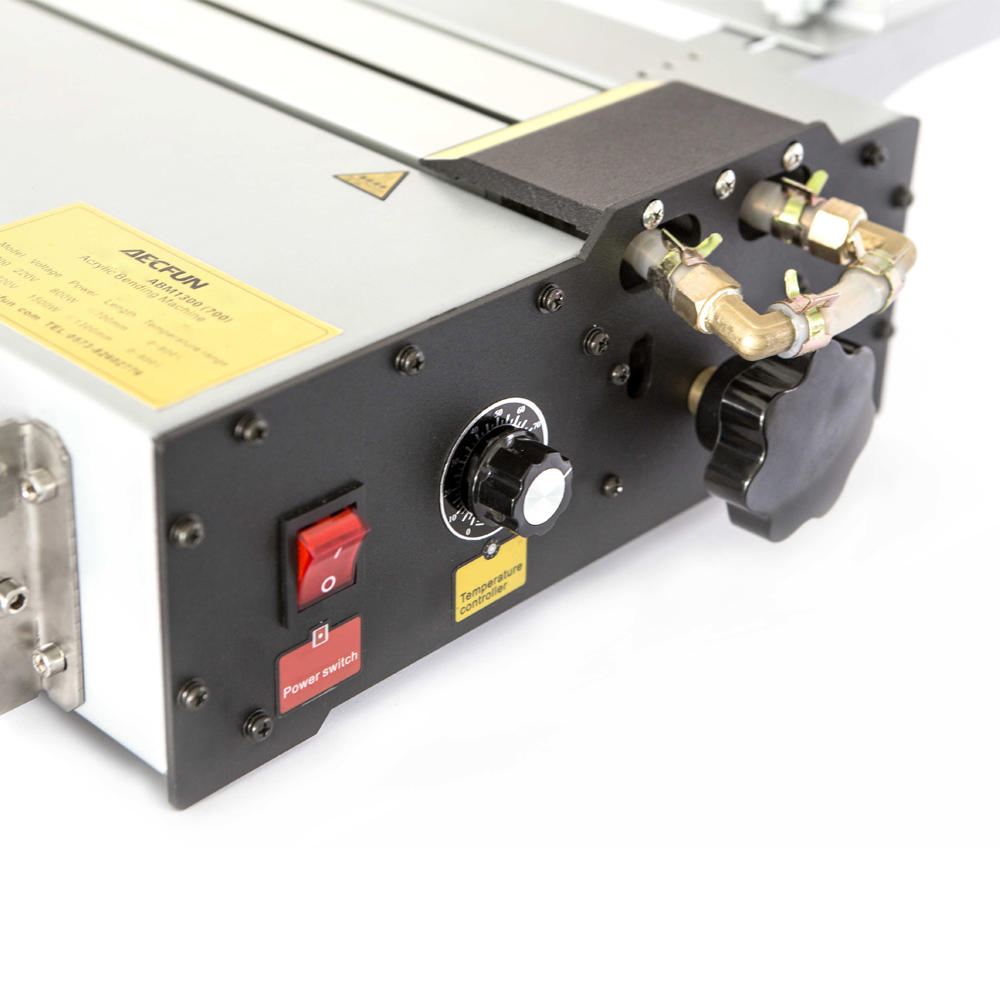

2. The temperature is adjustable from 0-600℃. It only takes 15 seconds to bend a 3 mm thick sheet.

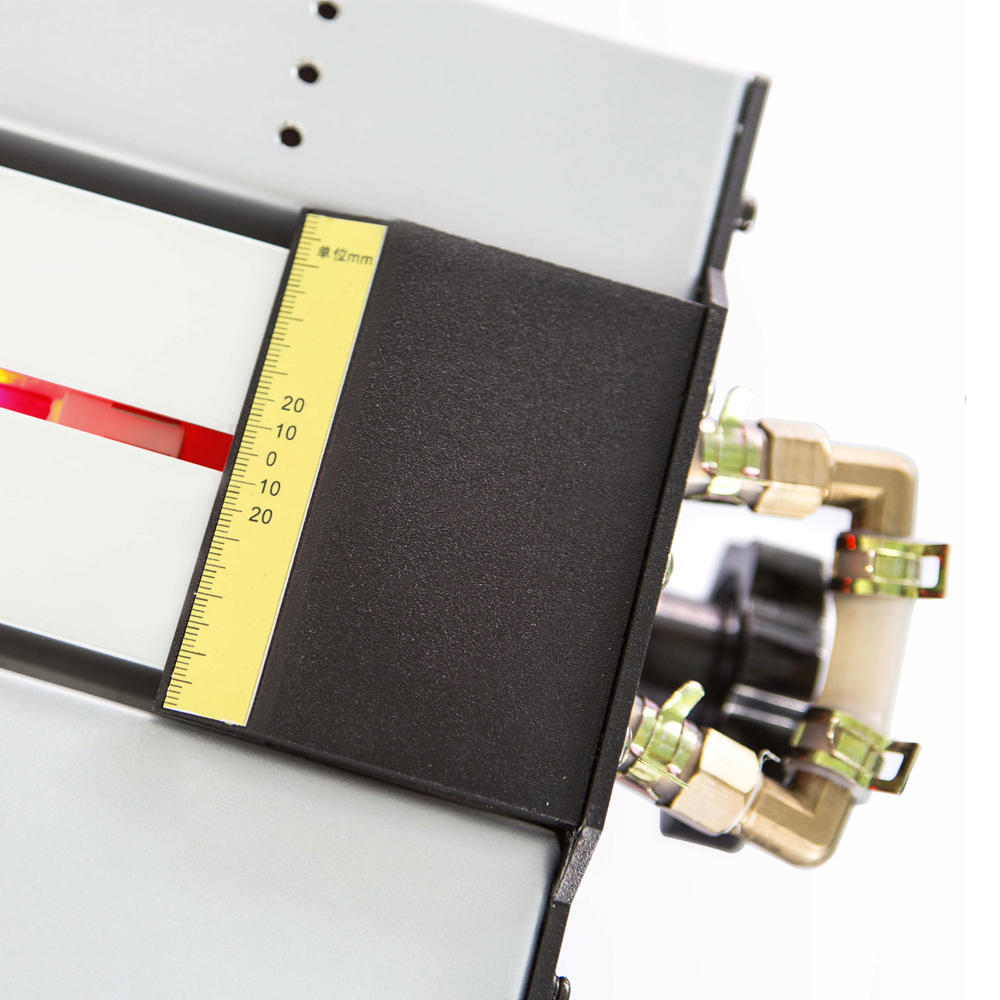

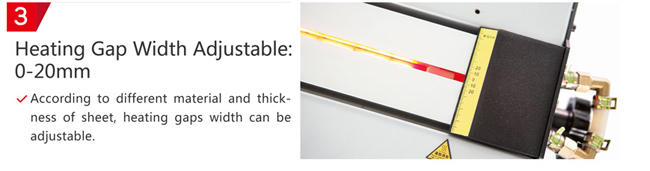

3. Heating gap width is adjustable from 0-20mm. Users can adjust the gap width according to plates of different thicknesses.

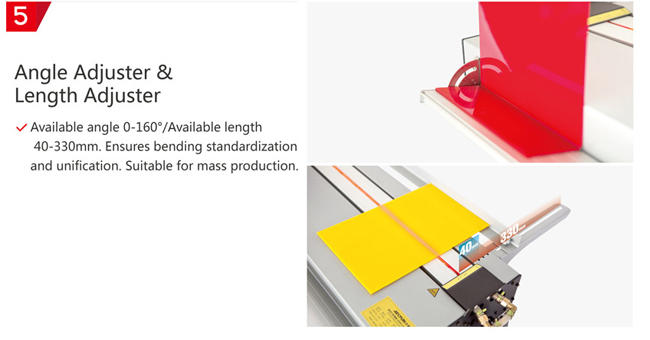

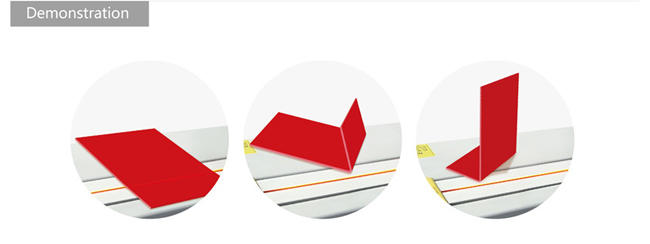

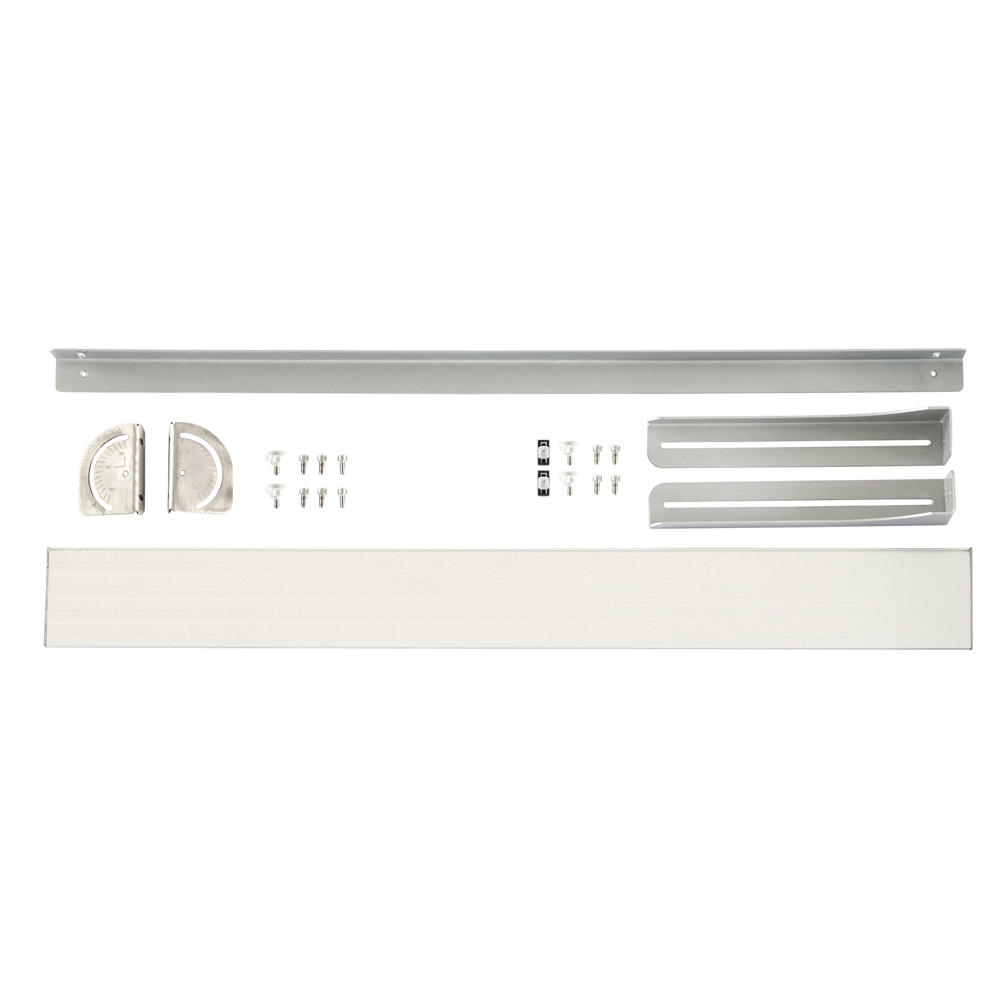

4. Equipped with angle adjuster and length adjuster. Ensure bends are standardized and uniform.

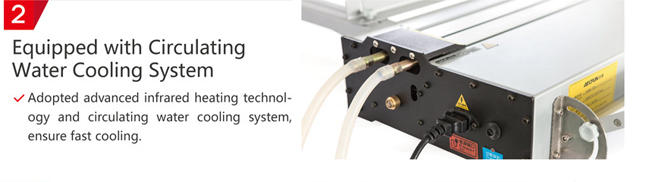

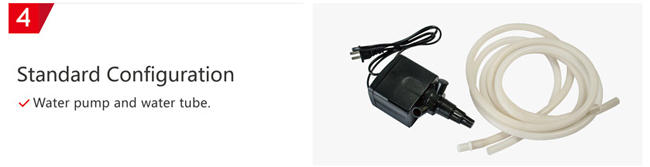

5. Adopt circulating water cooling system to ensure rapid cooling.

6. With fuse protection, high safety. ABM has passed CE certification.

Product Details:

application:

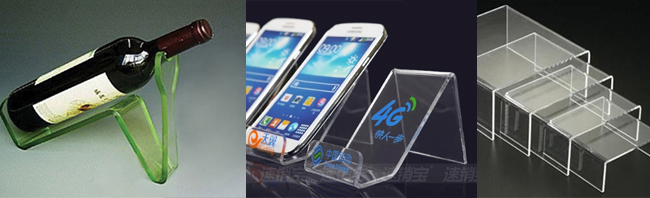

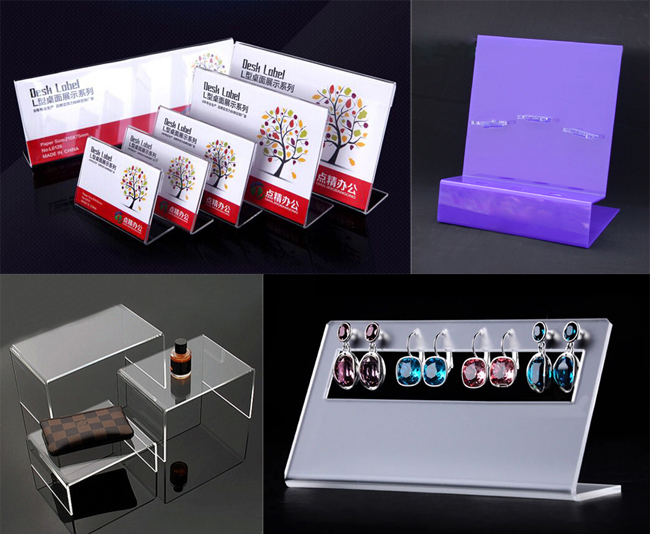

This kind of acrylic plastic PVC bending machine is increasingly used in school science and technology innovation courses, decoration projects, packaging of square columns or corners, fish tanks, window edges, display cabinets, supermarket shelves, advertising light boxes, art production, etc.

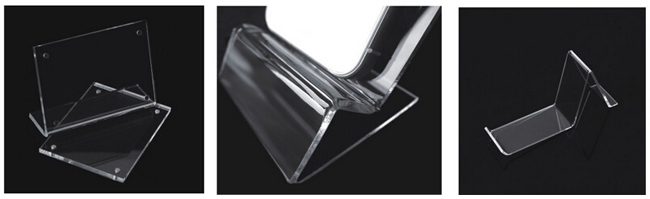

Decoration industry: acrylic bending edges, acrylic display stands, acrylic decorative bending, etc.
Industry: machinery protective covers, production line protective covers, production line display racks, storage boxes, etc.
