IGeShi micro fine BT40 NBH2084 milling machine boring head

Product details
Insert:not included;Place of Origin:Guangdong China (Mainland);
Supply Ability:30000 Piece/Pieces per Month;Delivery Detail:20 days;
OEM:Provided;Boring range:8-280mm;
Packing:Alum box;boring bar:8 pieces;
Packaging Detail:ALUMINIUM BOX;Port:Shenzhen;
company type:manufacturer;Boring Head Taper:CT, NT,MS,BT,R8...;
Payment Terms:T/T,Western Union,Paypal;Micro dia:0.001mm;
Name:boring head;Brand Name:IGeShi;
Model:NBH 2084;Model Number:NBH2084;







Product Description

IGeShi micro fine BT40 NBH2084 milling machine boring head















NBH2084 Cylinder Boring System



Taper Shank for NBH2084





  Model     Acceptor Thread                 Drawbar Thread
R8     1-1/2 18UNF                  M12,7/16
NT40      1-1/2 18UNF                  M16
NT30     1-1/2 18UNF                  M12
CAT40     1-1/2 18UNF                  5/8-11
BT40     1-1/2 18UNF                  M16
BT30     1-1/2 18UNF                  M12
C20     1-1/2 18UNF                  M10
MT3     1-1/2 18UNF                  M12,1/2
MT4      1-1/2 18UNF                  M16,5/8

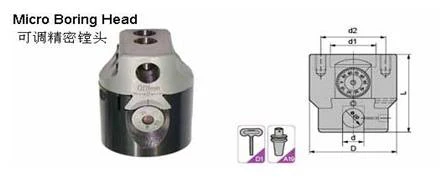

Body for NBH2084 Boring System





ModelD(mm)Micro RangeMicro Dia.Head Thread
50mm50160.011-1/2"18UNF
75mm75280.011-1/2"18UNF
2"2"0.62"0.011-1/2"18UNF
3"3"1"0.011-1/2"18UNF





Cutting Bar for NBH2084 Boring System

                 Model        Range       Depth            Insert
            YSB2008-32           8-11         32         TCMT1102
            YSB2010-40        10-13         40         TCMT1102
            YSB2012-53        12-17         53        TCMT09T304
            YSB2016-68        16-21         68        TCMT09T304
            YSB2020-83        20-130         83        TCMT11T30
            YSB2025-96        25-135         96        TCMT11T30
            YSB2030-150       120-280        150        TCMT11T30

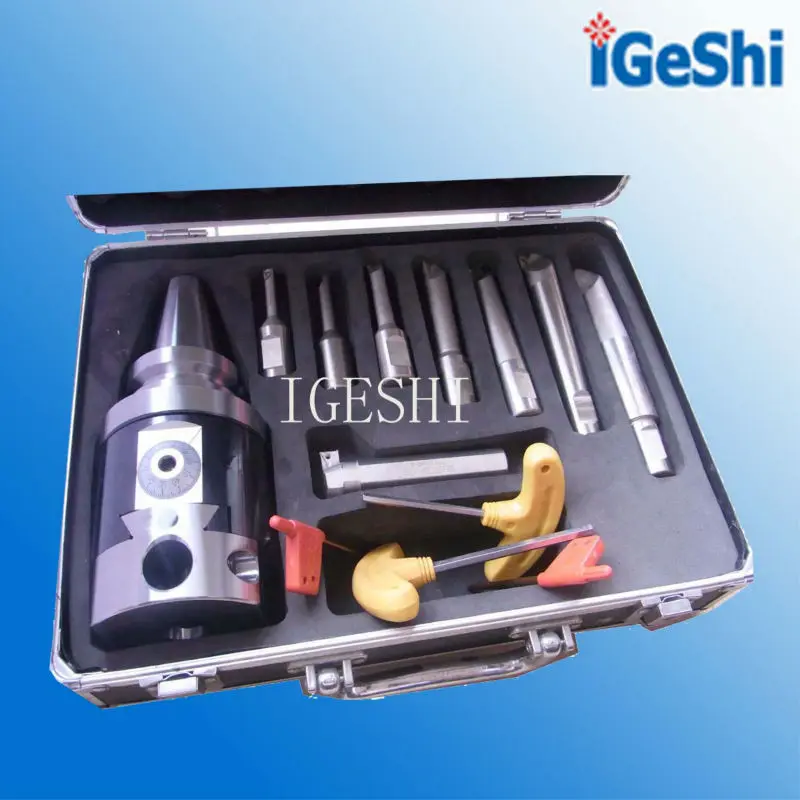

NBH2084 BORING HEAD SET BELOW











Packaging & Shipping

Outer package: Carton Box

Inner  package: Plastic Box










Company Information

YinSheng  Machinery Co. Ltd.   was established in 2009 with the objective of

manufacuturing quality CNC milling accessories and all kind of custom tool parts



We hope,

Highest quality cost-effective translates into efficiency,and cost savings in your

manufacturing process.

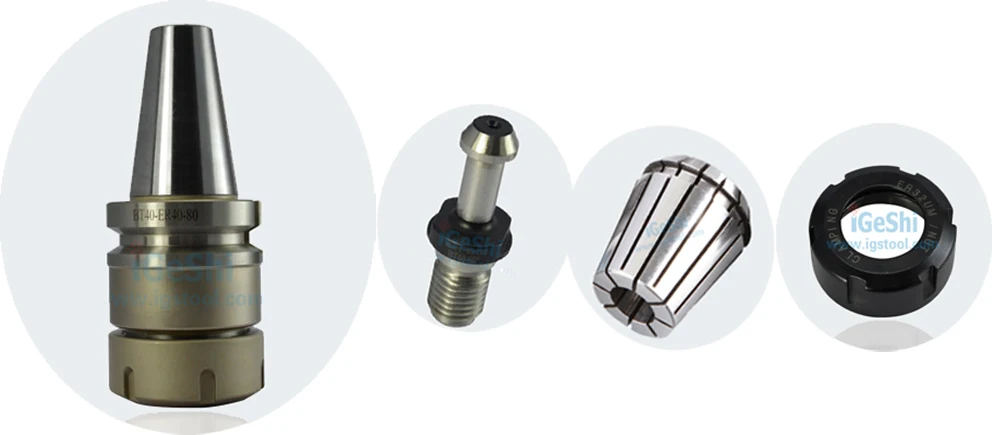

IGeShi Main Products








Our Services

We provide our tools are 100% refund or replacement promisedwithin

120 days received if any defective.(Except machine or process case)









Welcome to contact us for your cnc tools as below !
