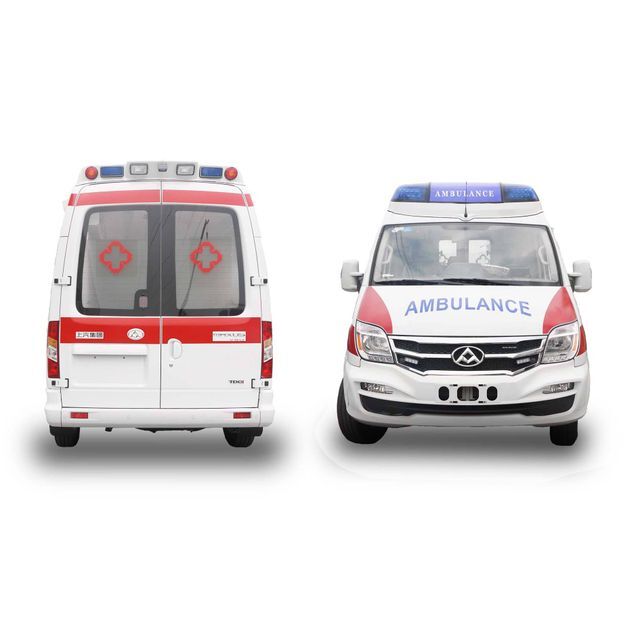

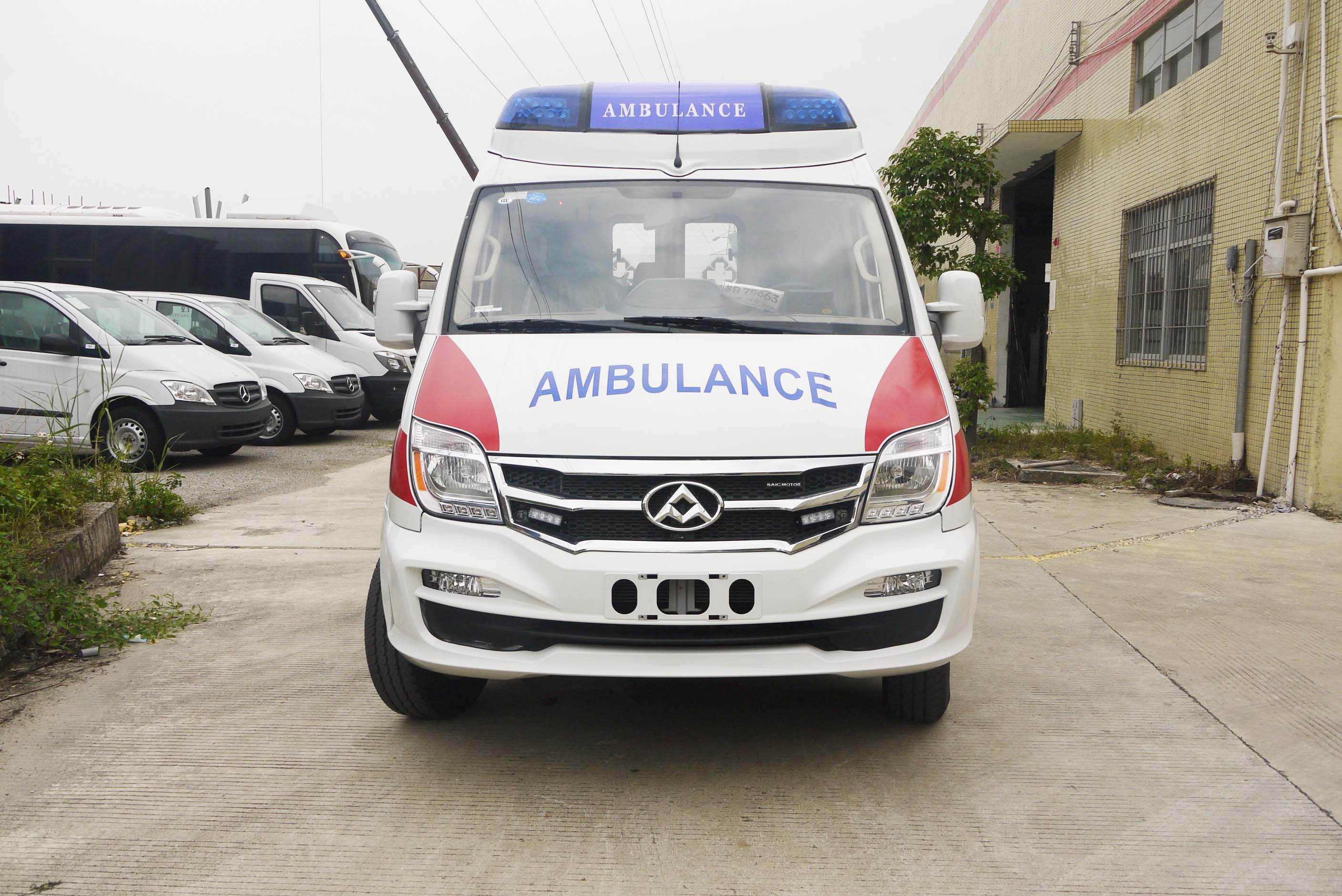

New 4x2 High Roof Senior Ambulance SAIC Maxus V80 Monitoring ICU Emergency Medical Ambulance Affordable Price

Supplier: Zhuhai Pengyu Automobile Co., Ltd.
Region: Guangdong, China
Contact: Ms Pengyu Automobile
Price: $58800.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Dimensions:	578020002760mm	Packaging Preview:
Horsepower (hp):	103	medical equipment:	Yes
Transmission type:	manual	port:	Zhuhai Port/Guangzhou Port/Shenzhen Port
Chassis brand:	Jiangling Ford	Drive Type:	4X2 LHD
gasoline:	diesel engine	Type of gasoline:	diesel engine
Length (m):	3 - 8m	gross weight:	3700kg
Cabin size:	322017501840mm	Emission Standards:	Euro 6
Health status:	new	place of origin; place of origin:	Guangdong, China
payment terms:	letter of credit, wire transfer	brand:	Yuzhou brand
Shift:	2198ml	color:	white+red
engine model:	DURATORQ4D226H	Supply capacity:	600 units per year

Specification

basic data
Model	GPY5041XJHSHTT0
engine type	SC25R136.1Q5
Type of gasoline	diesel engine
Displacement (ml)	2499
Emission Standards	Euro five
Curb weight (kg)	2800
Total weight (kg)	3800
Wheelbase(mm)	3850
How the engine works	In-line 4-cylinder, water-cooled direct injection, intercooled, direct injection, compression ignition
Vehicle size (mm)	5700×1998×2740mm (length×width×height)
Maximum power (Kw/rpm)	100/3800
Maximum torque Nm/rpm	330/1800-2400
suspension system	Front: MacPherson independent suspension Rear: Leaf spring non-independent suspension
Braking System	All wheels have disc brakes
spread	6 tons
top speed (km/h)	150
Fuel tank capacity (L)	80
seat	3-9

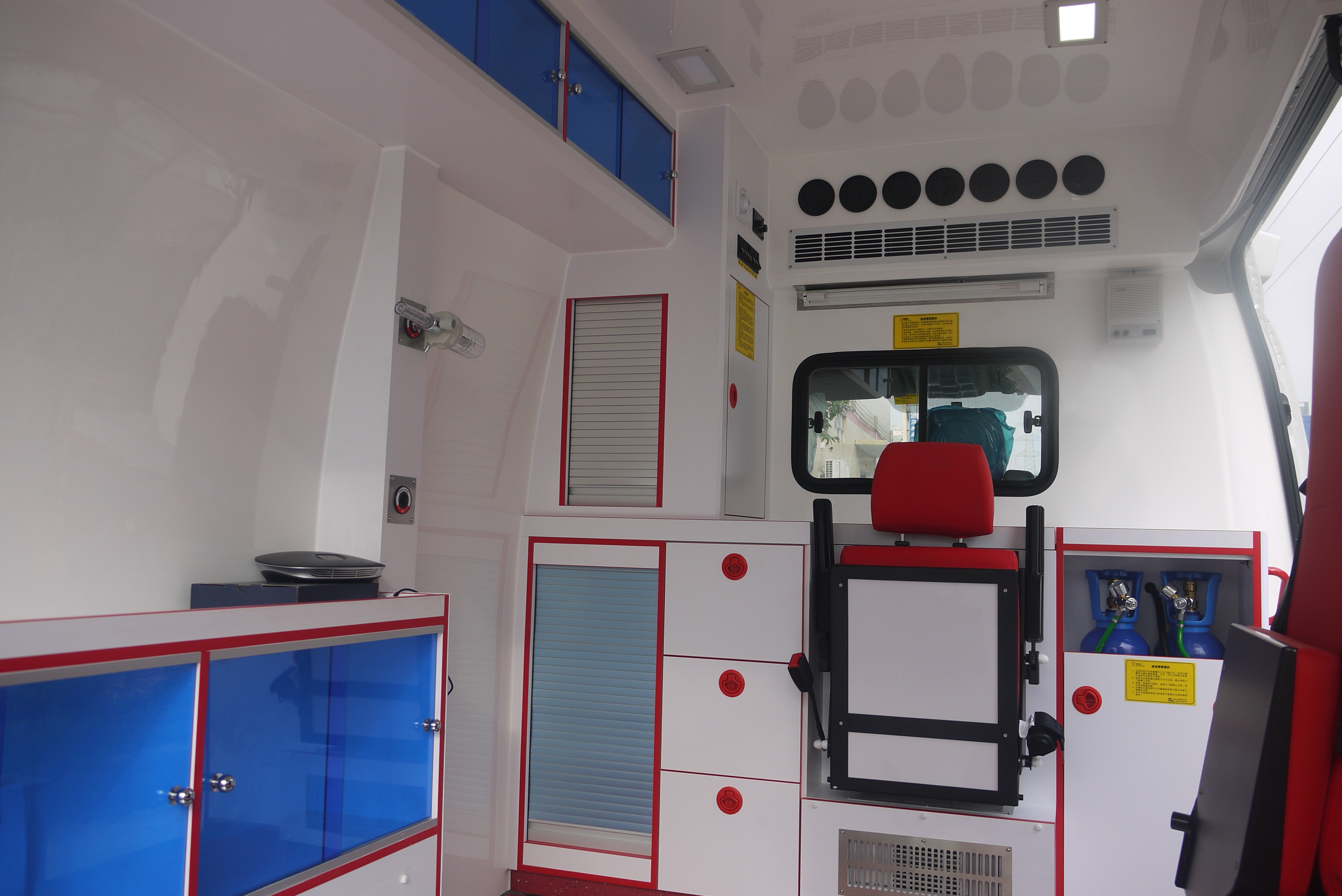

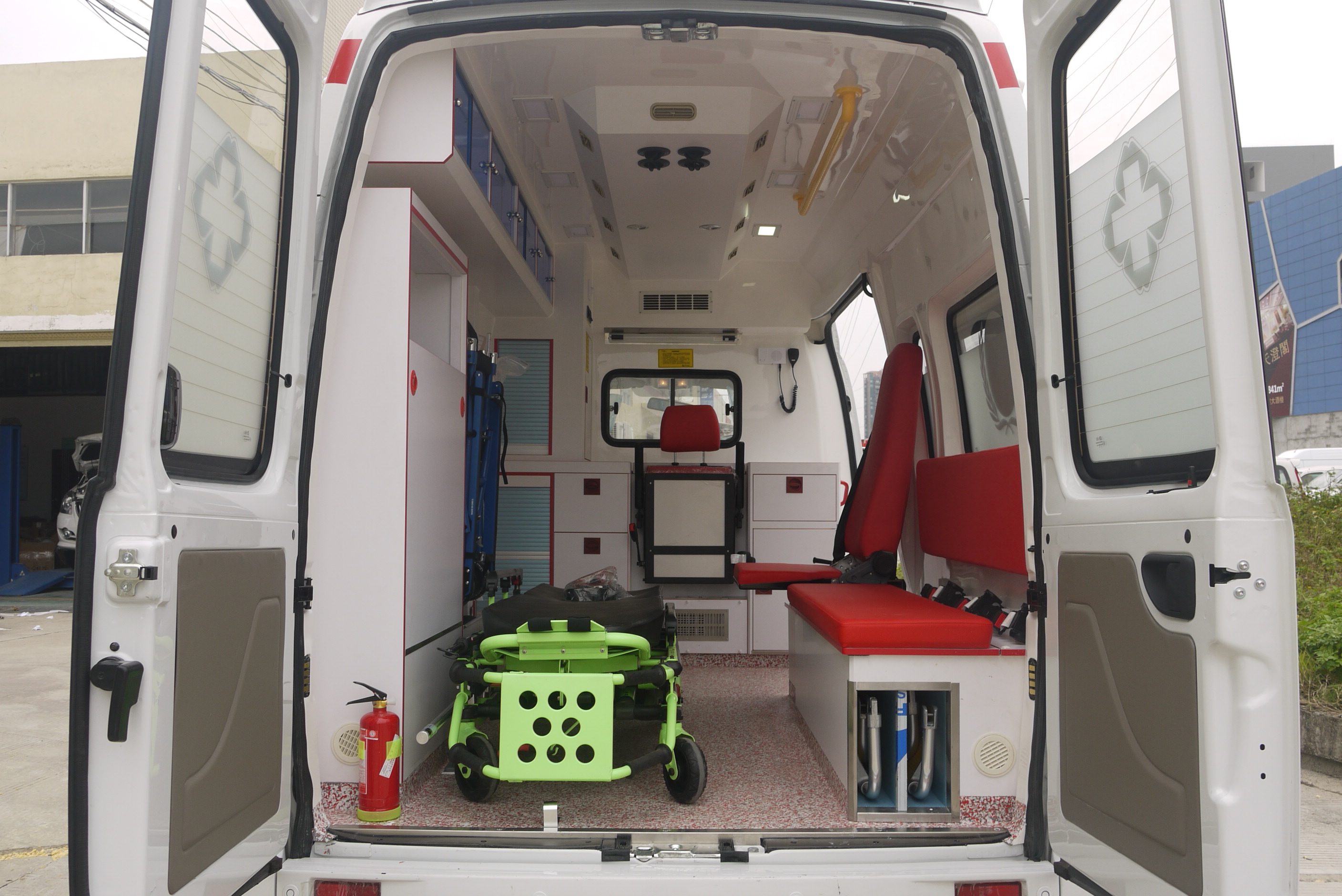

medical cubicle device
1.	The partition wall between the cab and the medical cabin is used to separate the front and rear cabins. Partition wall with visible window.	1
2.	Installation of composite Walker flame retardant board equipment cabinet.	1
3.	Composite Walker flame retardant board medical equipment integrated cabinet installation.	1
4.	The composite Walker flame retardant board medicine cabinet is installed on the left side of the partition wall.	1
5.	Install a foldable doctor's chair on the partition wall of the medical cabin	1
6.	The first aid box fixing cabinet is installed on the right side of the partition wall of the medical partition.	1
7.	Install the upper pedal on the middle door of the medical compartment.	1
8.	There are all-round safety handrails in the middle door of the medical cabin.	1
9.	A long row of 3-person cabinet seats is installed on the right side of the medical compartment.	1
10.	Installation of oxygen holding cabinet.	1
11.	10L oxygen cylinder (with pressure reducing valve).	1
12.	Install an oxygen humidifier.	1
13.	Install on-board oxygen terminals (for ventilators and humidifiers).	1
14.	The birth of the equipment rack.	1
15.	Install top safety grab bars.	1
16.	Install a two-way ventilator.	1
17.	2-bottle infusion box installation	2
18.	Install 8 medical long lockers.	1
19.	Install 1kg fire extinguisher and support frame.	1
20.	Install insulation and sound insulation.	1
twenty one.	The floor of the medical cabin is made of acid and alkali resistant, fireproof, anti-skid and anti-static floor leather.	1
twenty two.	Install a set of anti-collision soft bags.	1
twenty three.	Before and after installation of the intercom system.	1
twenty four.	Emergency reset car stretcher and platform (with restraint and seat belt)	1
25.	Install Standard Negative Pressure Filling System	1

Pictures are for reference only, subject to customer order specifications

Company Profile

Company Profile

Zhuhai Pengyu Automobile Co., Ltd. (Pengyu Automobile) It is a special vehicle manufacturer with a production plant of 12,000 square meters and a Guangdong Provincial Medical Special Vehicle Engineering Technology Research Center. Main production: various types of medical ambulances, command communication vehicles, police vehicles, refrigerated vehicles, water trucks, material transport vehicles, special container vehicles, etc. It is a special vehicle manufacturing enterprise integrating R&D, production and sales.

Place

Our factory

Qualification honor

visit customer

exhibition

2012 Shenzhen Exhibition

2013 Wuhan Exhibition

2014 Shenzhen Exhibition

2015 Shanghai Exhibition

2016 Shanghai Exhibition

2017 Kunming Exhibition

2018 Shanghai Exhibition

2019 Sichuan Exhibition

2021 Shenzhen Exhibition

our companion

other products

Packaging and Delivery

FAQ

Q1: Trading company or factory?

A1: Pengyu Automobile is a special vehicle manufacturer integrating R&D, production and sales.

Q2: What is your payment term?

A2: T/T is accepted.

Q3: How long is the delivery time?

A3: It depends on your requirements for the vehicle, we will provideWithin 45 days after we confirm your request.

Q4: Can you provide warranty?

A4: We will try our best to give youSatisfied goods, we always prepare some parts on the vehicle for free and deliver to you. If you have any questions about the goods, please feel free to contact us.

Q5: Can I visit you?

A5: Of course! Welcome to visit our factory in Zhuhai.
