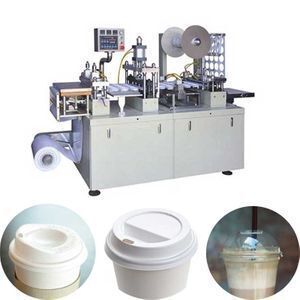

Plastic Cup Lid Making Machine,Plastic Thermoforming Machine,Plastic Cup Making Machine

Supplier: Wenzhou Urban Machinery Co.,Ltd
Region: Zhejiang, China
Contact: Ms Coli Zhan
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Payment Terms:	L/C,T/T,Western Union;	After-sales Service Provided:	Engineers available to service machinery overseas;
Applicable Industries:	Manufacturing Plant;	Brand Name:	Urban;
Dimension(LWH):	2700x830x1450mm;	After-sales Service Provided:	Online support;
Max forming area:	420X160X35(mm) special can reach to 50mm;	Weight:	800kg;
Voltage:	380V/220V/415V 50/60Hz 3.0Kw;	Product Type:	lid;
Processing Type:	Plastic Thermoforming Machine;	Main electrical power:	0.75kw;
Weight:	800kg;	Certification:	CE;
Place of Origin:	Zhejiang China (Mainland);	Supply Ability:	70 Set/Sets per Year;
Warranty:	1 Year;	Processing Type:	Plastic Thermoforming Machine;
SPEED:	10-32Cycles/min;	Port:	Ningbo,Shanghai,Guangzhou,Beijing;
Total power:	380V/220V/415V 50/60Hz 3.0Kw;	Condition:	New;
Cooling of mold:	Tap water or recycled water;	PVC rigid film:	0.15-0.5x400mm;
Packaging Detail:	Free fumigation in wooden cases..;	Power(W):	0.75kw;
Air pressure:	0.5-0.7Mpa;

product description

This machine is a fully automatic, high speed and high efficiency plastic thermoforming machine developed by our company combined with advanced technology at home and abroad. Is widely used in production of a series of plastic sheet molding products, such as small spoon, plate, tray, lid machine, plastic thermoforming machine,PP lid,one off lid machine, milk tea lid machine, soya bean milk lid, oral liquid tray, coffee, milk tea, cola, hot and cold drinks one-time lid,bowl cover, electronic bubble shell,folded in half for blister packaging,and similar products,comprehensive and easy to operate the function at the same time the price is quite a surprise.

Product Description

MODEL	UB-420
SPEED	10-32Cycles/min
Max forming area	420X160X35(mm) special can reach to 50mm
Air pressure	0.5-0.7Mpa
Total power	380V/220V/415V 50/60Hz 3.0Kw
Main electrical power	0.75kw
PVC rigid film	0.15-0.5x400mm
Cooling of mold	Tap water or recycled water
Outline dimension	2700x830x1450mm(LxWxH)
Weight	800kg
