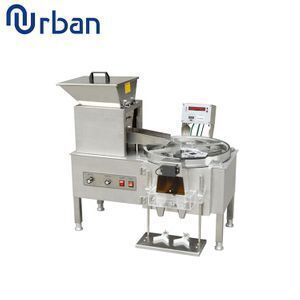

URBAN YL-2 Tablets Pill Capsule Filling Capping Machine And Small Automatic Tablet Counting Capsule
-
Supplier: Wenzhou Urban Machinery Co.,Ltd -
Region: Zhejiang, China -
Contact: Ms Coli Zhan -
Price: $3400.00 /set -
Min. Order: 1 set
| Brand Name: | URBAN; | Dimension(L*W*H): | 71*72*84cm; |
| Weight: | 50KG; | Package Preview: | https://sc02.alicdn.com/kf/HTB1AUQkaW61gK0jSZFlq6xDKFXa9.jpg_640x640.jpg,https://sc01.alicdn.com/kf/HTB1icggaVT7gK0jSZFpq6yTkpXas.jpg_640x640.jpg; |
| Selling Units: | Single item; | Power: | 100KW; |
| Applicable Industries: | Manufacturing Plant; | Delivery Time: | 15 work days; |
| Voltage: | 110-220V 50HZ-60HZ; | Local Service Location: | United States,Pakistan,India,Thailand,South Korea,Bangladesh,Nigeria; |
| Key Selling Points: | Easy to Operate; | Condition: | New; |
| Single package size: | 44X37X58 cm; | Minimum Order Quantity: | 1; |
| Production Capacity: | 1000-2000; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Showroom Location: | Thailand; | Capacity (pcs/h): | 120000 pcs/h; |
| Usage: | Capsule & TABLET; | Package Type: | Free fumigation in wooden cases. The packing size si YL-2A .Please contact customer service for the actual weight..; |
| Dimension: | 81*72*84cm; | Warranty: | 1 year; |
| Power(W): | 100Kw; | Voltage: | 110-220V 50HZ-60HZ; |
| Certification: | CE ISO9001 GMP; | Place of Origin: | Zhejiang China; |
| After Warranty Service: | Video technical support,Online support; | After-sales Service Provided: | Online support; |
| Power (kW): | 100; | Single gross weight: | 29 KG; |
| Certification: | GMP; | Weight (KG): | 50; |
The Packing Parameters Are Size of YL-2A. Consulting Customer Service on Actual Delivery
Feature
1. The number of particles can be set arbitrarily from 1-9999.
2. Vibrating feeding and rotary cutting design, the feeding speed can be adjusted infinitely for manual bottle placement.
3. The inside of the machine is equipped with a dust suction channel, which can be connected to a vacuum cleaner to absorb dust.
4. Photoelectric sensing technology, the particle precision is over 99.7%.
5. No need to change the mold, the tablets and capsules can be adjusted at will.
6. GMP compliant.
Operating Steps
1. Check the disc to make sure there are no tablets or other debris.
2. Pour the tablets into the disc, make sure not too full.
3. The feed opening set into a plastic bag.
4. Adjust the height of the lift plate.
5. Turn on the power; check whether display of detection sensitivity (sensitivity adjustment refer to Troubleshooting).
6. Set number, such as inventory is set in 1000 or more.
7. Return to zero.
8. Turn vibration switch, adjust vibration, note whether tablets on the disc are one by one ordered, and not overlapped.
9. When the tablet counting is finished, it will automatically count the other side.
10. Please note that whether sensitivity indicator flashes normally in operation, and do sampling often; if abnormal should immediately stop the machine.
11. When operating please make sure not so many tablets are poured into the disc, so that they are not overlapped and wrong counted.
12. Avoid placing the machine near the windows, outdoors, or in the sun.
Parameter
Product Name | URBAN YL-2 Tablets Pill Capsule Filling Capping Machine And Small Automatic Tablet Counting Capsule |
Model | YL-2 |
Voltage | 110-220V 50HZ-60HZ |
Weight | 50kg |
Power | 100KW |
soft capsule size | 6-22mm(more than 6mm ) |
Output | 1000-2000 |

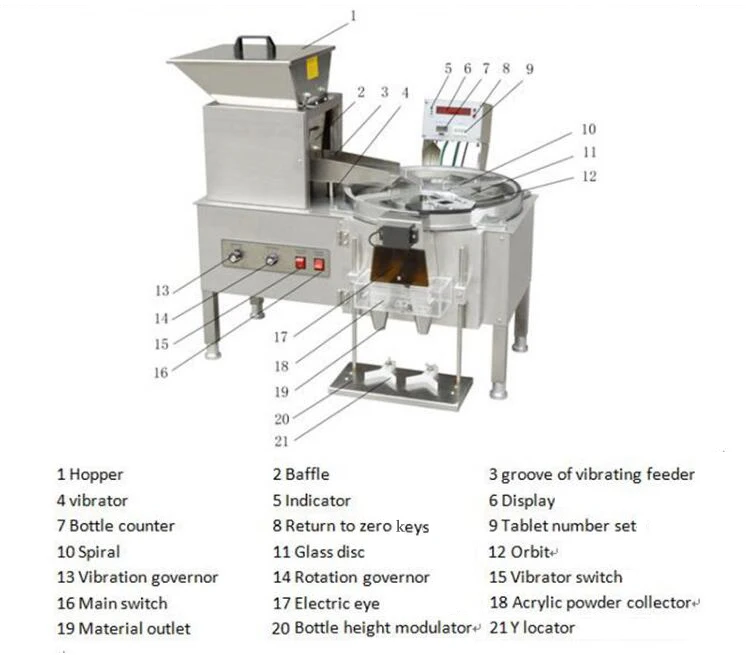

Detailed image
| Picture |  |  |  |
Model | YL-2 | YL-4 | YL-2A |
Dimension | 81x72x84cm | 98x79x93cm | 44x37x58cm |
Voltage | 110-220V 50HZ-60HZ | 110-220V 50HZ-60HZ | 110-220V 50HZ-60HZ |
Weight | 50kg | 75kg | 20kg |
Power | 100KW | 100KW | 100KW |
Output | 1000-2000 | 2000-4000 | 500-1000 |
Thanks for your visiting! Want to learn more and get lastest price?
Please send your inquiry details in the below, Click " Send " Now, we are waiting for you!
Many customers have visited the factory and reached a deal with us.
Welcome to our factory!
Click For More Information !!!
Q1:Are you manufacturer or trading company?
A1: We are manufacturer with own factory and exporting department.
Q2: What’s the lead time of your machine?
A2: Normally it’s about 30~45 working days.
Q3: What’s the payment terms?
A3: 30% deposit TT, 70% paid before shipment; or L/C, Western Union.
Q4: Can we check machine before order?
A4: Yes, welcome to visit our factory and check machine anytime.
Q5: Is it difficult to install the machine ?
Q5: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
Q6: Does the machine power voltage meet buyers' factory power source?
A6: We can do it as your request.
-
