Fully-automatic BiB Filling Machine Bag in Box Filler

Supplier: Calmus Machinery (Shenzhen) Co., Ltd.
Region: China
Contact: Mr Gavin CHEUNG
Price:
Min. Order: 1 piece

Click here to contact

Product details

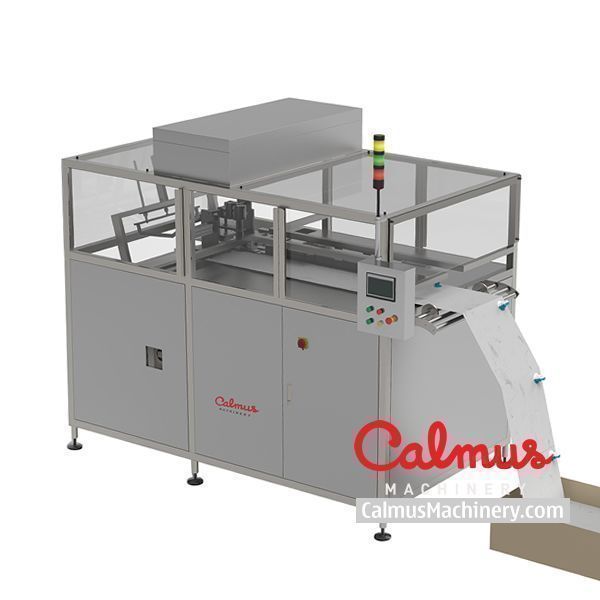

Fully-automatic BiB Filling Machine | Web-Fed Bag-in-Box Filler

This China-made Fully-automatic BiB Filling Machine | Web-Fed Bag-in-Box Filler is especially for filling spout bags with a wide range of liquids like drinking water, post mix syrup coke, edible oil and beverage. It features fully-automatic by employing PLC and touch screen control system. The whole process of continuous bags feed, decapping, vacuumization (optional), nitrogen injection (optional), filling, capping, cutting apart from continuous bags and transiting to the conveyor can be completed automatically, no human operation required.

Features:

1. Fully-automatic (automatically and continuously feeding bags, filling, capping, cutting apart and conveying).

2. Easy to use. The touch-screen control system makes operation easy.

3. Electromagnetic flow meter system improves filling precision and truly achieves the quantitative filling.

4. Grade 304 stainless steel body and 316L stainless fluid-contact parts.

5. Options of vacuumization and nitrogen injection available for specific products use.

Specifications:

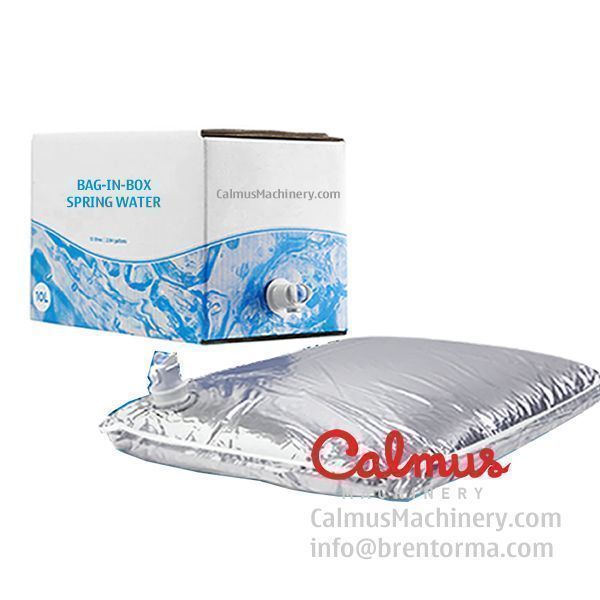

Applicable bags: pre-cut continuous module or web type spout bags, 2-25 litres. (Spout is called Gland or Flange too.)

Filling capacity:

500 bags/hour for 5 litres

400 bags/hour for 10 litres

300 bags/hour for 20 litres

Power: 3.0kW

Compressed air: 6-8bar, 1.5m3/h.

Procedures:

1. Automatically feed bags.

2. Automatically decap, fill, cap and cut bags apart.

3. Automatically exit filled bags.

Made in China, but built at high quality level.

We also supply the whole Bag-in-Box Filling and Packaging Line which includes the Bag-in-Box Filling Machine, Carton Erector, Bag Inserter and Box Sealer, fully-automatic.
