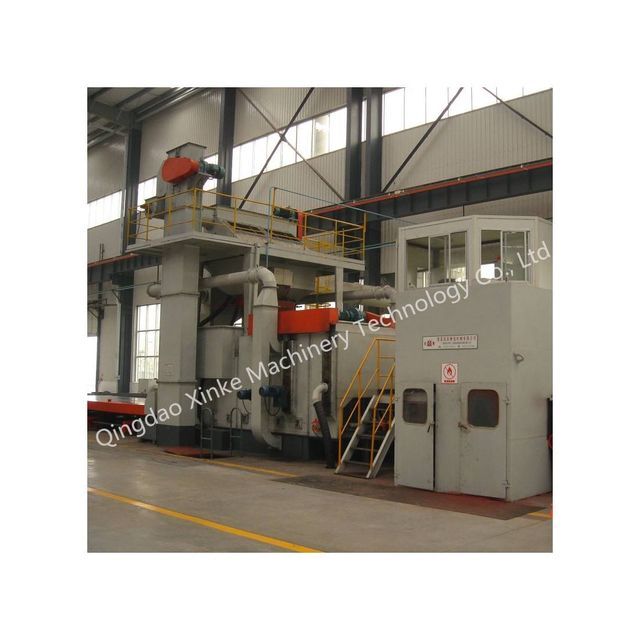

Q69 Roller Continuous Through Shot Blasting Machine for Welding Structural Steel Surface Shot Blasting

Supplier: Qingdao Xinke Machinery Technology Co., Ltd.
Region: Shandong, China
Contact: Mr Jack Fu
Price: $35000.00 /set
Min. Order: 1 set

Click here to contact

Product details

use:	polishing, deburring	strength:	78.3kW
Burner:	shot blaster	Health status:	new
Supply capacity:	50 sets per year	Video external inspection:	if
Inlet size:	1200*400mm	Type of machine:	grinder
Core components:	PLC, engine, bearing, gearbox, motor	Motor brand:	international well-known brand
Main selling point:	remote control	Applicable industries:	Building materials stores, manufacturing plants, machinery repair shops
Effective cleaning width:	1200mm	Cleaning piece length:	1200-12000mm
Mechanical test report:	Not available	Packaging Details:	Nude photos or as per customer request
Shipping speed:	0.5-4m/min	Marketing Type:	normal product
Warranty:	1 year	Core Components Warranty:	1 year
port:	Qingdao	Material:	Forgings and Castings
Effective cleaning width:	800-3000mm	Cleaning Type:	Motor driven shot blasting
Showroom location:	Italy, France, Germany, Vietnam, Philippines, Brazil	Dimensions (LWH):	custom made
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	brand:	Qingdao Shinco
Weight (kg):	20000 kg	Roller speed:	0.5-4 m/min
Abrasive flow:	4*250kg/min	Thickness of cleaning steel plate:	3-60mm
place of origin; place of origin:	Shandong China	Packaging Preview:
gasoline:	electrical	Cleaning process:	Abrasive/Sand/Grit

thing	Q6910	Q6912	Q6915	Q6920	Q6925	Q6930	Q6940
Effective cleaning width (mm)	1000	1200	1500	2000	2500	3000	4000
Inlet size (mm)	1000*260	1200*400	1500*400	2000*400	2500*800	3000*800	4000*400
Length(mm)	1200-12000	1200-12000	1200-12000	1200-12000	3000-12000	2400-12000	4500-18000
Roller conveying speed (m/min)	0.5-4	0.5-4	0.5-5	0.5-4	0.5-4.5	0.5-4	2-8
Thickness(mm)	4-60	4-60	4-60	4-60	4-60	4-110	4.5-100
Shot blasting capacity (kg/min)	4*250	4*250	4*250	4*250	6*250	6*360	8*360
Initial capacity (kg)	4000	4000	4000	4500	4500	8000	11000
Roller brush height (mm)	Do not	200	350	450	600	850	900
Ventilation volume (m³/h)	12000	17560	19000	19550	27758	28050	38000
Total power (kw)	78	78.3	113.5	156.6	224.55	204.8	293.6

1. How many days will it take to produce this machine?This is our standard machine and we have some in stock for immediate delivery upon your deposit.2. What does your factory do in terms of quality control?From the start of production to the end, we take quality very seriously, each machine is fully assembled and carefully tested before shipping.3. What is your machine quality guarantee?The quality assurance period is one year, and we choose components from world-renowned brands to keep our machines in perfect working condition.4. Can installation and debugging be carried out overseas? how much time is required?Yes, we provide overseas service, but customers need to pay the engineer's tickets and hotel, food. Small machines usually take about 20 days.
