OEM China Belt Conveyor Idler Roller Bearing Steel Roller for Belt Conveyor

Product details
type:TD75/DTII/TK/TKII/CEMA/JRCPackaging Details:wooden box/iron pallet/iron box
Shaft Material:C45 steelWarranty:1 year
Health status:newLocal service location:not any
Marketing Type:normal productVideo external inspection:if
place of origin; place of origin:Zhejiang, Chinaproduct name:Belt conveyor idler idler
port:Ningbo/Shanghaipayment terms:L/C,T/T,Western Union,MoneyGram,Paypal
structure:Weld/Labyrinth SealApplicable industries:Building Materials Store, Mechanical Repair Shop, Manufacturing Plant, Construction Engineering, Energy & Mining, Quarry
Original Equipment Manufacturer:Accept OEMSupply capacity:20000 pieces per month
Tube:Carbon Steel (Q235)/Stainless Steel/NylonShowroom location:not any
Mechanical test report:ifPackaging Preview:
After Warranty Service:Online support, spare partsFunction:Material Handling Accessories
brand:feed rollercolor:Customer requirements
Product Description

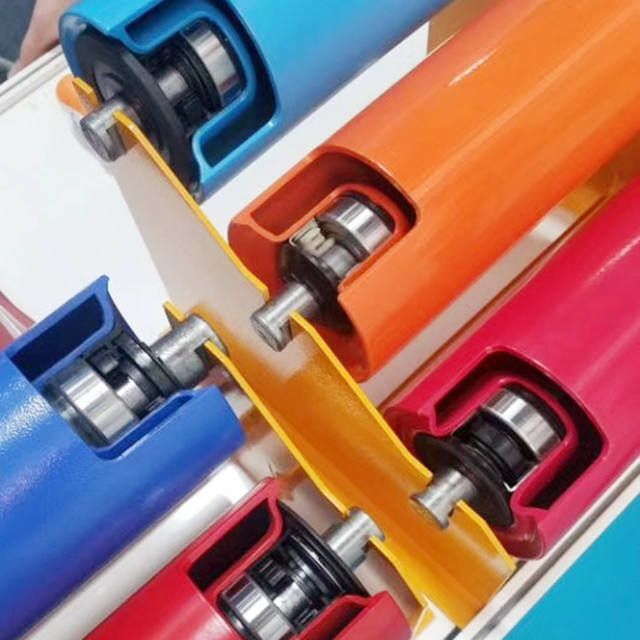

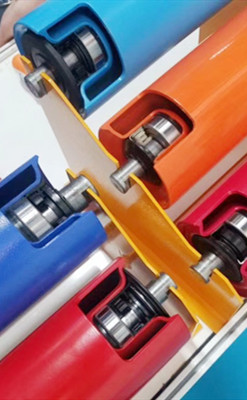

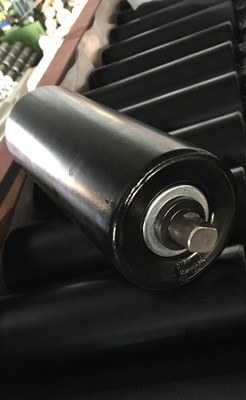

Conveyor Roller / Conveyor Idler / Bearing Idler

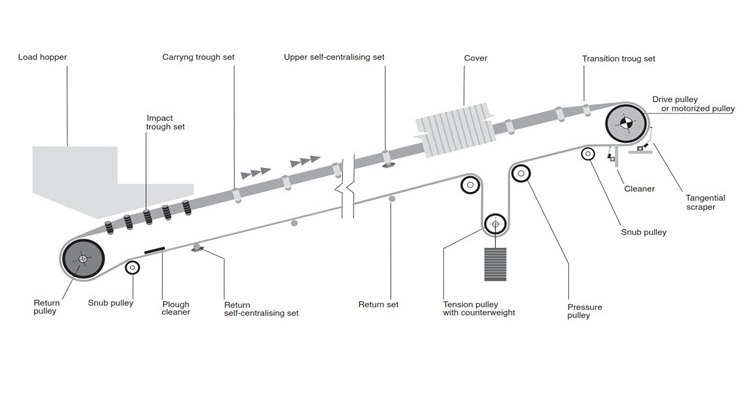

Application: Belt Conveyor (Bulk Material Handling)
Application environment: quarry, wharf, coal mine, batching plant, steel plant...
Materials to be conveyed: coal, stones, minerals...

The rollers support the belt and guarantee free and easy rotation under load. They are the most important part of the conveyor and represent considerable value across the coast. Correct drum size is the basic guarantee of plant efficiency and economical use.

Features:
Our company adopts international standard design and manufacturing technology to improve the production and design of idlers to a higher level. The idlers produced by our company have small rotating resistance, long service life, small maintenance workload and strong bearing capacity. 1. The company adopts precision welded steel pipes for idlers. Roundness is controlled within special tolerances. 2. The axles are made of high-quality cold-drawn steel according to standard tolerances. 3. The bearing seat is made of imported cold-clamped steel for many times.
4. The roller shell and bearing seat are welded together by automatic welding machine. then form a whole
High strength structure. 5. Bearings are large roving cracks, deep groove balls, and double-sealed bearings.
General technical data
Do not.
part
describe
1
tube
Steel (Q235), Stainless Steel
2
axis
Uncoated steel (C45 steel), stainless steel
3
Bearing housing
Stamping (Steel)
4
bearing
Precision ball bearing, 2RZ, C3
5
seal
Labyrinth seal (nylon)
6
surface treatment
Anti-rust oil, paint, powder coating, galvanized sheet, rubber lagging, PU

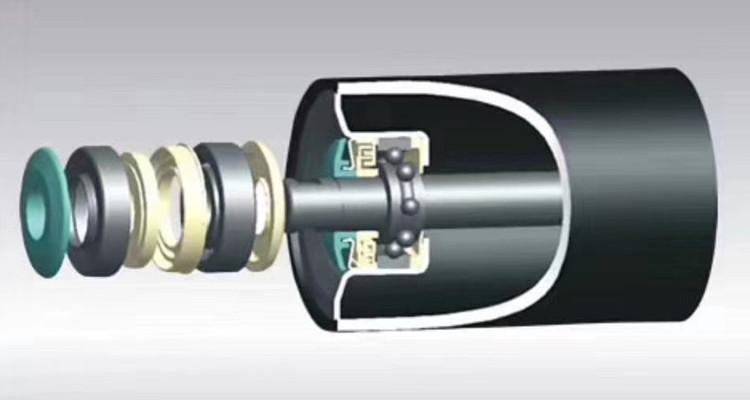

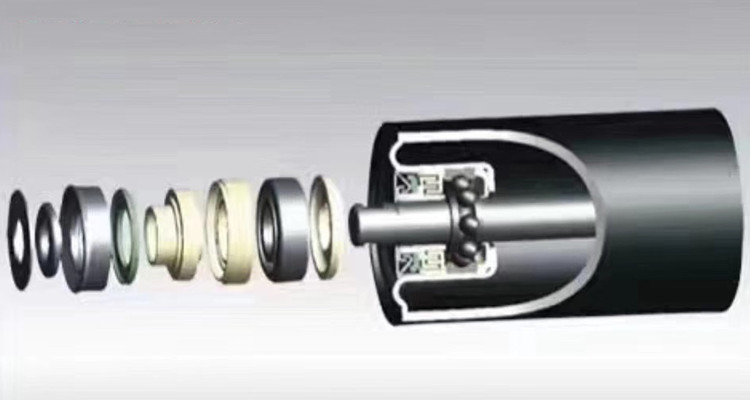

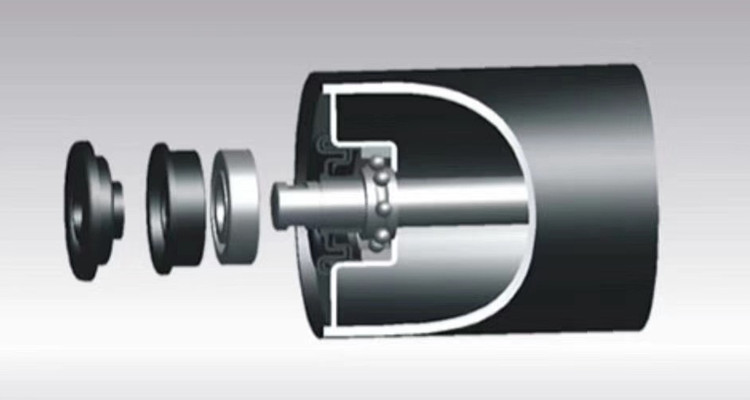

Structure diagram
Pipe diameter
axis
tube length
Ø20/6204
Ø25/6205
Ø25/6305
Ø30/6306
Ø50




100-1400
Ø63.5




100-1400
Ø76




100-1400
Ø89




100-1800
Ø102




150-1800
Ø108




150-1800
Ø114




150-1800
Ø127




150-1800
Ø133




150-2000
Ø140




150-2400
Ø152




150-2400
Ø159




150-2400
