Pallet Forks for Skid Steer Loaders

Product details
Material:40CrSupply capacity:6000pcs tilt fork per month
port:Qingdaobrand:Standard Forklift Forks
Video shipment inspection:ifsilicon%:0.17-0.37 double
Showroom location:not anyC%:0.37-0.44 double forklift fork
Surface hardness:255-385HB doubleApplicable industries:Mechanical repair shops, manufacturing plants, farms, retail, construction, energy and mining, forklift parts
Name:Pallet Forks for Skid Steer LoadersWarranty:1 year
Package preview:payment terms:L/C, T/T
After warranty service:online supporttype:forklift fork
Certification:ISO9001 CE SGSMechanical test report:if
Local service location:not anyMarketing Type:normal product
Packaging Details:Seaborne tipping fork palletstensile strength:935MPA/MM Dual
application:1-8 tons forkliftOrigin:Shandong China
color:Black

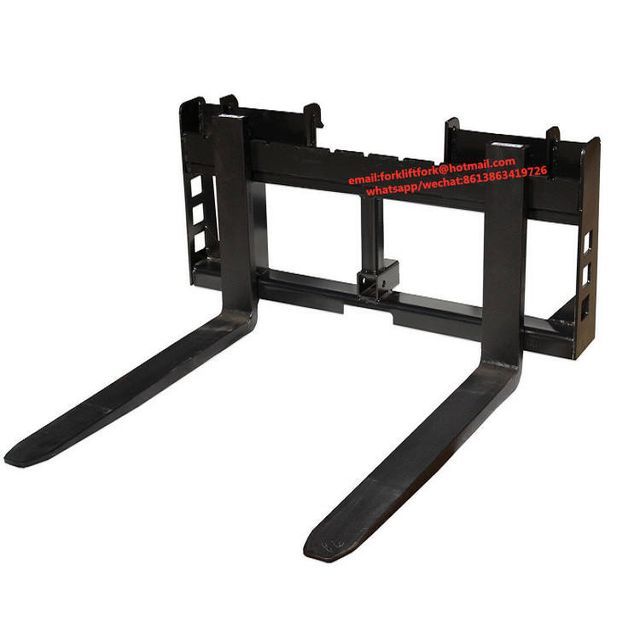

Pallet Forks for Skid Steer Loaders

Forklift Parts



Product Description

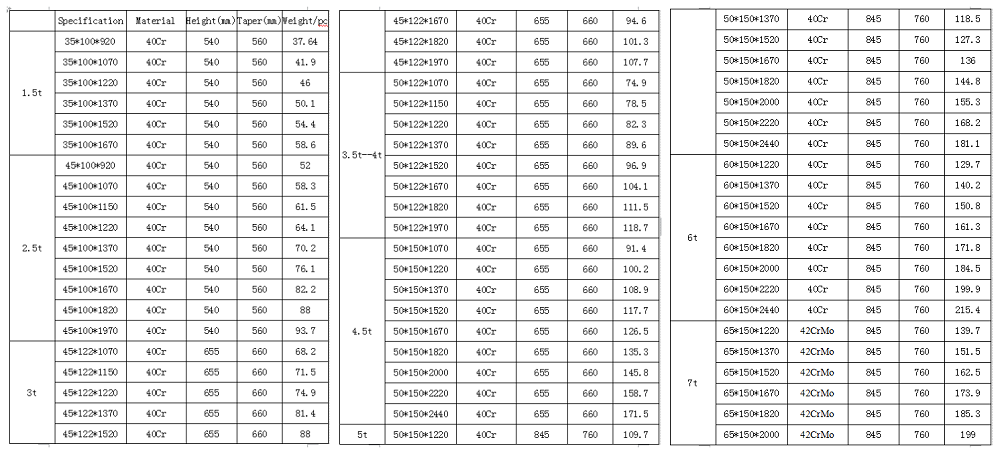

Forklift fork specifications:

Our forks range in capacity from 0.5 ton to 80 ton.

Section size: 25x76mm; 50x50mm; 32x100mm...250x500mm, length from 600mm to 4500mm.

(Note: These are a small selection of the specifications we can produce, not all)

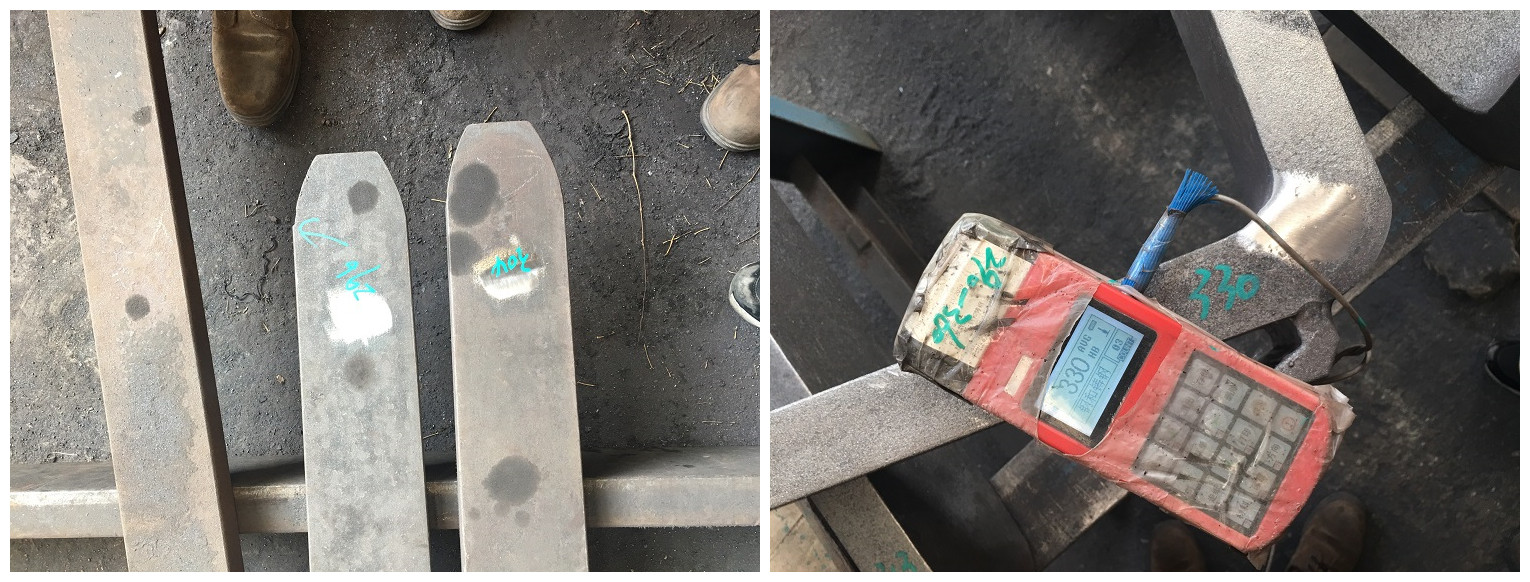

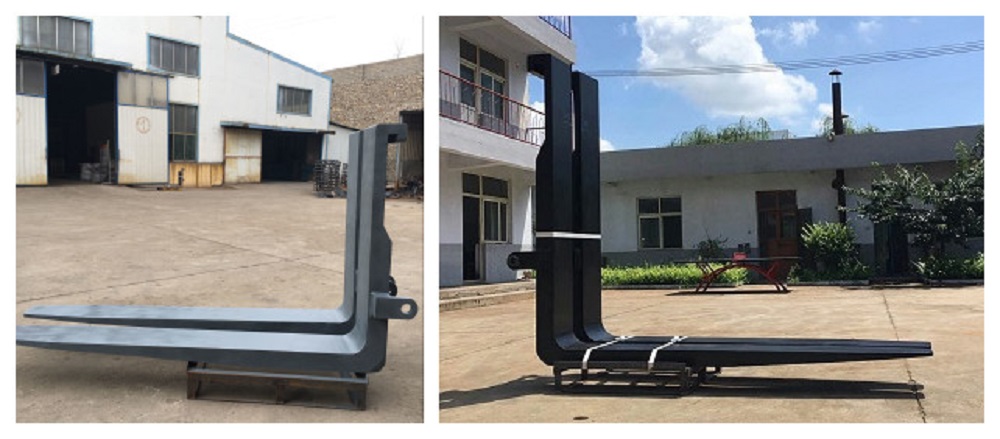

product inspection:

Product Details:

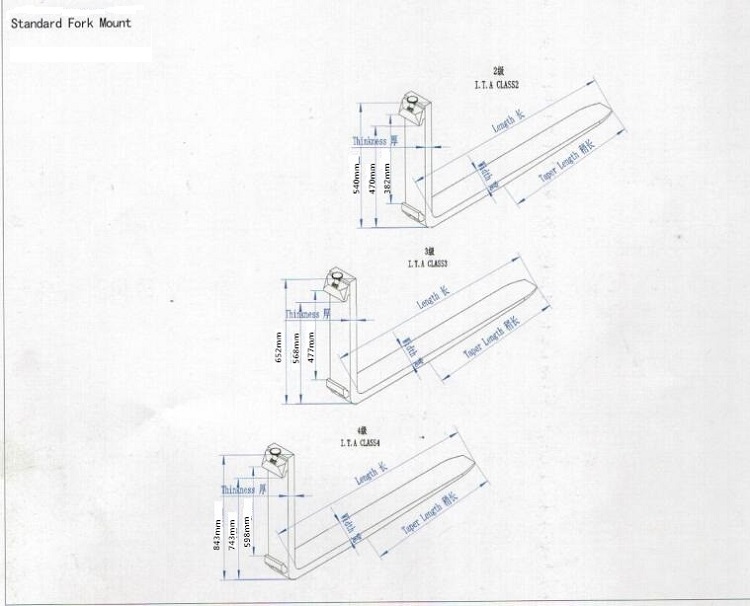

Standard fork:

Technology and Quality

 General

1. Raw materials: purchased from entrusted suppliers, third-party inspection.
2. Regular training of experienced technicians and workers to maintain stable quality.
3. ISO 2328 and ISO2330 standard production process and full heat treatment.

4. 3 static overload tests

Fork: 15B37, 33MnCrTiB, 42CrMo, 40Cr, 35CrMo

Hanger: 20Cr

Pipe: 20#

chemical composition

Part No C% silicon% manganese% chromium% molybdenum%
15B37 0.30~0.35 0.15~0.35 1.25~1.50 0.30~0.60
33MnCrTiB 0.30~0.35 0.15~0.35 1.25~1.50 0.30~0.60
 40Cr 0.37~0.45 0.20~0.40 0.50~0.80 0.80~1.10
42CrMo 0.38~0.45 0.20~0.40 0.50~0.80 0.90~1.20 0.15~0.25
  35CrMo 0.32~0.40 0.20~0.40 0.40~0.70 0.80~1.10 0.15~0.25
20Cr 0.17·0.24 0.17~0.37 0.50~0.80 0.70~1.0
20# 0.17~0.24 0.17~0.37 0.35~0.65 0.25

Welding: Ar+CO2Protect

Mechanical behavior:

  Part No Yield strength (σb) Tensile strength (σb)    Shock (-20° CV) Surface hardness
15B37     ≥784Mpa         ≥931Mpa           ≥27J    HB 285~363
33MnCrTiB    ≥784Mpa      ≥931Mpa            ≥27J      HB 285~363
   40Cr    ≥785Mpa     ≥981Mpa             ≥27J      HB 285~363
 42CrMo       ≥932Mpa         ≥1079Mpa           ≥27J      HB 285~363
  35CrMo      ≥834Mpa      ≥981Mpa              ≥27J      HB 285~363

After shot blasting each fork must be inspected for cracks.

Production standard: ISO 2328
Inspection standard: ISO2330/2002
Painting: Black or as per request.

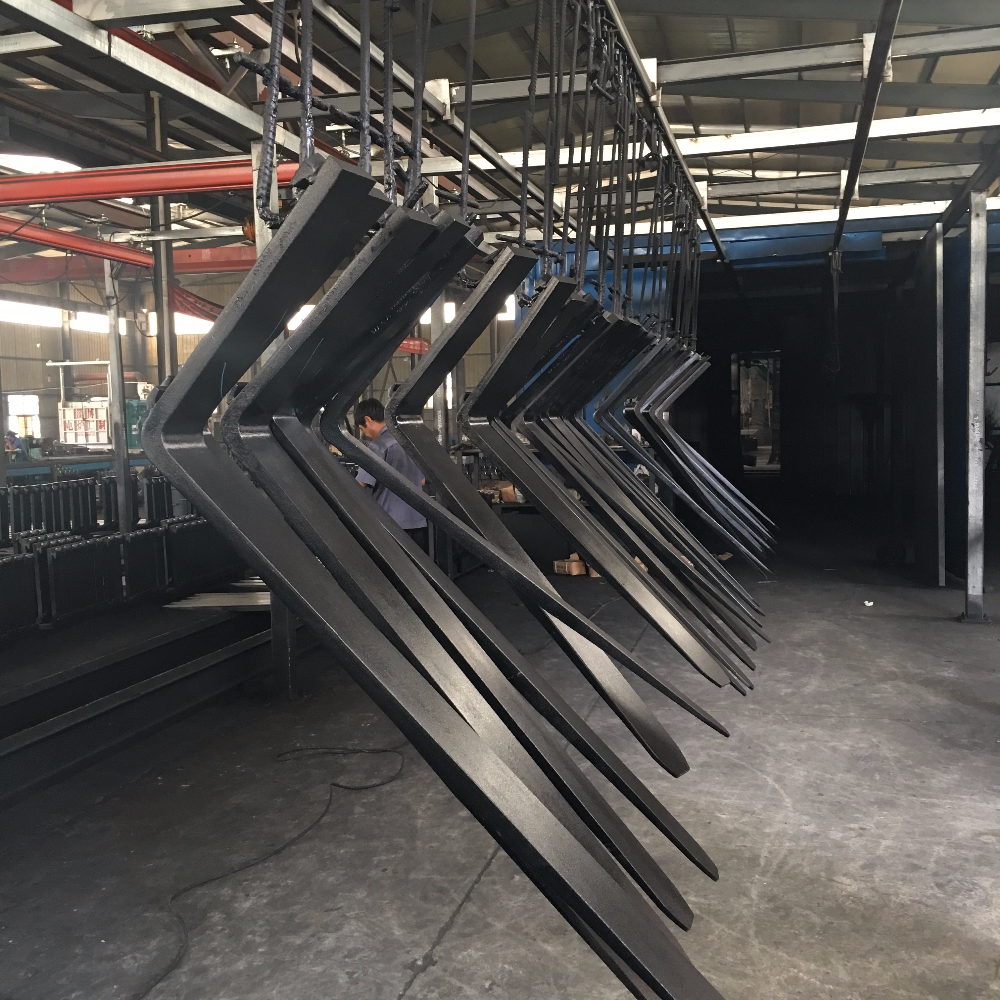

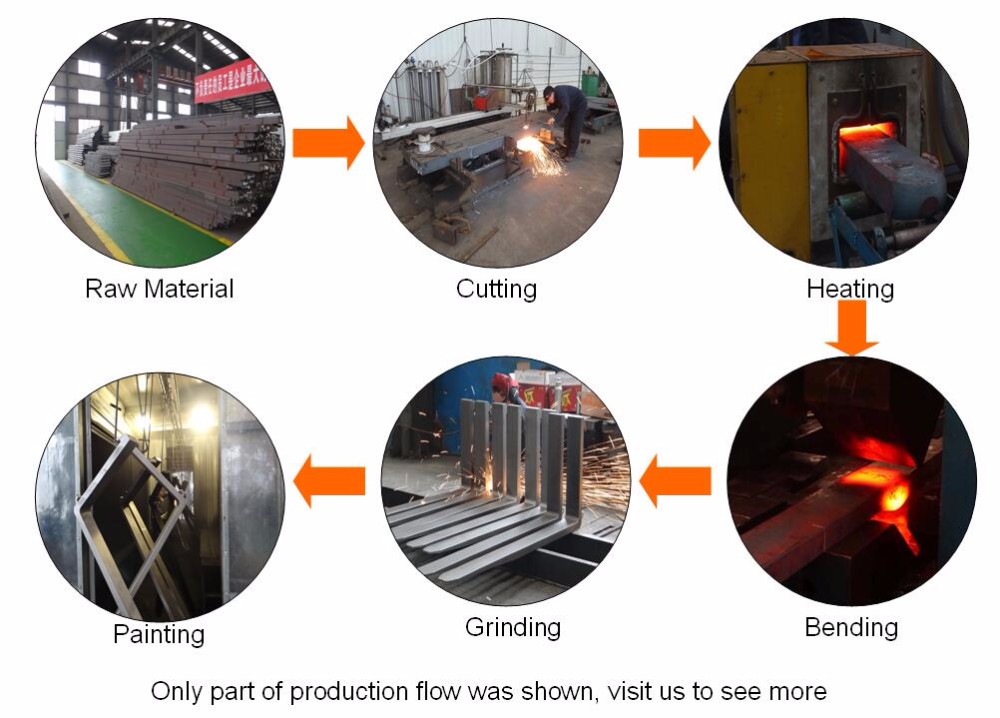

Production Process



We can produce different types of forklift forks:

Blank type fprklift forks

Shaft forklift fork

port forklift fork

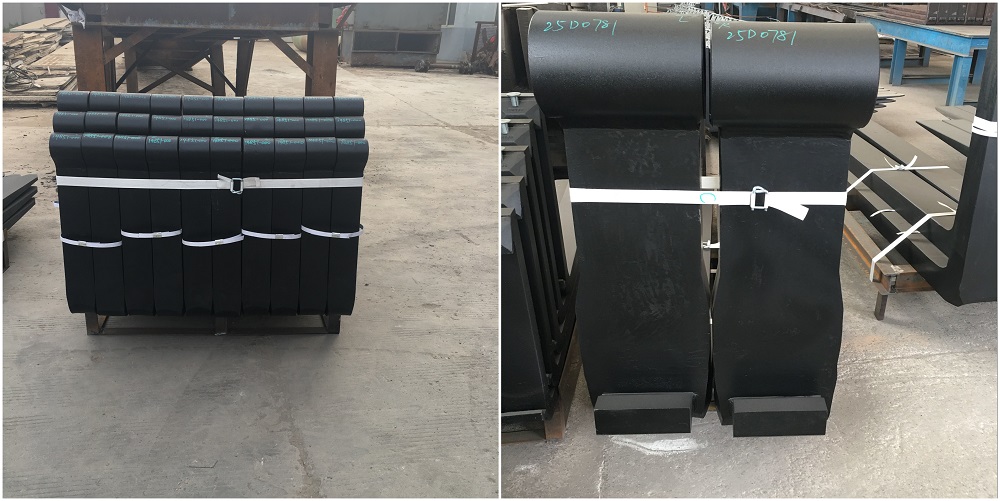

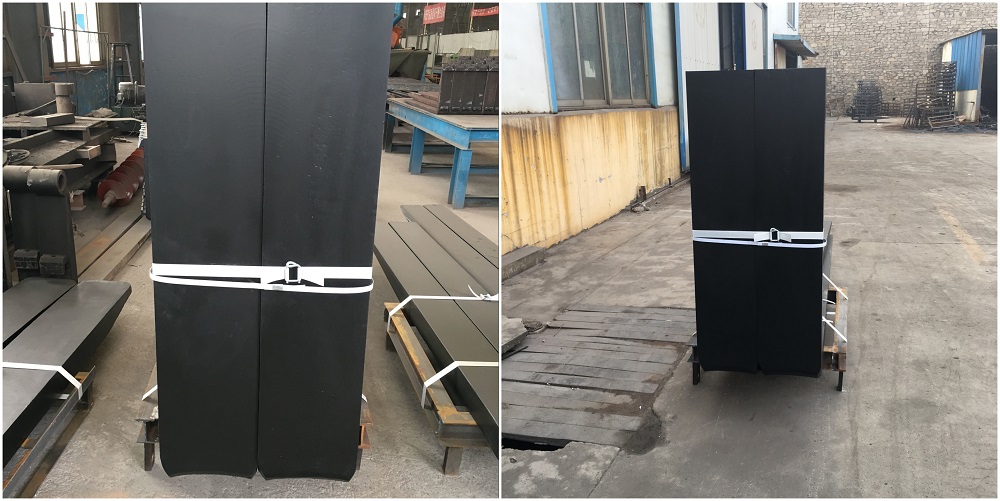

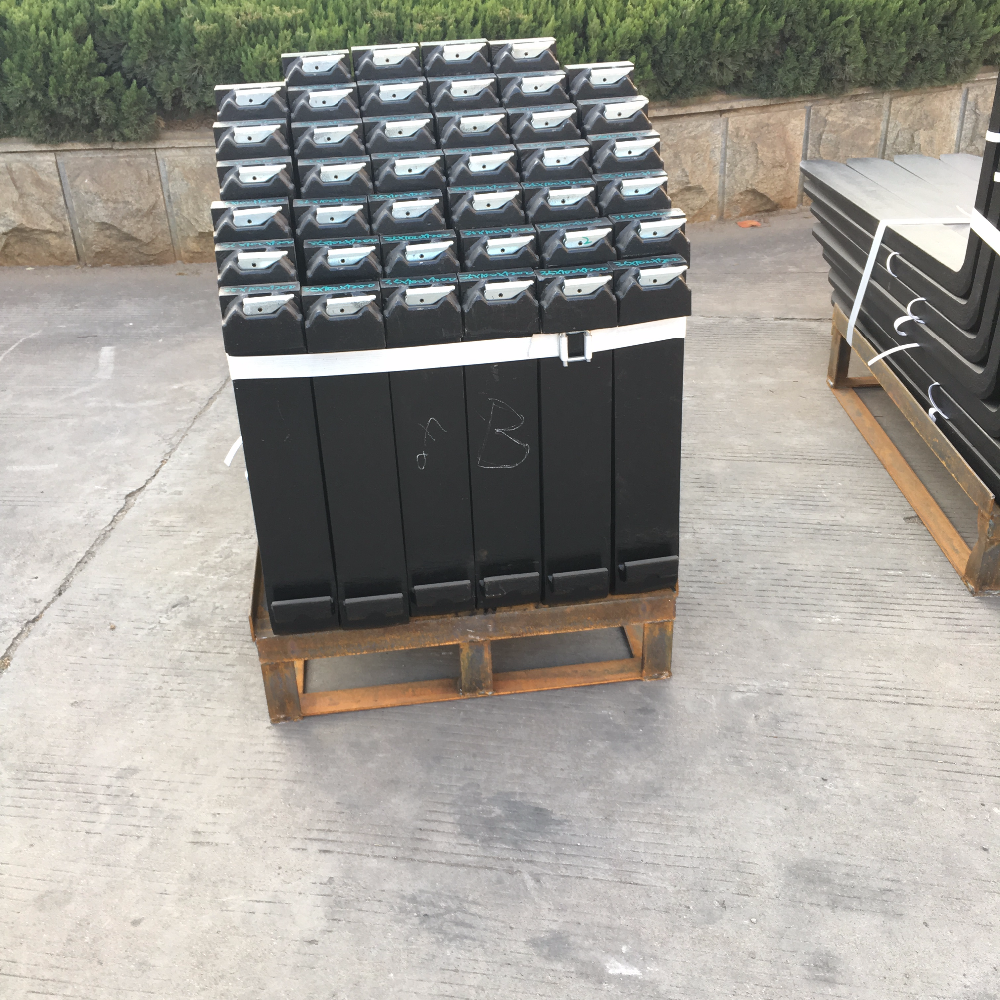

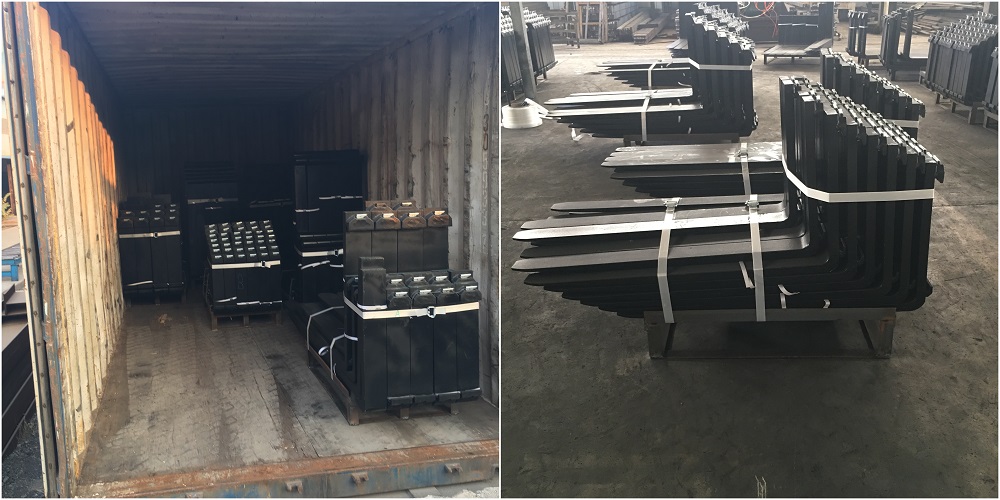

Packaging and Shipping

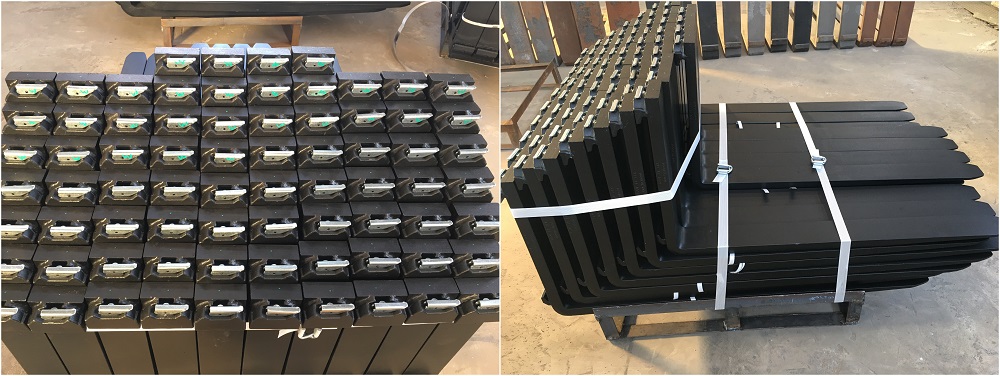

Packed on seaworthy steel pallets.

Optional plastic wrap

2.5 tons max per pallet
