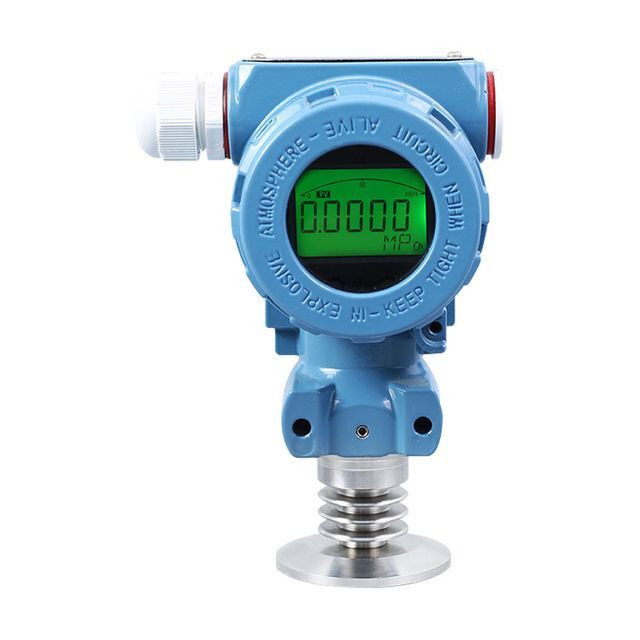

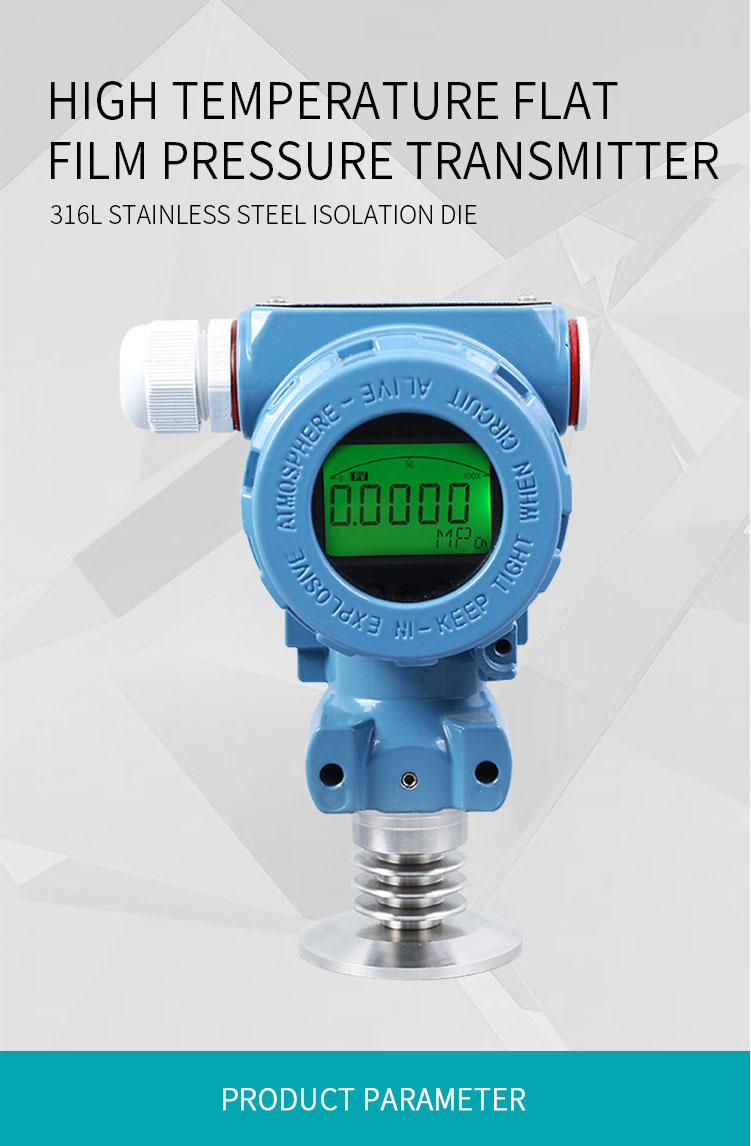

High temperature flat film pressure transmitter used in pipeline field

Product details
Zero temperature drift:0.5%FS(MAX)place of origin; place of origin:Jiangsu, China
output signal:4-20mA RS485power supply:9-36VDC
brand:SetzerOperating temperature:-20-80°C
Compensation temperature:-10-70°CWarranty:1 year
Protection class:IP65Custom Support:OEM
payment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGramPackaging Details:carton
Installation interface:50.5KFSupply capacity:5000 sets per month
model:SAC-132P-Kport:Shanghai
Long term stability:≤0.2%FS/yearSensitivity temperature drift:0.5%FS(MAX)
Pressure overload:≤1.5 times
Product Description





Measuring range -100~0~10KPa~4MPa
pressure type Gauge (default), Absolute
output signal 4-20mA (default), RS485
power supply 12~24VDC
Accuracy class 0.5%FS (default), 0.2%FS
Compensated temperature -10~70℃
Operating temperature -20~80℃
Zero temperature drift 0.5%FS(MAX)
Sensitivity temperature drift 0.5%FS(MAX)
pressure overload ≤1.5 times
mechanical vibration 20G(20-5000HZ)
sampling time 20 times per second
long term stability ≤0.2%FS/year

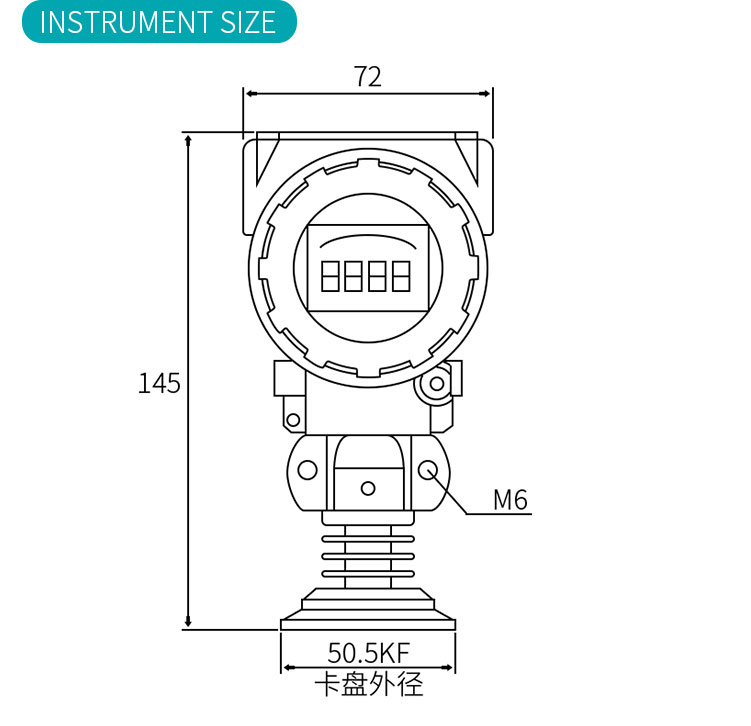

Installation interface 50.5KF
Protection class IP65
media compatible Fluid media compatible with 316L stainless steel

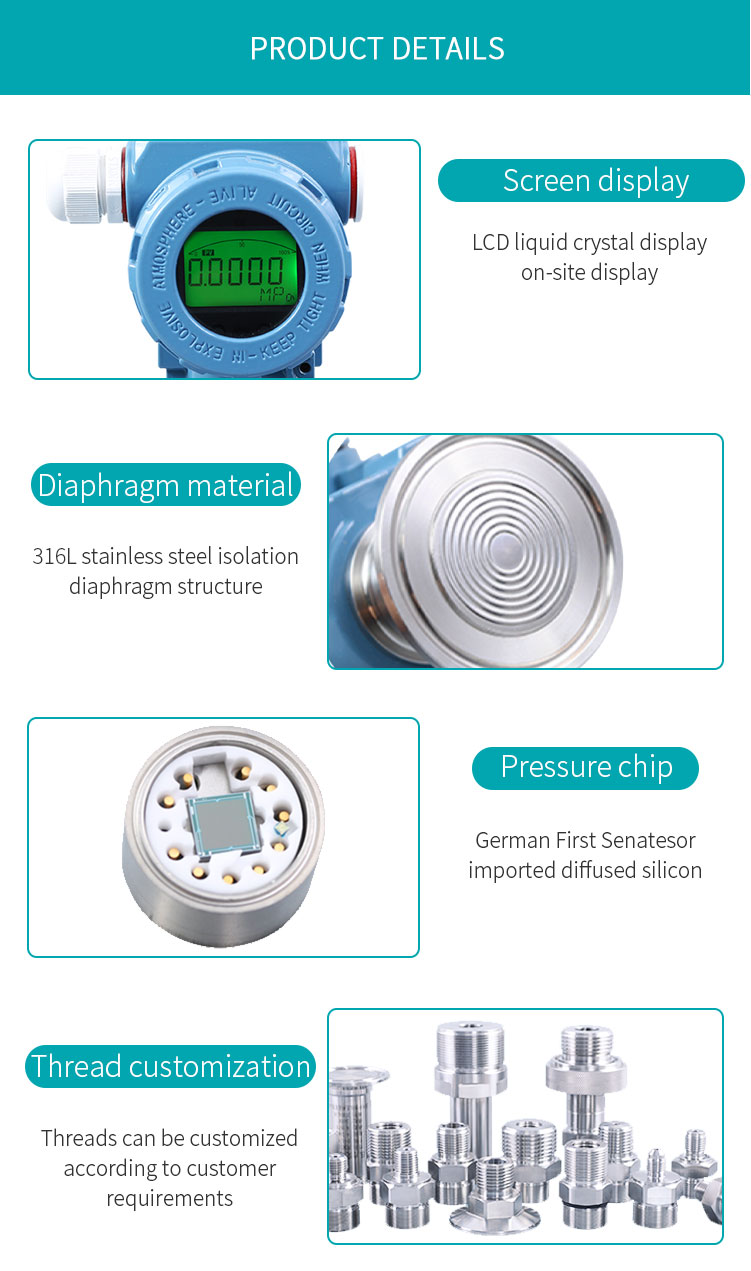

shell material Low copper aluminum alloy, diaphragm 316L
